1 - Output Shaft Rear Bearing

2 - Snap Ring

3 - 5th Driven Gear

4 - 4th Driven Gear

5 - Gear Shaft Bushing

6 - 3rd Driven Gear

7 - 2nd Driven Gear

8 - 2nd Needle Roller Bearing

9 - 1st-2nd Synchronizer Outer Race

10 - 2nd Synchronizer Ring Set

11 - Snap Ring

12 - 1st-2nd Synchronizer Gear Hub

13 - 1st Synchronizer Ring Set

14 - 1st Driven Gear

15 - 1st Needle Roller Bearing

16 - Output Shaft

17 - Output Shaft Front Bearing

17–

7

17

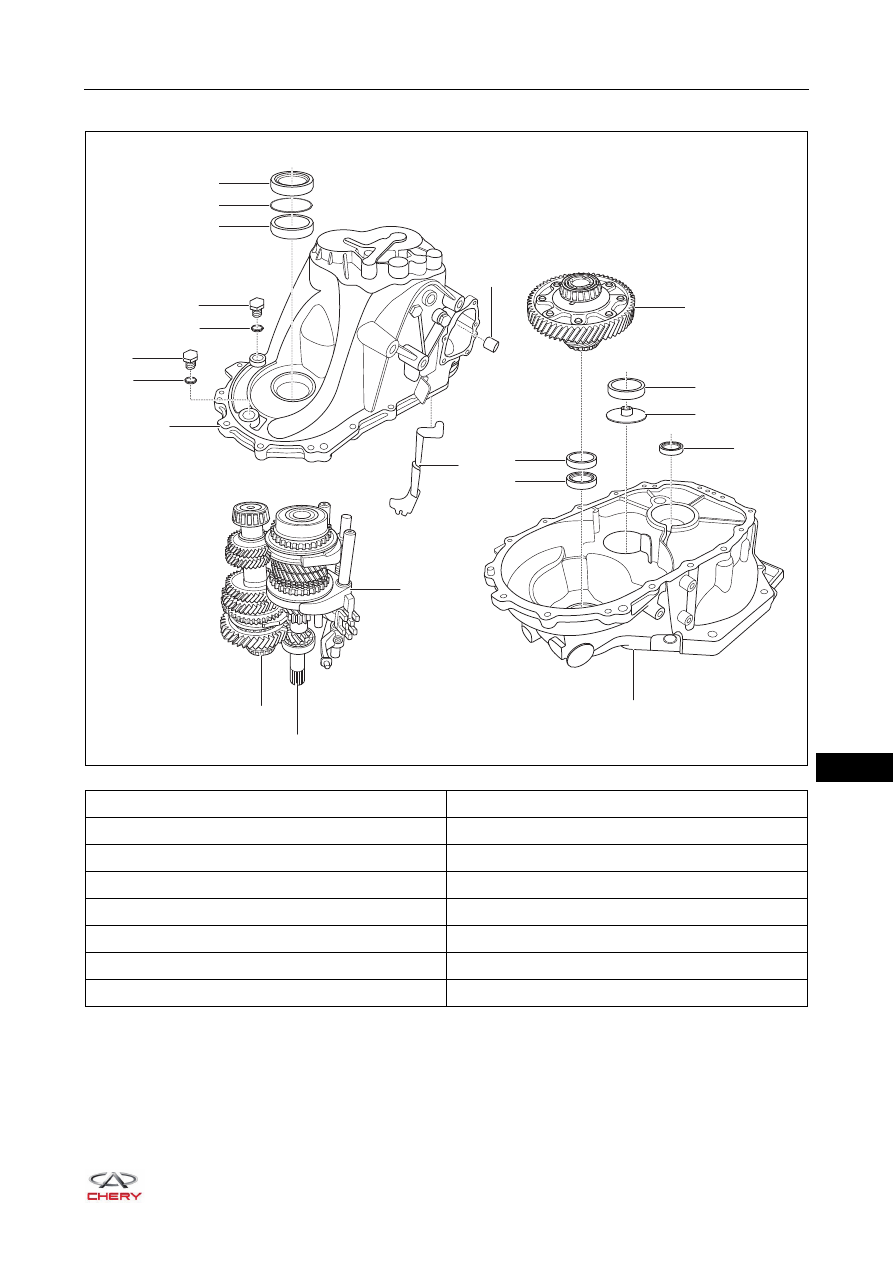

Transmission and Clutch Cases

1 - Linear Bearing

2 - Differential Oil Seal

3 - Bearing Outer Race

4 - Bearing Outer Race

5 - Oil Deflector

6 - Input Shaft Oil Seal

7 - Clutch Case

8 - Oil Guide

9 - Transmission Case

10 - Washer

11 - Transmission Retaining Bolt

12 - Washer

13 - Drain Plug

14 - Bearing Outer Race

15 - Adjustment Washer

16 - Differential Oil Seal

RT21170030

6

4

20

5

8

14

13

12

10

11

15

16

7

1

3

9

2

19

18

17

17–

8

17

Operation

This transmission has five forward gears and one reverse gear, which is achieved by three sets of
synchronizers and two shafts (input shaft and output shaft). All forward gears use conventional engagement,
and reverse gear uses a sliding idler gear device. 1st-2nd synchronizer is installed on the output shaft and
3rd-4th and 5th synchronizers are installed on the input shaft. The transmission will engage with its
corresponding gear hub separately when it is shifted to each different gear position, thus realizing the
transmission of power. Drive gear of final drive, which is on the output shaft, rotates driven gear of final drive
and differential assembly, thus propeller shaft is driven to turn wheels.

Specifications

Torque Specifications

Transmission Gear Ratio Table

Description

Torque (N·m)

Coupling Bolt Between Clutch Case and
Transmission Case

25 ± 2

Reverse Idler Gear Shaft Locating Bolt

40 ± 4

Coupling Bolt Between Gear Shift Mechanism and
Transmission Case

25 ± 2

Gear Shift Mechanism Locating Bolt

35 ± 5.25

Back-up Light Switch

20 ± 2

Shift Shaft Locating Bolt

35 ± 5.25

Gear Shift Control Mechanism Fixing Bolt

23 ± 2

Drain/Retaining Plug

40 ± 6

Shift Arm Bracket Bolt

25 ± 2

Reverse Lock Mechanism Fixing Bolt

18 ± 2

Reverse Gear Fork Fixing Bolt

25 ± 2

Transmission Lower Coupling Bolt

50 ± 5

Transmission Upper Coupling Bolt

60 ± 5

Engine Side Coupling Bolt

60 ± 5

QR525MHE

Gear

Gear Ratio

1st

3.583

2nd

2.053

3rd

1.379

4th

1.03

5th

0.821

Reverse

3.417

Final Drive

4.313

Speedometer

0.806

Type

Gear Ratio

Gear

17–

9

17

Daily Maintenance

Generally, it is not necessary to take special maintenance for transmission case. The commonest
maintenance is to change transmission oil. Gear lubricant for QR525MHE series transmission case must be
equivalent to GL-4 75W-90 grade or above. Applying incorrect lubricant will cause serious damage to the
transmission. Never use engine lubricant instead of transmission case lubricant. Please note that the lubricant
filling capacity is also strictly specified.

Filling method:

Park vehicle on service platform or lifter levelly without removing the transmission. Prepare a container to
recover used lubricant. Remove the transmission drain plug, and then drain the used lubricant completely. Be
sure to tighten the drain plug firmly after draining.
Loosen the retaining plug of transmission, add lubricant to QR525 transmission with a special filling device
until the lubricant is flowing out from the retaining plug, and then tighten the retaining plug.

Tools

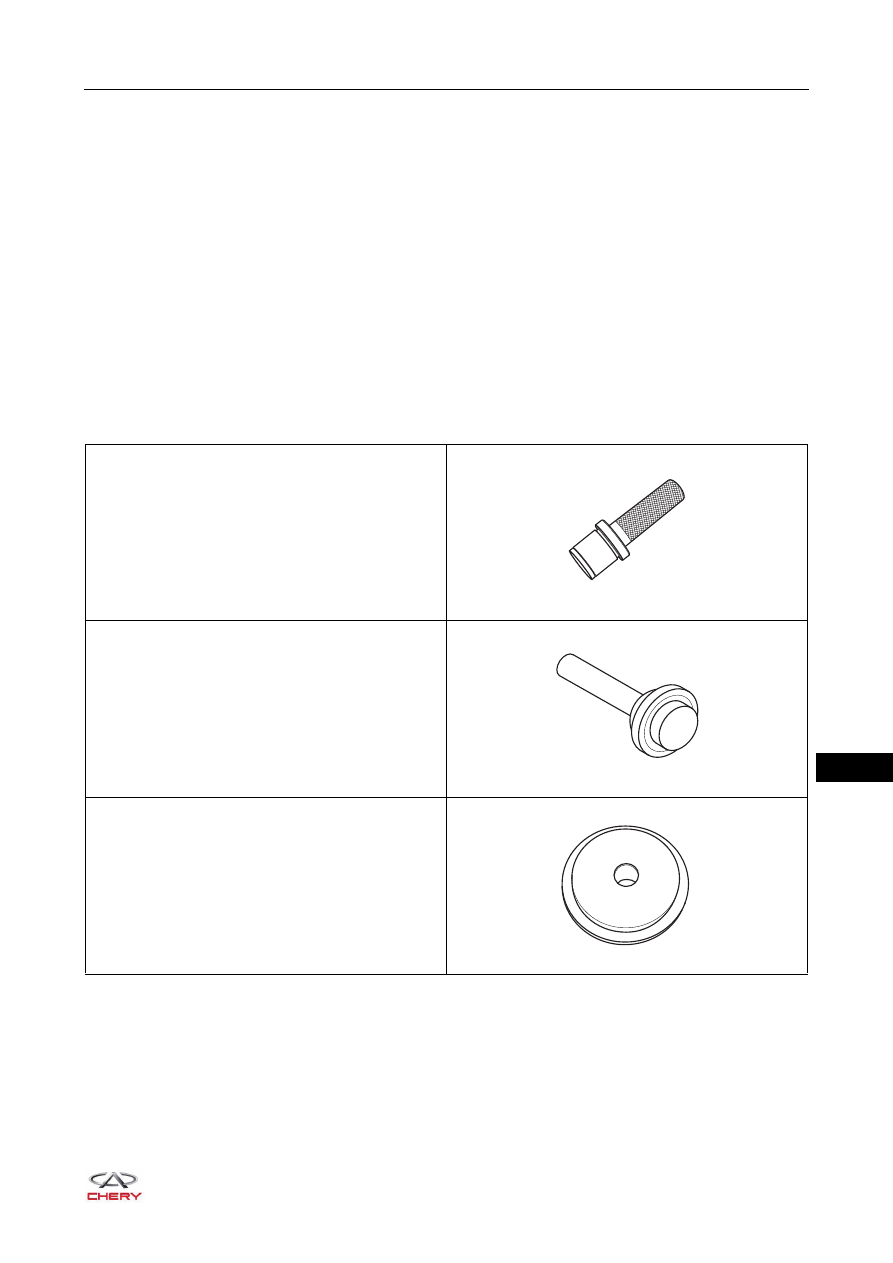

Special Tools

Input Shaft Oil Seal Installer

Differential Oil Seal Installer

Installer Joint

RCH0000008

RCH0000009

RCH0000010
