Ohmmeter

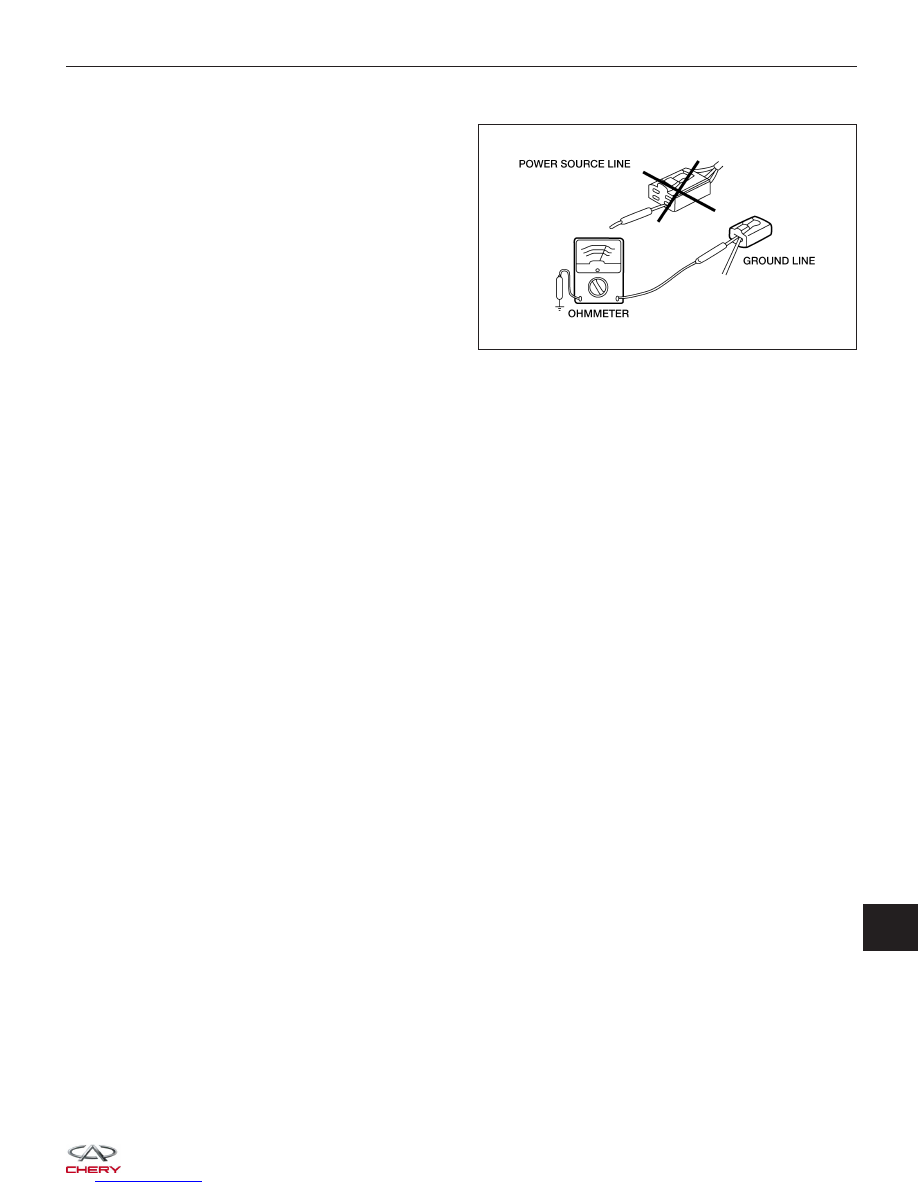

• The ohmmeter is used to measure the resistance

between two points in a circuit and to check for
continuity and short circuits.

CAUTION:
Do not connect the ohmmeter to any circuit
where voltage is applied. This will damage the
ohmmeter.

ELECTRICAL TROUBLESHOOTING TOOLS

BESM010028

ELECTRICAL REPAIR

Wire Repair

NOTE :
When splicing a wire, it is important that the correct gage be used.

1. Remove one-half (1/2) inch of insulation from each wire that needs to be spliced.

2. Place a piece of adhesive lined heat shrink tubing on one side of the wire. Make sure the tubing will be long

enough to cover and seal the entire repair area.

3. Place the strands of wire overlapping each other inside of the splice clip.

4. Using a crimping tool, crimp the splice clip and wires together.

NOTE :
Do not use acid core solder when making wiring repairs.

5. Solder the connection together using a soldering iron and rosin core type solder only.

6. Center the heat shrink tubing over the joint and heat using a heat gun. Heat the joint until the tubing is tightly

sealed and sealant comes out of both ends of the tubing.

Fuse Replacement

• When replacing a fuse, be sure to replace it with

one of the same capacity. If a fuse fails again, the
circuit probably has a short and the wiring should
be checked.

• Be sure the negative battery terminal is discon-

nected before replacing a main fuse.

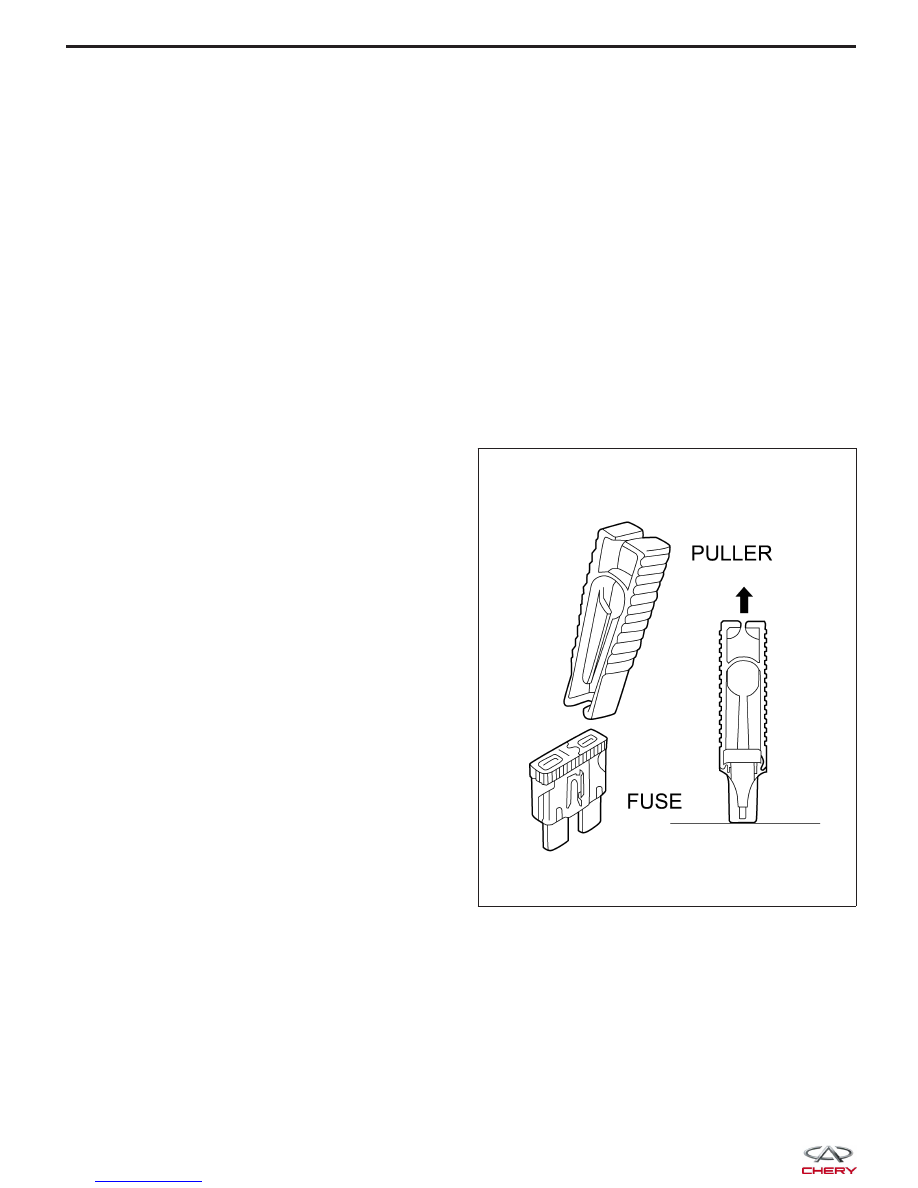

• When replacing a pullout fuse, use the fuse puller.

BESM010025

ELECTRICAL COMPONENTS

Battery Cable

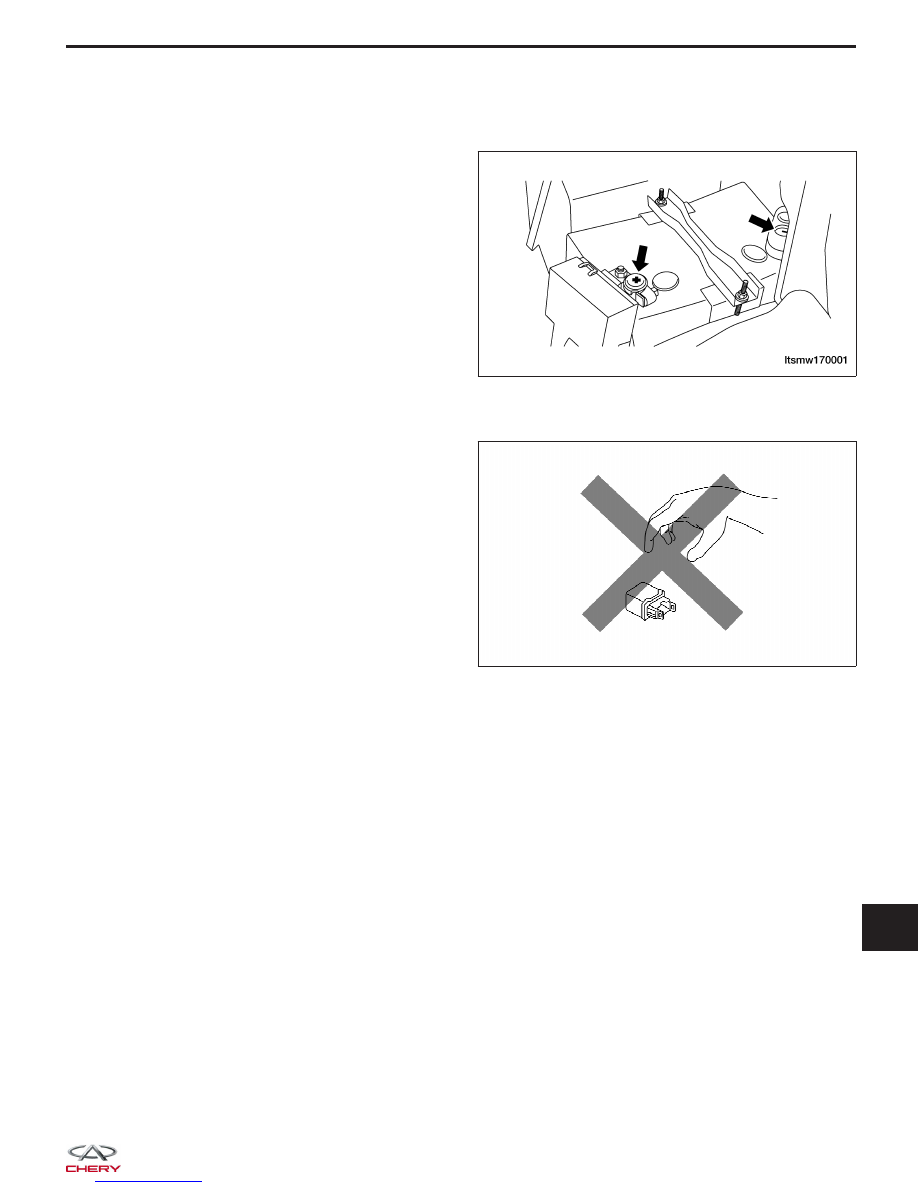

• Before disconnecting connectors or removing elec-

trical parts, disconnect the negative battery cable.

Sensors, Switches, and Relays

• Handle sensors, switches and relays carefully. Do

not drop them or strike them against other objects.

LTSMW170001

BESM010024

Connectors

Disconnecting Connectors

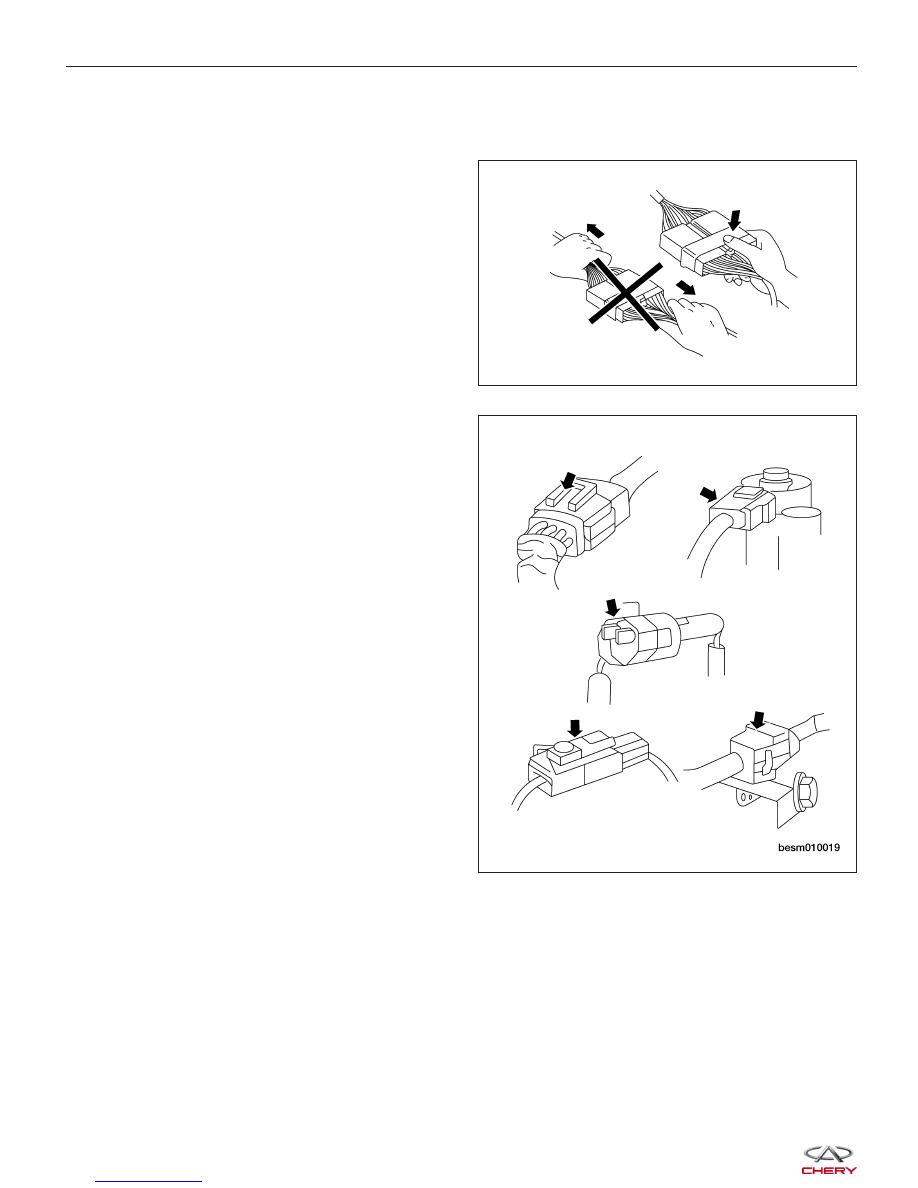

• When disconnecting 2 connectors, grasp the con-

nectors, not the wires.

• Connectors can be disconnected by pressing or

pulling the lock lever as shown.

ELECTRICAL COMPONENTS

BESM010018

BESM010019
