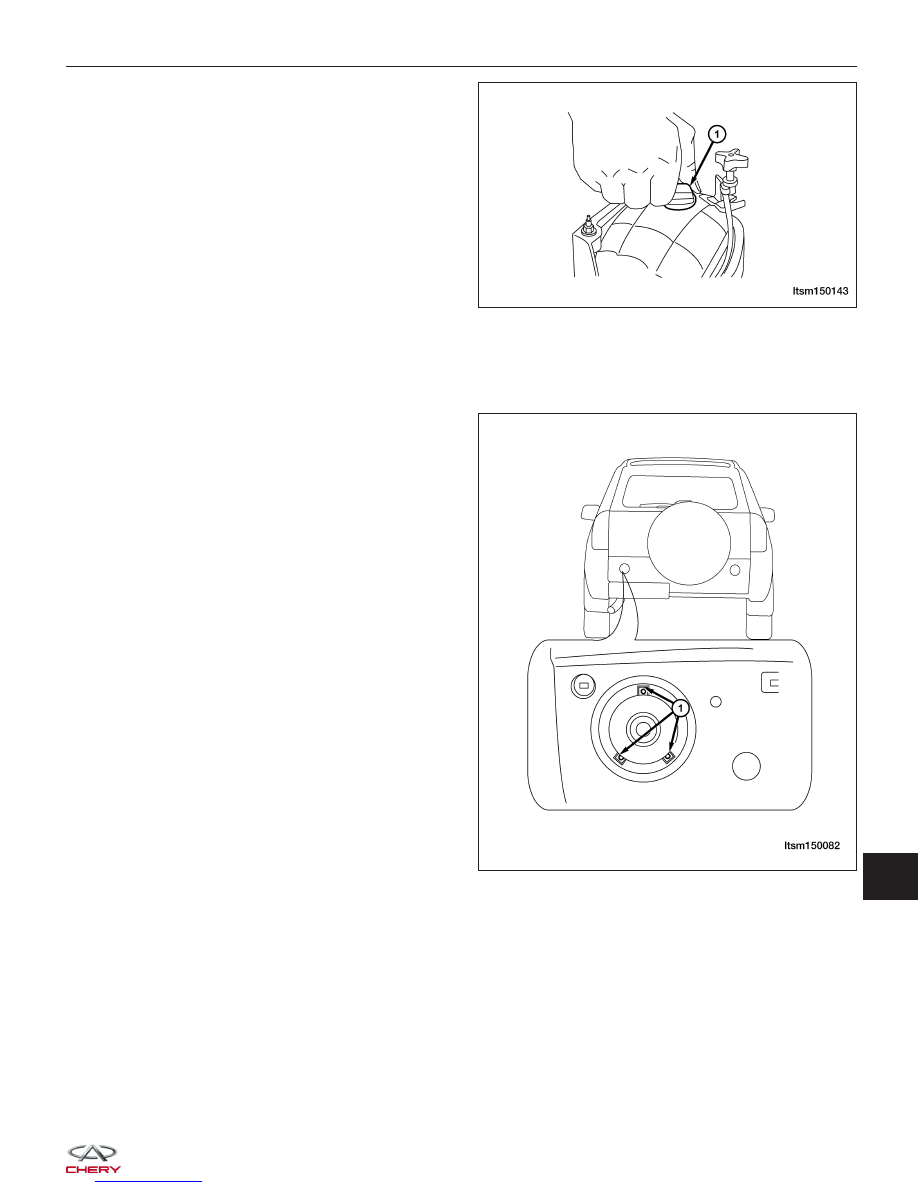

4. Replace the bulb with a new bulb (1) as needed.

5. Installation is in the reverse order of removal.

Rear Fog Lamp

Removal & Installation

1. Remove the cover of the back cargo door.

2. Remove the rear fog lamp mounting screws (1).

3. Remove the rear fog lamp.

4. Disconnect the electrical connector for the rear fog

lamp.

5. Installation is in the reverse order of removal.

EXTERIOR LAMPS

LTSM150143

LTSM150082

Tail/Backup/Stop Lamp

Removal & Installation

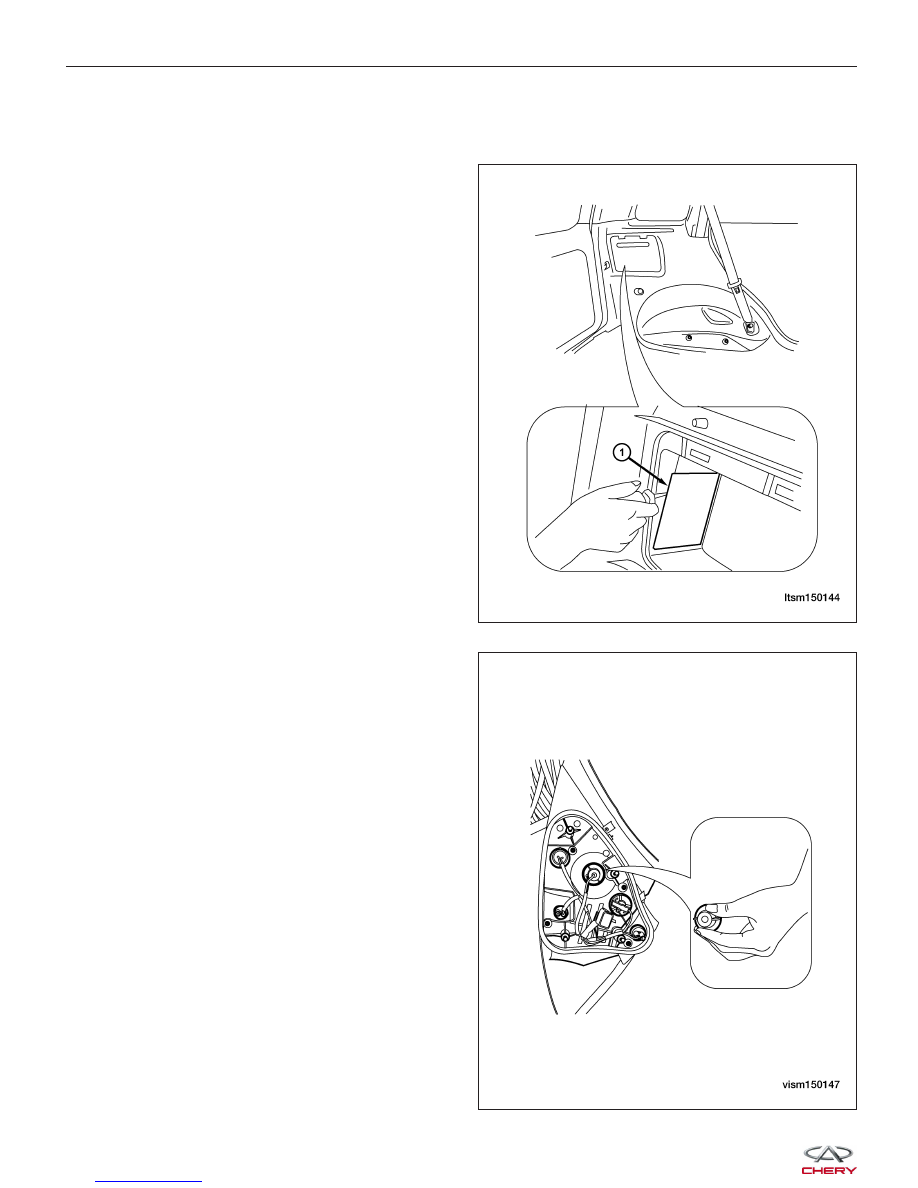

1. Open the plug cover of storage box at rear luggage

cabin.

2. Use a trim stick and remove the internal protective

cover (1).

3. Remove the bulbs for tail/backup/stop lamps by

hand through the access hole.

4. Replace the bulb with a new bulb as needed.

5. Installation is in the reverse order of removal.

EXTERIOR LAMPS

LTSM150144

LTSM150146

Turn Signal Lamp

Removal & Installation

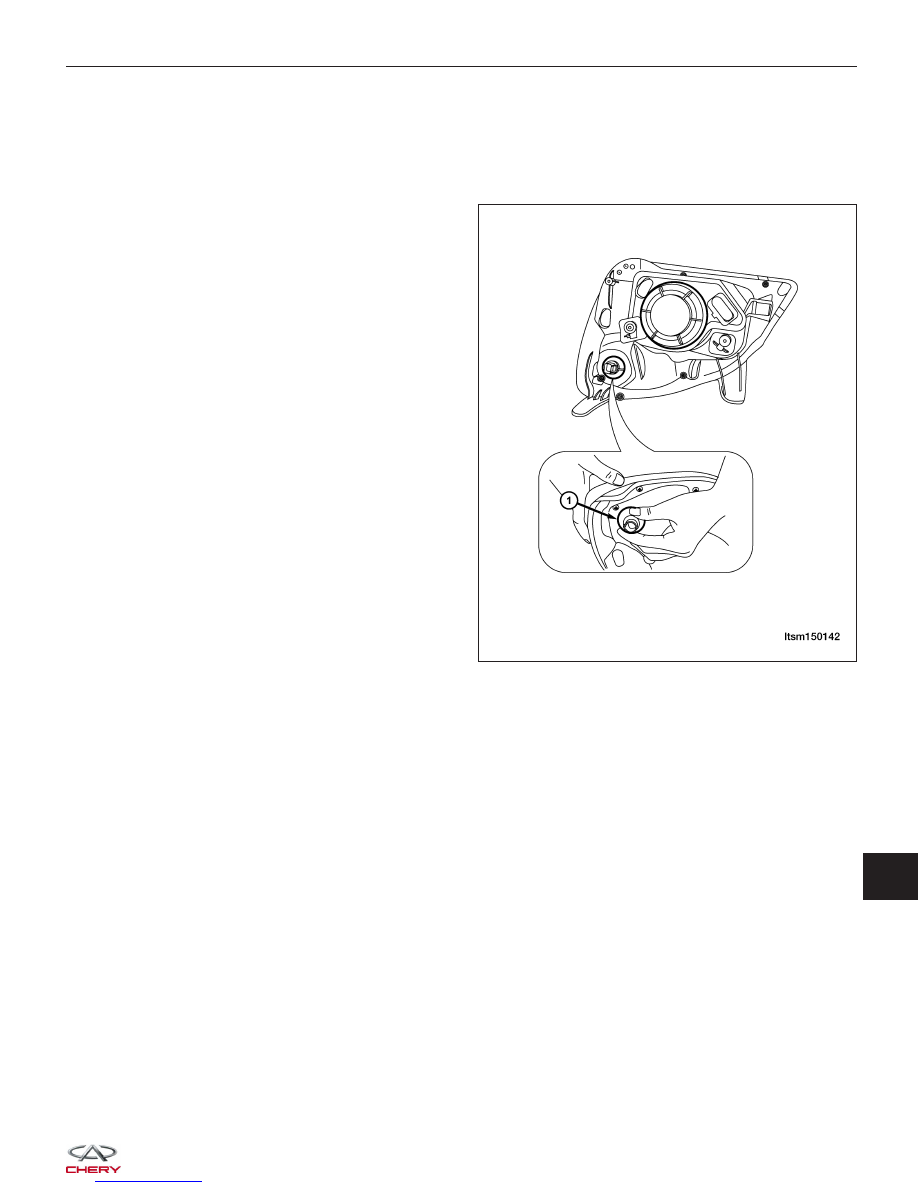

1. Remove the front combination lamp (See Front Combination Lamp Removal & Installation in Section 15 Body &

Accessories).

2. Replace the front turn signal lamp bulb (1).

3. Remove the rear combination lamp (See Rear Combination Lamp Removal & Installation in Section 15 Body &

Accessories).

EXTERIOR LAMPS

LTSM150142

4. Replace the rear turn signal lamp bulb.

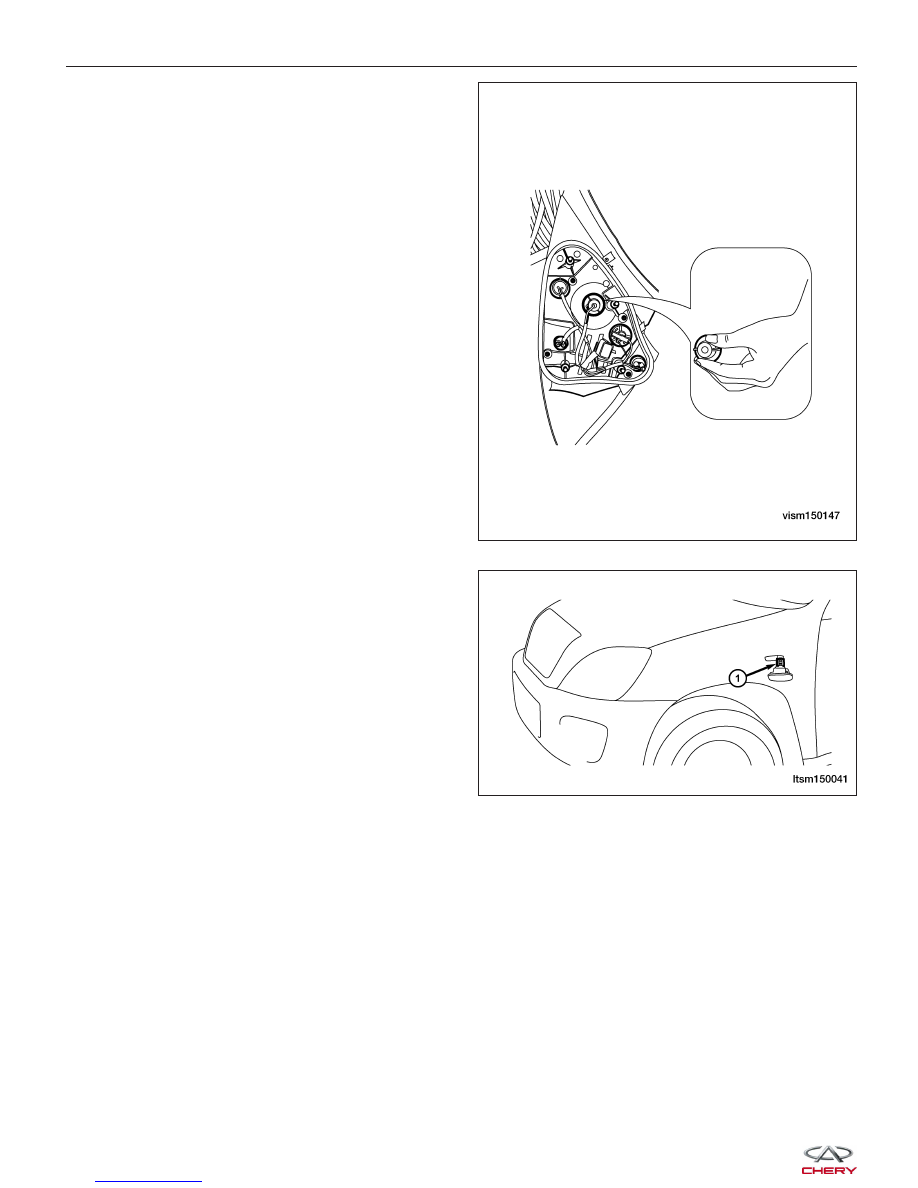

5. Hold the side turn signal lamp by hand and pull

back and remove the lamp slowly.

6. Disconnect the side turn signal lamp connector (1).

7. Remove the side turn signal lamp assembly.

8. Replace the bulb with a new bulb as needed.

9. Installation is in the reverse order of removal.

EXTERIOR LAMPS

LTSM150146

LTSM150041
