On Board Diagnostic Logic
• Self-diagnosis detection logic.

DTC NO.

DTC DEFINITION

DTC DETECTION

CONDITION

DTC SET

CONDITION

POSSIBLE CAUSE

B3055

No transponder

modulation or no

transponder

Ignition switch: ON

The Immobilizer
control module
detects no
transponder or no
transponder
modulation
condition.

• Transponder

• Harness or
connectors

• Immobilizer control
module

B3056

No transponder

fixed code

programmed

Ignition switch: ON

The Immobilizer
control module
detects that the
transponder is not
programmed.

• Transponder

• Harness or
connectors

• Immobilizer control
module

DTC Confirmation Procedure:

Before performing the following procedure, confirm that battery voltage is more than 12 V.

• Turn ignition switch off.

• Connect the X-431 scan tool to the Data Link Connector (DLC) - use the most current software available.

• Turn the ignition switch on, with the scan tool, view and erase stored DTCs in the Immobilizer control module.

• Try to start the engine.

• Turn ignition switch off, and wait a few seconds, then turn the ignition switch on.

• With the scan tool, view active DTCs in the Immobilizer control module.

• If the DTC is detected, the condition is current. Go to Diagnostic Procedure - Step 1.

• If the DTC is not detected, the DTC condition is intermittent (See Diagnostic Help and Intermittent DTC Trou-

bleshooting in Section 15 Body & Accessories for more information).

NOTE :
While performing electrical diagnosis & testing, always refer to the electrical schematics for specific circuit
and component information.

Diagnostic Procedure

1.

CHECK GROUND CONNECTION

• Turn ignition switch off.

• Loosen and retighten ground screws on the body (See Ground Inspection in Section 15 Body & Accessories).

• Inspect ground connection C-204 mounting position (See Vehicle Wiring Harness Layout - Main Harness in

Section 16 Wiring).

Is the ground connection OK?

Yes

>>

Go to the next step.

No

>>

Repair or replace ground connection.

2.

CHECK IMMOBILIZER CONTROL MODULE DTC

• With the scan tool, view DTCs in the Immobilizer control module. Refer to DTC confirmation procedure.

Is DTC B3055 present?

Yes

>>

Go to the next step.

No

>>

The condition that caused the DTC to set is currently not present (See Diagnosis & Testing Diagnostic

Help in Section 15 Body & Accessories).

DIAGNOSIS & TESTING

15



3.

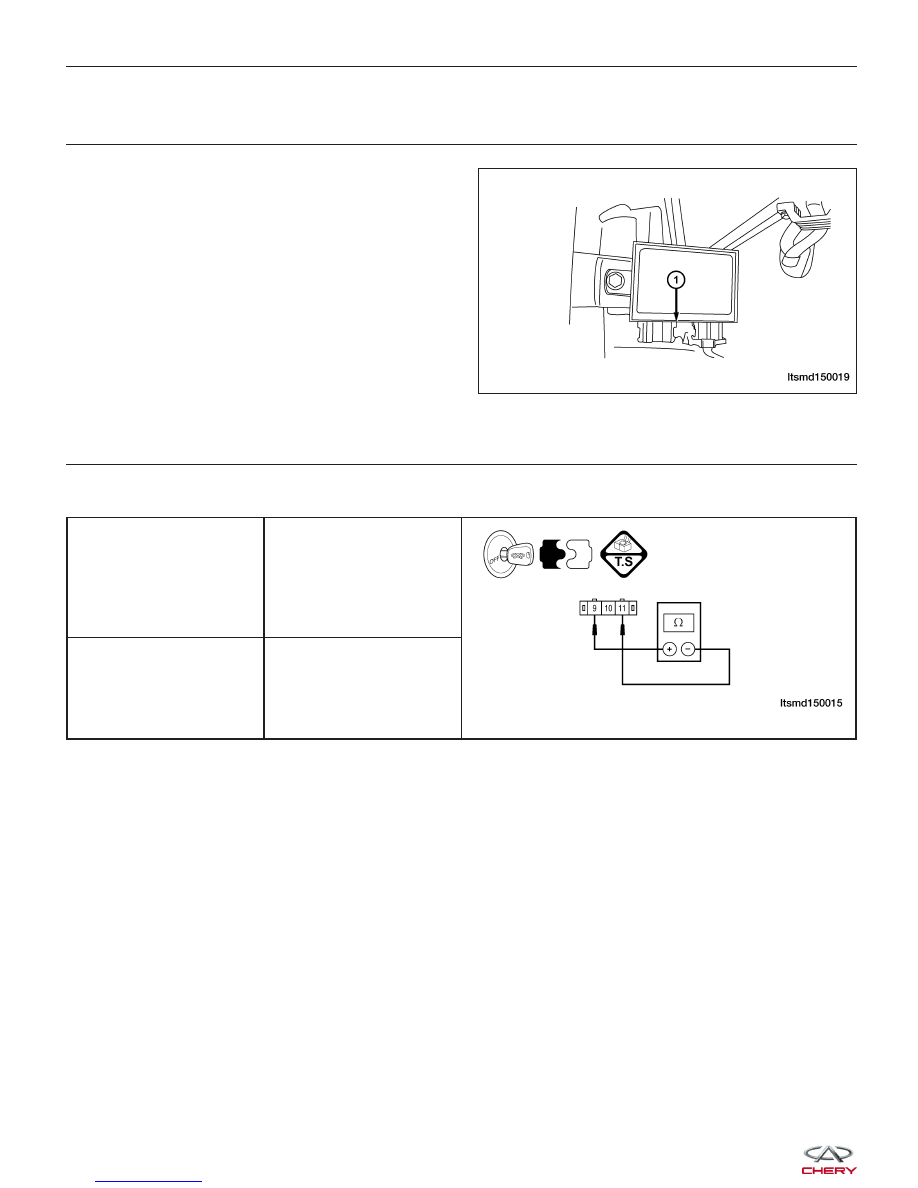

CHECK IMMOBILIZER CONTROL MODULE ELECTRICAL CONNECTOR

• Turn ignition switch off.

• Disconnect the Immobilizer control module electrical

connectors C-026 (1).

• Inspect the electrical connector for damage.

Is the electrical connector OK?

Yes

>>

Go to the next step.

No

>>

Repair or replace the electrical connector

as necessary.

4.

CHECK IMMOBILIZER COIL

• Check the resistance of the Immobilizer coil between the Immobilizer coil connector C-026, pin 9 and pin 11.

IMMOBILIZER COIL

TERMINAL

IMMOBILIZER COIL

TERMINAL

9

11

Is the resistance range from 5 to 20 ohms?

Yes

>>

Go to the next step.

No

>>

Replace the Immobilizer coil.

DIAGNOSIS & TESTING

LTSMD150019



5.

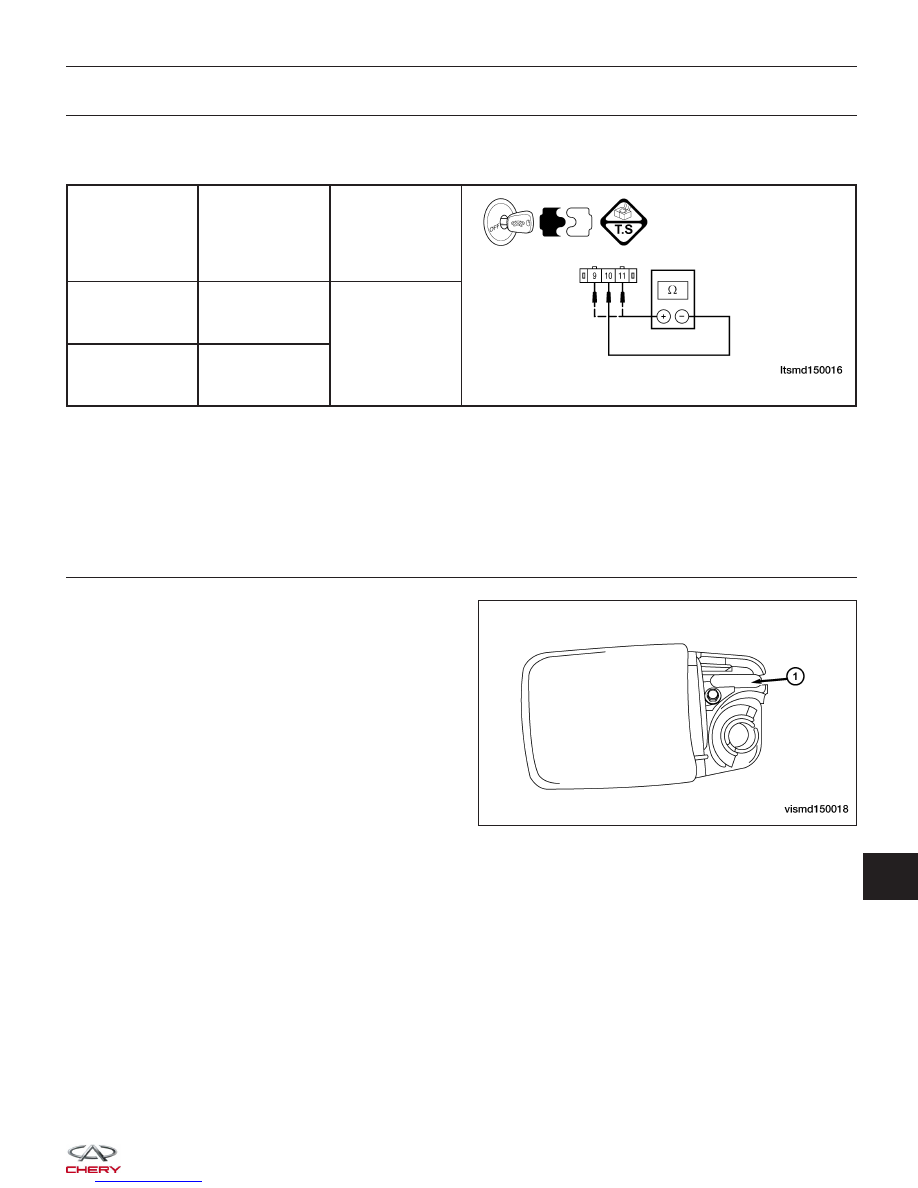

CHECK IMMOBILIZER COIL

• Check the resistance of the Immobilizer coil between the Immobilizer coil connector C-026, pin 9 and pin 10.

• Check the resistance of the Immobilizer coil between the Immobilizer coil connector C-026, pin 11 and pin 10.

IMMOBILIZER

COIL

TERMINAL

IMMOBILIZER

COIL

TERMINAL

CONTINUITY

9

10

Not

11

10

• Continuity should not exist.

Is the check result normal?

Yes

>>

Go to the next step.

No

>>

Replace the Immobilizer coil.

6.

REPLACE AND PROGRAM TRANSPONDER

• Reconnect the Immobilizer control module electrical

connector C-026.

• Replace the chip (1) with a new one.

DIAGNOSIS & TESTING

VISMD150018

15

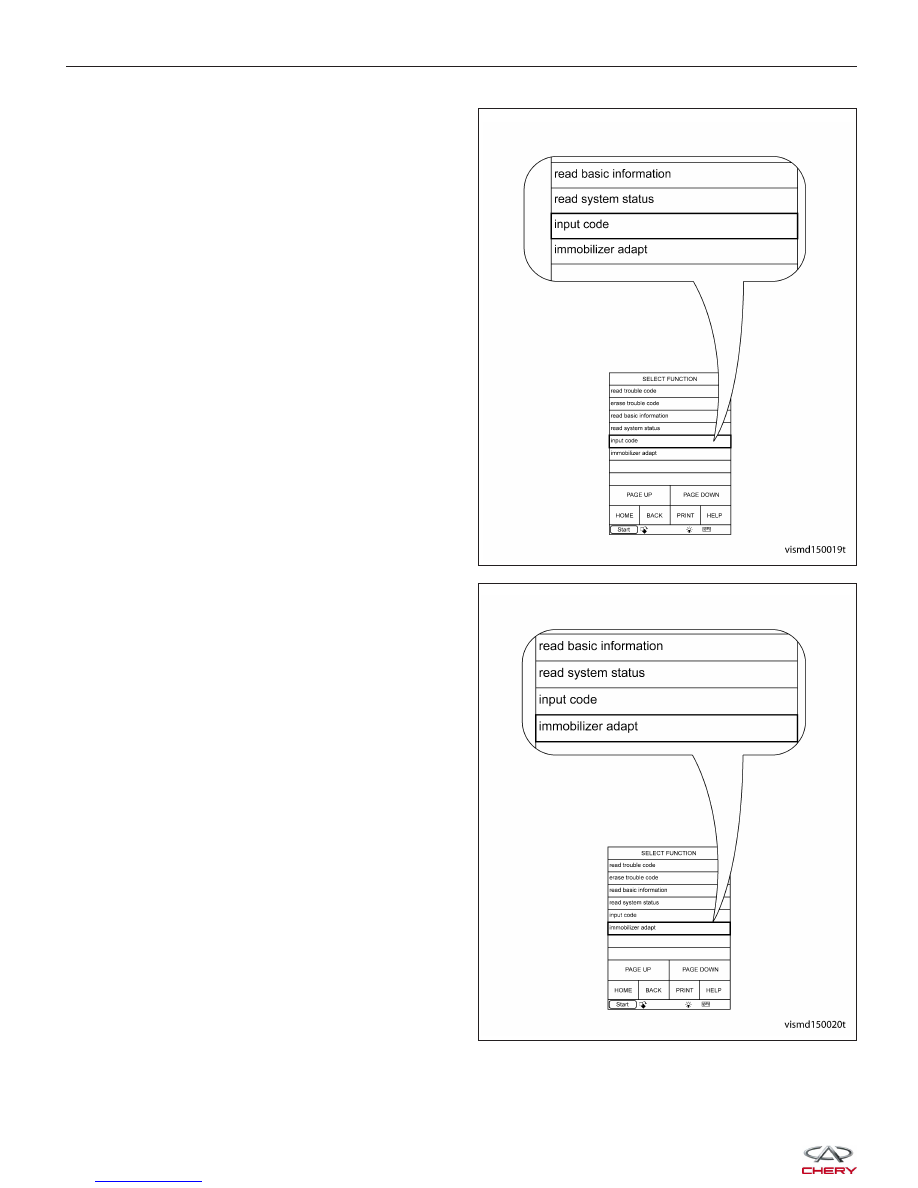

• Turn ignition switch on.

• With the X-431 scan tool, choose T11 series.

− Choose

⬙immobilize⬙.

− Choose

⬙input code⬙.

− Input the safety code.
− Click the small keyboard.
− Click

⬙OK⬙.

− Choose

⬙Immobilizer adapt⬙.

− Choose

⬙Key learning⬙ immediately.

− Click

⬙OK⬙.

• Try to start the engine.

Is the warning light flashing and DTC B3055
present?

Yes

>>

Go to the next step.

No

>>

No problem found at this time.
This concern may have been caused by
the transponder.
Erase all codes before returning the vehi-
cle to the customer.

DIAGNOSIS & TESTING

VISMD150019T

VISMD150020T
