Chery Tiggo. Manual - part 276





DIAGNOSIS & TESTING

Diagnostic Help

1. Confirm that the malfunction is current and carry-out the diagnostic tests and repair procedures.

2. If the DTC cannot be deleted, it is a current fault.

3. Use a digital multimeter to perform voltage readings on the transaxle electronic system.

4. The scan tool connects to the Data Link Connector (DLC) and communicates with the Transaxle Control Module

(TCM) over the CAN data circuit.

5. If the failure is intermittent, perform the following:

• Check for loose connectors.

• Look for any chafed, pierced, pinched, or partially broken wires.

• Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.

• Look for the data to change or for the DTC to reset during the wiggle test.

• Look for broken, bent, pushed out or corroded terminals.

• Inspect the sensor and mounting area for any condition that would result in an incorrect signal, such as

damage or foreign material.

6. Remove the TCM from the troubled vehicle and install in a new vehicle and test. If the DTC cannot be deleted,

the TCM is malfunctioning. If the DTC can be deleted, return the TCM to the original vehicle.

Diagnostic Tools

Diagnostic Scan Tool X-431

Read the following when connecting the X-431 scan tool:

• Connect the scan tool to the Data Link Connector (DLC) for communication with the vehicle.

• The DLC is located on the driver side compartment under the steering column (it is attached to the instrument

panel and accessible from the driver seat).

• The DLC is rectangular in design and capable of accommodating up to 16 terminals.

• The electrical connector has keying features to allow easy connection.

TCM Electrical Harness Test Tool

If using a TCM electrical harness test tool, you can diagnose the TCM harness while the TCM is still connected.

• Measure sensor and solenoid resistance (always measure resistance with the power off).

• Measure the signal voltage of the TCM (always measure voltage with the power on).

NOTE :
Using the TCM electrical harness test tool will help prevent electrical connector terminal damage.



Diagnostic Trouble Code (DTC) List

F4A4 Automatic Transaxle DTC List

DTC

DTC DEFINITION

11

TPS Short Circuit

12

TPS Open Circuit

14

TPS Abnormal Adjustment

15

TFT Sensor Open Circuit

21

CKP Sensor Malfunction

22

Input Speed Sensor

23

Output Speed Sensor Fault

26

Brake Pedal Position Switch Circuit Malfunction

29

Vehicle Speed Sensor Malfunction

31

Reverse/Low Solenoid Malfunction

32

UD Solenoid Open

33

2 Gear Solenoid Open Circuit

34

Overdrive Solenoid Circuit Malfunction

36

Damper Clutch System Control Solenoid Malfunction

41

First Gear, Ration Out Of Limits

42

Second Gear, Ration Out Of Limits

43

Third Gear, Ration Out Of Limits

44

Fourth Gear, Ration Out Of Limits

46

Reverse Gear, Ration Out Of Limits

51

CAN Data Bus Interface Malfunction

52

DCC Digital Command System Malfunction

54

Electrical Relay Open Circuit

56

Neutral Indicator Lamp Open Circuit

DIAGNOSIS & TESTING

08



Diagnostic Trouble Code (DTC) Tests

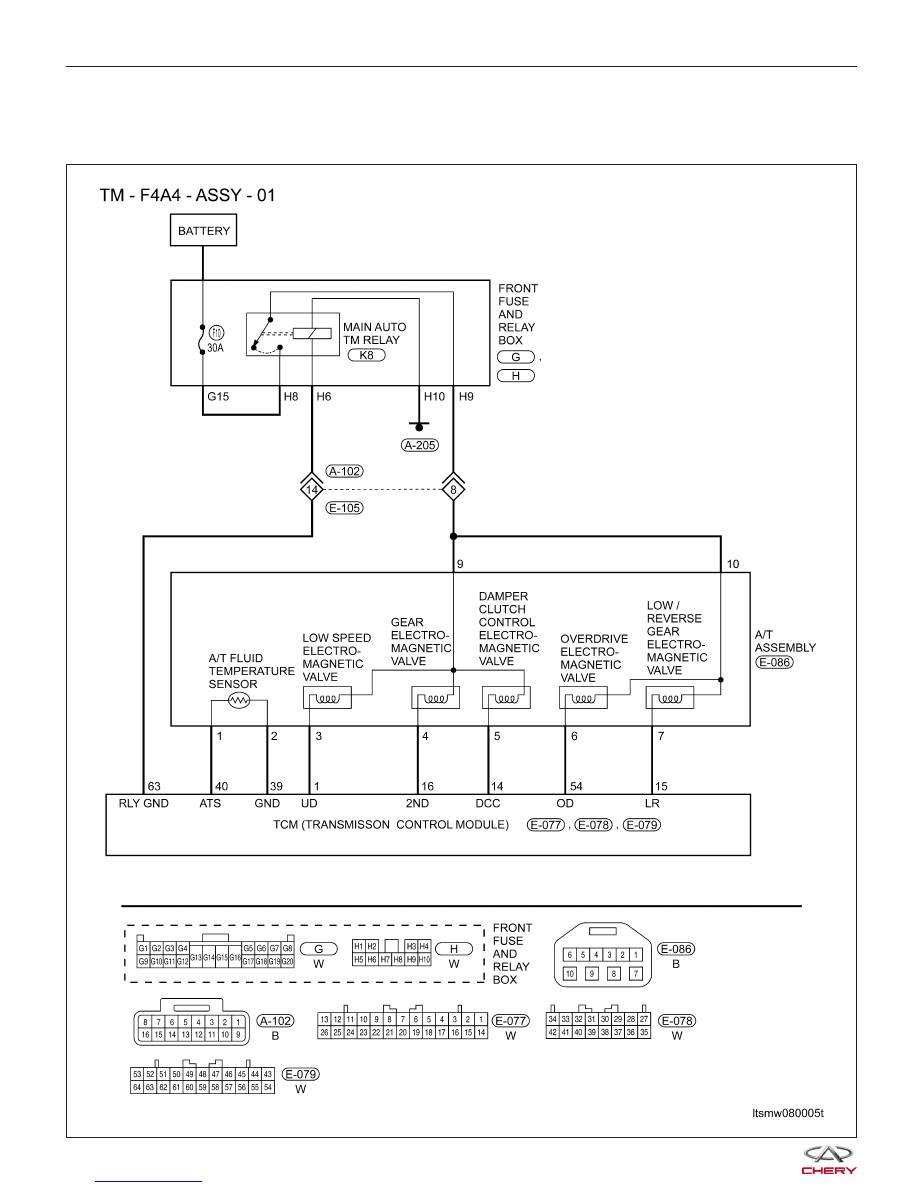

15 - TFT Sensor Open Circuit

DIAGNOSIS & TESTING

LTSMW080005T



On Board Diagnostic Logic
• Self-diagnosis detection logic.

DTC NO.

DTC DEFINITION

DTC DETECTION

CONDITION

DTC SET

CONDITION

POSSIBLE CAUSES

15

TFT sensor open

circuit

Vehicle is driving

The Transaxle

Control Module
(TCM) will set this
DTC when the TCM
received voltage
signal is more than
2.6 V form the
sensor after the
vehicle has driven
for 10 minutes.

• TFT sensor

• Harness or
connectors (The
sensor circuit is open
or shorted)

• TCM

DTC Confirmation Procedure:

Before performing the following procedure, confirm that battery voltage is more than 12 V.

• Turn ignition switch off.

• Connect the X-431 scan tool to the Data Link Connector (DLC) - use the most current software available.

• Turn ignition switch on, with the scan tool, view and erase stored DTCs in the TCM.

• Start the engine and warm it to normal operating temperature.

• Drive the vehicle up to 10 km/h or more.

• With the scan tool, select view DTC and data stream.

• If the DTC is detected, the DTC condition is current. Go to Diagnostic Procedure - Step 1.

• If the DTC is not detected, the DTC condition is intermittent (See Diagnostic Help and Intermittent DTC Trou-

bleshooting in Section 08 Transaxle & Transfer Case for more information).

NOTE :
While performing electrical diagnosis & testing, always refer to the electrical schematics for specific circuit
and component information.

Diagnostic Procedure

1.

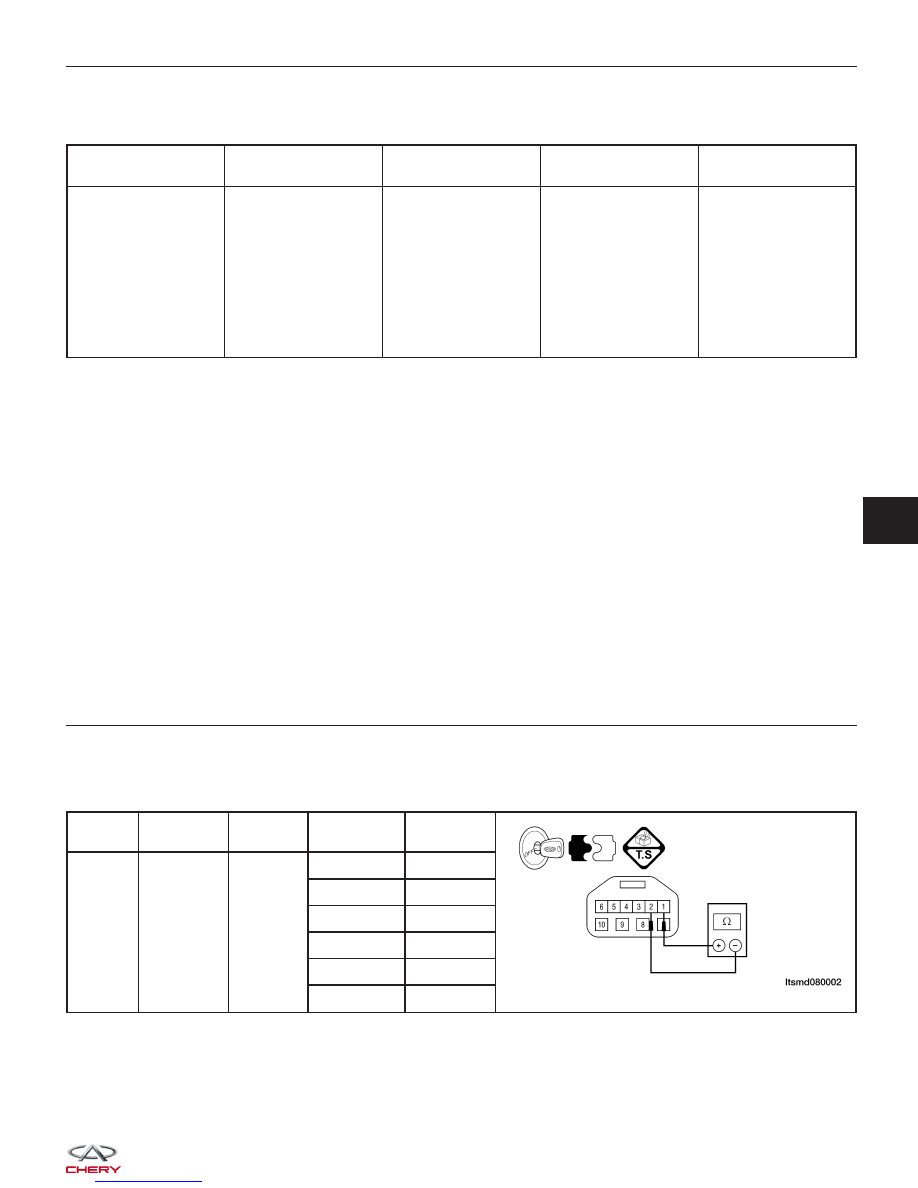

CHECK TFT SENSOR RESISTANCE

• Turn ignition switch off.

• Disconnect A/T assembly connector E-086.

• Check TFT resistance between the TFT sensor terminals:

SENSOR

CONNECTOR

TERMINAL

TEMPERATURE

RESISTANCE

K

A/T sensor

E-086

1 - 2

0°C

16.7 - 20.5

20°C

7.3 - 8.9

40°C

3.4 - 4.2

60°C

1.9 - 2.1

80°C

1.0 - 1.2

110°C

0.57 - 0.69

Is the check result normal?

Yes

>>

Go to the next step.

No

>>

Replace the TFT sensor.

DIAGNOSIS & TESTING

08
