Chery Tiggo. Manual - part 256
4.
CHECK SHIFT SOLENOID VALVE 4 (SSV4) POWER SUPPLY

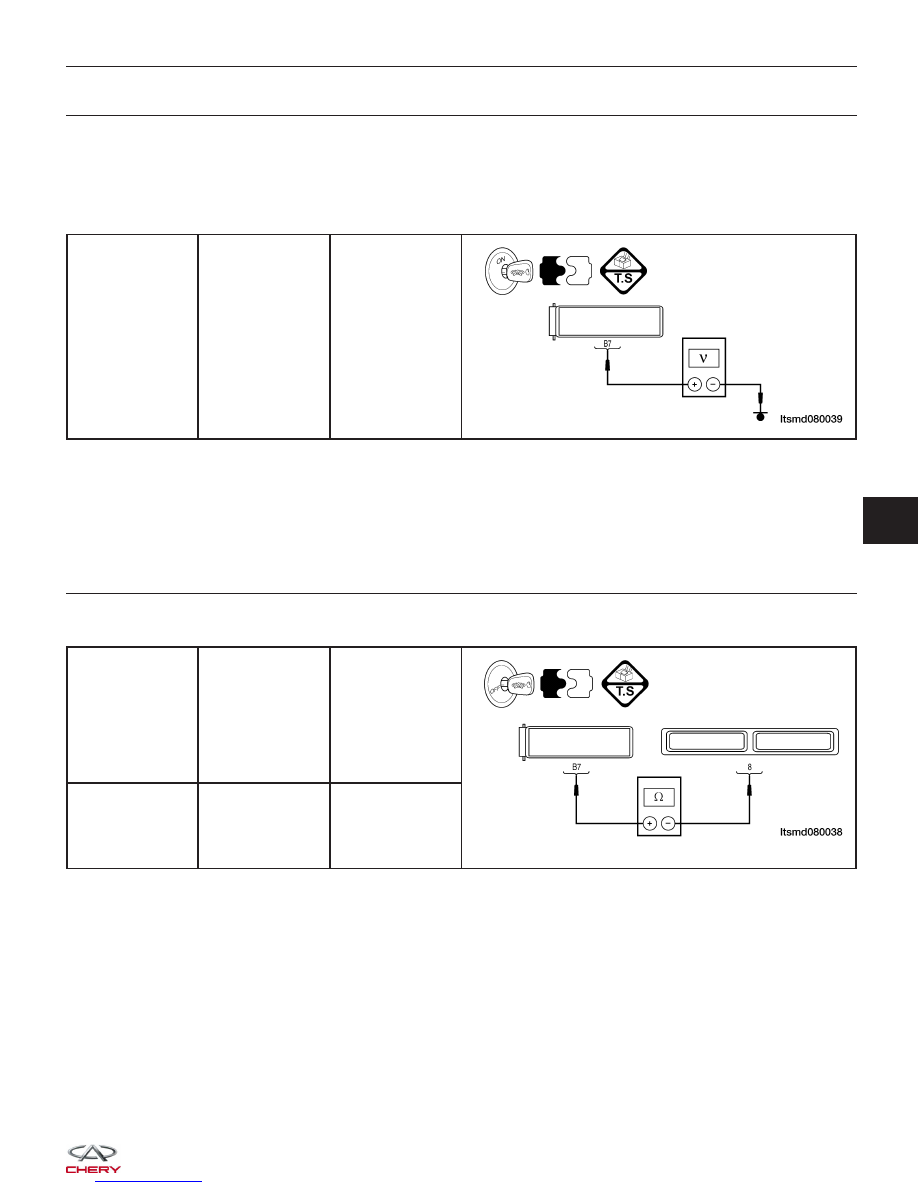

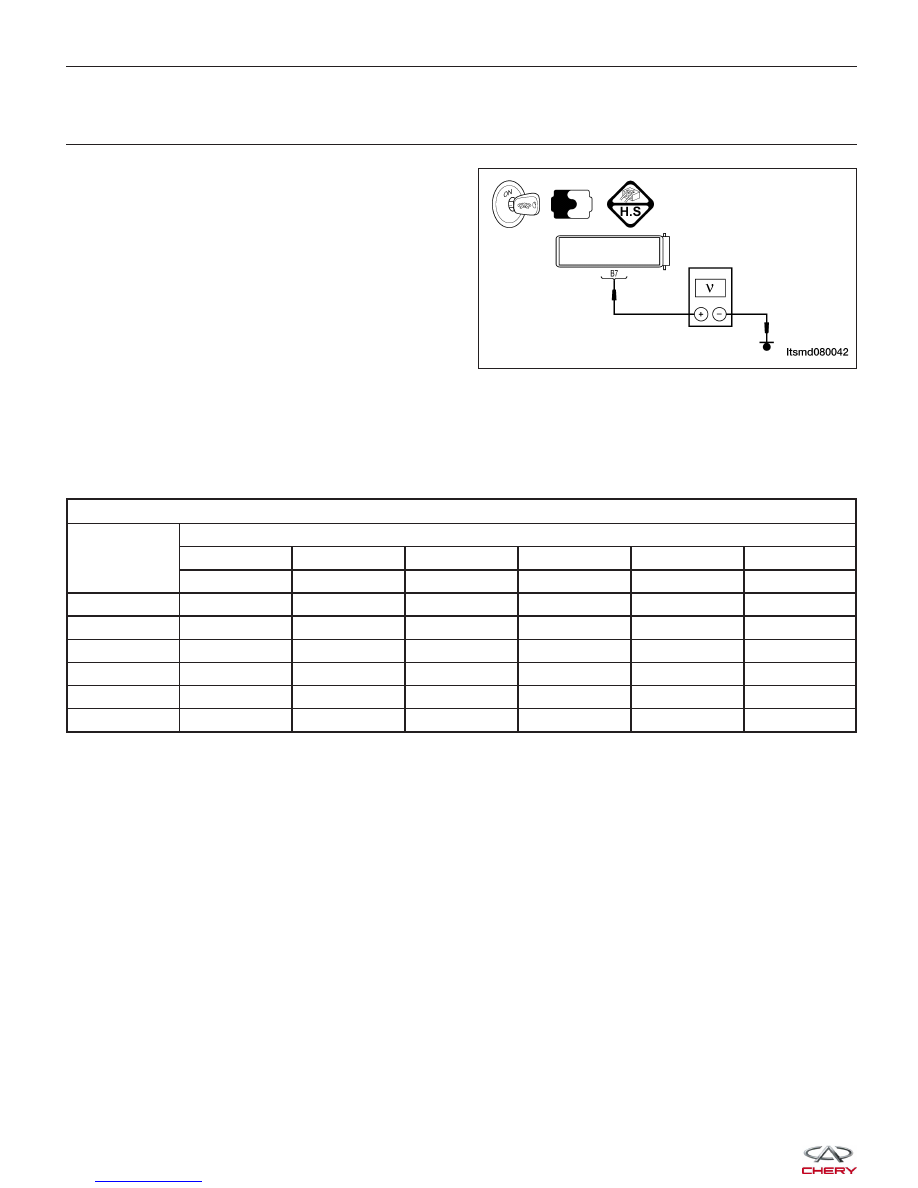

• Turn the ignition switch on.
• Check power supply between SSV4 E-037 terminal
B7 and ground in the A/T assembly connector
E-037.
• 12 V voltage should exist.
• Or using the appropriate diagnostic test tool and a digital multimeter perform the following:

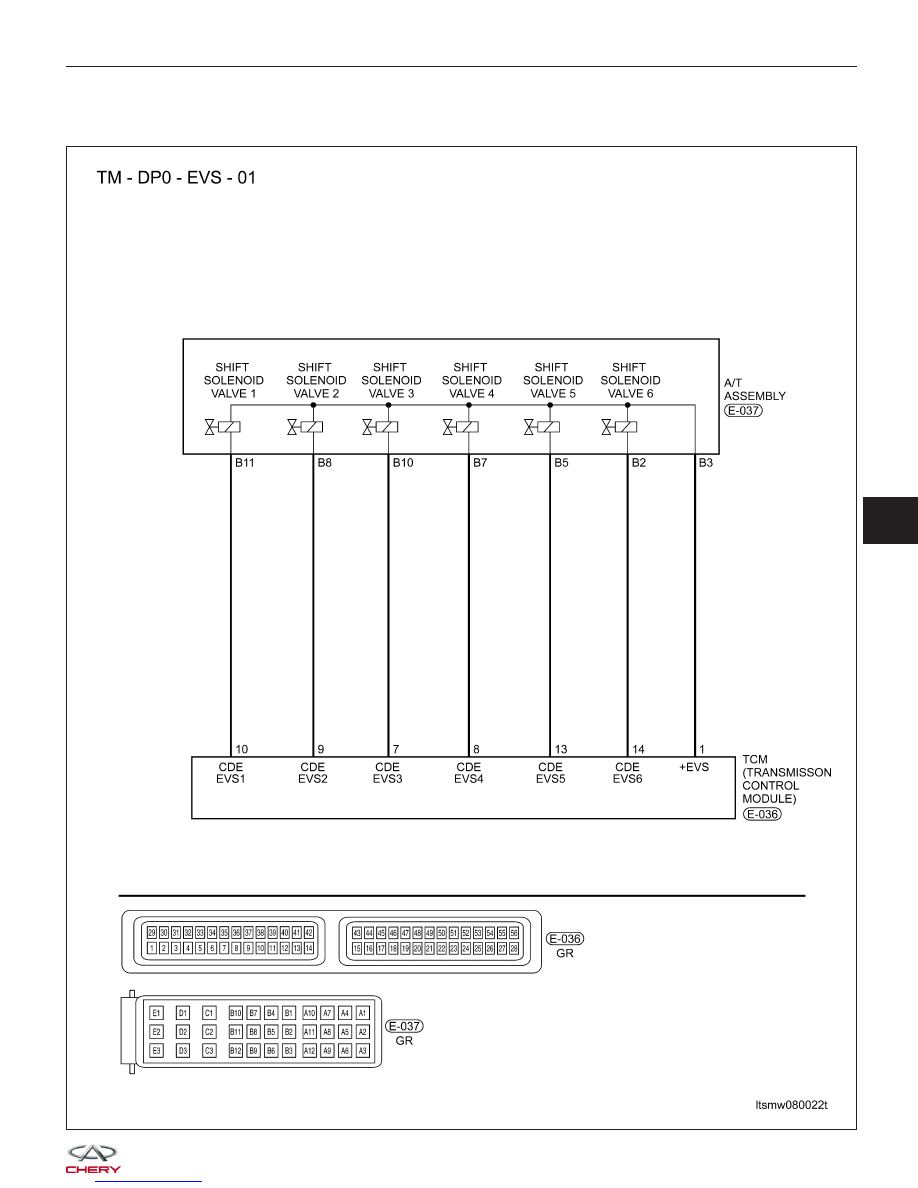

• Check the EVS4 solenoid supply voltage between TCM pin 1 and TCM pin 8 when activating the EVS4 sole-
noid and deactivating the EVS4 solenoid.
• Check the shift solenoid control signal. Check the voltage of the shift solenoid in each shift position.
• Check the voltage of the EVS4 solenoid supply circuit between the transaxle assembly electrical connector pin
B3 and pin B7.
SEQUENCE SOLENOID (EVS) CONDITION
LEVER
POSITION
TCM TERMINAL
EVS1
EVS2
EVS3
EVS4
EVS5
EVS6
1 - 10
1 - 9
1 - 7
1 - 8
1 - 13
1 - 14
R
0 V
0 V
0 V
0 V
0 V
0 V
N/P
0 V
0 V
+12 V
0 V
0 V
0 V
1
0 V
0 V
+12 V
+12 V
0 V
0 V
2
0 V
+12 V
0 V
+12 V
0 V
0
3
0 V
0 V
0 V
0 V
0 V
0 V
4
+12 V
+12 V
0 V
0 V
0 V
0 V
Is the check result normal?
Yes
>>
Go to the next step.
No
>>
Repair or replace the open circuit or short to ground in harness or connectors.
DIAGNOSIS & TESTING
LTSMD080042
