On Board Diagnostic Logic
• Self-diagnosis detection logic.

DTC NO.

DTC DEFINITION

DTC DETECTION

CONDITION

DTC SET

CONDITION

POSSIBLE CAUSES

P0705

Multi-Function

switch: prohibited

position

Vehicle is driving

The Transaxle
Control Module
(TCM) detects the
voltage is out of
range when moving
the shift lever from
the

⬙P⬙ position to

the

⬙N⬙ position.

• Multi-Function
Switch

• Harness or
connectors (The
sensor circuit is open
or shorted)

• TCM

DTC Confirmation Procedure:

Before performing the following procedure, confirm that battery voltage is more than 12 V.

• Turn ignition switch off.

• Connect the X-431 scan tool to the Data Link Connector (DLC) - use the most current software available.

• Turn ignition switch on, with the scan tool, view and erase stored DTCs in the TCM.

• Start the engine and warm it to normal operating temperature.

• With the scan tool, select view DTC and data stream.

• If the DTC is detected, the DTC condition is current. Go to Diagnostic Procedure - Step 1.

• If the DTC is not detected, the DTC condition is intermittent (See Diagnostic Help and Intermittent DTC Trou-

bleshooting in Section 08 Transaxle & Transfer Case for more information).

NOTE :
• If using the appropriate diagnostic test tool, you can diagnose the TCM harness while the TCM is still connected.

Troubleshoot any Engine Control Module (ECM) charging/cranking DTCs before proceeding.

• Using the appropriate diagnostic test tool in this way will help prevent electrical connector terminal damage.

NOTE :
While performing electrical diagnosis & testing, always refer to the electrical schematics for specific circuit
and component information.

DIAGNOSIS & TESTING



Diagnostic Procedure

1.

CHECK A/T SOLENOID SIGNAL

• Turn ignition switch on.

• With the scan tool, select view DTC and data stream for A/T.

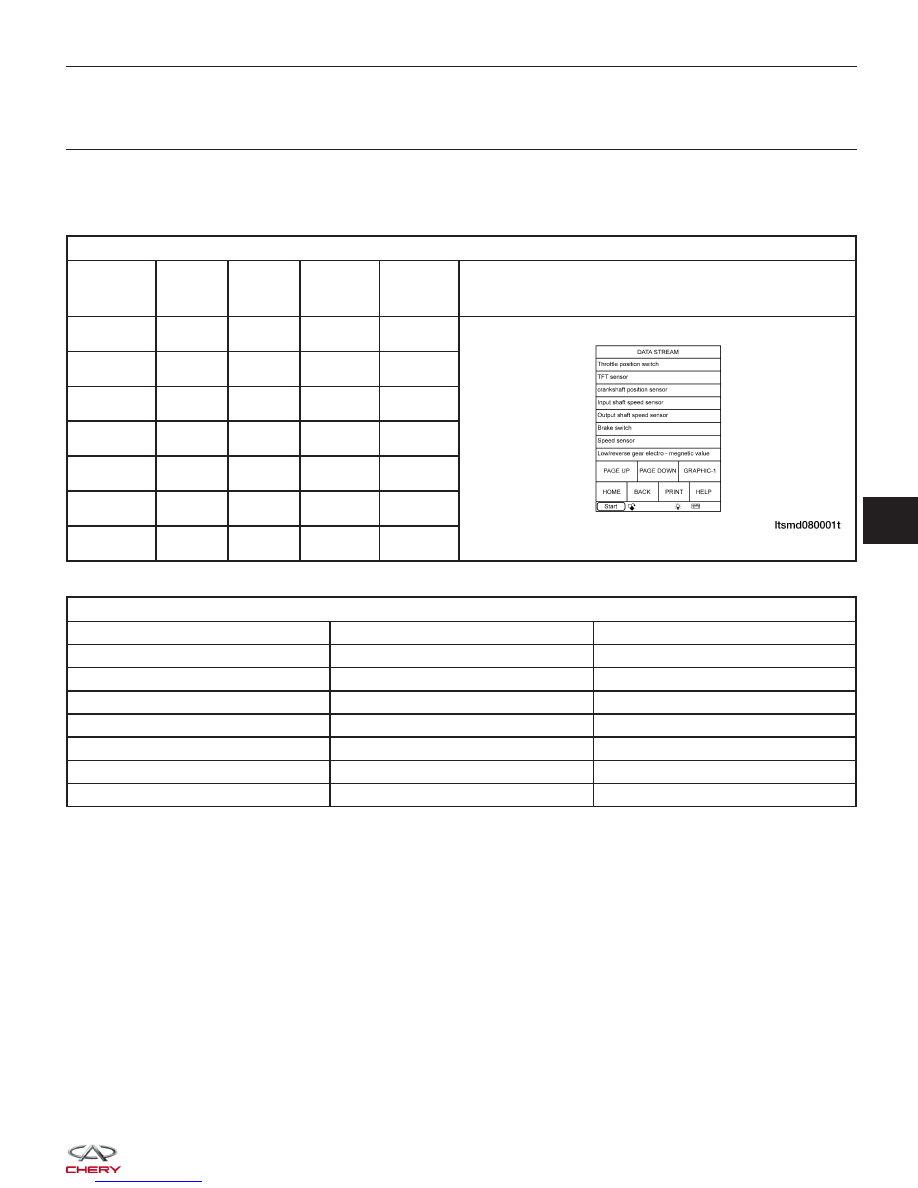

• Monitor the value of the multi-function switch and compare to the following table.

TRANSAXLE RANGE SWITCH (CMF) CONDITION

SHIFT

LEVER

POSITION

P/N

S2

S3

S4

P

Close

Close

Open

Open

R

Open

Close

Close

Close

N

Close

Open

Close

Open

D

Open

Open

Open

Close

M

Close

Close

Close

Open

+

Close

Close

Close

Open

-

Close

Close

Close

Open

SEQUENCE SHIFT SWITCH CONDITION

SHIFT LEVER POSITION

SEQUENCE SHIFT UP

SEQUENCE SHIFT DOWN

R

Active

Active

P

Active

Active

N

Active

Active

D

Active

Active

M

Not Active

Not Active

+

Not Active

Active

-

Active

Not Active

Is DTC P0705 present and the status active for this DTC?

Yes

>>

Go to the next step.

No

>>

The condition that caused this DTC is intermittent (See Diagnostic Help in Section 08 Transaxle &

Transfer Case).

DIAGNOSIS & TESTING

08



2.

CHECK SHIFT SWITCH VALUE

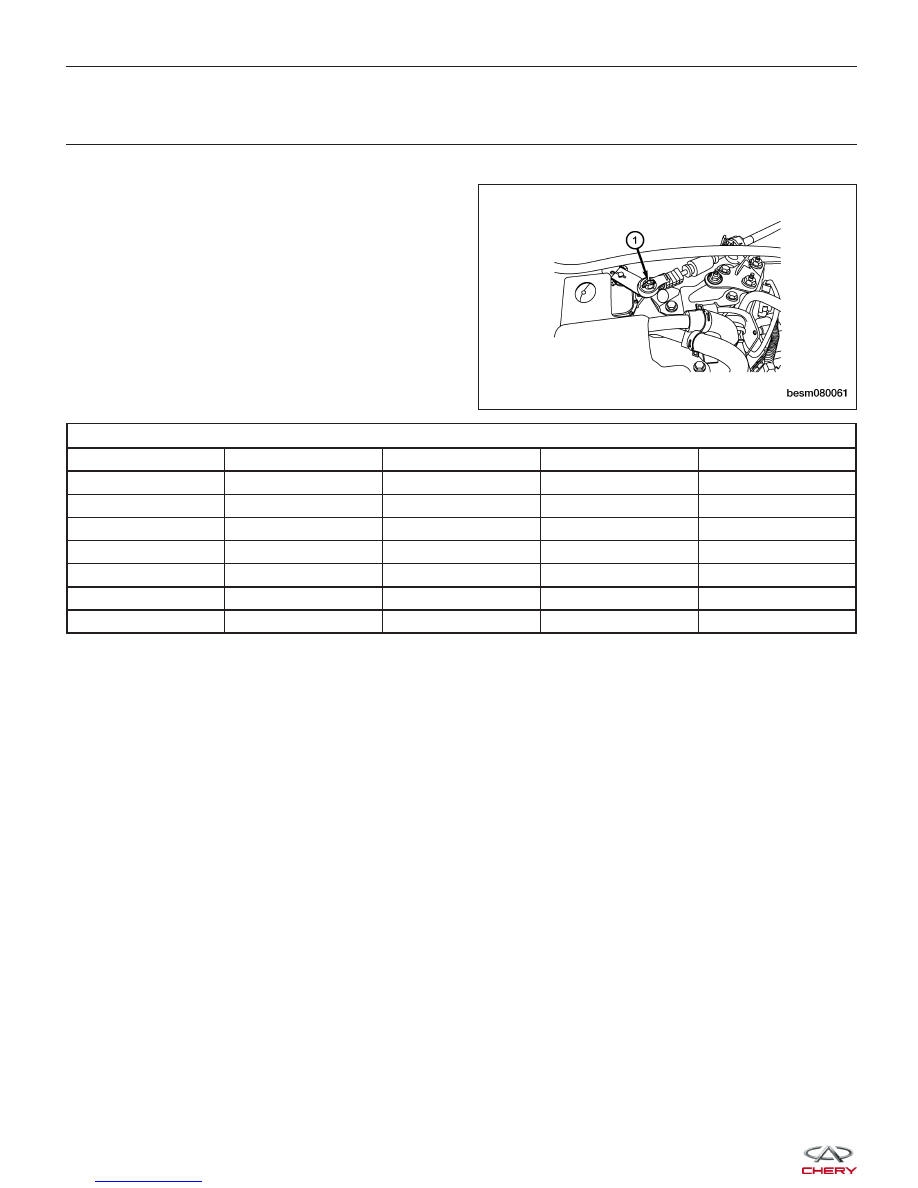

• Move the shift lever (1) to every shift position.
• Measure the voltage as follows:

SHIFT POSITION VALUE

TERMINAL

S2

S3

S4

P/N

POSITION

31 - 42

32 - 42

33 - 42

34 - 42

P

0

B+

B+

0

R

0

0

0

B+

N

B+

0

B+

0

D

B+

B+

0

B+

3

B+

0

0

B+

2

0

0

B+

B+

Do the circuits check OK, and do the reverse lamps also illuminate?

Yes

>>

The transaxle range switch is normal.
Reassemble the vehicle and road test to verify the customers complaint is repaired.

No

>>

Go to the next step.

DIAGNOSIS & TESTING

BESM080061



3.

CHECK RANGE SWITCH RESISTANCE

• Turn ignition switch off.

• Disconnect the TCM electrical connector.

• Measure the resistance as follows:

CHECK TCM CONNECTOR SHIFT RANGE SWITCH ON OR OFF CONDITION

TERMINAL

S2

S3

S4

P/N

POSITION

31 - 42

32 - 42

33 - 42

34 - 42

P

0

0

R

0

0

0

N

0

0

D

0

3

0

0

2

0

0

CHECK TRANSAXLE ASSEMBLY CONNECTOR SHIFT RANGE SWITCH ON OR OFF CONDITION

TERMINAL

S2

S3

S4

R

P/N

POSITION

A10 - A7

A11 - A7

A12 - A7

A1 - A2

A8 - A4

P

0

0

R

0

0

0

0

N

0

0

D

0

3

0

0

2

0

0

Does the switch check OK?

Yes

>>

If the test results for the TCM electrical connector is normal, and the test results for the transaxle

assembly is not normal, repair the circuits between the TCM electrical connector and transaxle shift range switch.

No

>>

If the test results for the TCM electrical connector pin 34 and pin 42 are normal, and the test results
for the transaxle range switch pin A8 and A4 are normal, repair the circuit between the TCM electrical
connector pin 34 and transaxle range switch electrical connector pin A8.
If the test results are not normal in one switch position, replace the transaxle range switch. If the test
results are not normal at two or more switch positions, adjust the transaxle range switch before replac-
ing it. After adjusting the transaxle range switch, verify the adjustment with the table. If the test results
are still not normal, replace the transaxle range switch.

DIAGNOSIS & TESTING

08
