The manual of 4HP14 A/T removing and installing CHERY AUTOMOBILE CO., LTD

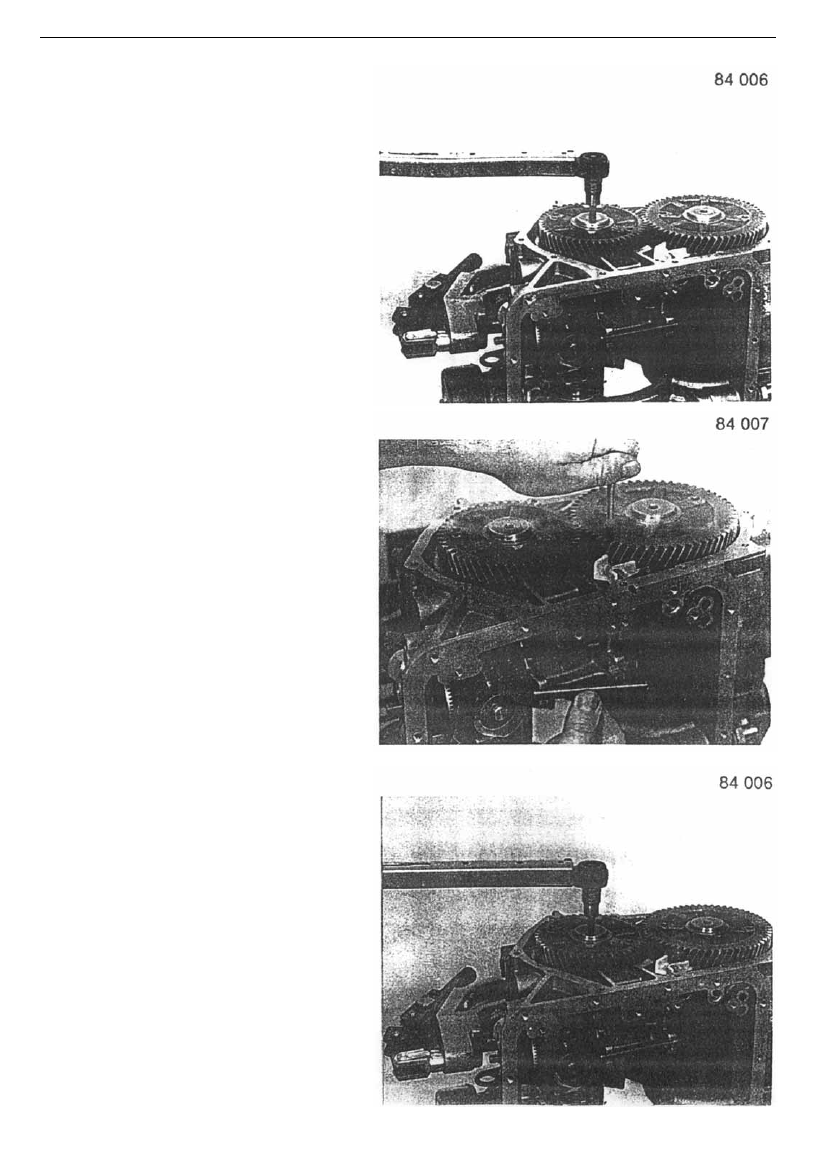

Tighten sub rear output gear mounting bolt to 10

Nm with torque wrench.

Only after both gears installed correctly can the

parking plunger be removed easily. Turn gear

with an appropriate bolt repeatly (as shown on

fig.).

Install parking plunger, select stop position, then

tighten the bolt. Tighten torque is 20Nm.

Release stop position, turn the gear, and repeat the

above procedures.

-6-

The manual of 4HP14 A/T removing & installing CHERY AUTOMOBILE CO., LTD

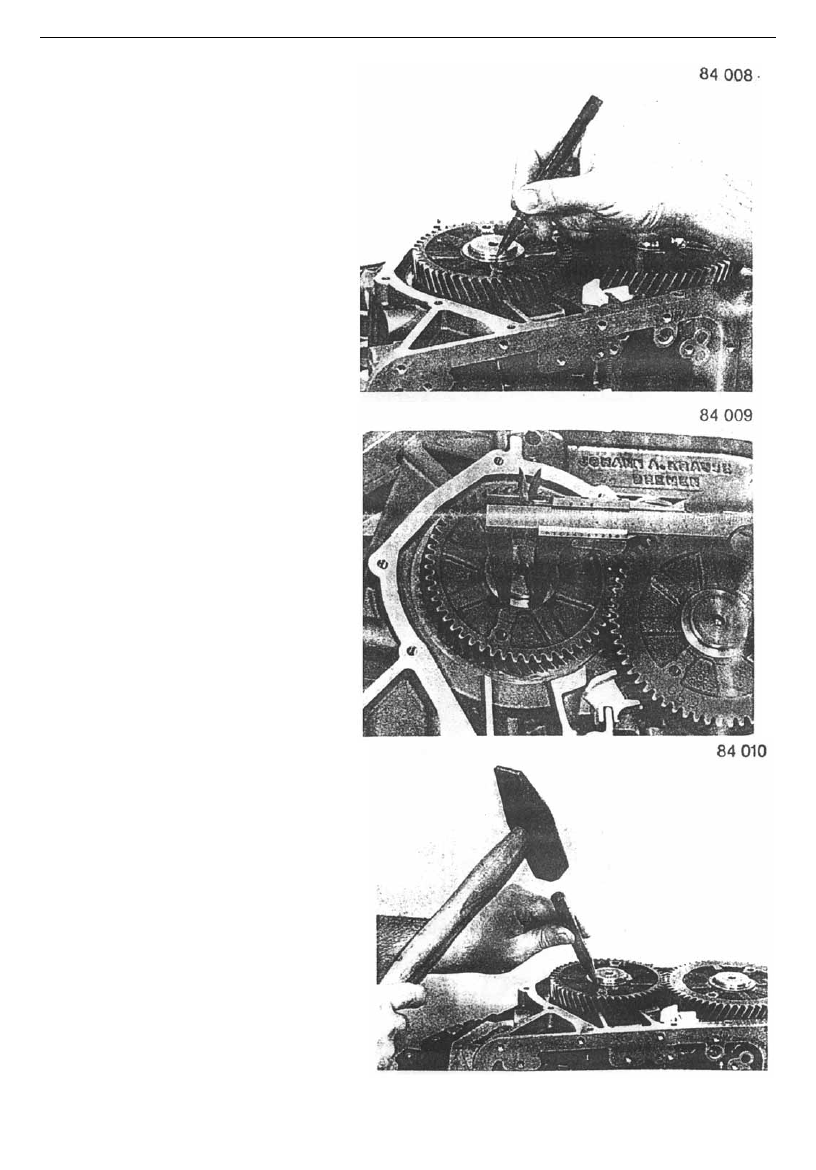

Making marks on bolts and gears as shown on

figure.

Turn screw 12 mm counterclockwise from

marking position.

Using appropriate tool tamp mounting bolt

flange edge to distortion.

-7-

The manual of 4HP14 A/T removing and installing CHERY AUTOMOBILE CO., LTD

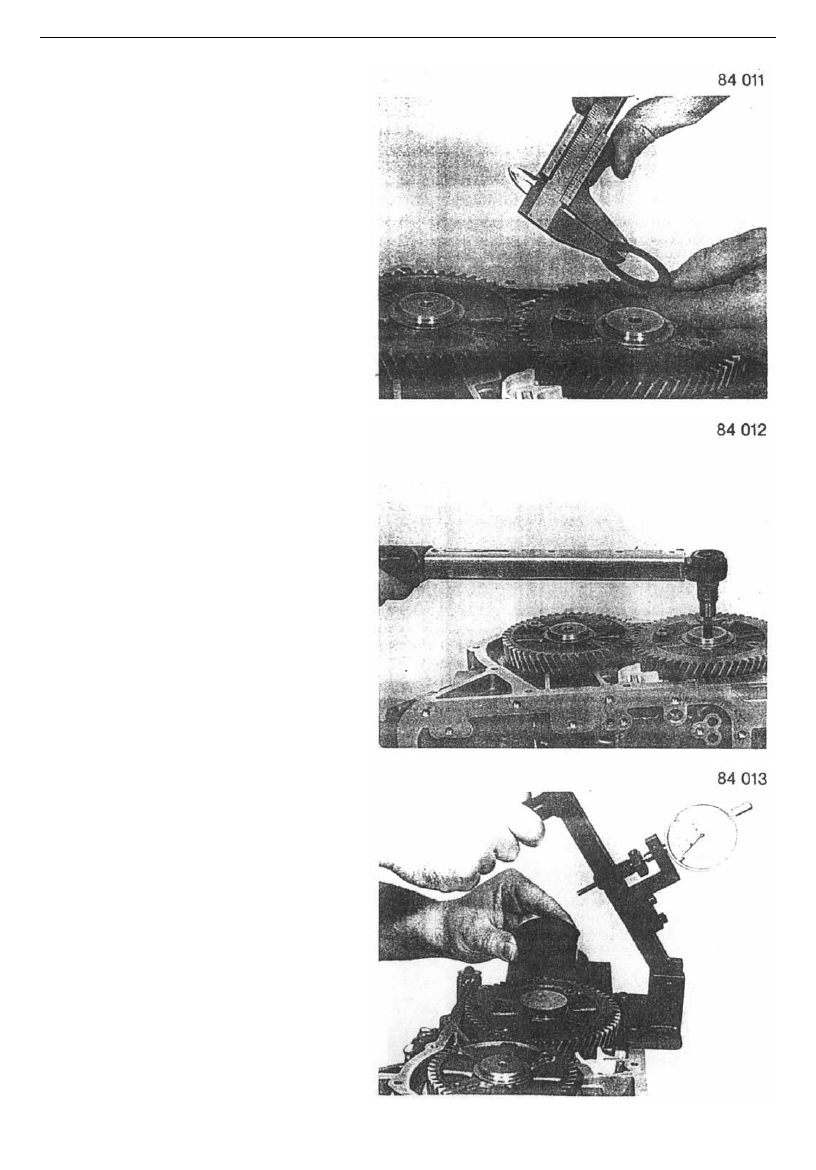

1.3.3.2、Driven shaft clearence adjustment

Assembling requirements:

Install 1.75 mm thickness gasket and sub rear

output gear, and tighten bolt by hand.

To maintain the clearance, select the thickest

washer in alternative dimensions.

After Applying park gear, tighten sub rear

output

gear locking bolts. Tighten torque is 30Nm.

Release the stop gear and repeat the procedures.

Install measuring instrument 5P 05 001 518 with

dial indicator as shown in fig.

-8-

The manual of 4HP14 A/T removing & installing CHERY AUTOMOBILE CO., LTD

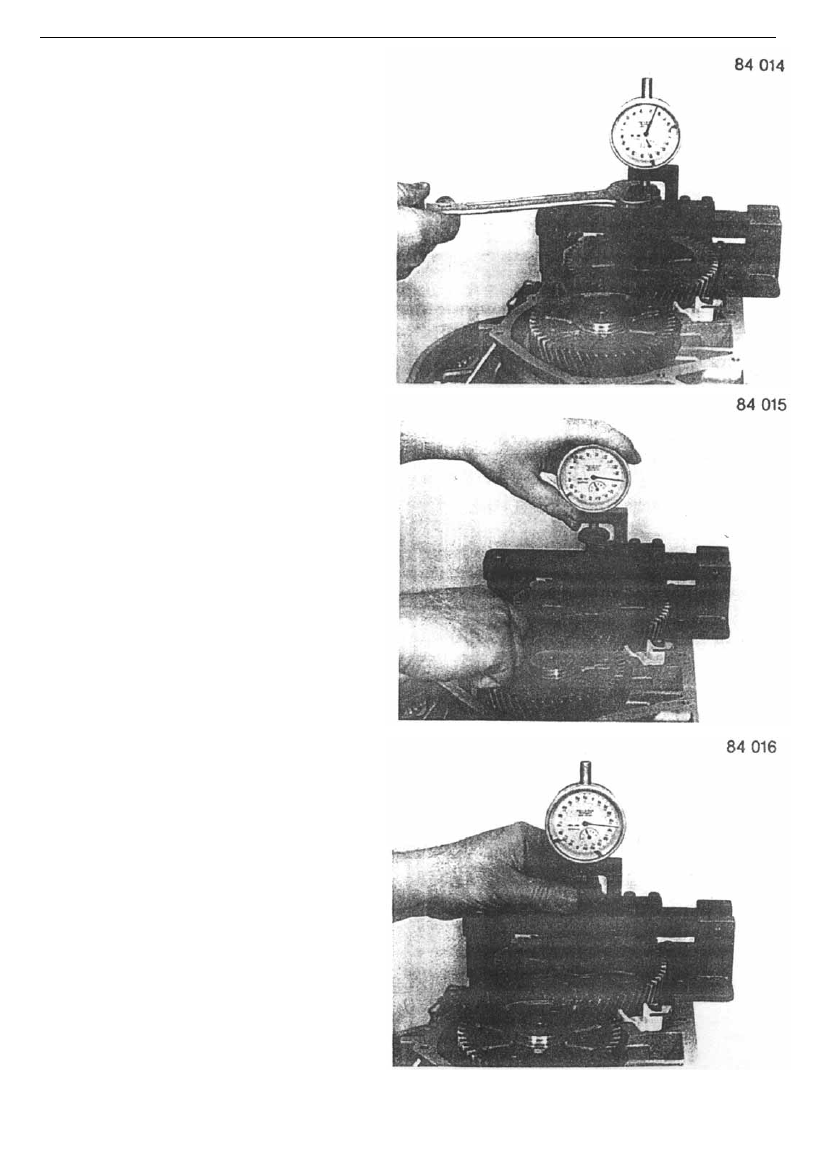

Set the indicator to zero.

1.Turn the screw until the needle moves.

2.Turn the gear till needle to zero position.

Loosen transmisson lower mount carrier 5P 95 000

288, then turn counterclockwise screw 3/4 turn.

-9-
