  Chery    QQ    Maintenance Manual                                        Chassis System













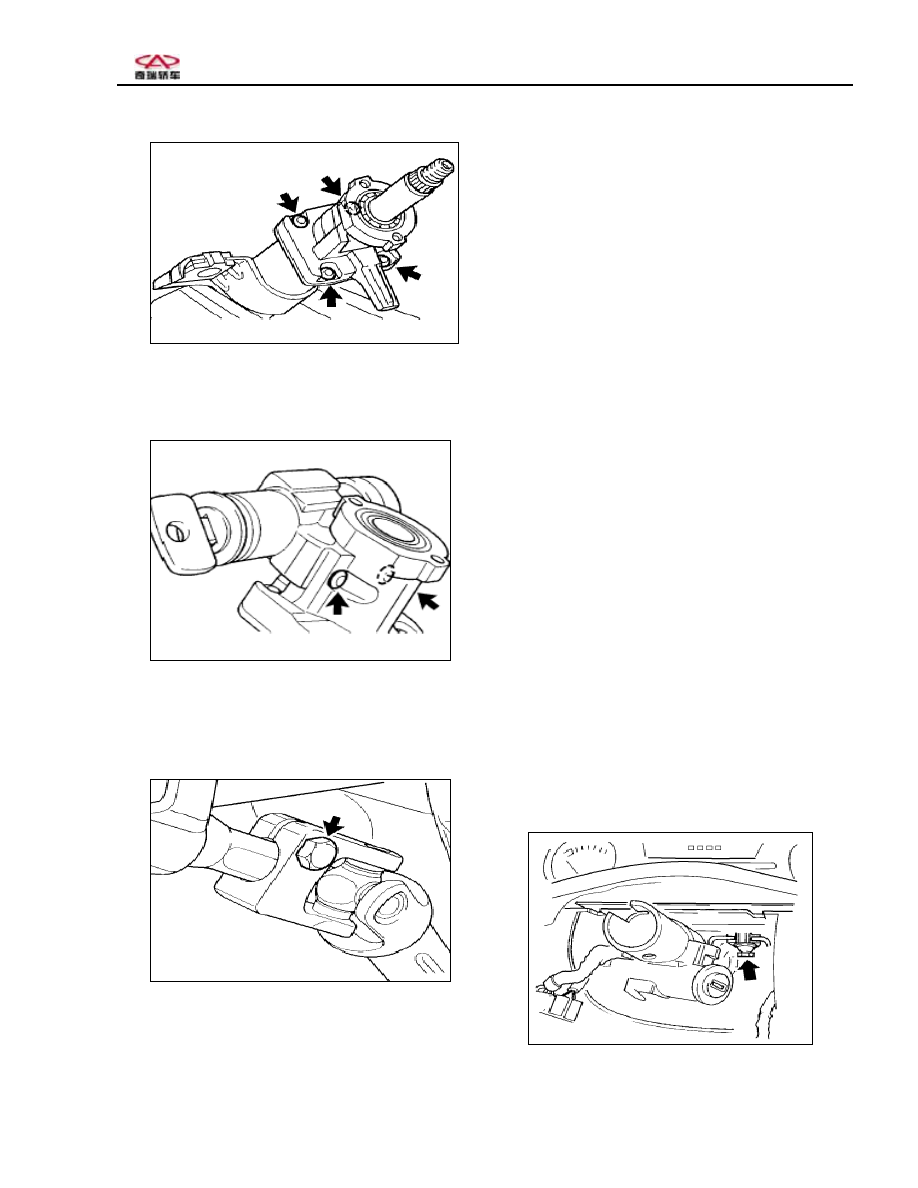

3. Use bolts to fix ignition lock shell and shaft
shell.
4. Insert new shaft into pillar.












Points of attention
Don’t turn steering and ignition lock in LOCK
position.
5. Push guide bearing into pillar.
6. Insert and fix steering shaft.











7. Screw bolts.
8. Install steering wheel with air bag and air
bag components.


Fixture
Screw shaft flange bolts to 22.5-27.5Nm.
Screw gear flange bolts to 22.5-27.5 Nm.
Screw steering wheel and shaft bolts to
27-33Nm.
10. Check forwards position for steering
mechanics.
Description and operation
Description Steering wheel and steering
column
Steering component can realize the functions
besides of steering.
1. Steering column
Steering can absorb energy. When crashing
happens, the pillar will shrink to reduce the
probability to hurt driver.
2. Ignition switch and steering lock Ignition
switch and steering lock can prevent stealing
vehicle.
3. Multi-purpose operation lever
  Multi-purpose operation lever can control
following parts:
-

High beam of head lamp

-

Windshield wiper and cleaner

Remove and re-install steering pillar
Use specified bolts to fix the pillar to make
sure absorb engine action. Be careful to
remove or transport the pillar.
1.  The drawer to remove steering wheel is not

recommended one.

2.  The top of pillar is knock badly.
3.  Something leans against the pillar.
4.    The pillar falls off.





97



  Chery    QQ    Maintenance Manual                                        Chassis System

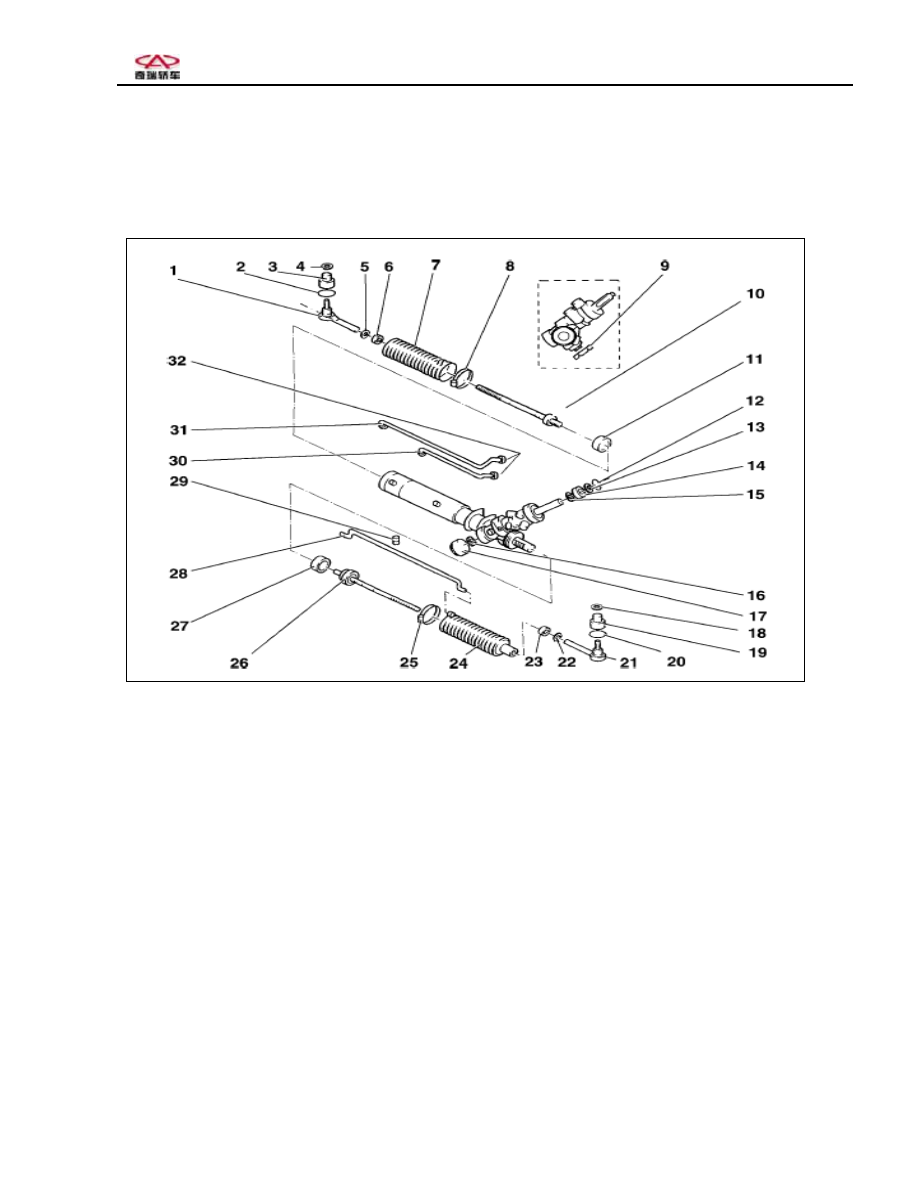

Power steering system

Exterior identify



Power steering box
























(1) Steering tie rod
socket unit
(2) Fixed ring
(3) Dust cap
(4) Lock
(5) Check nut
(6) Tie rod ripple cowl hoop
(7) Ripple cowl
(8) Steering box shell ripple cowl clamp
(9) Lock nut
(10) Tie rod in band ball
(11) Limiting stopper
(12) Circlet
(13) Facing ring
(14) Searing ring
(15) Bearing



























(16) Nut
(17) Cover cap
(18) Lock nut
(19) Dust cap
(20) Circlet
(21) Tie rod end
(22) Check nut
(23) Tie rod ripple cowl hoop
  (24) Ripple cowl
(25) Steering box
(26) Tie rod in band ball unit
(27) Limiting stopper
(28) Tube
(29) Oil pipe clip
  (30) Hydraulic piping
(31) Hydraulic piping
(32) Trust sealing ring






98



  Chery    QQ    Maintenance Manual                                        Chassis System



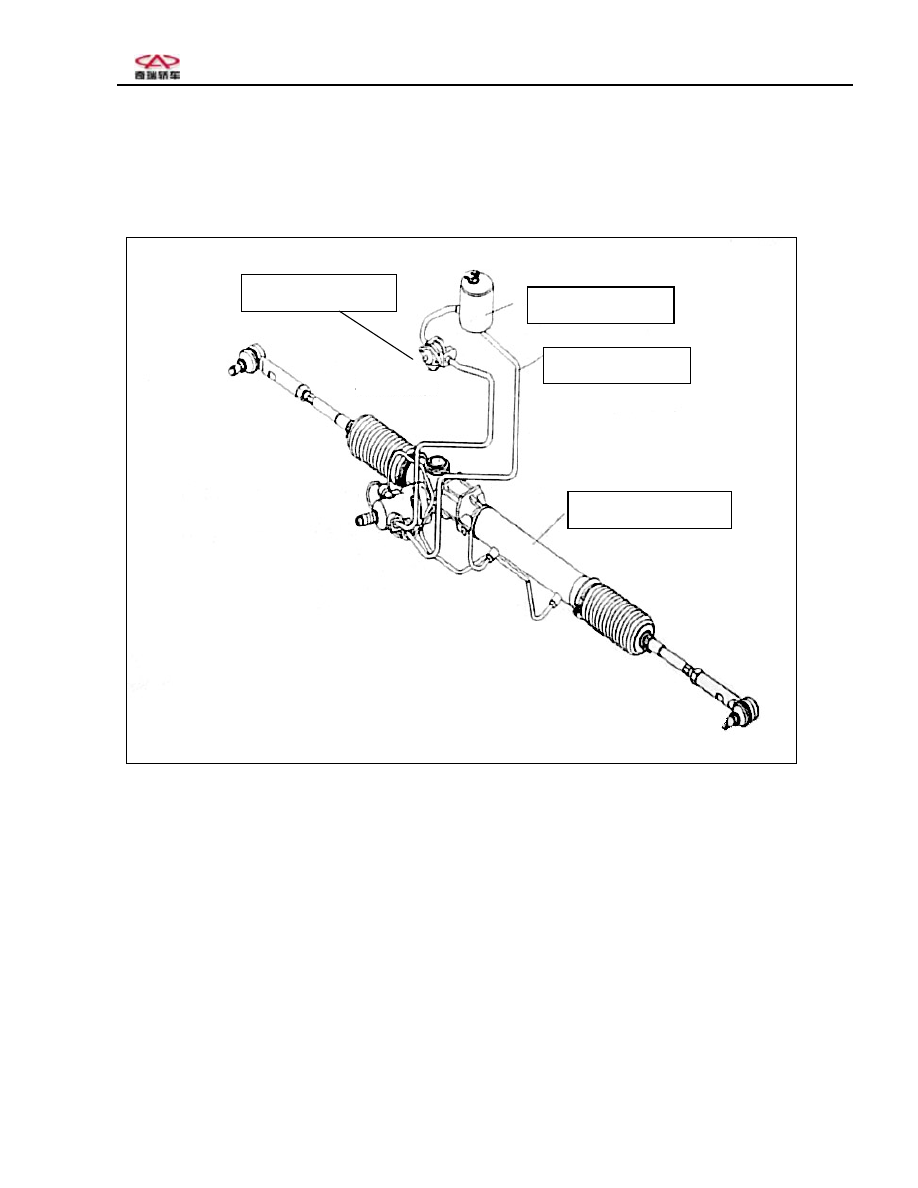

Steering oil  tank

Steering oil  pipe

Power steering gear

Steering oil  pump

Power steering service schematic diagram







99



  Chery    QQ    Maintenance Manual                                        Chassis System

Steering system fizzy noise



Step



Measure



Yes



No



Identification: Fizzy noise is heard during Engine running or steering wheel turning

1

If the fizzy noise becomes loud When
comparing with other normal vehicle?

  TO step 2



System perfect

2

If the fizzy noise becomes loud? If
steering fluid level is too low?

 TO step3



TO step4



3

Fill fluid into the system.
Does customer still complain?

 TO step1



System perfect



4

Is the noise from inside of vehicle?

  TO step5



 TO step7



5

The noise may enter passenger
compartment through outlet of front
instrument panel.

 TO step6



TO step7



6

Repair or replace steering pillar seal.
Does customer still complain?

TO step1



System perfect



7

Make sure the lay for steering hose and
pipe is correct ( not touch with front
instrument panel).
Repair or replace hose and pipe if
necessary.
Does customer still complain?

TO step8



System perfect



8

Confirm The source of noise. Check
steering pump and steering institute.
Repair or replace parts if necessary.
Does customer still complain?

TO step1



System perfect







Steering system chatter noise

State



Measure



Power steering system piping wear



Ensure power steering wear refer hydraulic

piping replace



Steering box looseness

Fixture



steering box nut torque refer

fastener specifications



Tie rod one end or both ends looseness

Repair or replace tie rod end if necessary

Steering universal joint looseness



Repair or replace the universal joint refer if

necessary
