  Chery    QQ    Maintenance Manual                                        Chassis System

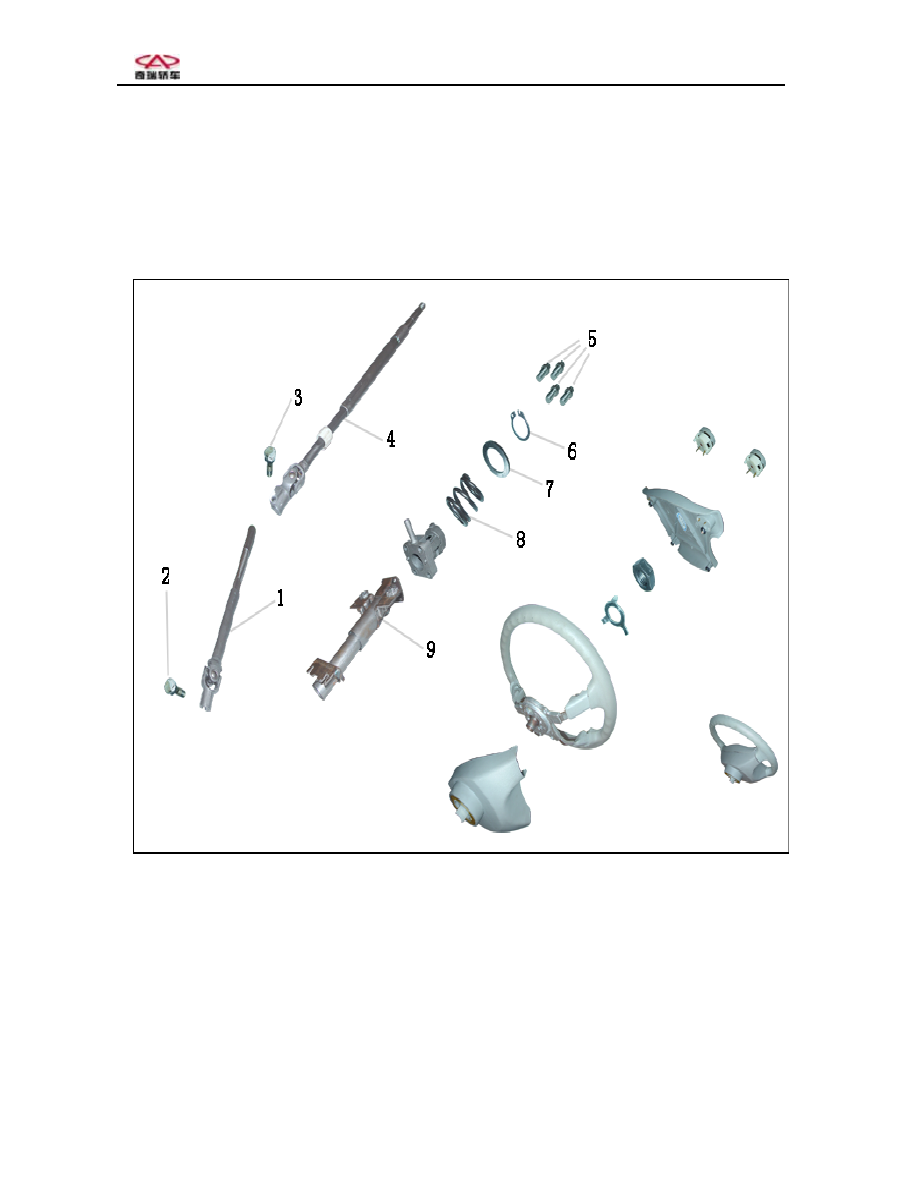

Manipulate part overhaul

Steering wheel  and steering column

decompose

view







1.  Steering universal coupling shaft and universal coupling;  2,3. Bolts;
4. Steering core shaft assembly; 5. Bolts;  6. Jump ring; 7. Washer; 8. Spring
9.Steering column

















89



  Chery    QQ    Maintenance Manual                                        Chassis System



Steering wheel free-play inspection





In the assembled mode, check the

free-play of the steering wheel while the car is
driving in straight line. The free play of the
steering wheel in the circumferential direction
should be no larger than 0~30mm. In the case
that the free play goes beyond the specified
value, the following items should be checked
to see: if the joint of the steering horizontal
lever is worn out (when a torque of over
0.2N.m is applied, the joint should be moved);
if the lower ball knuckle is worn out; if the
steering shaft universal coupling is worn out;
if the steering small gears or gear rack is worn
out or damaged and if the fixture or joining of
the parts is loose.





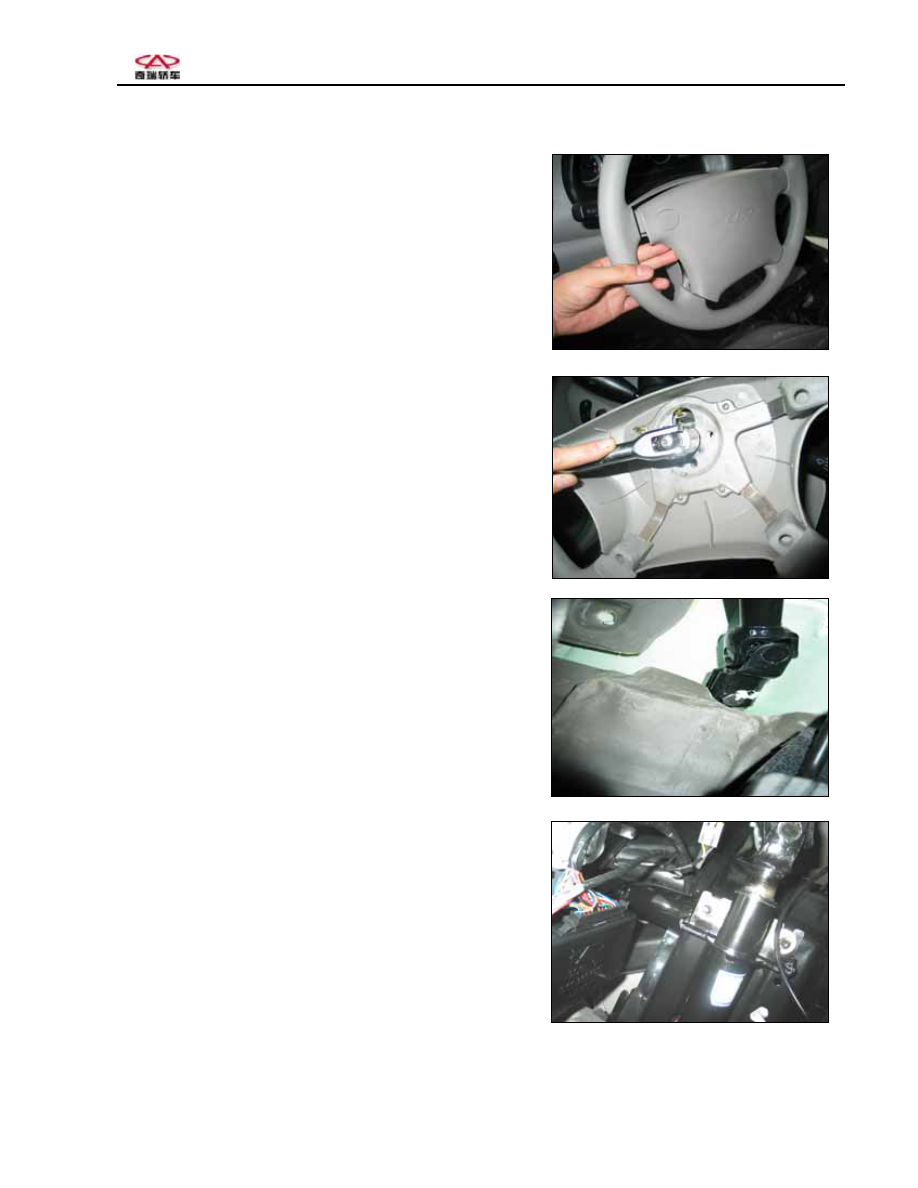

Control institute
Steering wheel
 Removal
Remove the battery jumper wires; remove the
steering wheel label cover assembly; remove
the steering shaft screw nut. To facilitate
positioning in the installation, matching signs
are to be made on the steering wheel and the
steering shaft, then remove the steering wheel
with the special purpose remover.


Removal of the steering column assembly
1)  Remove the wire bundle of the steering
wheel cover and horn switch.
2)  Remove the fastening screw nuts the
steering wheel.
3)  Remove the combination switch assemb-
ly.

4) Remove the joining bolt for the steering

column and steering power tilt.
5)  Remove the four fastening screws for the
steering column.


























































90



  Chery    QQ    Maintenance Manual                                        Chassis System






Inspection
1、The steering shaft and universal coupling: check to see if the steering shaft is bent, or if the
spine is damaged; check to see if there are any cracks on the universal coupling, or if the free
play is too large. If so, replace the universal coupling assembly.

2、Steering column: check all the covers of the steering column stand, with the spaces from
the slot bottom within 1.00mm. If not, make proper replacements. Check to see if the steering
column is bent, cracked or deformed.

Installation
The order of installation steps is just the opposite to that for removal.
Attention: Apply alkali-based lubricating grease on the interior slot of the rubber sleeve of
the steering column, and tighten the associated bolts and screw nuts with the specified torque.

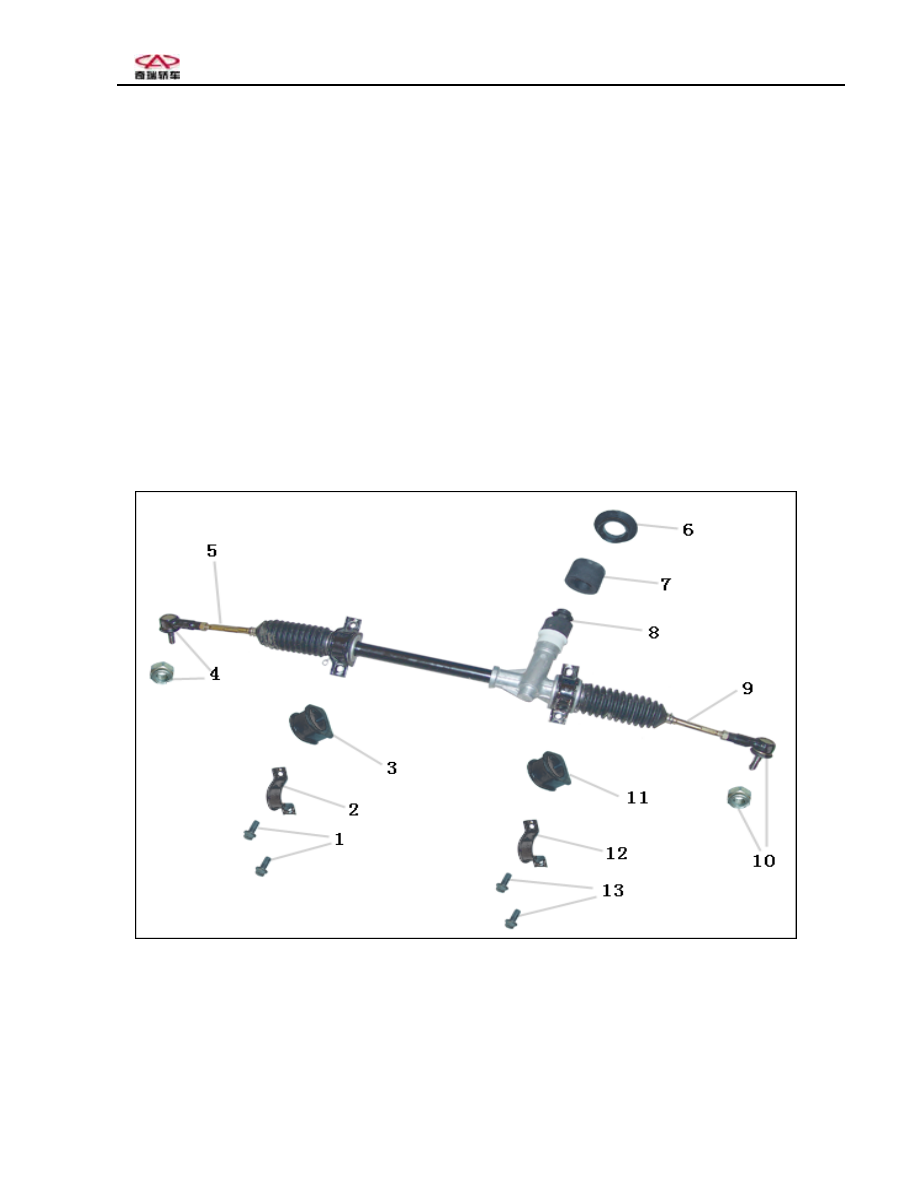

Power Steering Gear
Power steering gear components
























1. Bolts; 2. Right supporting frame;  3. Right supporting frame sleeve;4. Right steering
horizontal lever joints assembly;  5. Right horizontal lever;6. Steering gear washer;  7.
Gear bearing stopper;  8. O-shaped ring;  9. Left horizontal lever; 10. Left steering
horizontal lever joints assembly; 11. Left supporting frame sleeve;  12. Left supporting
frame; 13. Bolt





91



  Chery    QQ    Maintenance Manual                                        Chassis System







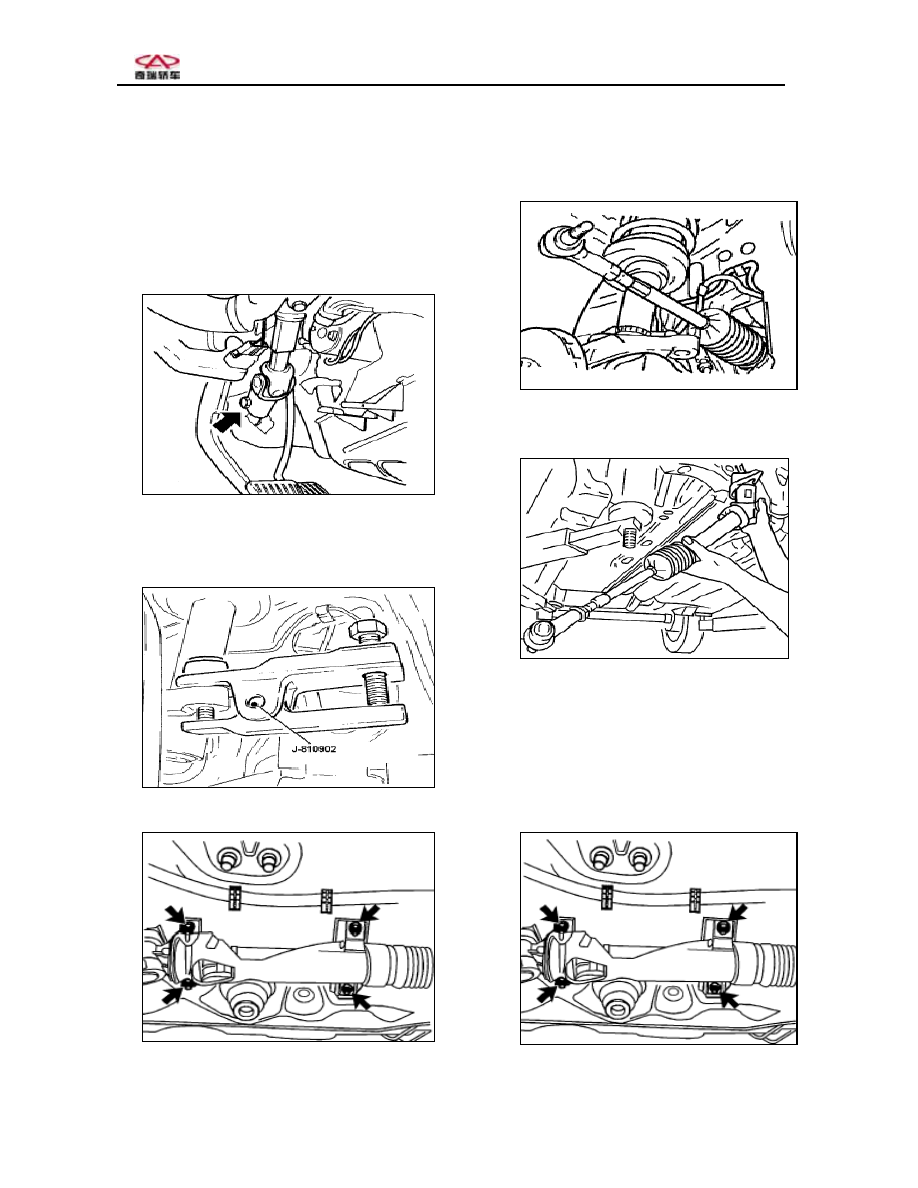

IIRemoval of power steering gear
assembly

(I)Removal
Disassembly procedure

1.  Put steering wheel forward and lock

steering, remove steering shaft.












2.  Loosen the nuts on two ends of steering

transverse lever and push out the ends of
lever from steering node.












3. Loosen the support and remove out.














4. Turn steering pivot left into gap of wheel,
pull the lever into engine compartment.










5. Push down and backwards to remove
steering pivot.












Steps of installation
1. Turn steering pivot upwards and push the
pivot into gap of wheel
2. Insert pivot into front surround.
3. Screw the nuts between the support and
front surround ( not tighten).

















92
