  Chery    QQ    Maintenance Manual                                                      Chassis System









88

between the spring tops and bottoms (as shown
by
the arrow).





2. Press the spring till it is separated from the
upper



and lower spring stands.



Chery

3. Use the ratchet wrench (as shown in the
Figure)
to dismount the absorber supporting column stand
restriction device and the washer from the piston
connecting rod.



4. Remove the upper spring stand with absorption
 block.



5. Remove the spring compressor with the spring
and the dustproof cover.



6. Dismount the baffle block.



7. Check the dismounted parts and components
for the extent of tears and wears.



1

）The baffle block



2

）The dustproof cover



3 ) The absorption block



4

）The absorber supporting column stand



5

）The upper spring stand with bearing and



restriction device



8. In the case that the used absorber needs to be



replaced, remove the absorber and then dismount



the lower wheel speed sensor wire bundle frame
from the used absorber and install it on the new



absorber (if there is no wheel speed sensor wire
bundle frame, the absorber can be replaced
directly).




















































Steps of installation:



1. Install the new absorber in the installation
fixture.





  Chery    QQ    Maintenance Manual                                                      Chassis System







89

2. If the used spring needs to be replaced, loosen
the spring and then take the used spring out from
the spring compressor.
3. Insert the new spring into the spring
compressor



with a ring being left for the upper

section and one and a half rings being left for the
lower section.



4. Press the spring to make the spacing



between

the two jaws

≤120 mm.



5. Make sure the position of the baffle



block restriction device (1).



6. Install the baffle block and pull the



piston rod to the bottom.



7. Place the spring onto the spring stand.
Cautions:
The end of the spring must be within the position
restriction hole (as shown by the arrow).
8. Install the upper spring stand with absorption
block so as to make the punched hole have a 180
degree bias from the lower spring supporting
column position(as shown by the arrow).


































































9. Install the separation sheath bearing and
the positioning device.
10. Make use of new nuts for tightening against





  Chery    QQ    Maintenance Manual                                                      Chassis System





looseness.

assembly.
Attention:  When removing the balanced beam,
the assembly is to be removed, and the supporting
frame of the balanced beam is to be removed.

11. Tighten the new screw nuts.
Cautions:
The torque wrench should be used in the
perpendicular manner (as shown in the figure).



3

） Remove the joining bolt for the steering

knuckle and the lower swinging arm.









90










4

）Remove the joining bolt for the car body and

the lower swinging arm.

5

）Remove the car body lower swinging arm

assembly.
Steps of installation:
1. Do the installation by referring to the steps
of dismounting.



2

、Points of attention:



IV. Removal and installation of the

lower swinging arm assembly

①  In the screw tightening process, the fastening
bolts controlled by torque + corner tightening
submission limits should be replaced after each
action of loosening

Removal

②  The screws should be tightened to the

specified torques after the installation.



1

）Remove the wheels.



2

）Remove the balanced beam and rubber sleeve





















  Chery    QQ    Maintenance Manual                                                      Chassis System







86

Section Three   Rear Suspension Frame

Rear Suspension service

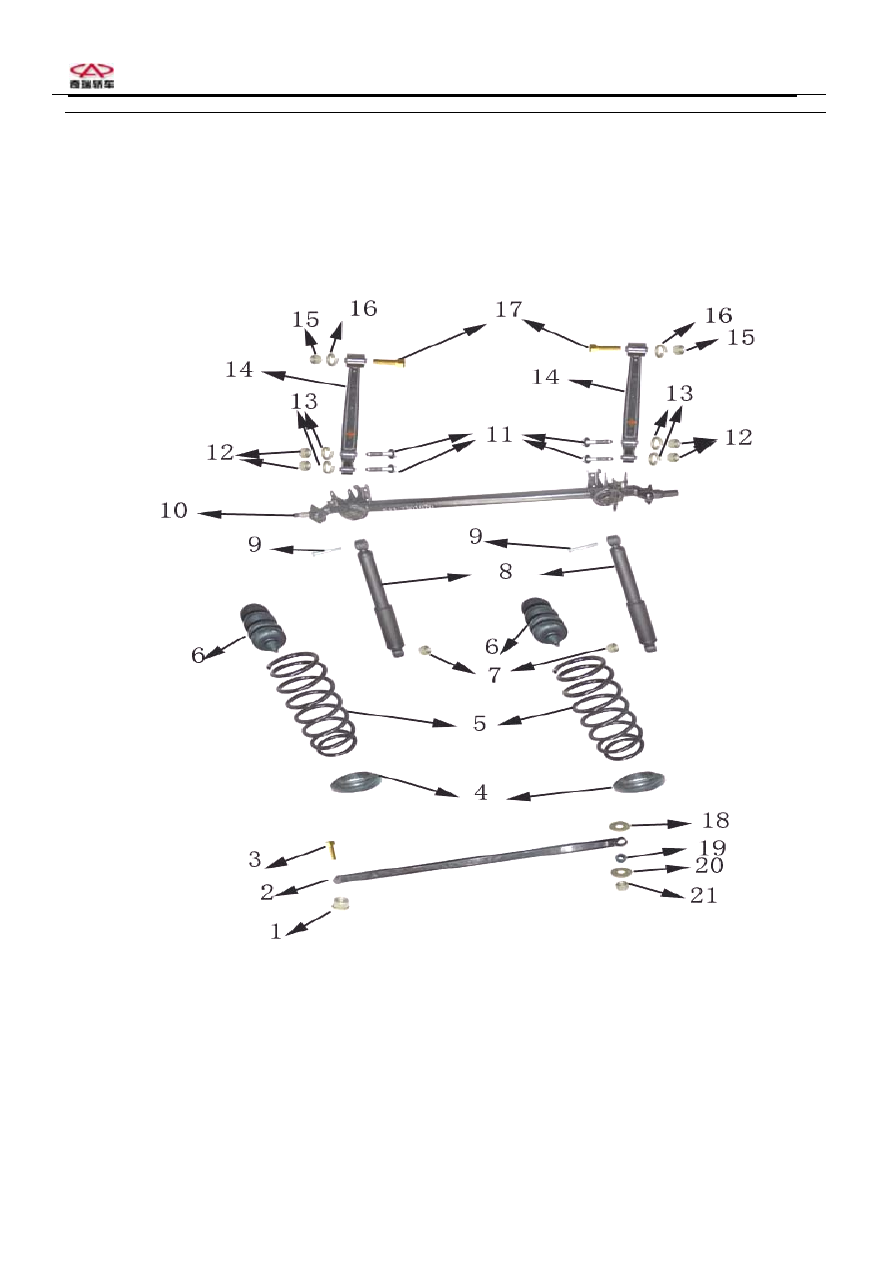

I . Rear Suspension parts


































1.    7. 12. 15. 21. Screw nuts; 2. Horizontal stabilizing bar; 3. 9. 11. 17. Bolts; 4. Lower supporting
stand; 5. Spiral spring; 6. Spacing block; 8. Dampener; 10. Rear bridge; 13.16. Spiral washer; 14. Left
and right swinging arm; 18.20 Washers; 19 Sleeve
