Chery    QQ    Maintenance Manual                                          Body System














2 Draw back the left/right bolts, move the backrest frontward.














3 Loosen 3 set bolts, take out backrest of rear Seat assembly.

4.2.2.4 Dismantlement of backrest lock
1 Loosen outer cover of the seat.
2 Loosen 2 set bolts, take out rear back lock.
















4.2.2.5 Removal of safety belt of rear seat
1 Draw back the buckle, move the seat pad frontward;
2 Loosen set bolt of the safety belt handspike, take out the bolts.
3 Loosen set bolts of the left/right safety belt;



56





Chery    QQ    Maintenance Manual                                          Body System



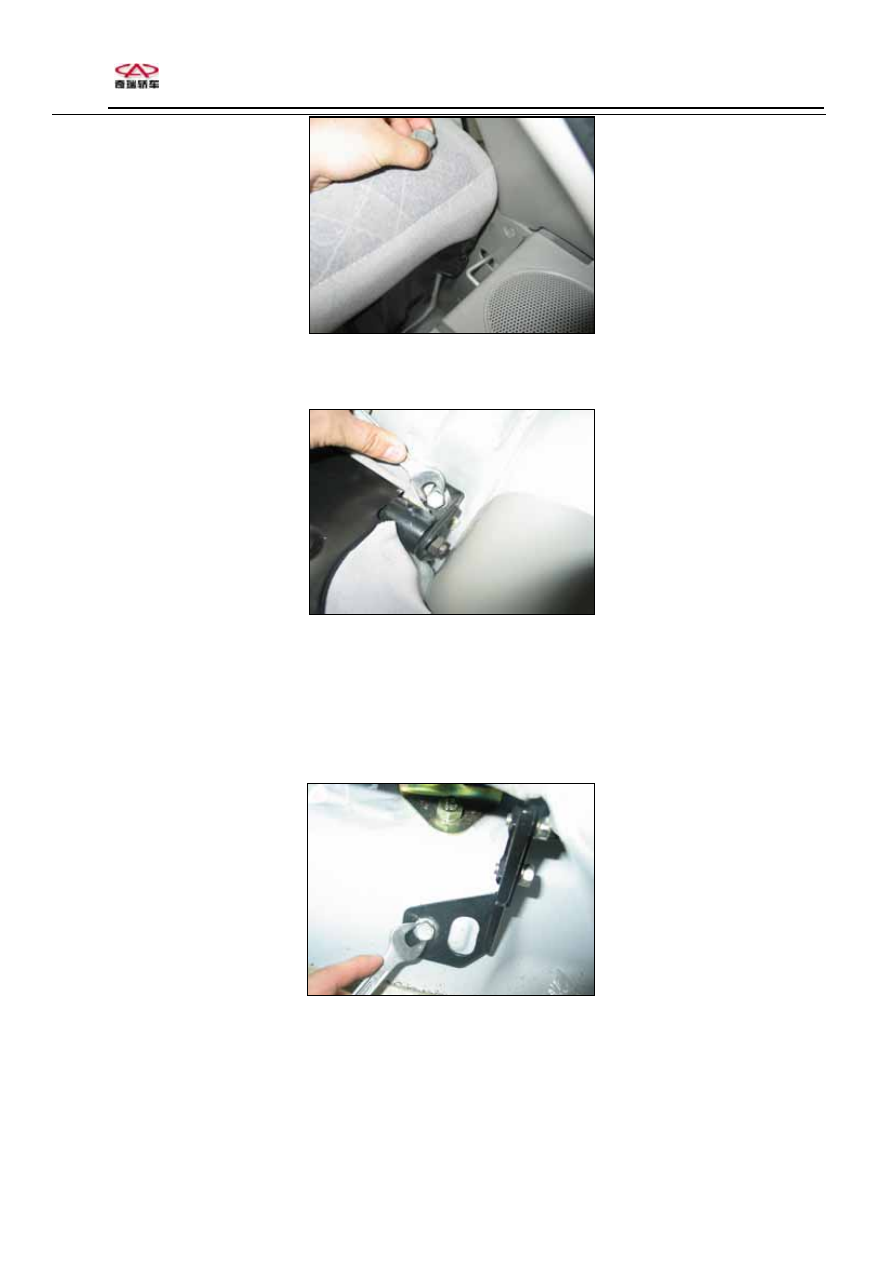

4 Use SST to loosen the clamp buckle, move the footrest.
5 Loosen 3 set bolts of the left/right acoustics horn, move the bolts. Loosen 2 upper and lower set
bolts, take off the safety belt.




Chapter 5   Interior accessories

5.1 Maintenance guide

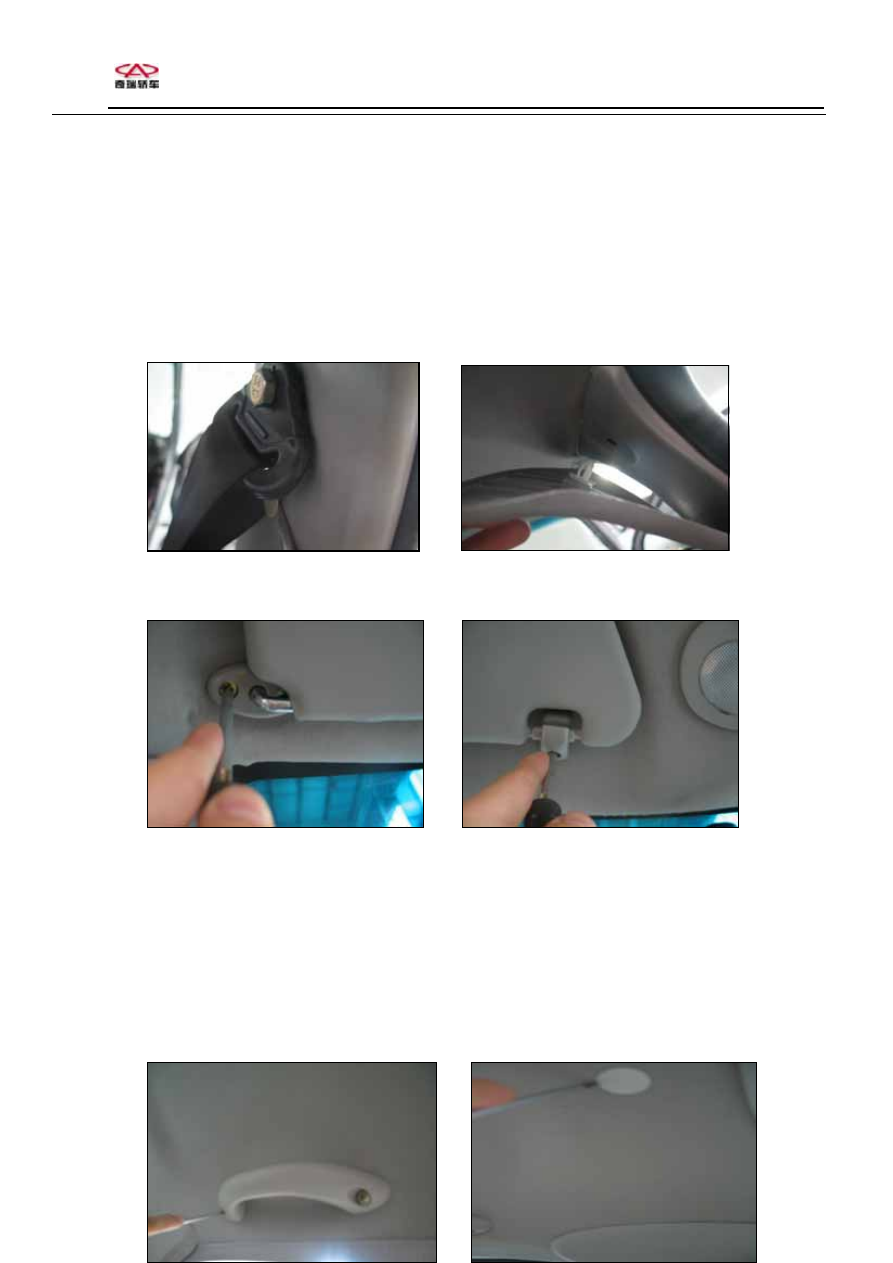

5.1.1 Removal of vehicle roof panel
(1) Pull out inner panel of A pillar on the left side.














(2) Loosen bolts on the sun shading panel with screwdriver.












(3) Loosen 3 handles on the roof panel.
(4)Open the 8 latch hooks with flat screwdriver.








(5)From top to bottom, pull out the roof panel assembly.

57

obile Co., Ltd












Chery    QQ    Maintenance Manual                                          Body System











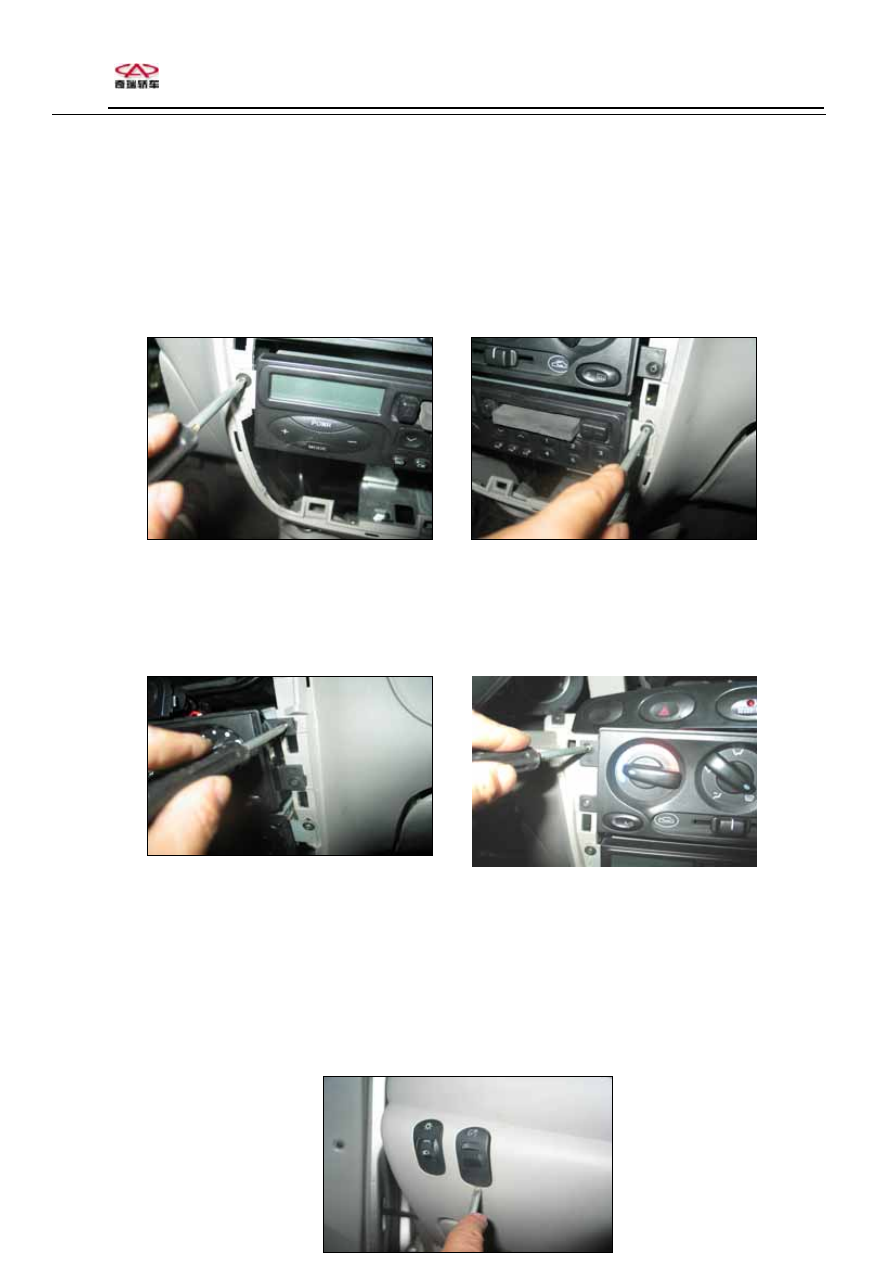

5.1.2 Removal of radio

（1）Loosen 2 set bolts of the radio.












（2）Take out the radio, disconnect the plug.

5.1.3 Removal of A/C panel
(1) Loosen 4 set screws.














(2) Open fixed clip    (make the mark) and loosen the cable on air outlet。
(3) Loosen plug, pull out the A/C panel





5.1.4 Removal of back light switch
Open the switch with a small Screwdriver.








58







Chery    QQ    Maintenance Manual                                          Body System









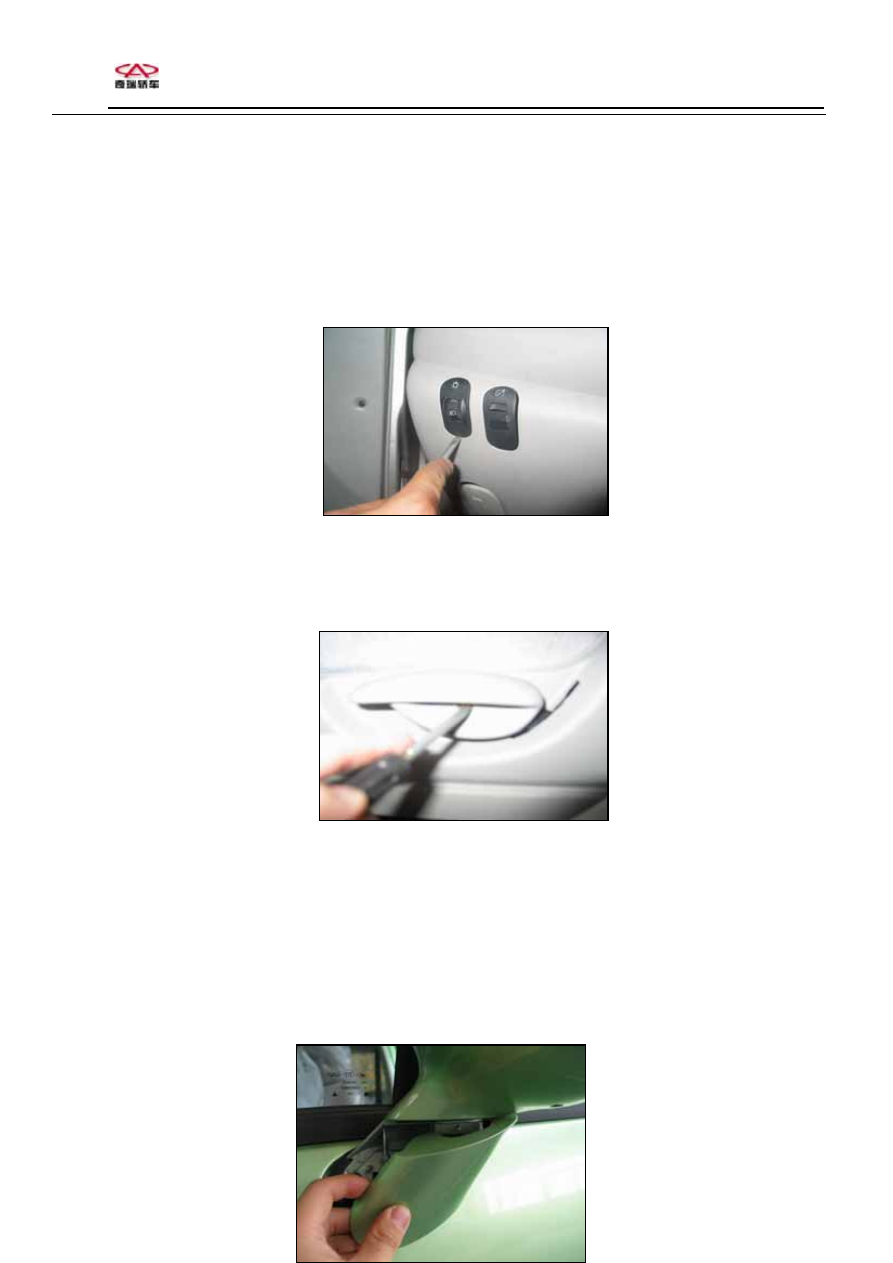

5.1.5 Removal of fog lamp switch
Open the switch with a small Flat screwdriver.










5.1.6 Removal of antenna
1 Remove set bolts of antenna.
2 Remove the launching wire of the antenna.










5.1.7 Installation item
The installation sequence is just the reverse of the dismantlement ones.





Chapter 6   outside Accessories



6.1 Maintenance guide
6.1.1 Removal of

rearview

mirror

(1) Remove plastic

protective Cover of the

rearview mirror.
