Chery    QQ    Maintenance Manual                                          Body System



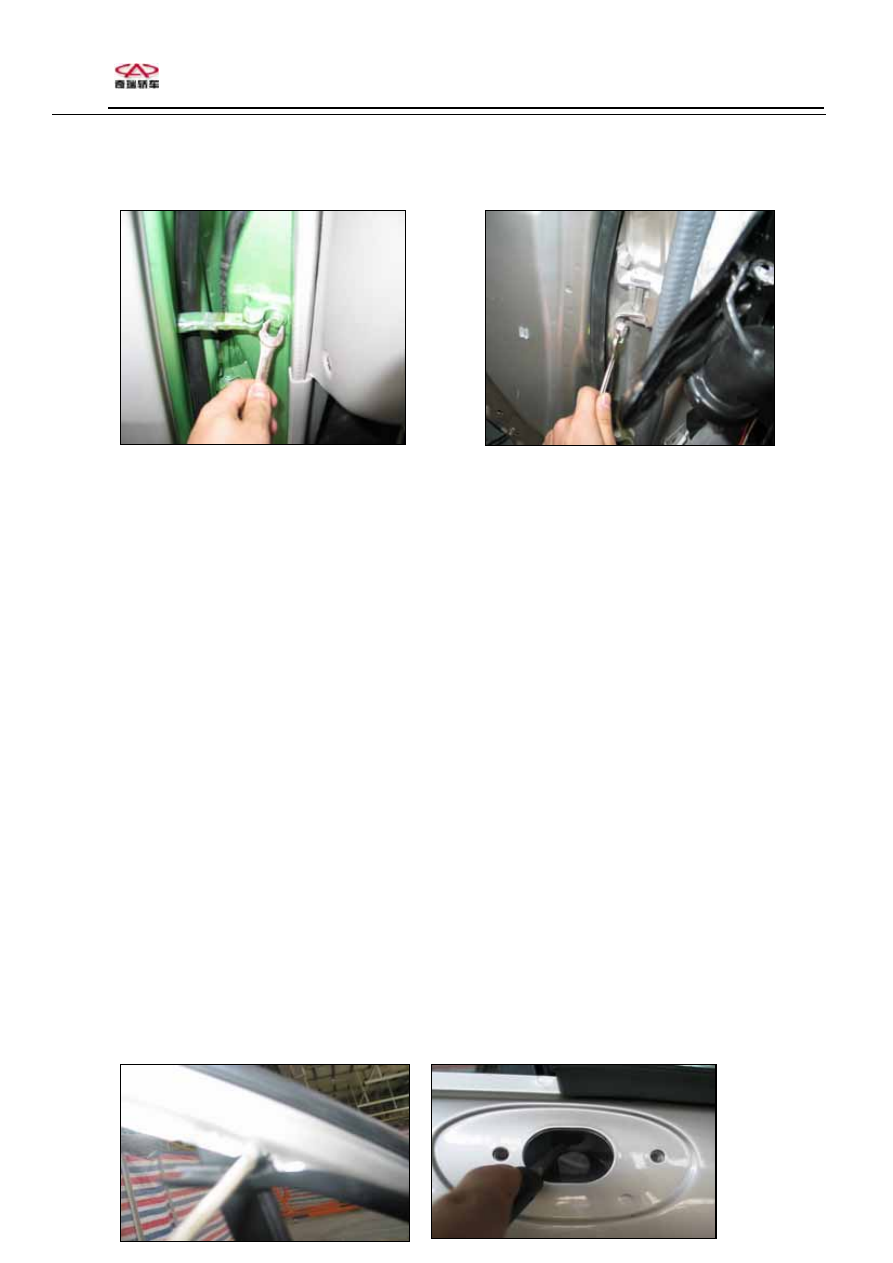

(2)Take door check strap out.
(3) Remove front door set bolts
(4) Take off the front door screw.















3.2.7 Adjustment of front door
1 Adjust front door frontward, backwards and vertically
Loosen the hinge bolts of body side with SST and adjust the door.
2 Adjust the front door along left/right and vertical direction.
Loosen the hinge bolts of door side with SST and adjust the door.
3. Adjust front door lock hole
Hint: Wrap the tip of screwdriver with adhesive tape before use.

(1)  Check if the door closes tightly; check to see if the adjustment of connecting rod of door

lock is right or not.

(2)  Remove the cover of lock hole.
(3)  Loosen the bolts and tap the hole with hammer to adjust the position of the hole, and then

tighten the bolts.

(4)  Install the bolt cover.


3.2.8 Removal of door glass
(1) Remove outside rearview mirror.
(2) Remove 2 set bolts of door glass guide rail.
(3) Separate door inner panel Assembly.
(4) Remove set bolts on upper part of door glass guide; take out the door inner panel and glass
guide rail.
(5)Loosen 2 set bolts of window winder and glass bracket.
(6) Take the glass out upwards.






52









Chery    QQ    Maintenance Manual                                          Body System


















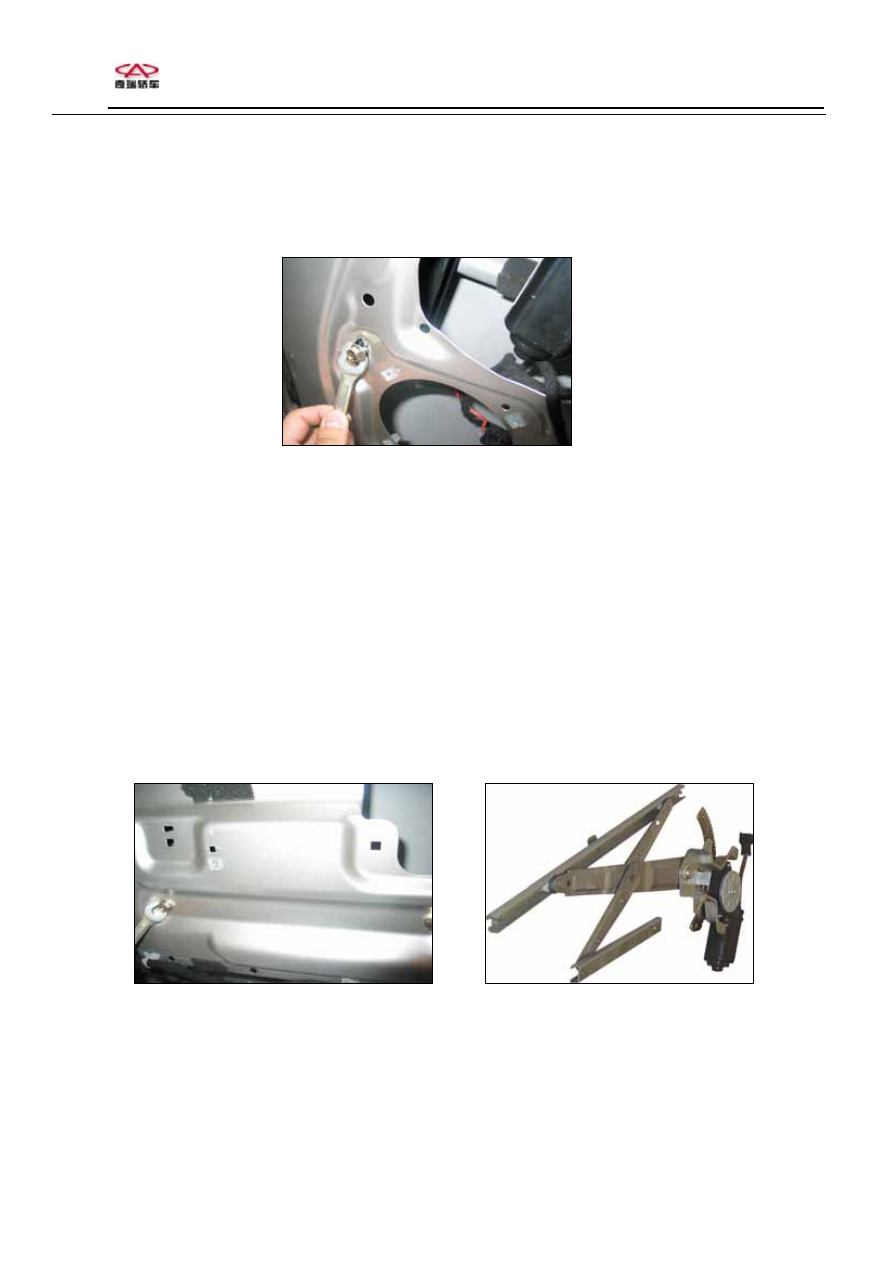

3.2.9 Adjustment of door glass
Hint: Check the clearance between guide and block
(1) Lift glass completely, adjust the clearance between glass and the door inner panel.
(2)  Fix the guide, block and 2 nuts after adjustment.
(3)  Lift glass again and check to see if the installation is good or not.

3.2.10 Removal of window winder
(1) Take out the door inner panel.
(2) Loosen 2 set bolts of the window winder and glass bracket
Hint: Stuff a piece of cloth inside the door inner panel, so as not to cut the surface of the glass.
(3) Loosen 6 set bolts of the window winder.
The tighten torque: 5.5N·m (56kg-m, 491b-ft)
(4) Loosen the harness connector of the window winder; take the window winder assembly out.














3.2.11 Removal of front door weather strip
(1) Loosen screws and nuts.
(2) Take out the two sided adhesive tape from backward with scraper.




53





Chery    QQ    Maintenance Manual                                          Body System





54

3.2.12 Hint

The installation sequence is in the reverse direction of the dismantle sequence.

As to dismantle of other door, you can see “dismantle of front door” for reference.



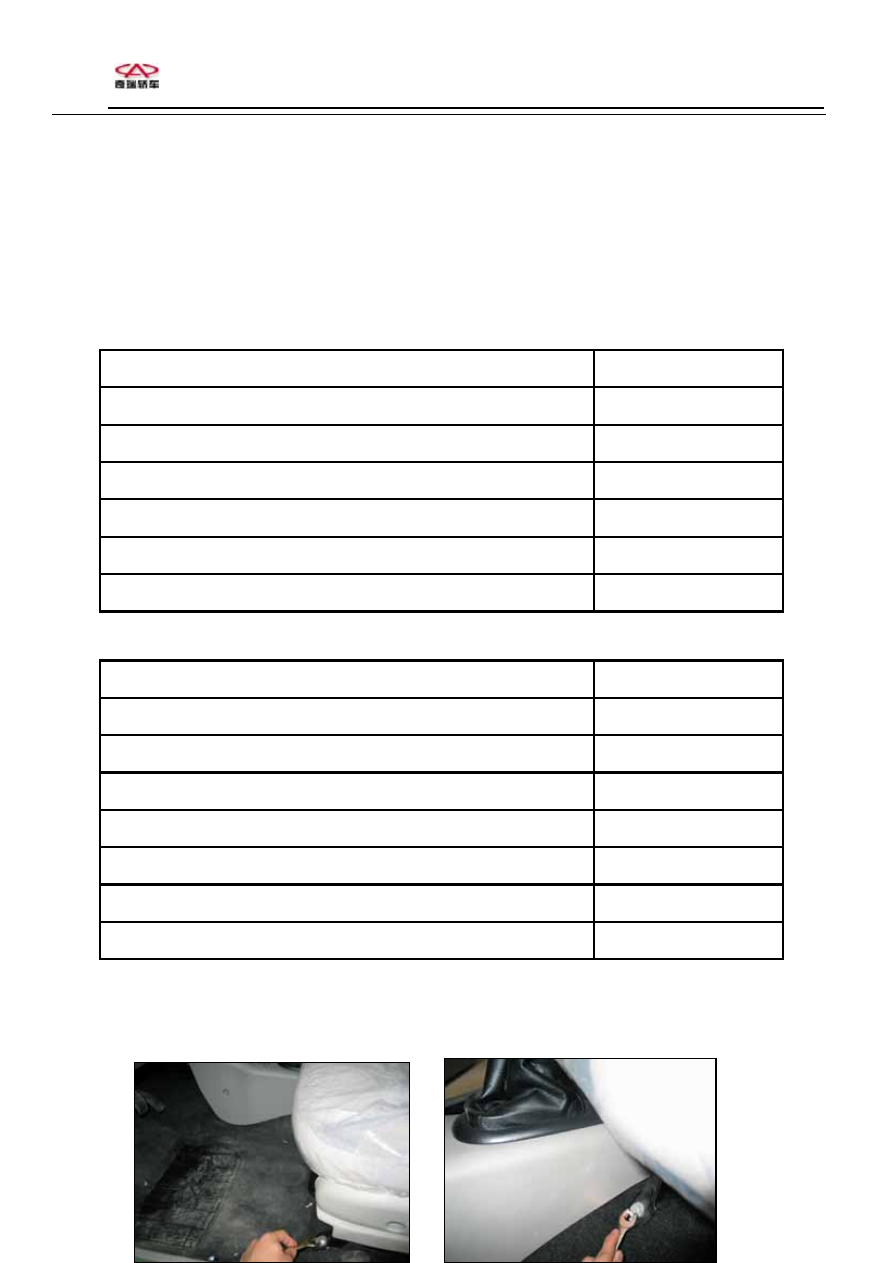

Chapter 4  Seat and Belt


4.1 Specification
4.1.1 A Specification of fastener

Application Specification

Seat regulator to floor linkage bolt

15 25 N/m

Regulator to seat cushion skull connecting bolt

15 25 N/m

Seat backrest to seat cushion skull connecting bolt

40 50 N/m

Height    regulator to seat cushion skull connecting    bolt

15 25 N/m

Rear seat cushion screw

4 5 N/m

Rear seat backrest screw

10 22 N/m


4.1.1B Specification of fastener

Application Specification

Central bracket to back rest connecting bolt

18 22 N/m

Seat regulator to floor connecting bolt

15 25 N/m

Regulator to seat cushion skull connecting bolt

15 25 N/m

Back rest to seat cushion skull connecting bolt

40 50 N/m

Height regulator to cushion skull connecting bolt

15 25 N/m

Back rest hinge to cab connecting bolt rear

18 22 N/m

Back rest hinge to cab connecting bolt front

18 22 N/m




4.2 Maintenance guide

4.2.1

Removal of
front seat

 (1)





Chery    QQ    Maintenance Manual                                          Body System



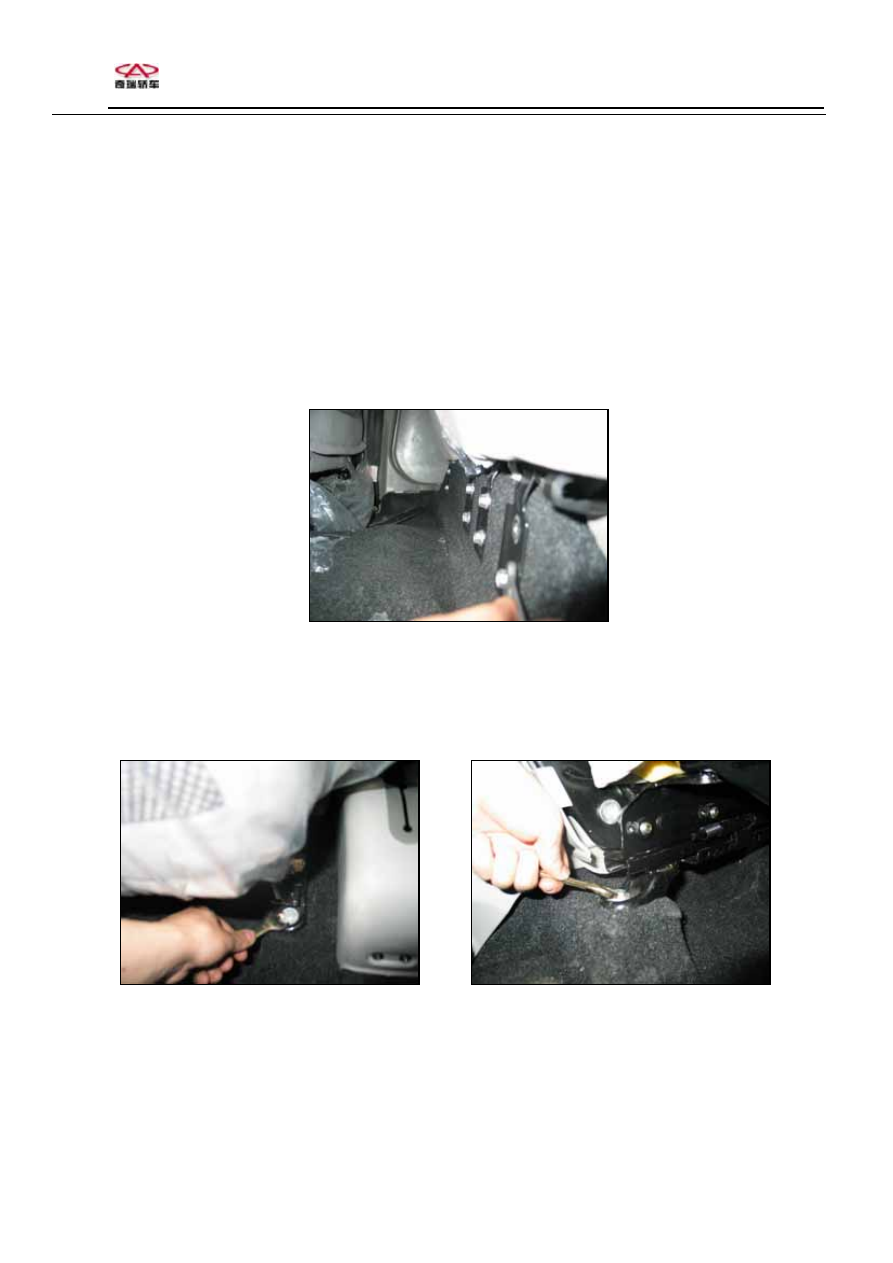

Remove 4 set bolts of front seat














(2) Take out the seat assembly












4.2.2.1 Removal of rear seat cushion
1 Loosen 4 set bolts, lift left rear seat cushion frontward and upwards.



4.2.2.2 Removal of rear right seat cushion
1 Loosen 4 set bolts, lift right rear seat cushion frontward and upwards.


















4.2.2.3 Removal of backrest
1 Draw back the buckle on rear seat, move seat cushion frontward from the rear.
