Chery QQ Service Manual



Mechanical Part of SQR 472Engine



13





3.5.2

With flywheel

3.5.2.1

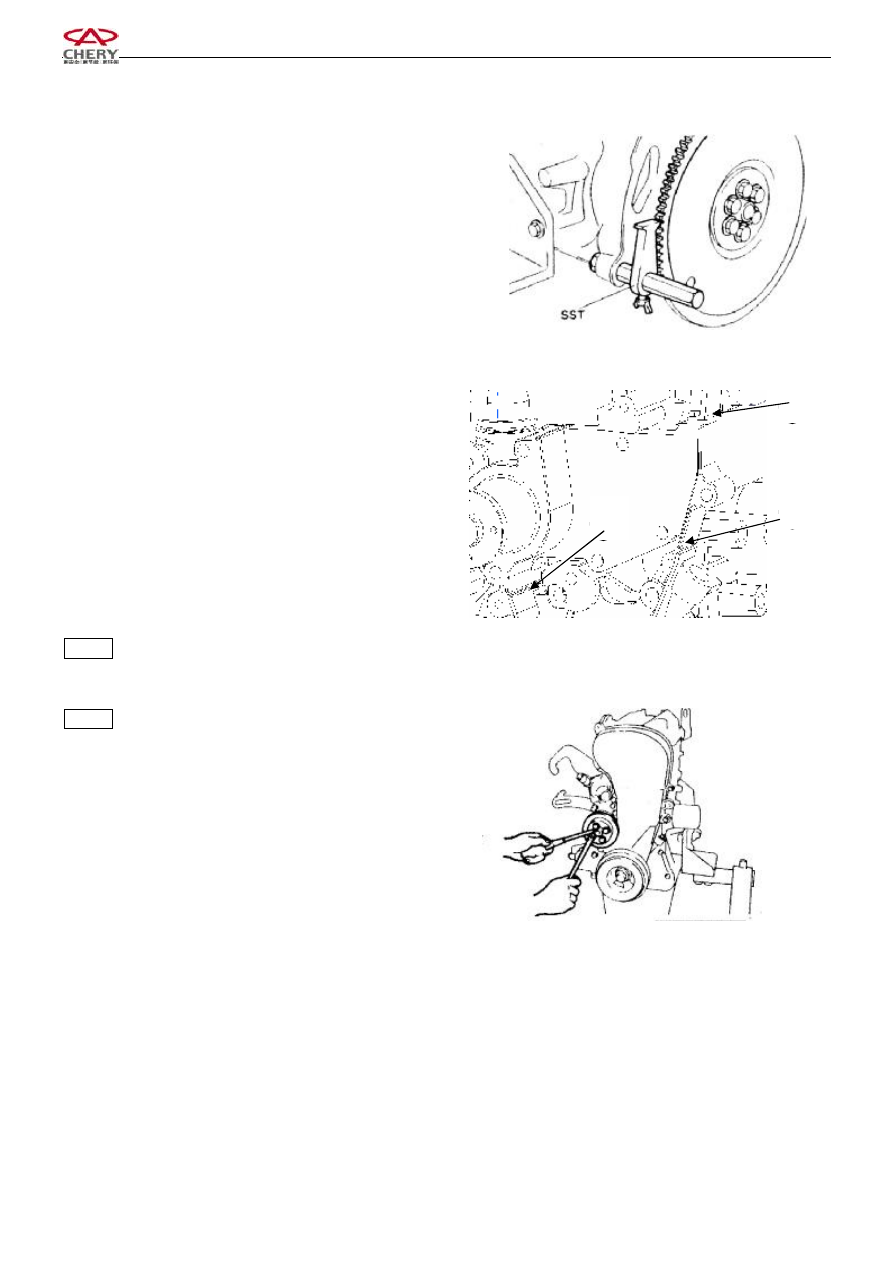

Prevent the gear from rotating with special tool.

3.5.2.2

Then screw down the bolt of torsional damper.

















3.6  Assembly of timing cover.

Mount the sealing strips at the positions as indicated in the

right  figure.  The  sealing  strips  at  the  position  1  and  2

should  be  mounted  before  the  assembly  of  the  cylinder

head  assembly,  and  the  sealing  strip  at  the  position  3

should be mounted before tightening the water pump.









Install  the  timing  cover,  screw  in  the  bolts  with  hand  and

then tighten them.

Torque: 6±1N.m





3.7  Installation of water pump pulley.

Torque: 6±1N.m

















































Chery QQ Service Manual



Mechanical Part of SQR 472Engine



14



2)  Camshaft

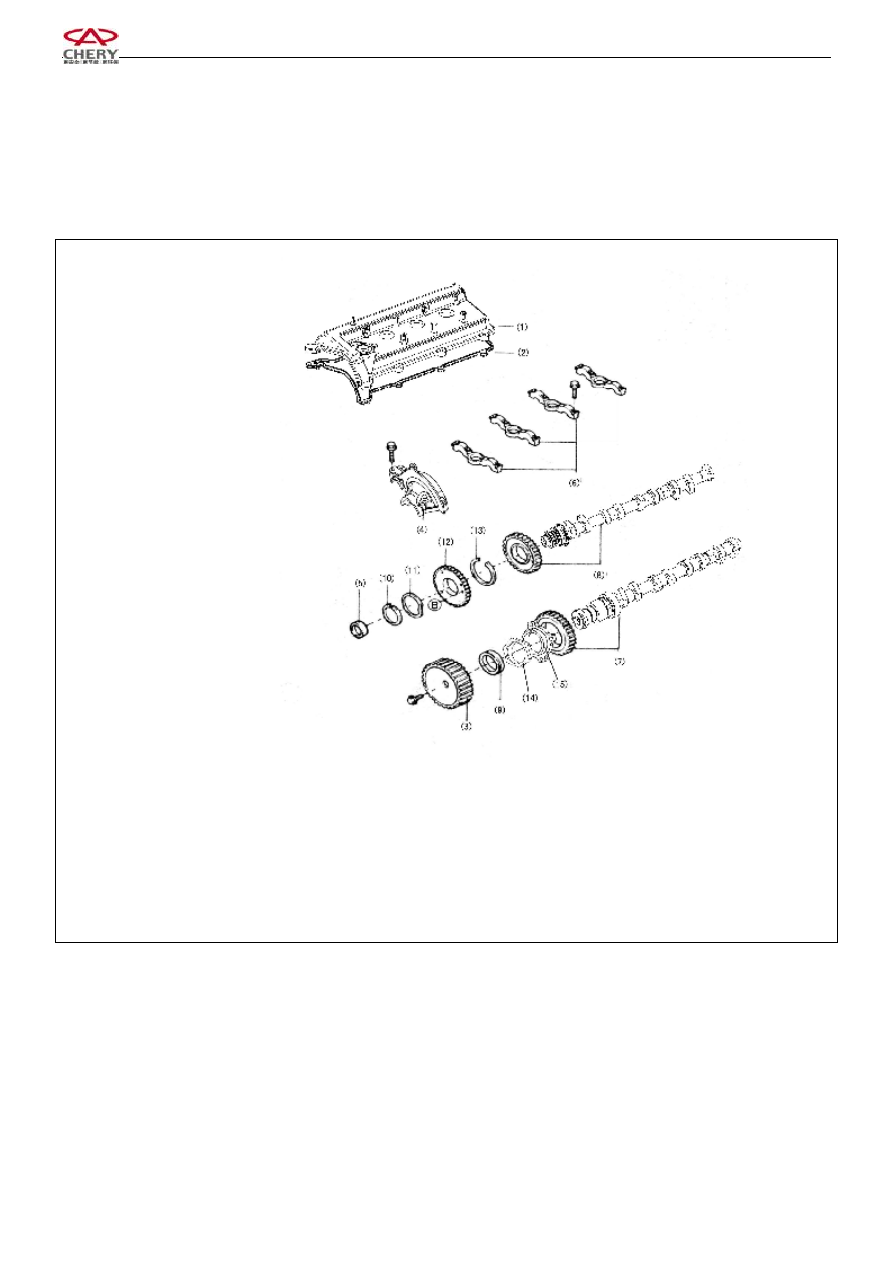

1.  Structure Diagram















































(1)  Cylinder head chamber cover assembly

(2)  Cylinder head cover gasket

(3)  Camshaft timing belt

(4)  Camshaft cover

(5)  Blanking cover

(6)  Camshaft bearing cap

(7)  Exhaust camshaft assembly

(8)  Intake camshaft assembly

(9)  Camshaft oil seal

(10) Axial spring retainer ring

(11) Saddle washer

(12) Intake camshaft sub gear

(13) Transmission ring

※: Components which may

not be reused

Unit: N·m(kg·cm)









Chery QQ Service Manual



Mechanical Part of SQR 472Engine



15



2.  Disassembly

2.1  ①  Cylinder head chamber cover assembly;

      ②  Disassembly  sequence

of  cylinder  head

chamber cover;





















2.2  Remove the camshaft timing gear with special tool.



















Notice:  ·The  special  tool  should  be  made  as  indicated  in

the right figure.

·

Use the special tool to prevent the camshaft from

rotating.















2.3  Remove the camshaft bearing cap

2.3.1    The  marks  on  the  camshaft  gear  should  match

with each other as indicated in the right figure.























Timing Mark

Gear  of  Intake

Camshaft



Gear  of  Exhaust

Camshaft







Chery QQ Service Manual



Mechanical Part of SQR 472Engine



16

2.3.2    Position  the  main  sub  gear  on  intake  camshaft

with bolts, as can be seen from the right picture.

Notice:  In  order  to  eliminate  the  radial  force  of  the

camshaft,  the  camshaft  should  be  kept  at  the  horizontal

position in the course of disassembly so as to prevent the

damage caused by the excessively high radial force.









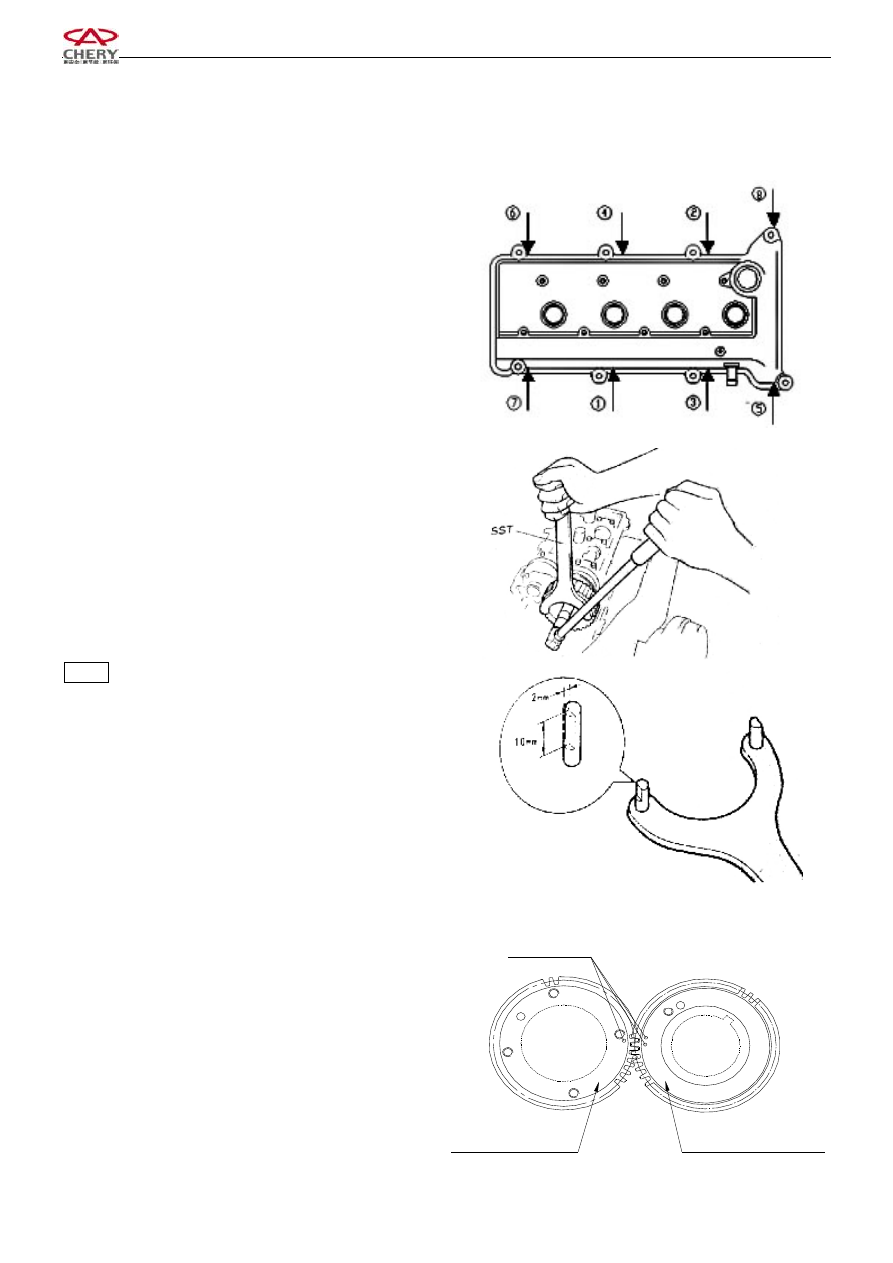

2.4  Disassemble the bolts in the order as indicated in the

right  figure,  and  then  disassembly  the  camshaft  bearing

cap.

























2.5  Remove the spark plug

2.6  Disassemble the sub gear of the camshaft.

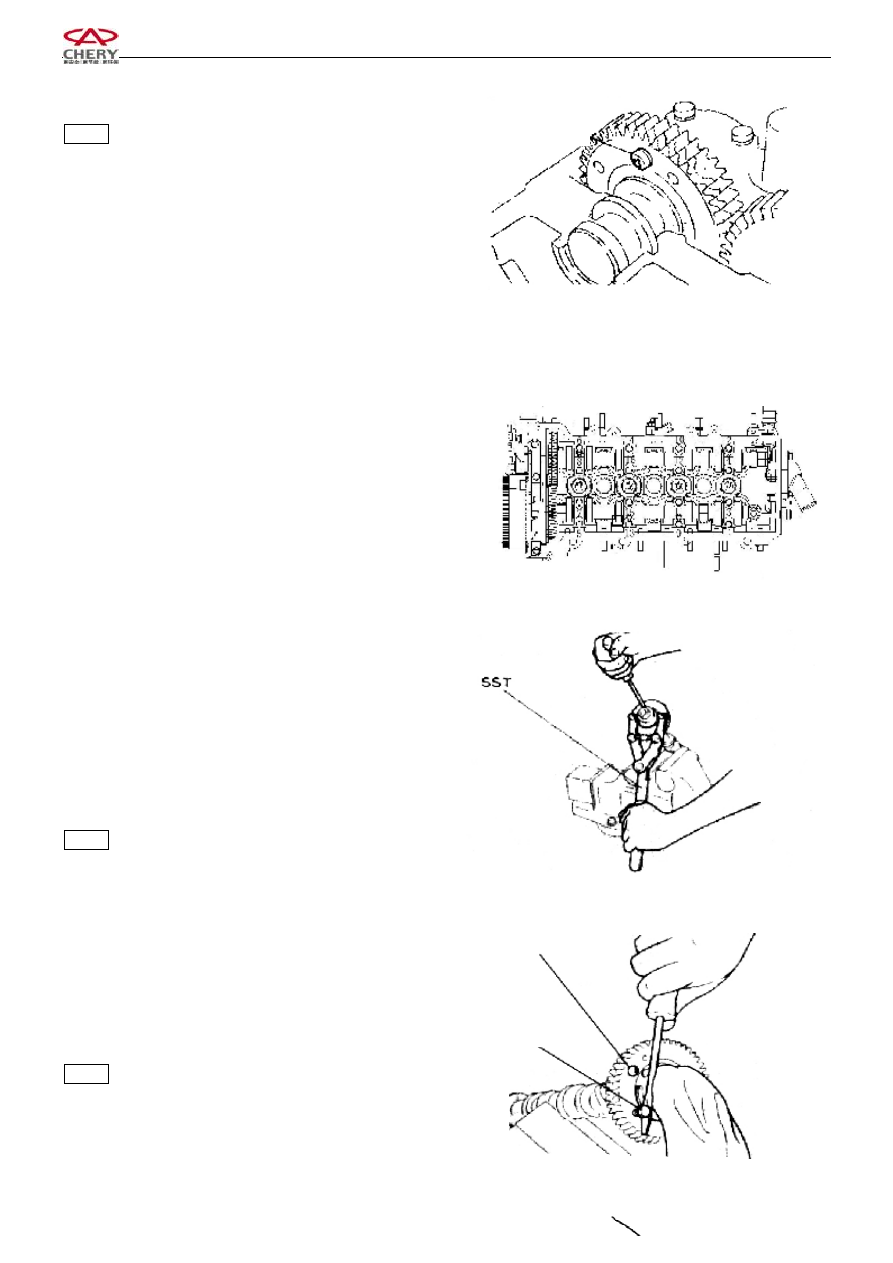

2.6.1    If  using  the  special  tools,  operate  as  indicated  in

the right figure.



Clamp the camshaft and plug the pins of special tool into

the  hole  on  gear;  rotate  the  gear  to  keep  the  meshing  of

driven  gear and  driving  gear, and then remove  the  fixing

bolt of driven gear.

Notice: The surface of the camshaft may not be damaged.







2.6.2    If not  using the special tools,  operate as indicated

in the right figure.

(1)  Screw  M6  bolts  onto  the  sub  gear  of  the  intake

camshaft at the position as indicated in the right figure.

(2)  Use  the  screwdriver  to  turn  the  gear  as  indicated  in

the  figure,  and  disassemble  the  fixing  bolts  of  the  sub

gear.

Notice: The surface of the camshaft may not be damaged.

(3)  Disassemble  the  axial  elastic  retainer  ring  with

tensioner  and  remove  the  saddle  spring  washer,

transmission ring, and so on.



2.7  Camshaft



For Fixing

Bolt

Fixing Bolt
