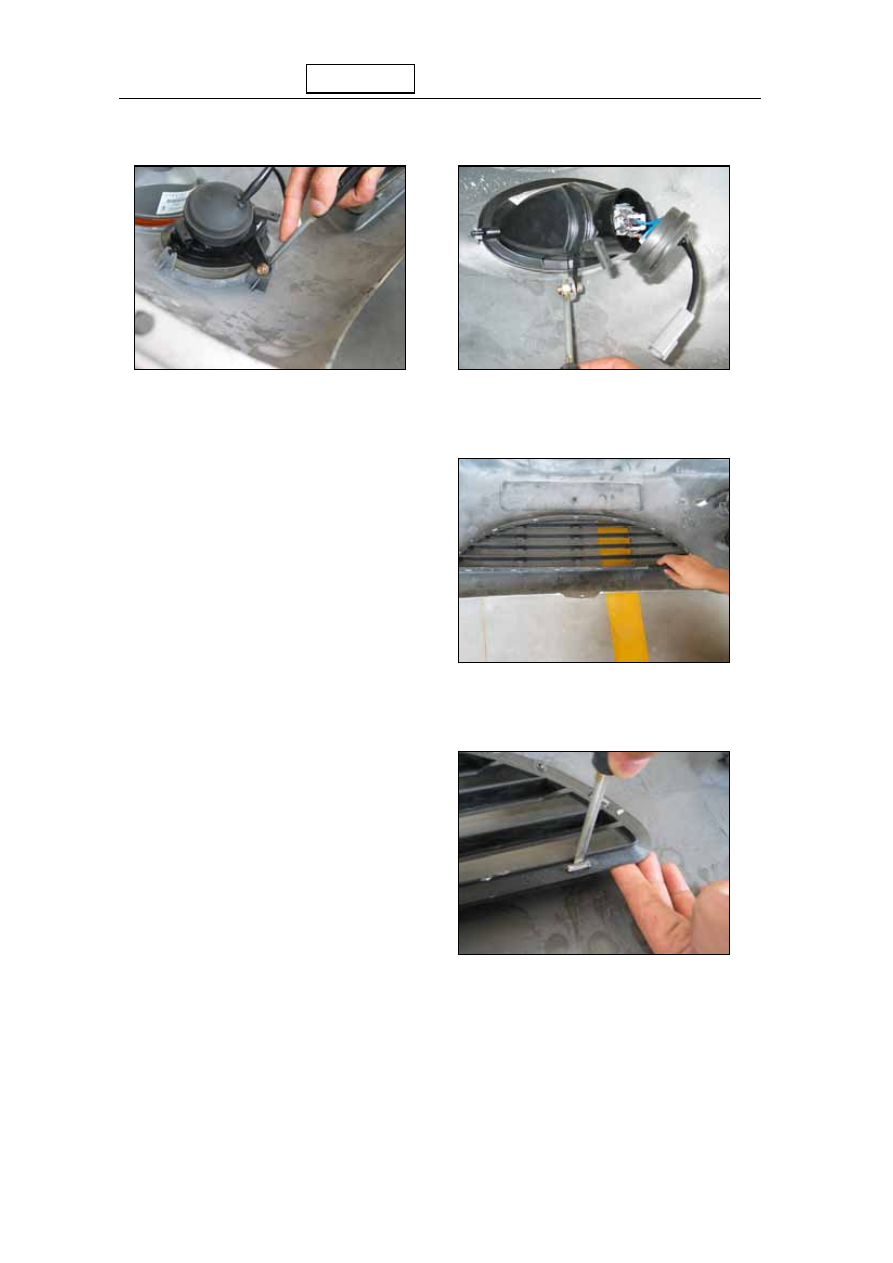

7. Remove the grid

cover on front bumper

（1） Loosen four screws on upper

and lower sides











（2） Press down protecting fasteners

      and get grid cover out





















    Chery QQ Service Manual



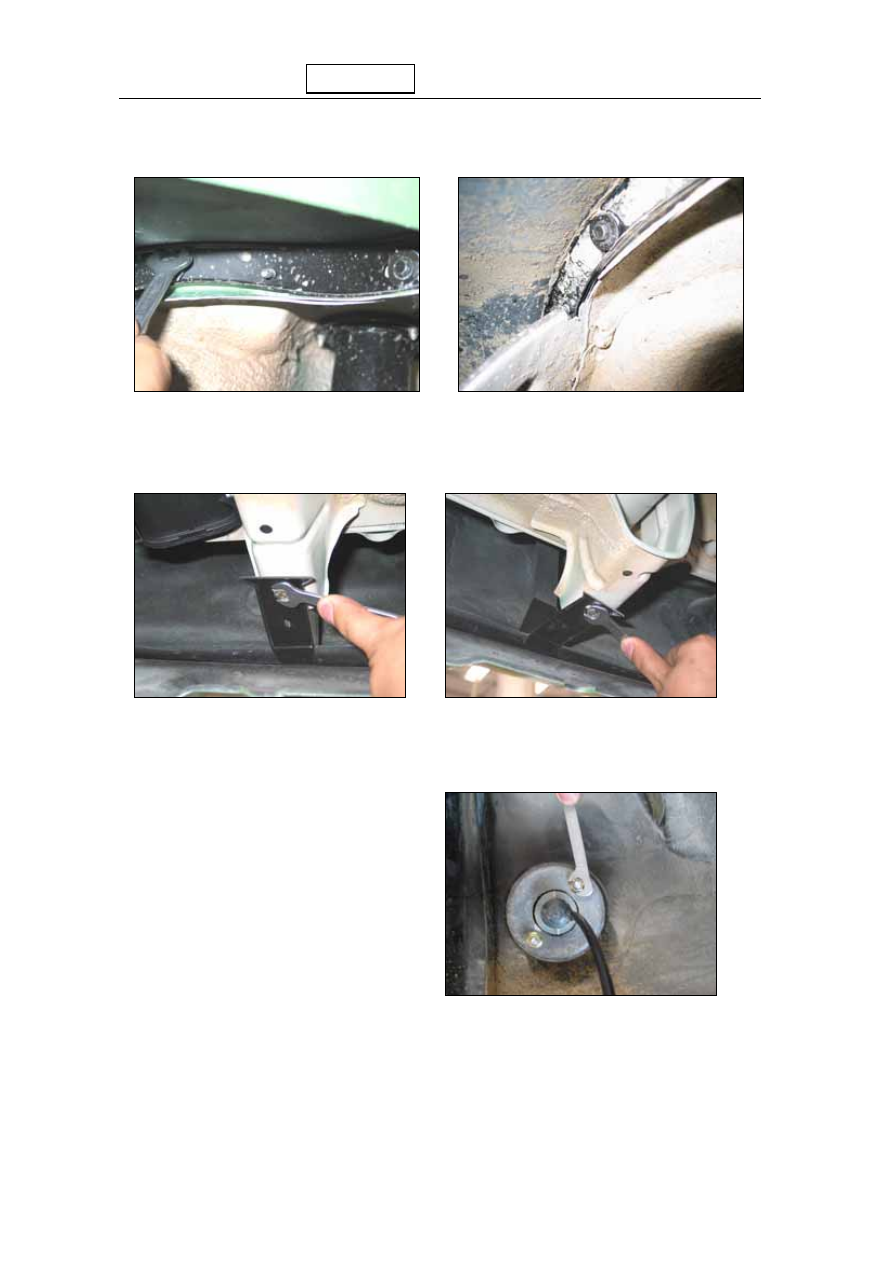

8. Remove the reinforcement

rods of front bumper（left and

right）

Loosen four screws on upper side

and take down the reinforcement

rods

Remove inner bumper

① Take down the bundle of fog light

② Loosen four fixing nuts on left and

right

and take down inner bumper

Remove rear bumper

① Loosen two fixing screws on left and right

( in boot )















② Loosen two cross recess head screws in tail part















    Chery QQ Service Manual



③ Loosen four fixing screws on left and right













④ Loosen two set bolts on lower side

and tremove rear bumper









Remove the small bulb on

rear bumper

Loosen fixing screws and take down the

small bulb





When assembling, the sequence is the reverse procedure of removel.











    Chery QQ Service Manual

Attachment：

Maintenance Specification     Torque Norm



Fastened Parts

N-m

kgf-cm

lbf-ft

engine hood

-

-

-

hood hinge  ×hood 11.5

115

8.3

hood lock×body 7.8

80

69

lbf-in

hood suport×hood 22

225

16

hood suport×body 22

225

16

front door

-

-

-

power window×front door

5.5

56

49 lbf-in

door lock×front door

5.0

51

44 lbf-in

back door

-

-

-

power window×back door

5.5

56

49 lbf-in

door lock×back door

5.0

51

44 lbf-in

trunk -

-

-

trunk hinge×trunk door

11.5

115

8.3

latch hole of trunk lock  × -

-

-

trunk door

5.4

55

48 lbf-in

trunk door suport×trunk door hinge

22

225

16

windshield wiper×jet washer

-

-

-

motor and link rod assembly of windshield wiper×

body

5.4 55 48

lbf-in

locating bolt for bar stay of auxiliary arm  ×motor

and link rod assembly of windshield wiper

5.4 55 48

lbf-in

  wiper arm and blade assembly×motor and link rod

assembly of winder screen wiper

22 225  16

seat -

-

-

front seat

-

-

-

seat back assembly×seat cushion assembly

18

185

13

rear seat

-

-

-

back of rear seat×car body

18

185

13

seat-belt -

-

-

 front seat-belt

-

-

-

shoulder belt clip×adjuster clip 43

440

32

outer seat-belt clip×front seat

43

440

32

seat-belt retractor assembly×body（upper） 7.8  80  69

lbf-in

seat-belt retractor assembly× body（lower） 43  440

32

inner front seat-belt×power seat regulator

43

440

32

  manual seat regulator×body 43

440

32

rear seat-belt

-

-

-

lower end of outer back seat-belt  ×body 43 440  32

inner back seat-belt×body 43

440

32
