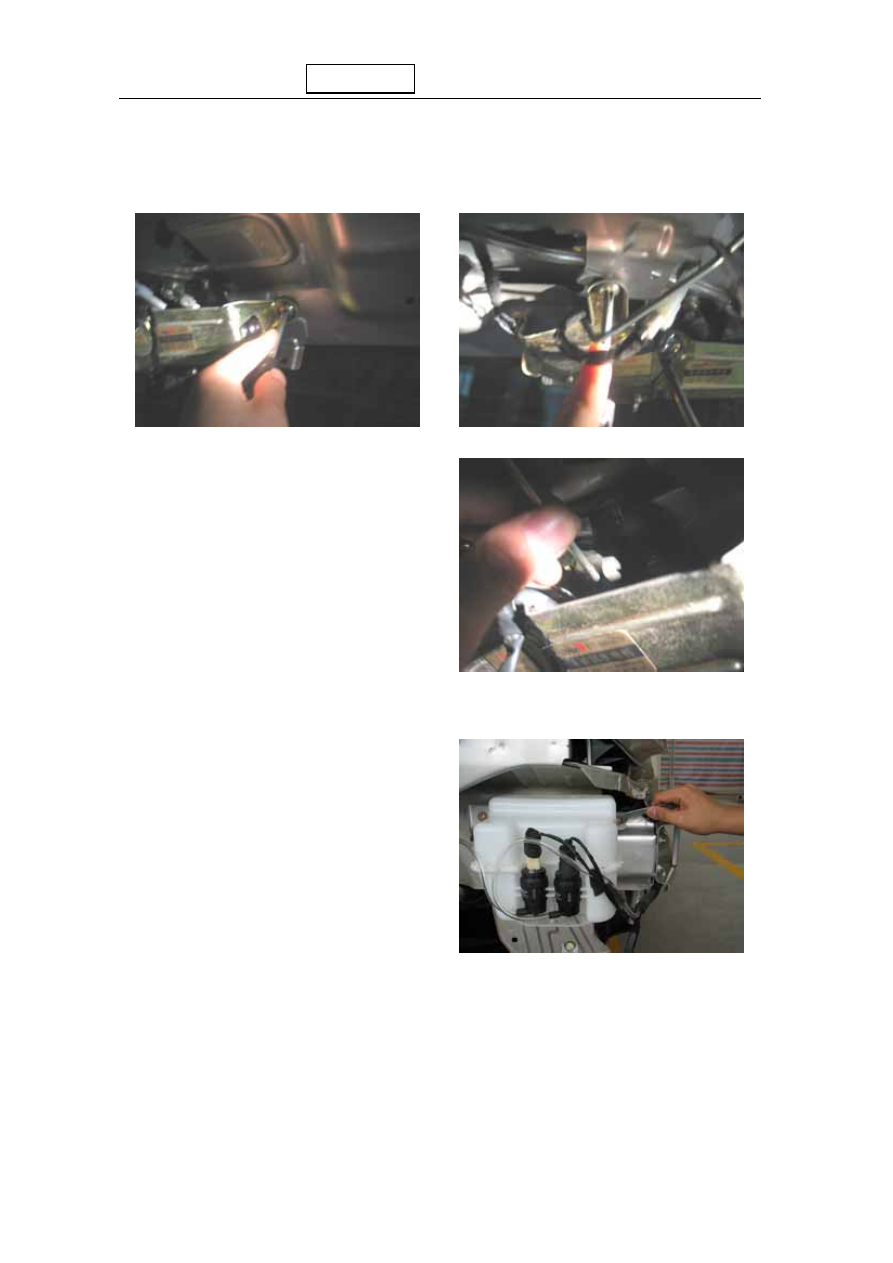

（1）Loosen eight screws on fastener and get out decorative plate

（2）Loosen three fixing screws on wiper motor and take down the motor











































  Remove jet washer

（1）Remove front bumper

（See the chapter on removal of

front bumper）

（2）Loosen three set bolts and take down

        jet washer











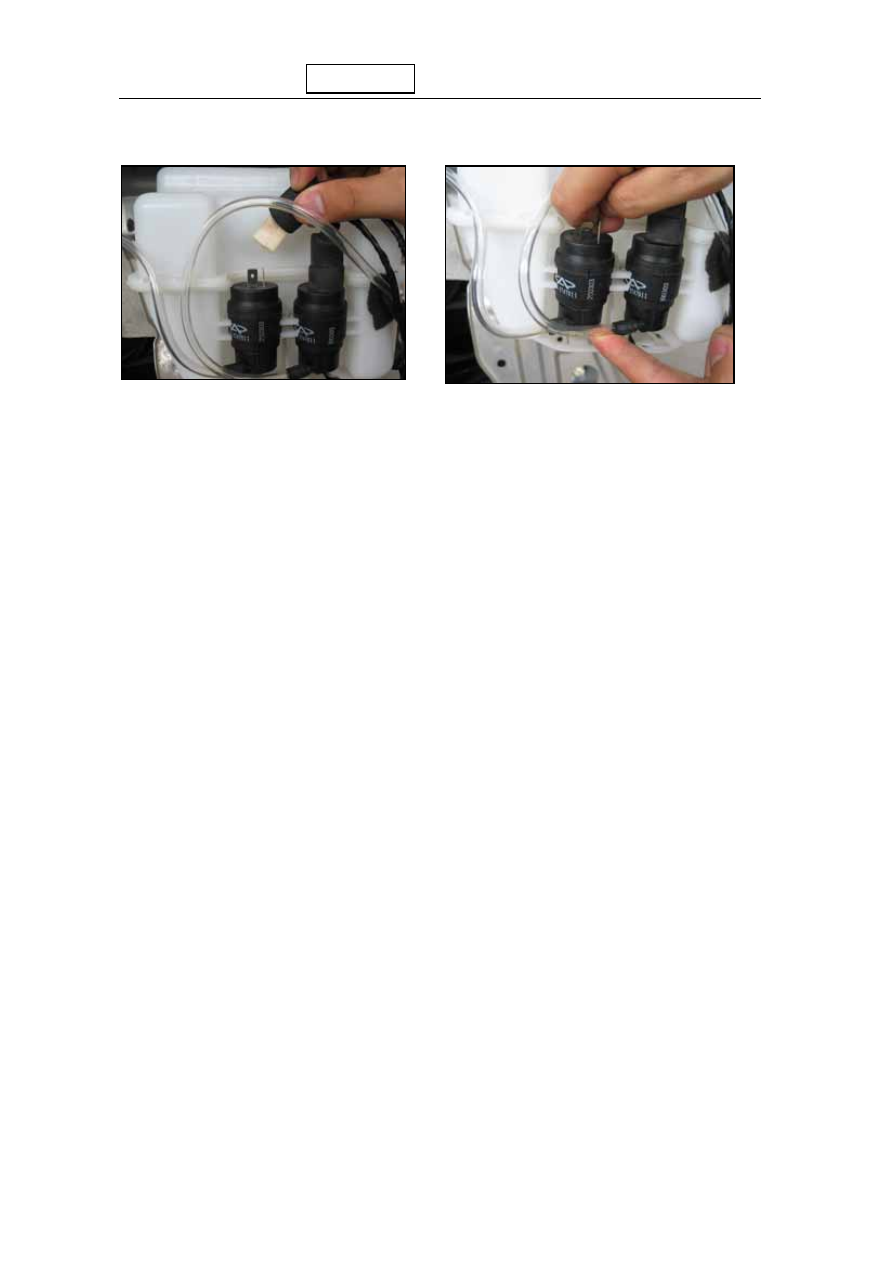

（3） Loosen cable plug and move out and upward to get out front and rear jet



    Chery QQ Service Manual

washer motors

















Remove nozzle

Pull out the nozzle upwards to take apart with the tube

When assembling, the sequence is the reverse procedure of removal.



































    Chery QQ Service Manual

Chapter 16  Sun -Roof





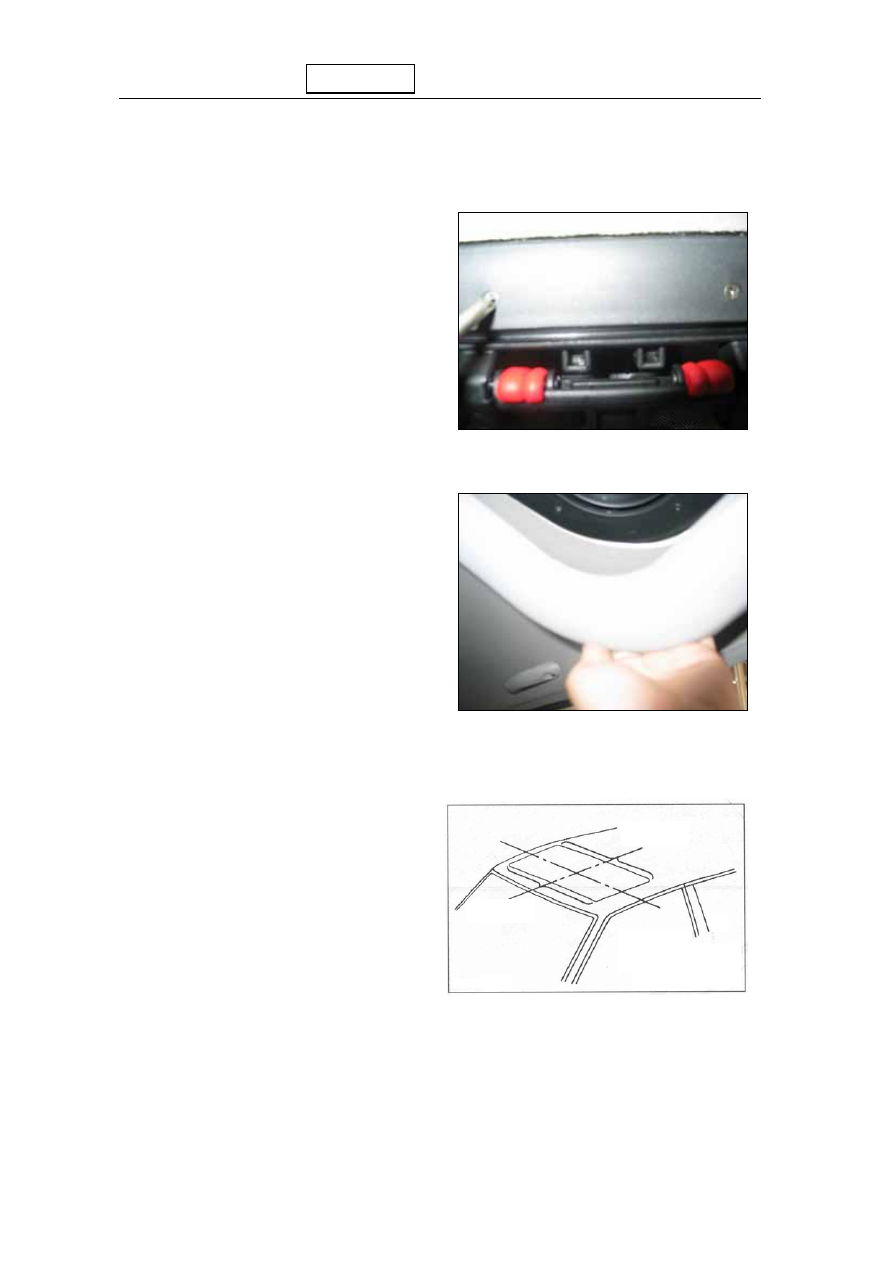

Remove sun-roof assembly

（1） Unfasten twenty four fixing screws

on sun-roof and car body











（2） Prize up and take down the plastic

protective cover on sun-roof











（3）Get sun-roof assembly out

Check the position of sun-roof glass

Check if there is water leakage when

sun-roof is completely closed

Check if there is vertical separation

between sealing strip and roof sheet

Front rim:

0±1.0 mm（0±0.039 in）

Rear rim：

0±1.0 mm（0±0.039 in）



front rim

rear rim

Rear rim

Front rim



    Chery QQ Service Manual



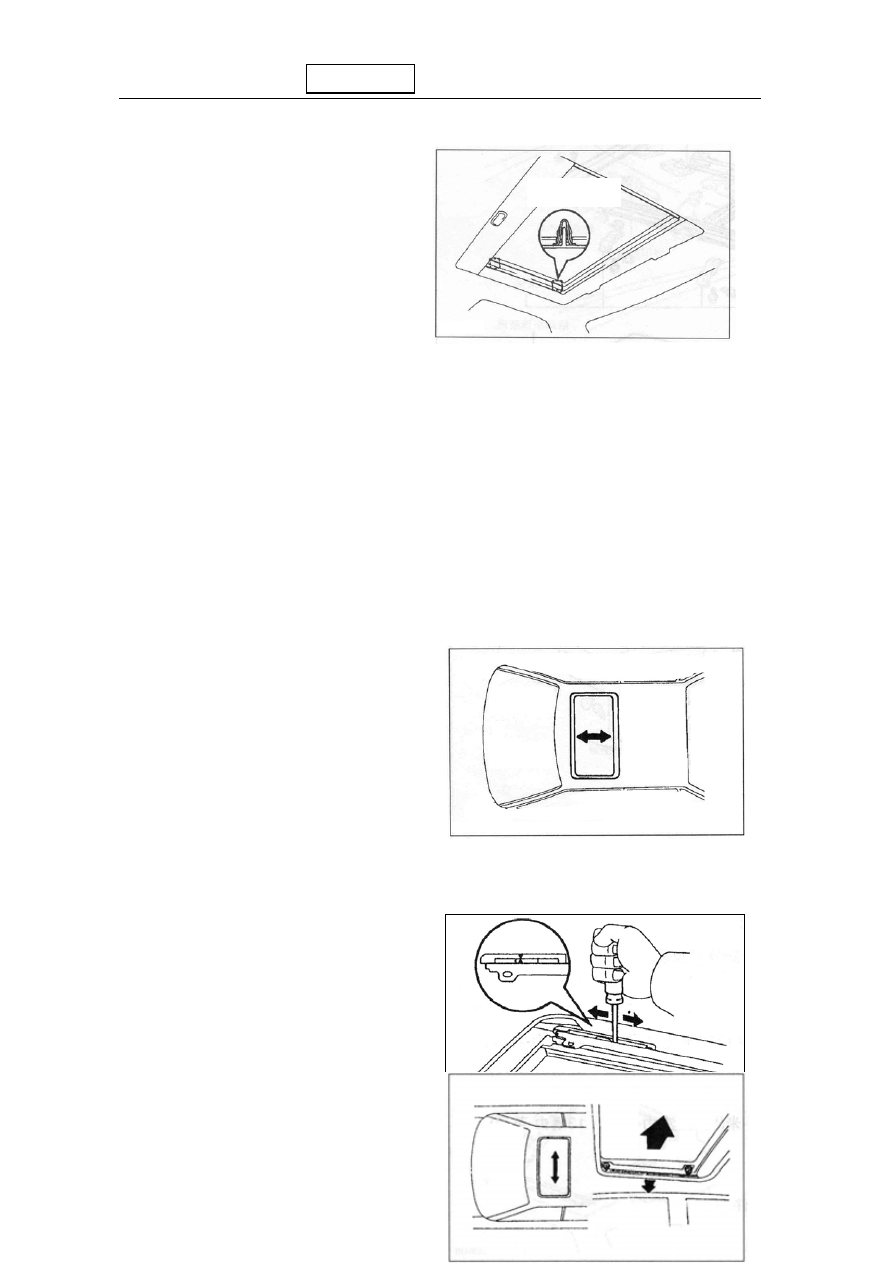

Sun-roof adjustment

1.Remove sun-roof ornaments

  Sun-roof ornaments on left and right

  sides must be firstly removed

 before adjustment



Note：The ornaments will be repositioned

   after adjustment



2. Upper and lower position adjustment

Tighten or Loosen bolts with torque screw

driver to regulate vertical separation

Clearance：0±2.0 mm  （0±0.079 in）





3. Front and back side adjustment

Loosen the fixing nuts on sun-roof

and shift sun-roof bracket forward and

backward to adjust







As showed in the drawing：

Make link rod slide forward and

backward to align two marks

      Slide by hand bracket to front

 terminal



two fasteners
