Chery QQ Service Manual                                            Transmission System







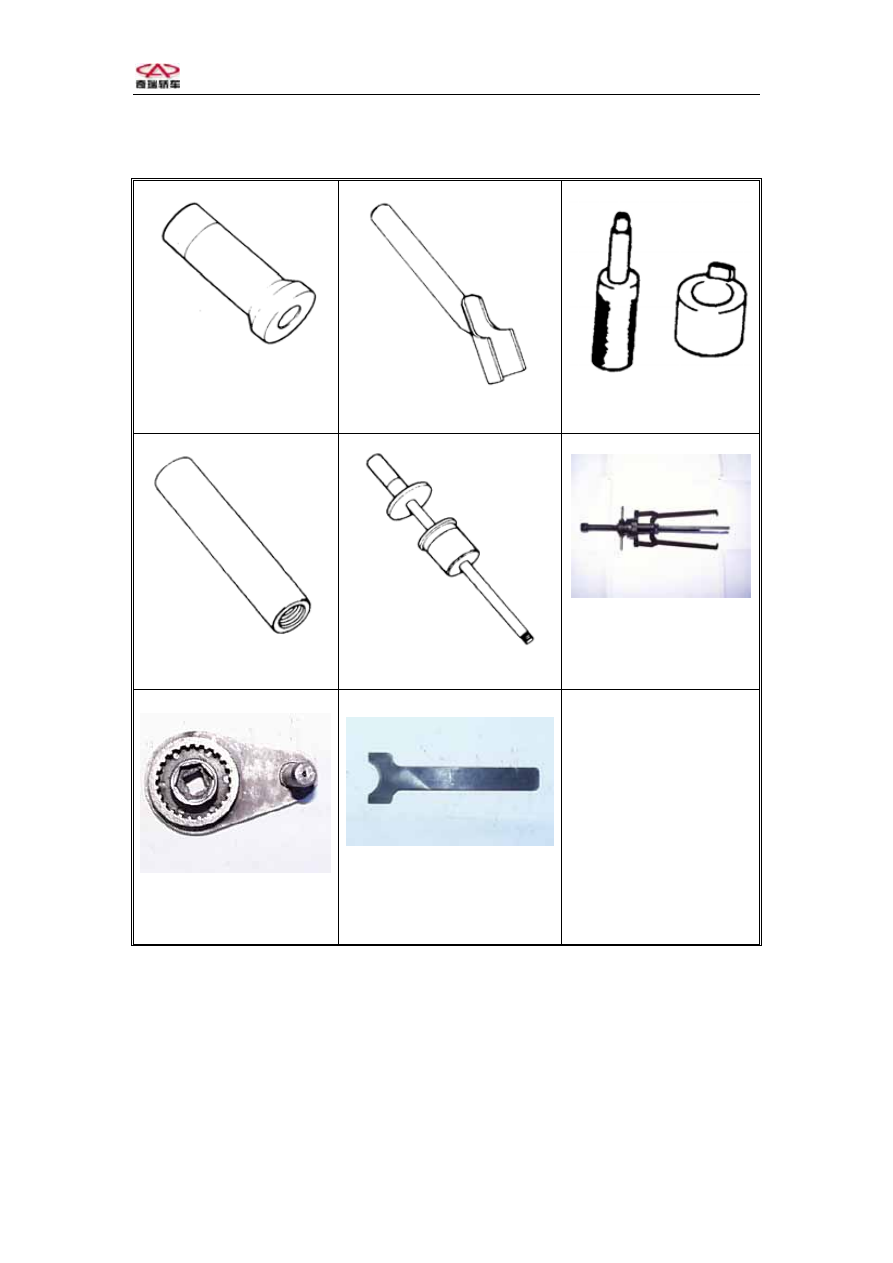

Bearing tool

Bearing install tool





Oil seal install tool

Bearing outer race install

tool

Slotted spring pin

disassembly tool



Bearing install tool



Bearing install tool

Bearing disassembly

tool





Spacer disassembly tool



-97-





Chery QQ Service Manual                                        Transmission System



-98-












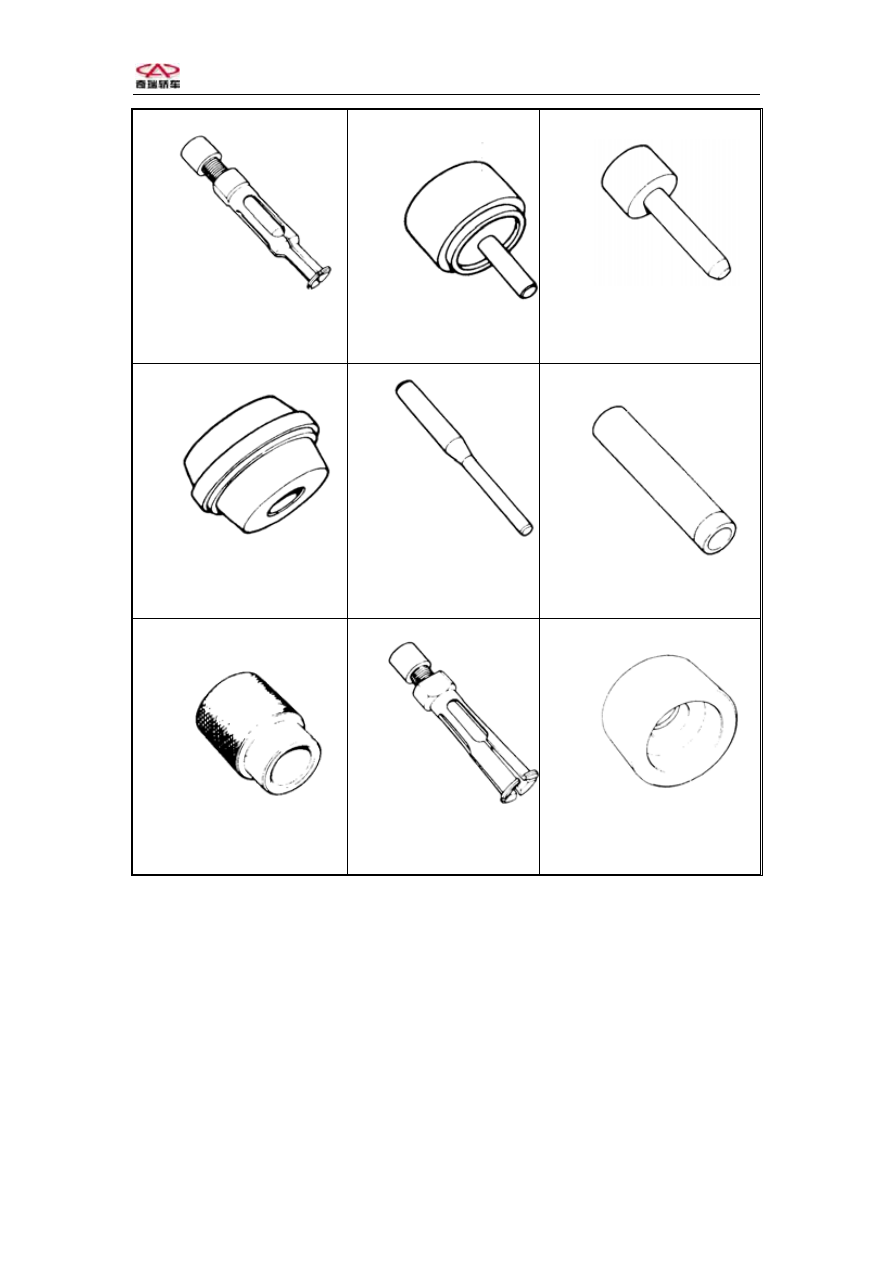

Bearing install tool



Spacer disassembly tool

Spacer disassembly tool



Handle



Puller slide hammer




Puller





5th gear lock tool




E-ring install tool














Chery QQ Service Manual                                        Transmission System







Chapter 6 Propeller Shaft



 Universal joint
This propeller shaft is available for the vehicles with manual transaxles.

I． Summarization

The front wheel driven shaft adopts universal joint and the differential.























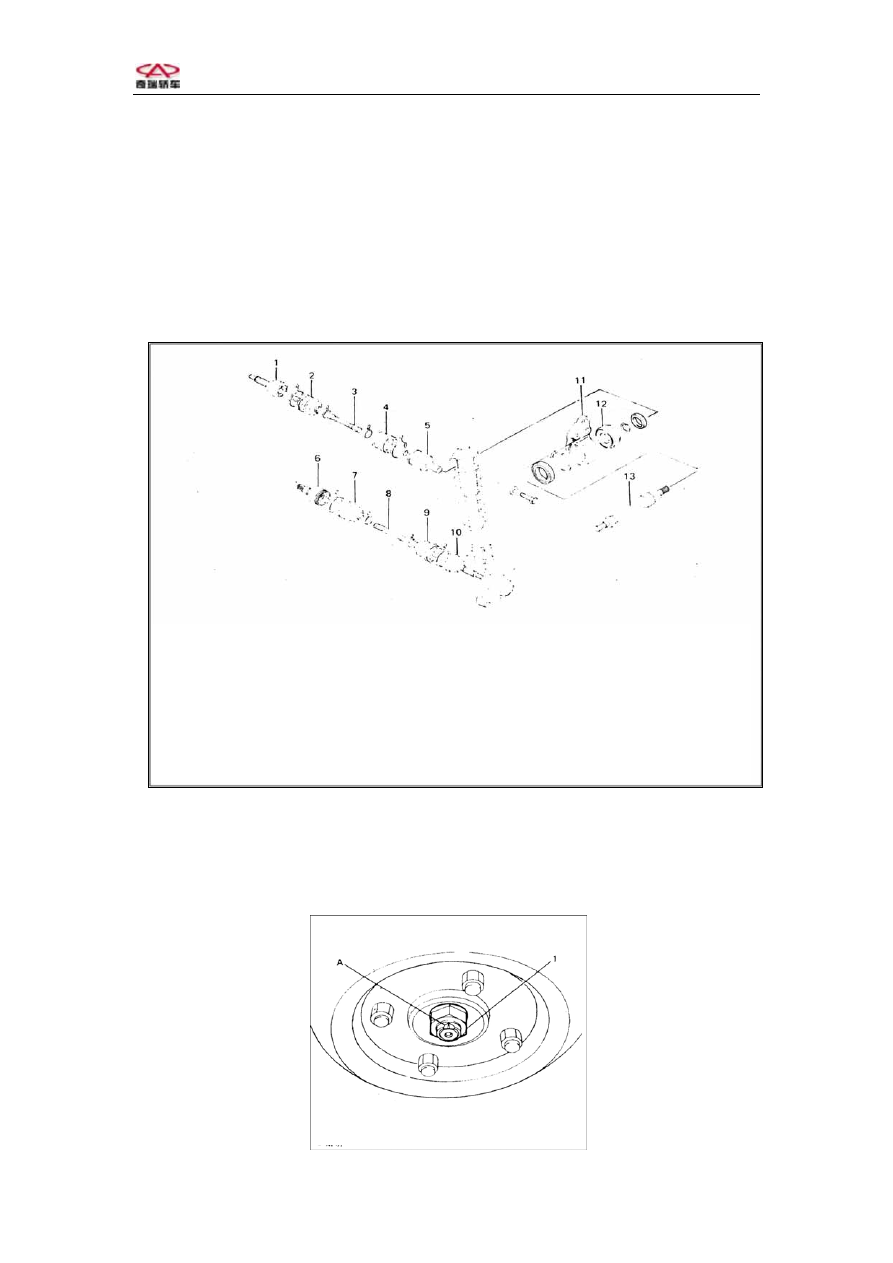

1.  Wheel universal joint (right)        2.  Boot

3.  Driven shaft                                          4.    Boot

5.  Differential universal joint (right)    6.  Differential universal joint (left)

7.  Boot                                                      8.    Driven shaft

9.  Boot                                                      10.    Wheel universal joint (left)

11. Output shaft bearing race           12.  Output shaft bearing



II， Disassemble
1. Disassemble the left shaft.

On the ground:
Loosen the rivet, remove the propeller shaft nut and gasket on the Lift



-99-

1，  Driven    shaft    nut            2， Rivet
















Chery QQ Service Manual                                        Transmission System



-100-




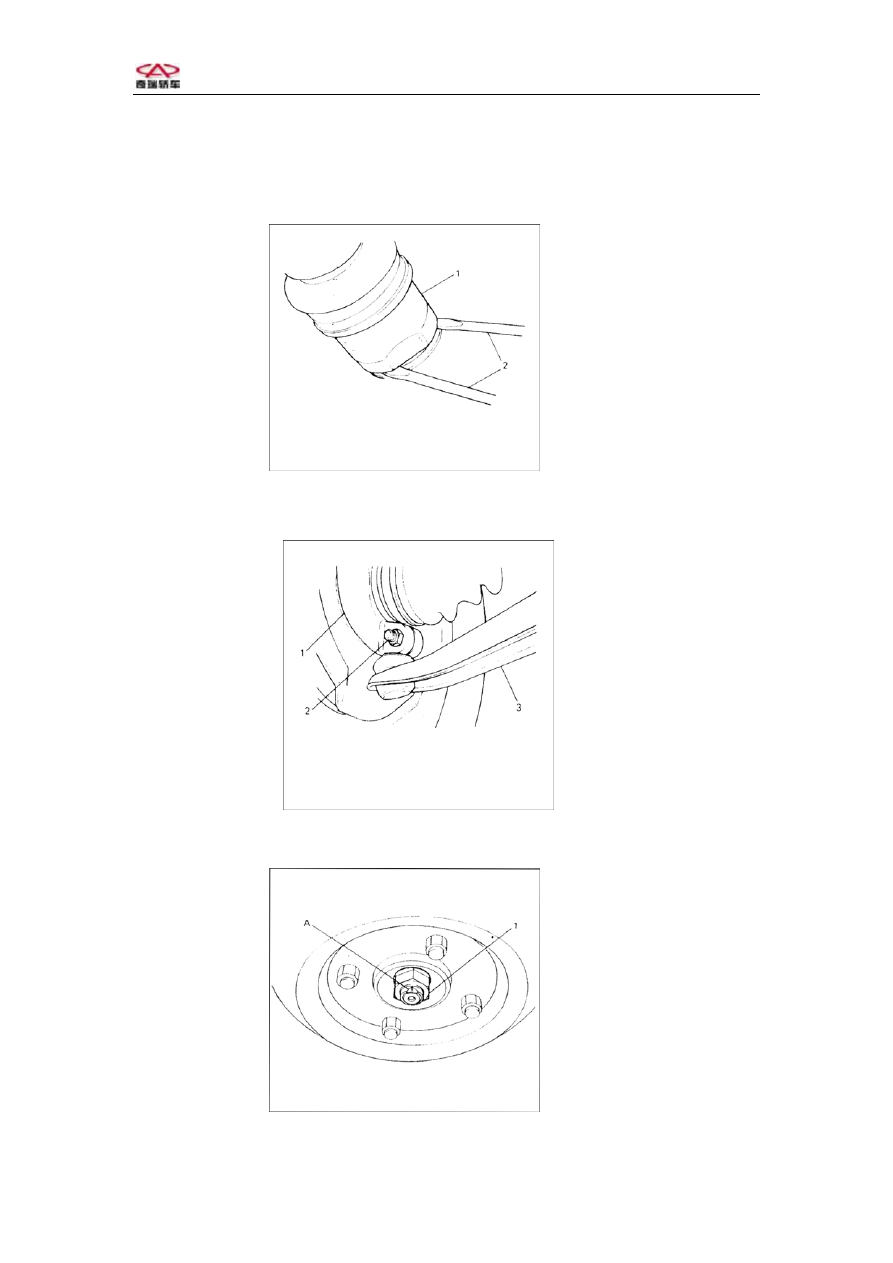

（1）Let out the transaxles oil.
（2）Remove the driven shaft universal joint    to make the snap ring. Break away
from the differential universal joint splined hub.



1 ，  Driven  shaft universal

joint  （left）












（3）  Remove the joint from the Suspension arm.
（4）Remove the ball joint bolt and    nut and disconnect the suspension arm from the
steering  .

1，      Steering

2 ，    Ball  joint  bolt  and  nut

3，

Suspension

arm












（5）  For disassembling the propeller shaft assembly, first pull out the inner universal
joint, second pull out the wheel universal joint    from the    steering    .


1，  Driven    shaft    nut        A， Rivet
