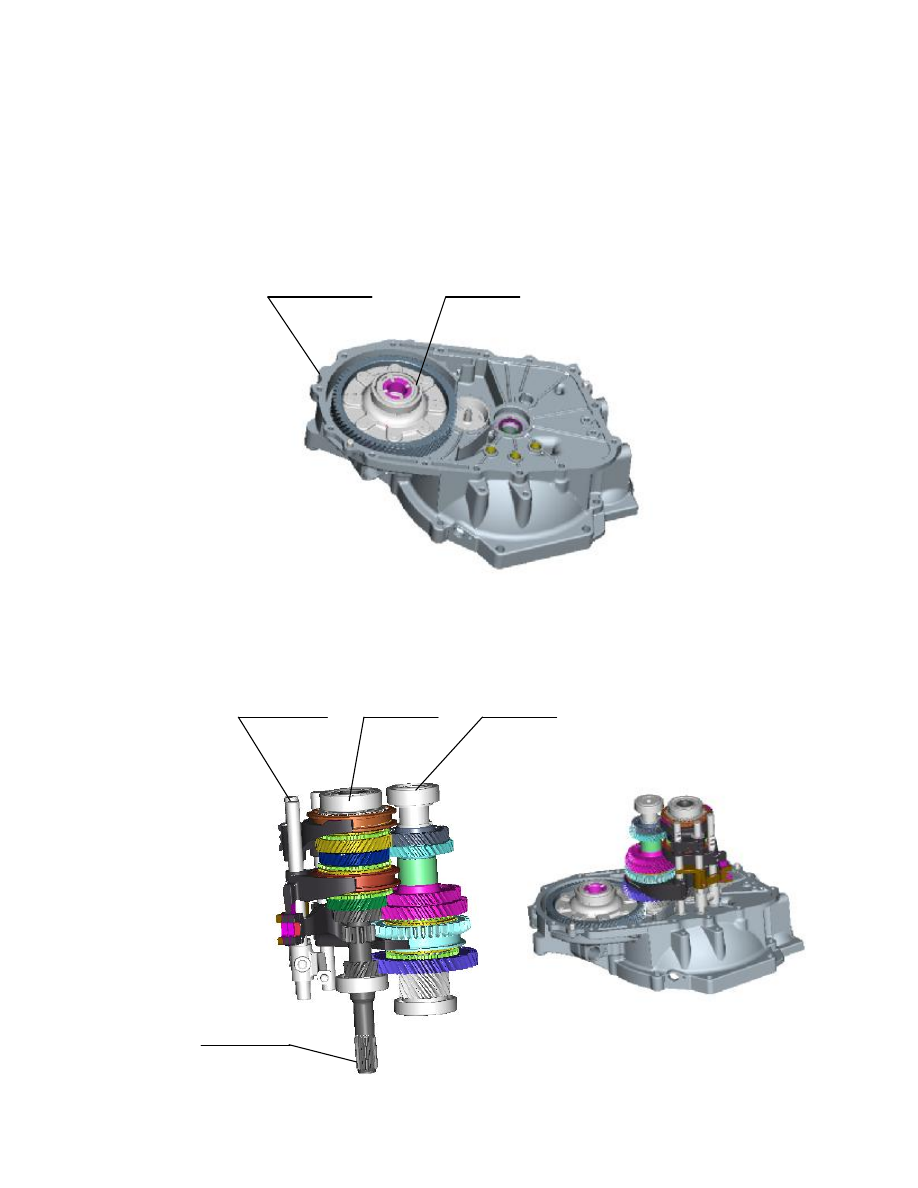

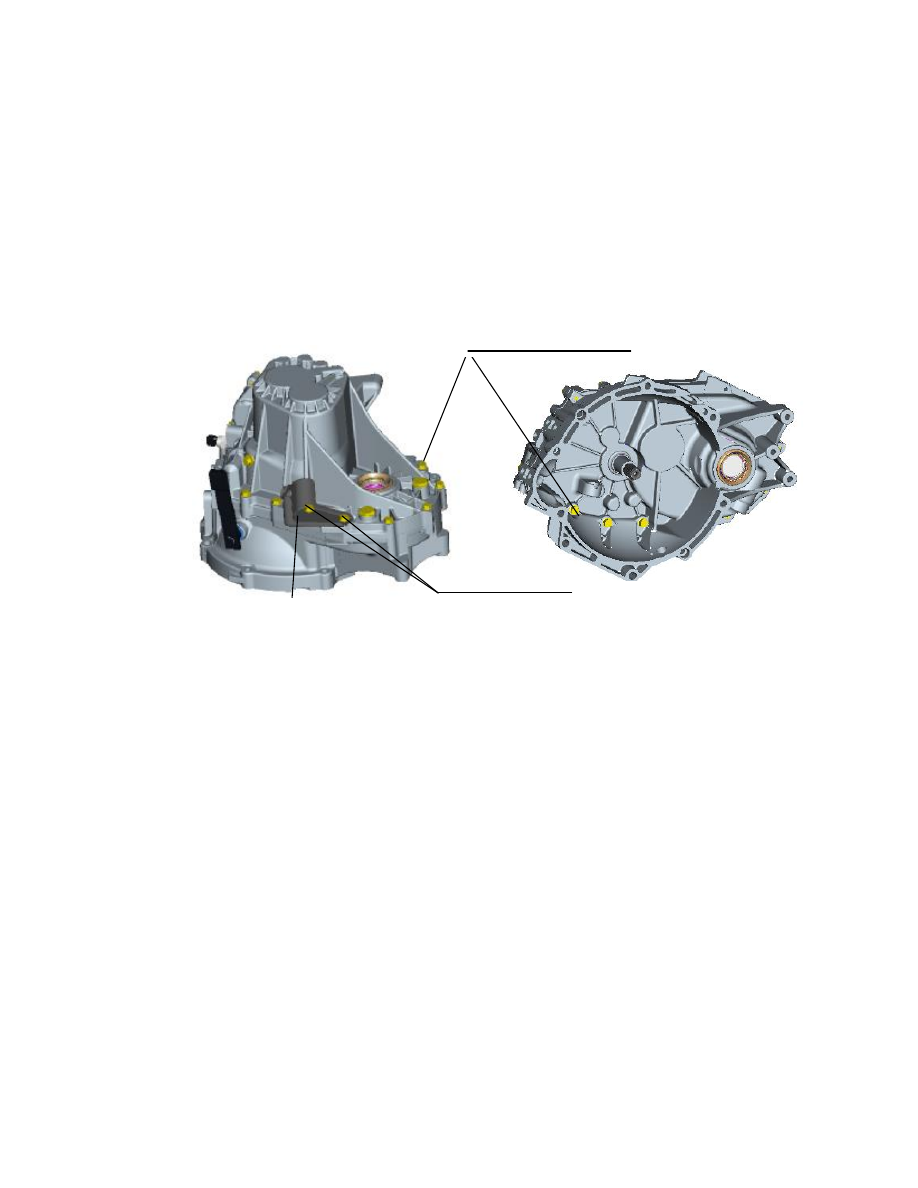

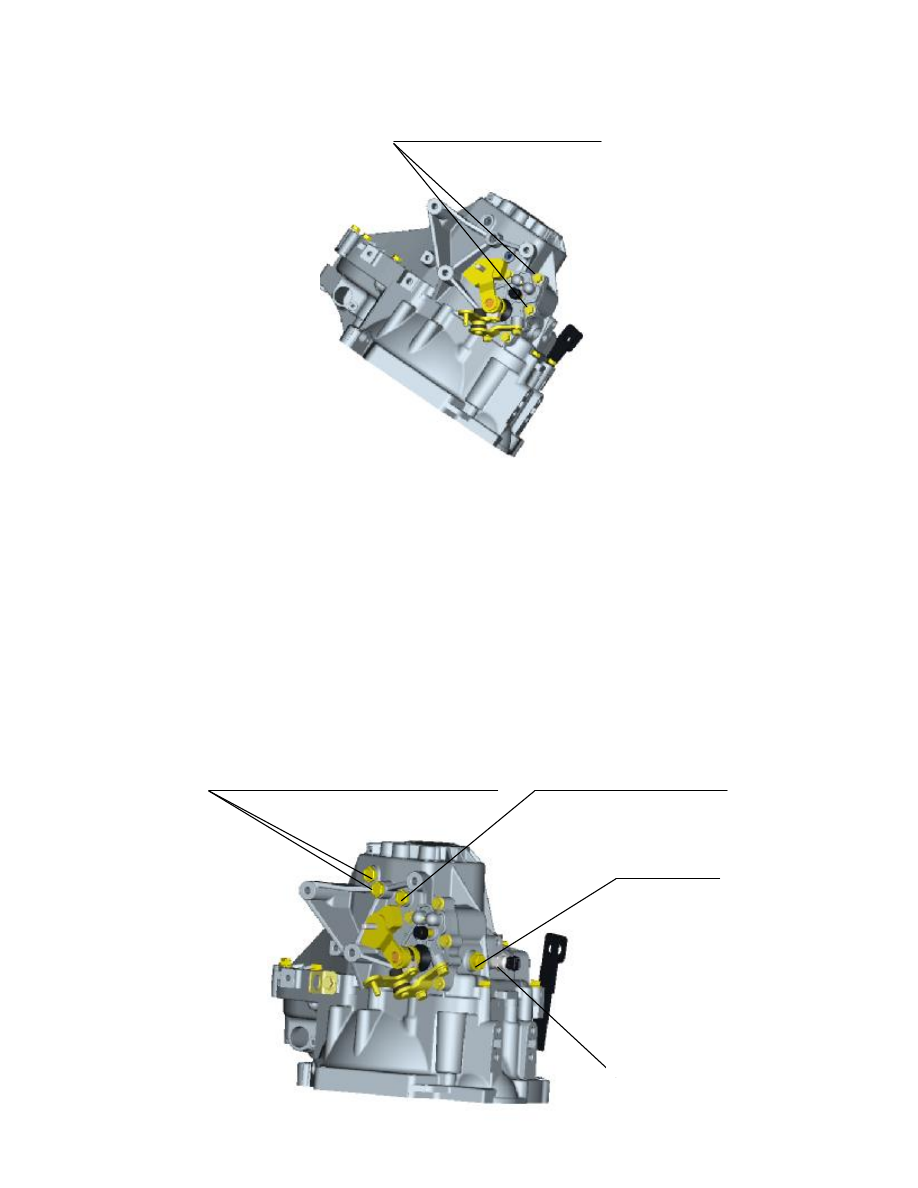

8. Assembly and regulation of transmission assembly Place the clutch as shown in Figure 28 first, and then assemble the differential assembly to its designated position.
Clutch housing assembly Differential assembly

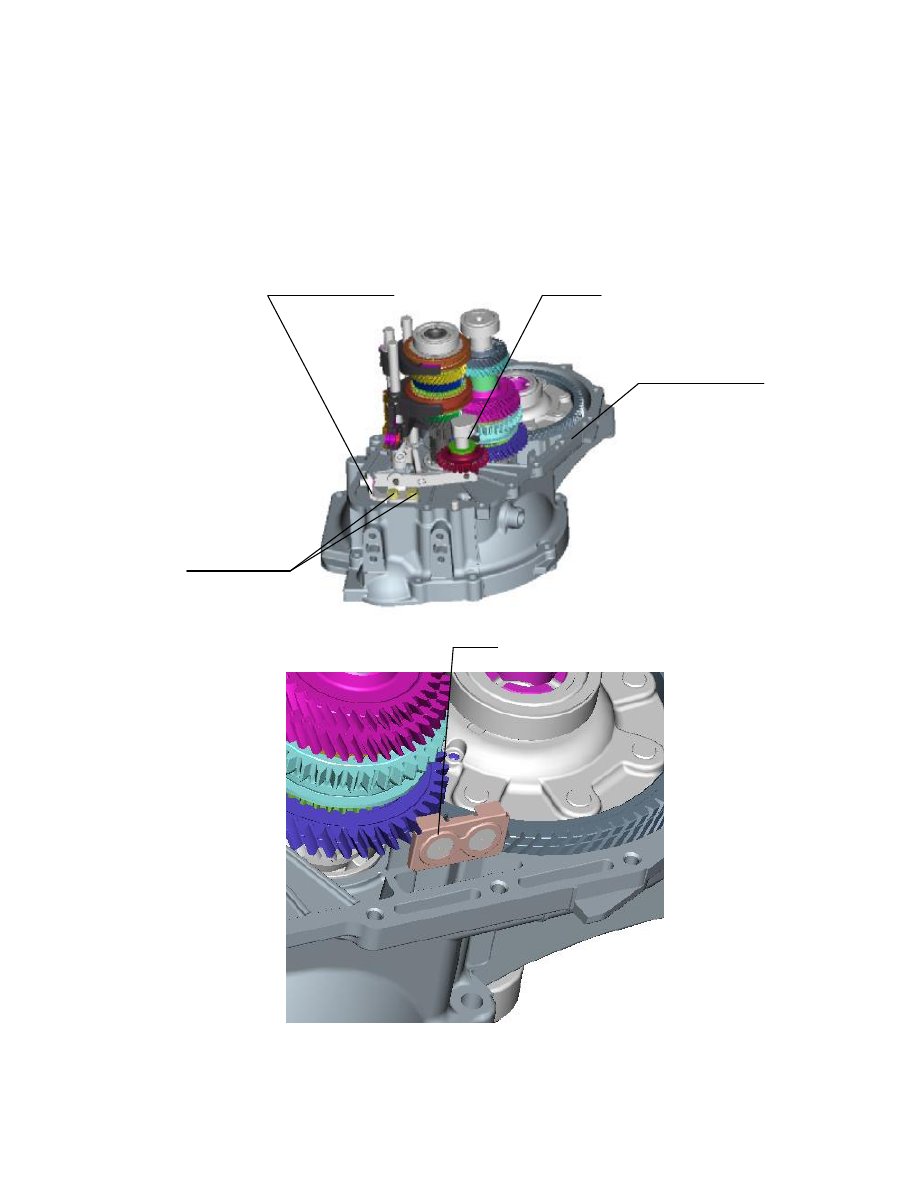

Assemble gearshift fork assembly, input shaft assembly and output shaft assembly together as shown in Figure 29, and then install them together onto clutch housing assembly. When assembling, wrap front end spline of input shaft with polyvinyl chloride adhesive tape to prevent damage to oil seal. After installation, turn each gear to ensure favorable engagement. Gearshift fork assembly Input shaft assembly Output shaft assembly
Figure 29
Figure 28 Use tape to wrap the spline |
