IV. Adjustment and Replacement of Handbrake

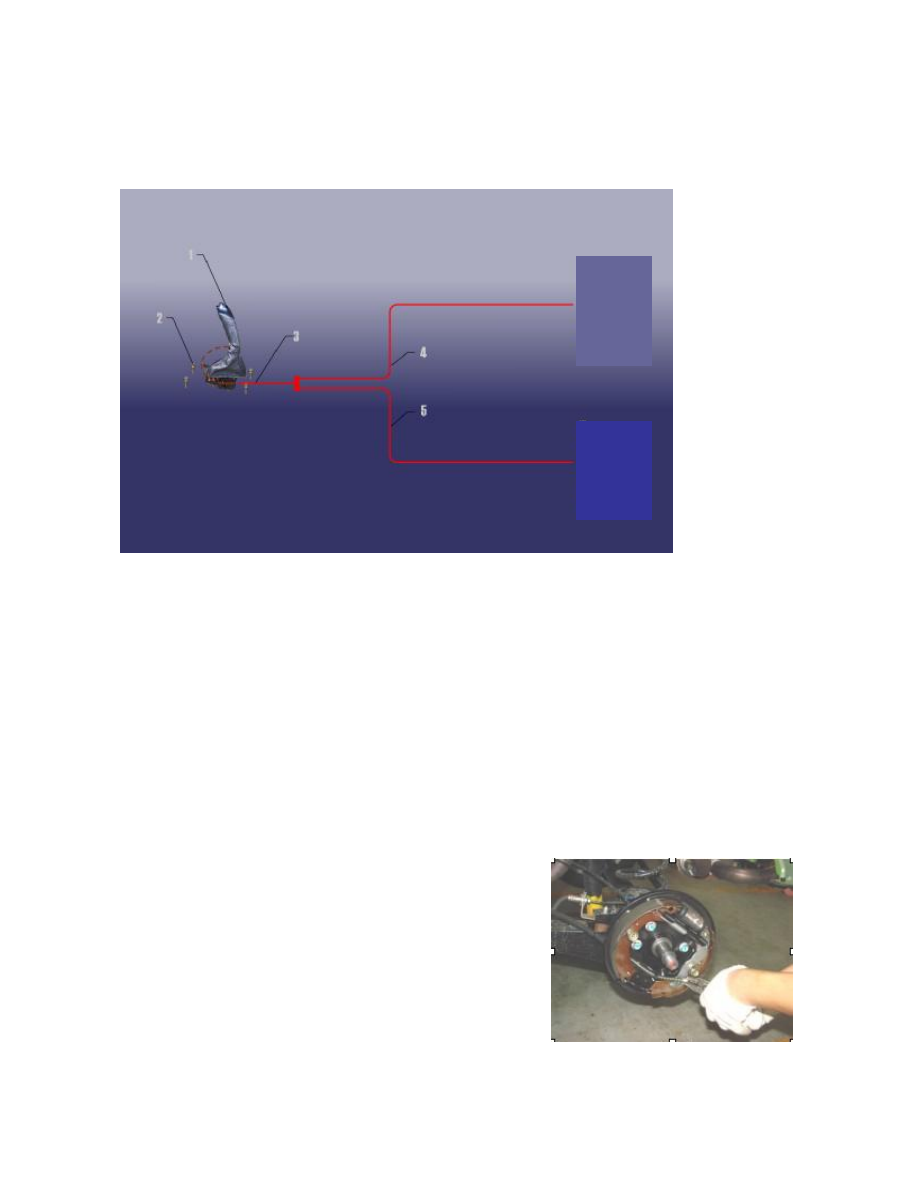

1. System Composition Illustration





1. Handle

2. Fixing bolts 3. Cable

4, 5. Left/Right rear wheel cable

2. Preparations



Tools: Ratchet wheel, ratchet lever, 10#, 13#, 14#, 16# socket, 10#

13#, 14# ring wrench, vice, torque wrench, slotted screwdriver.

3. Notices



3.1 Please wear necessary labor protection supplies to avoid accidents.

3.2 During the removal/installation of the spring parts, enough cautions should be taken to prevent the  ejection

of such parts from causing body injuries.

3.3 The removal/installation at the vicinity of the exhaust pipe must be conducted only after the temperature of

the exhaust pipe is lowered to normal temperature so as to prevent scald.

4. Removal/Installation Procedure



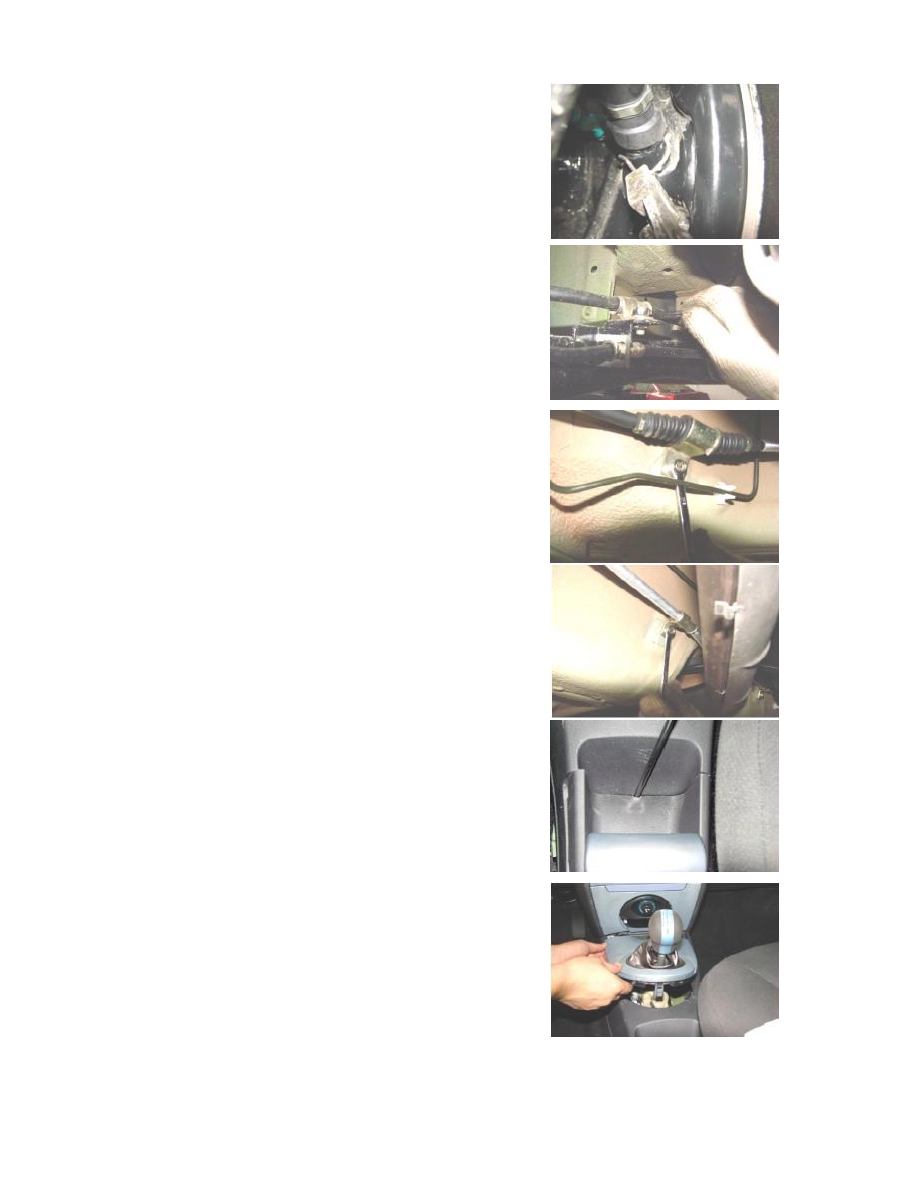

4.1  With  reference  to  the  removal/installation  of  the  rear  brake,

loosen the handbrake cable of the rear wheels.





To

left

rear

brake

assembly

To right

rear

brake

assembly

4.2 Remove the handbrake clip with priers.

Notice: It’s under the rear wheels.













4.3  Remove  the  fixing  bracket  bolts  of  the  handbrake  cable  shown

below with 8# ring wrench.

Torque: 9~12 Nm









































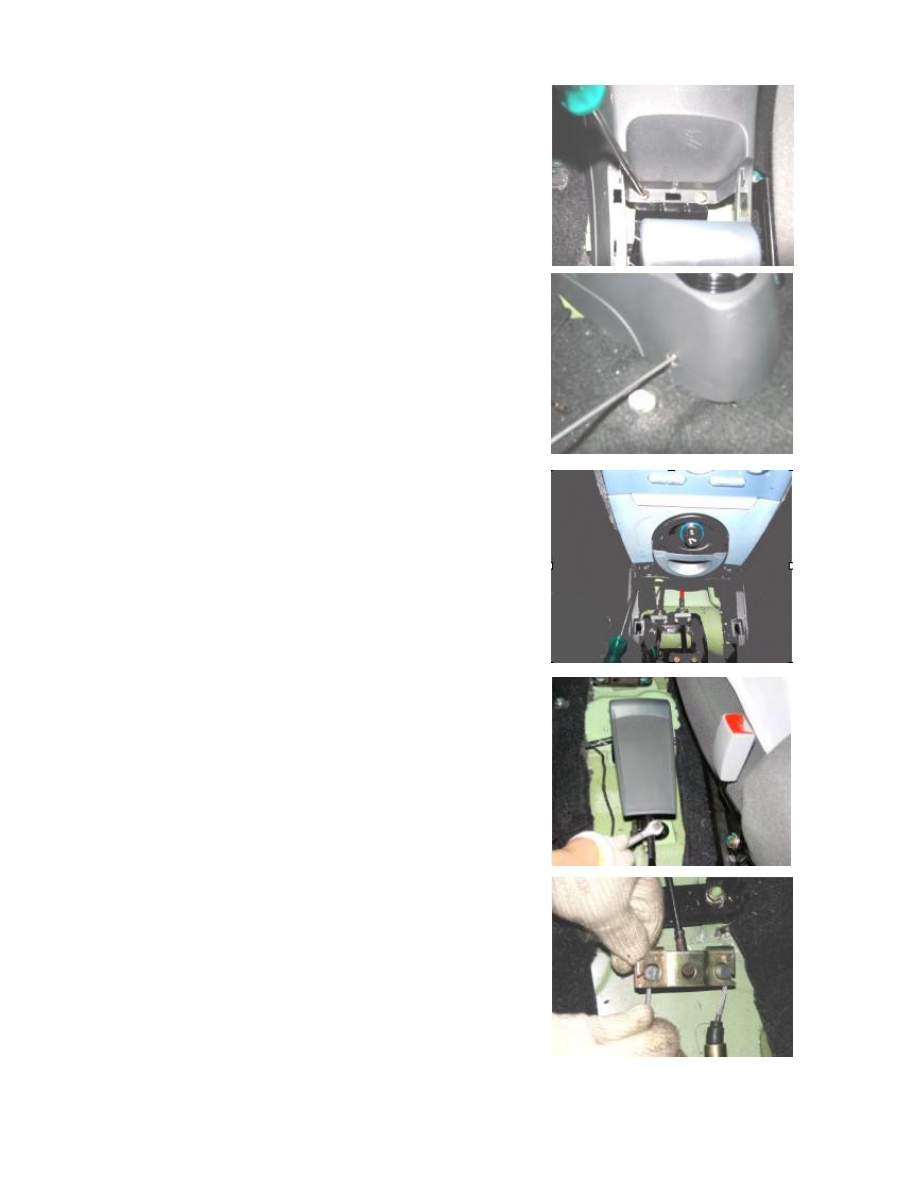

4.5  Pry  out  the  protective  cover  at  the  handbrake  and  gear  position

with slotted screwdriver.









4.6  Remove  all  fixing  screws  from  the  secondary  instrument  panel

assembly with ring screwdriver to remove the secondary instrument

panel assembly.

















































4.7 Remove the handbrake adjustment nuts with 10# wrench.















4.5 Loosen the two handbrake cables with hand.







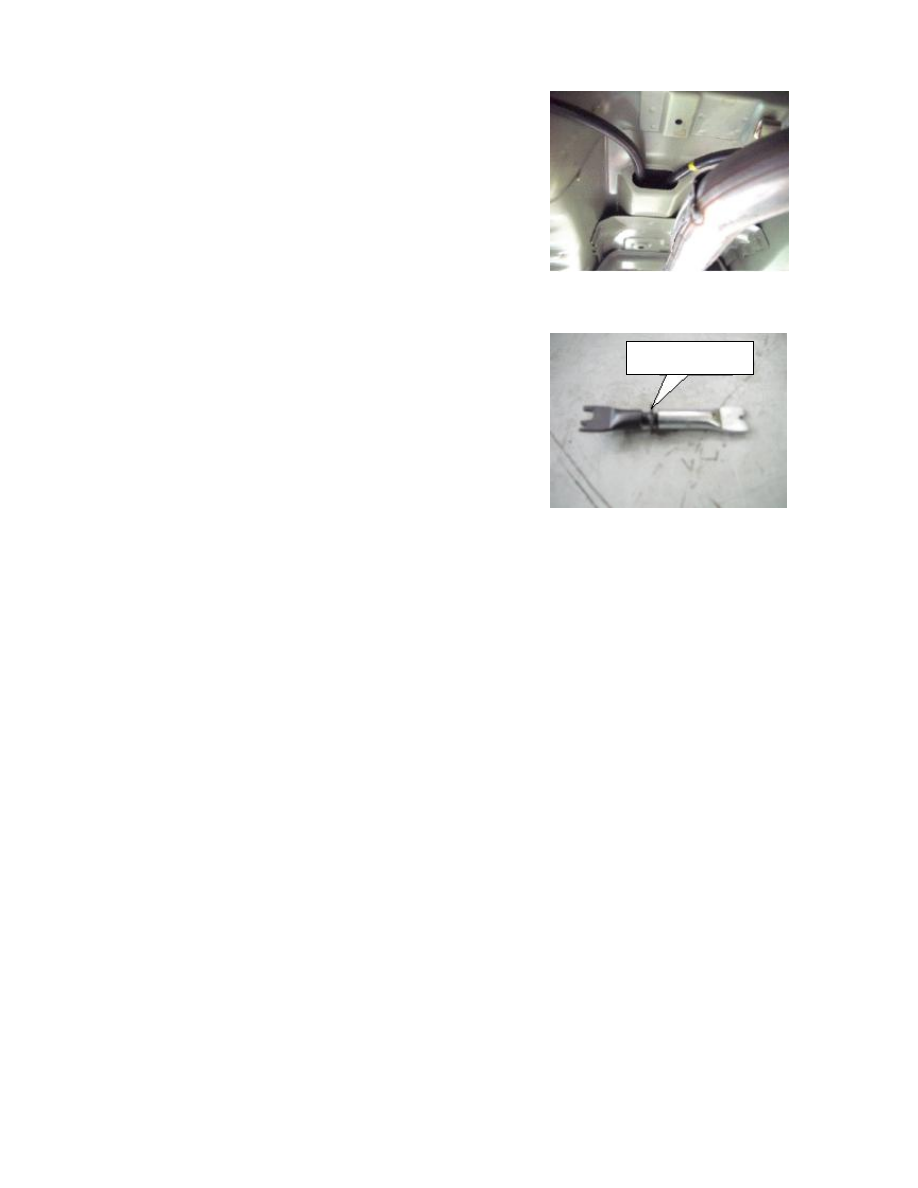

4.9 Pull out the handbrake cable from the underside of the vehicle

body.

Notice:  Remove  the  handbrake  cable  at  another  side  in  accordance

with the same method.















4.10 (Handbrake adjustment) The length of the handbrake cable

equipped on this model is designed to be the fixed length. To adjust

the handbrake effects, refer to the part “removal of rear brake”. The

adjustment of the ejector rod length (clockwise for looseness and

counter clockwise for tightness) can achieve the handbrake

adjustment.











4.11  The  installation  procedure  should  be  conducted  with  reference

to the removal procedure.









Rotate this place
