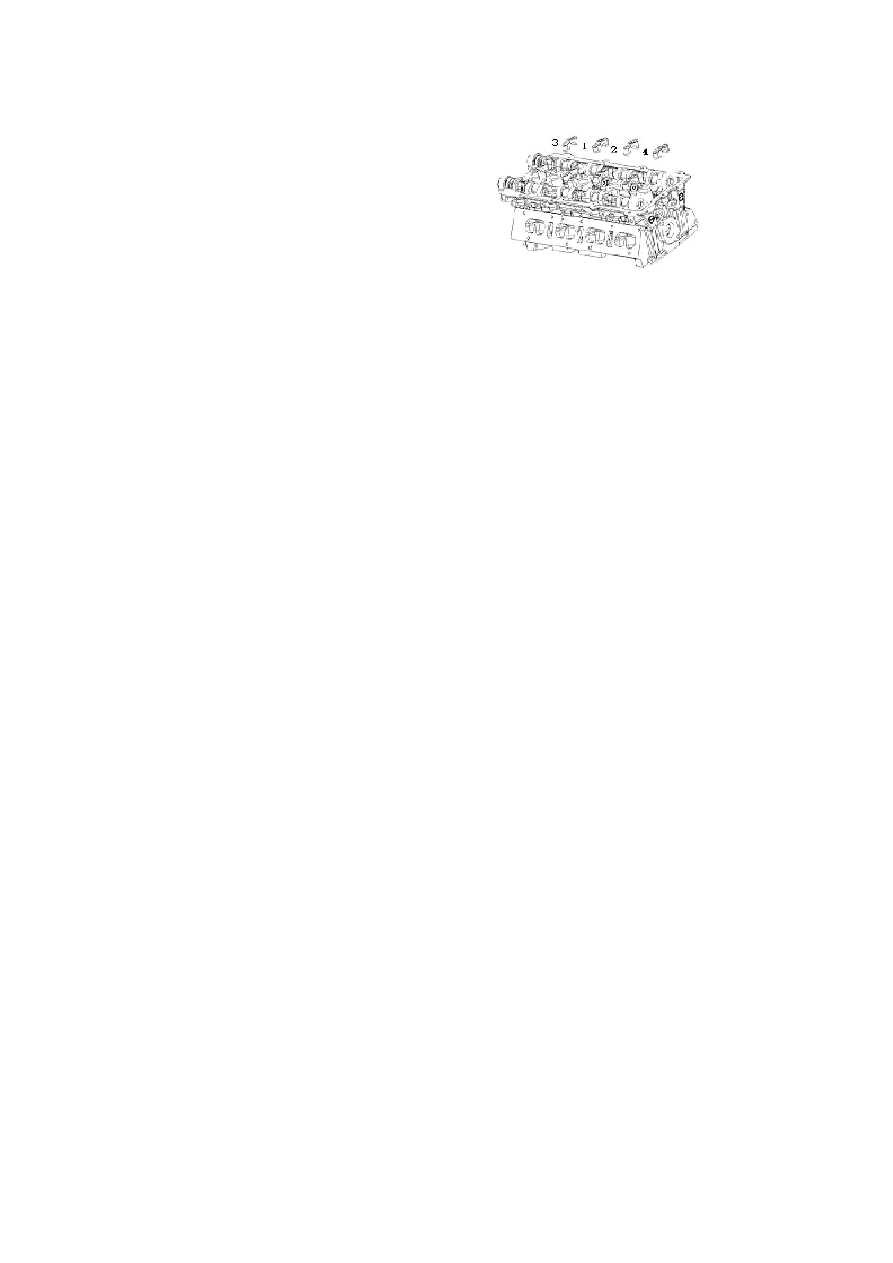

2.3.4 Detection of planeness of cylinder head

Follow  the  method  as  shown  in  the  figure  to

measure planeness of the cylinder head with a feeler

gauge;  the  planeness  of  the  cylinder  should  not

exceed  0.05-0.10mm,  if  exceeding  this  valve,

replace the cylinder head assembly.













III. Assembly of Cylinder Head Assembly

1.  Please  follow  the  order  adverse  to  that  for

disassembly  of  cylinder  head  to  install,  but  care

should  be  taken  for  the  following  matters  during

installation.

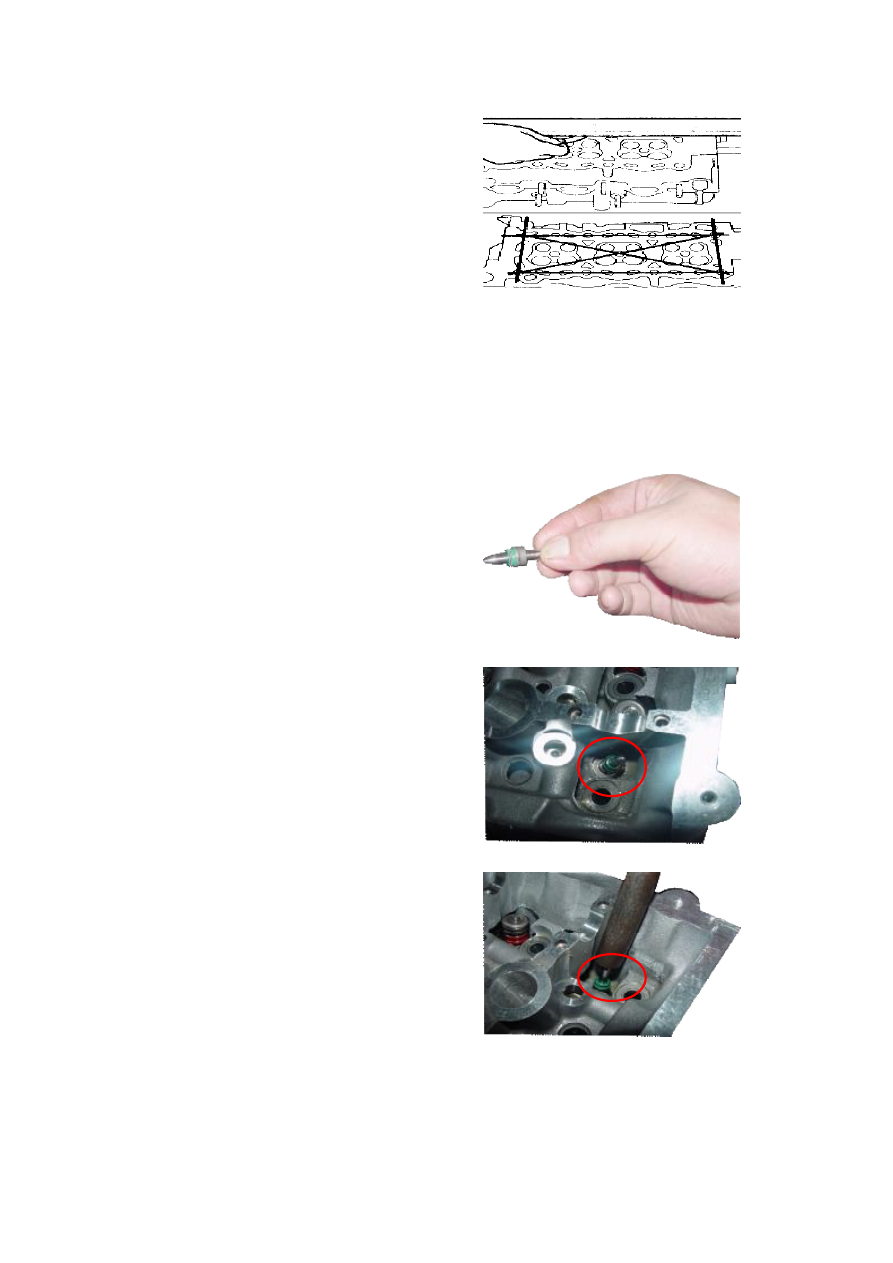

2.  Use  the  special  tool  CH-20012  to  install  new

valve oil seal onto the guide first.







3. Insert big end of the guide onto the valve guide.





4.  Envelope  the  special  tool  onto  CH-20012,  and

then softly and forcibly compact.







5.  Use  a  hammer  to  knock  the  valve  oil  seal

installation tool, when a metal crash sound is heard,

take out CH-20012.





6.  The  methods  for  installation  and  assembly  of

valve spring are the same. Then install valve, spring,

keeper,  top  barrel  and  rocker  arm.  (when  installing

the top barrel, add a little engine oil into the hole).





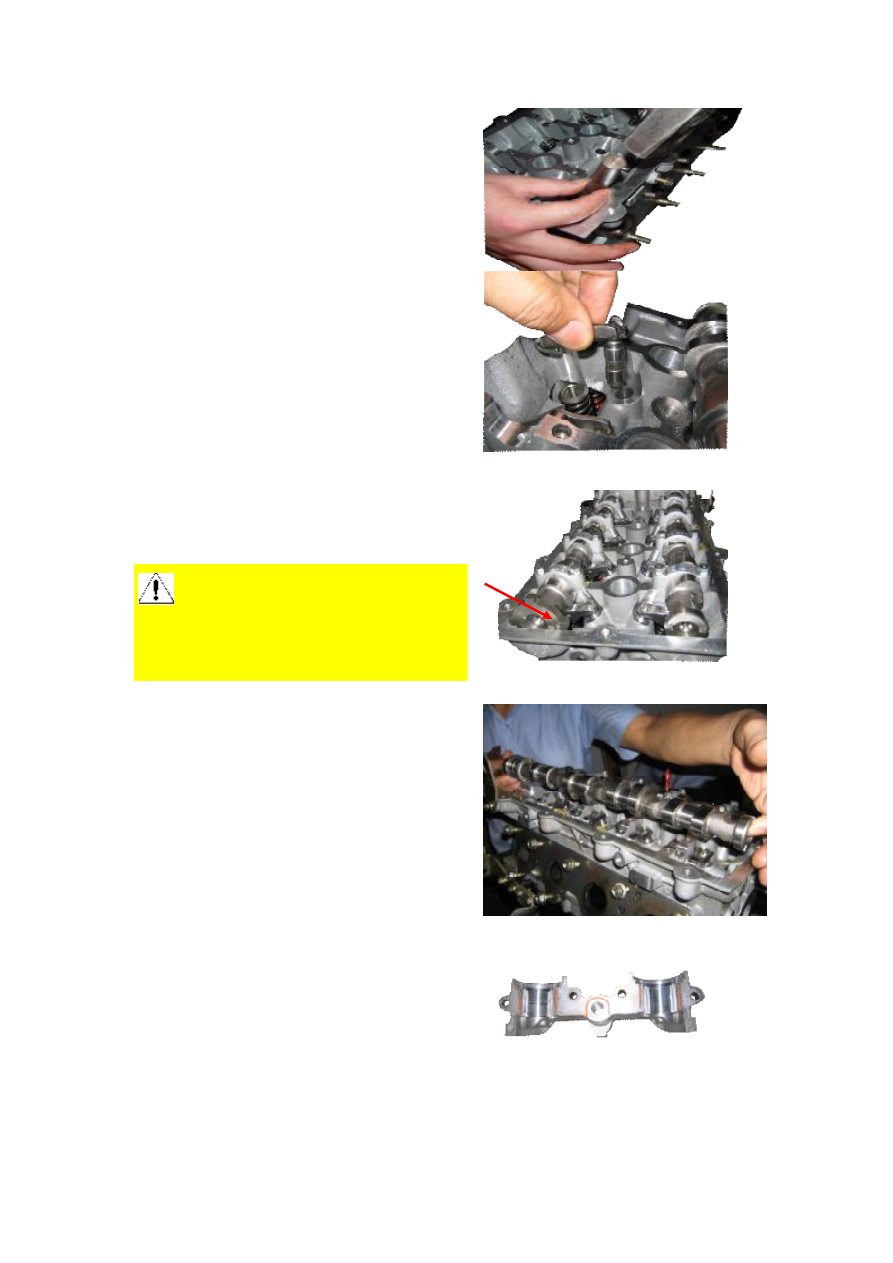

7. Install camshaft and camshaft bearing shell cover

assembly.



Note:

When  installing,  remember  to  differentiate  intake

camshaft  from  exhaust  cam.  The  intake  camshaft  has  a

gear  at  tail,  and  pay  attention  to  the  diacritical  marks  on

camshaft bearing shell covers.





8. Installation of camshaft and oil seal

8.1 After adding engine  oil  on the camshaft bearing

shell,  place  intake  and  exhaust  camshafts,  cover

bearing shell covers properly, install the fixing bolts

for  the  bearing  shell  covers,  and  then  use  a  10mm

sleeve to hold down the bearing shell covers step by

step (the two bolts  on the one and the same bearing

shell  cover  should  be  tightened  at  the  same  time).

Torque: 8.5±1.5 Nm.





9.  Remember  to  apply  sealant  to  the  position  as

shown in the figure when installing the first bearing

shell.

10.  Tightening  order  of  camshaft  bearing  shell

cover.

Tighten  the  camshaft  bearing  shell  cover  as  shown

in the figure.

Installation of camshaft oil seal:

Apply  a  little  engine  oil  on  the  camshaft  oil  seal,



envelop  the  oil  seal  onto  the  camshaft,  and  then

install use the special tool.





11.  Remember  to  check  elasticity  of  valve  cover

gasket for aging and breakdown, if any, replace with

new  one.  When  installing,  pay  attention  to

installation position.



12. Tighten the valve cover bolt.







Chapter Twelve Disassembly and Installation of Oil Pump and

Lubrication System

I. Disassembly Procedure

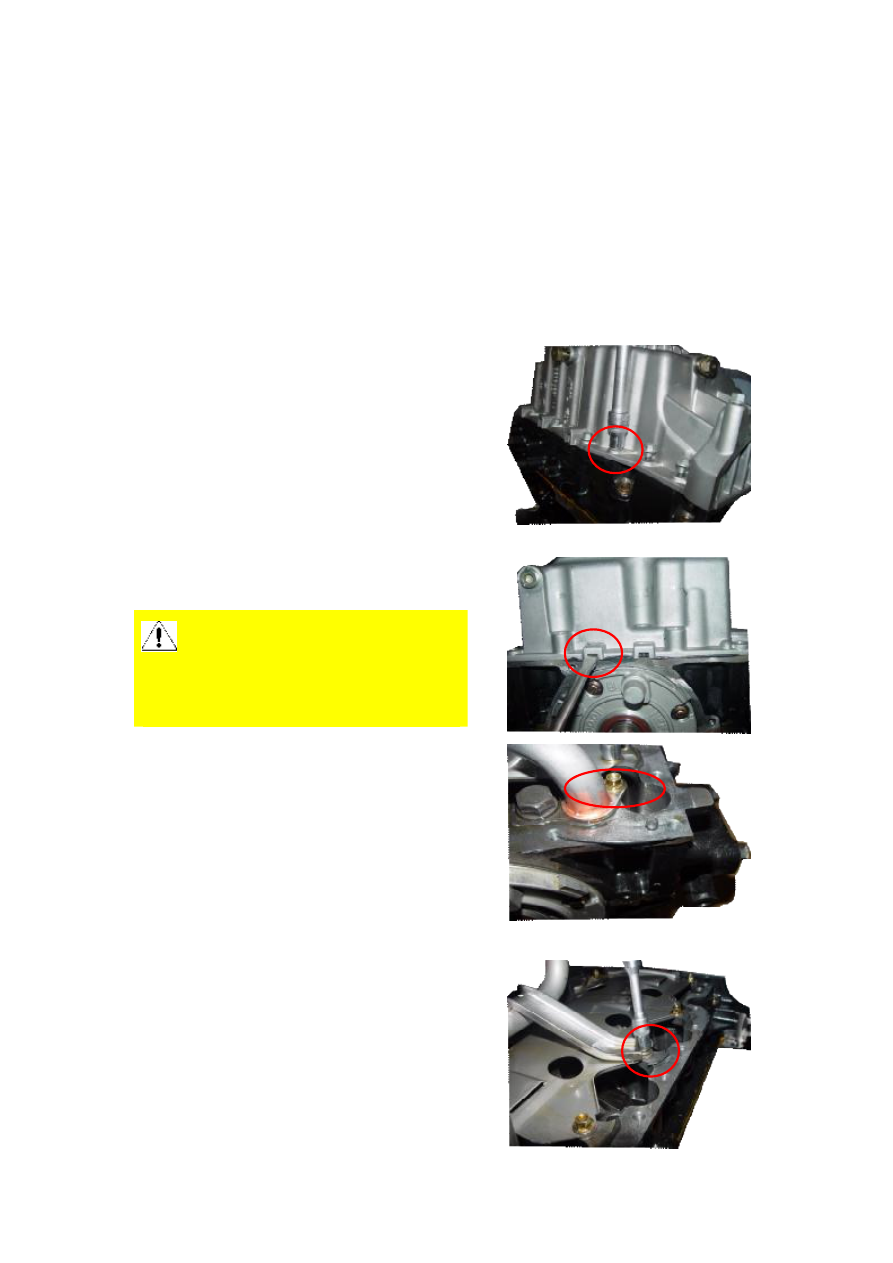

1. Roll  over the engine and use a 10# sleeve to remove

the fixing bolt of oil pan.

Torque: 15+3 Nm





2. Use a screwdriver to pry  out the  oil  pan at the  given

position for prying out on the oil pan.



Note:

Because  the  oil  pan  and  cylinder  block  are  sealed

with  glue,  so,  do  not  knock  with  such  hard  articles  as

hammer etc. when disassembling, use a rubber hammer to

slowly strike at left and right instead.



3. Use a 10# sleeve to remove the fixing bolt  of engine

oil strainer.







4. Use an 8# sleeve to remove the fixing bolt  of engine

oil guard board.
