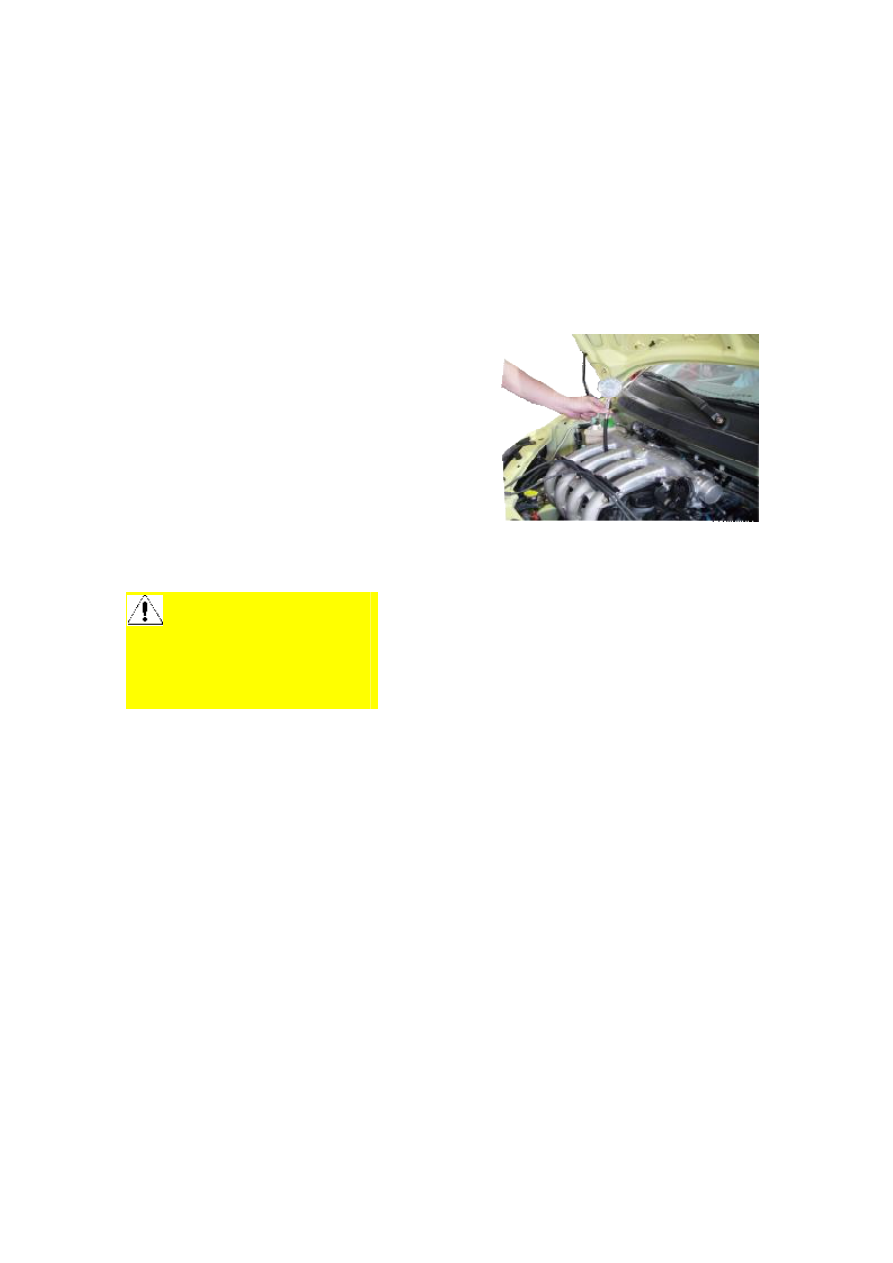

1.3  Screw  the  cylinder  pressure  gauge  joint  slowly  and

vertically  into  the  spark  plug  hole.  Do  not  screw  too

tightly for fear that it may be difficult to disassemble.

1.4  Step  down  clutch  pedal,  start  the  engine  and  let  it

run for about 5-6s, then fetch the numerical value.





2. Judgment of cylinder pressure value

2.1 Correct cylinder pressure

The  standard  cylinder  pressure  value  should  be

10-13.5bar. With use of engine, this value will fall, but

it  should  not  be  below  9bar  with  the  pressure

difference among cylinders not exceeding 3bar.

2.2  In  case  cylinder  pressure  of  engine  is  below  the

standard  value,  it  indicates  deficiency  of  cylinder

pressure,  the  main  cause  of  which  may  be  untight

piston  ring  seal  or  valve.  Please  further  analyze  and

check.



















When  starting  the  engine,

ensure

adequate

quantity

of

electricity.  Correct  cylinder  pressure  can

only  be  measured  out  with  revolution  of

engine as 200-300r/min.



Chapter Five Disassembly of Power-assisted Steering System

I. Disassembly Procedure

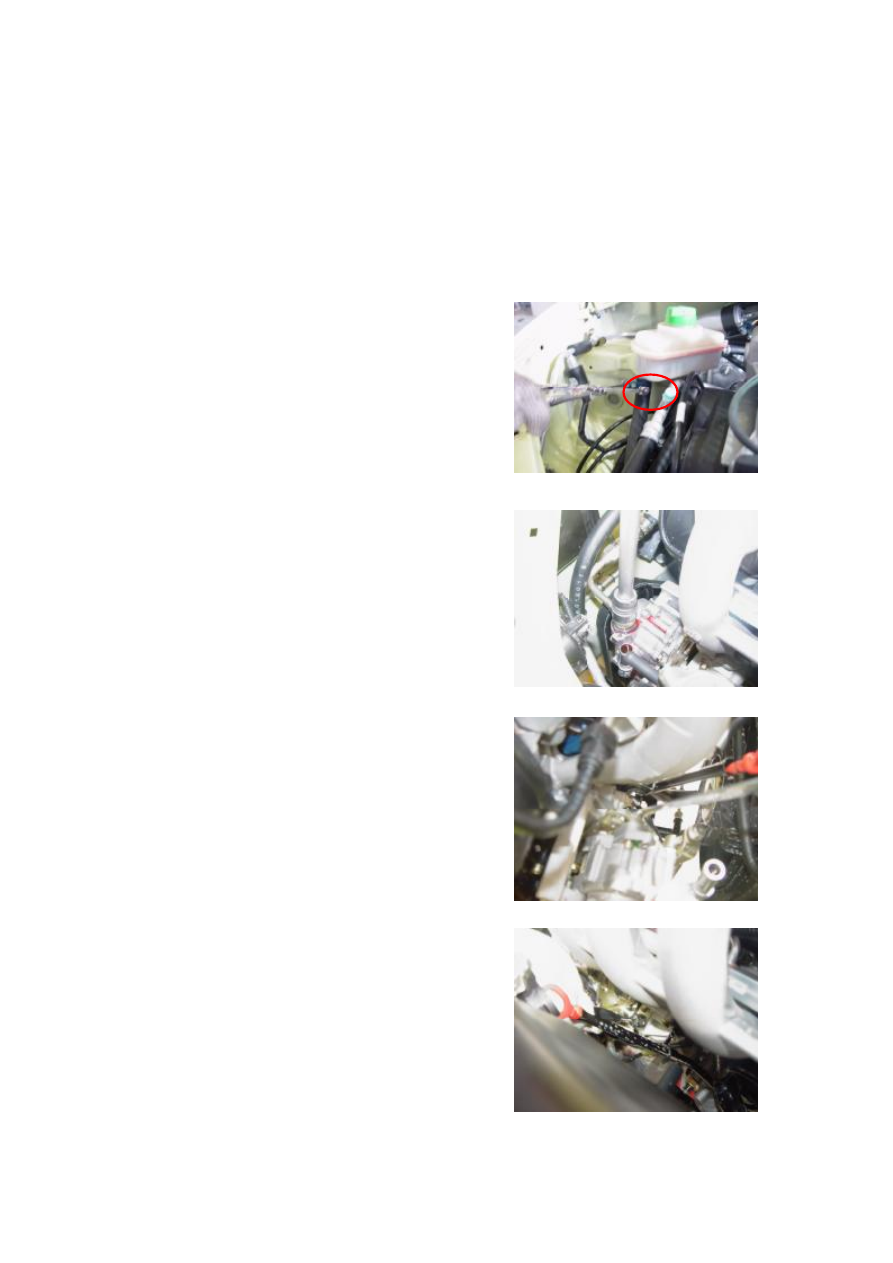

1.  Use  a  snap  ring  pliers  to  loosen  the  clamp  on

connecting  hose  of  steering  fluid  reservoir  and  steering

pump. Use a clean container to reclaim the steering fluid.





2. Use a 21# sleeve to remove the fixing bolt of steering

pump oil pipe.

Torque: 20+5Nm.







3.  Use  a  10#  sleeve  to  loosen  the  (upper)  fixing  bolt  of

steering pump adjusting bracket.

Torque: 20+5Nm.







4.  Use  a  10#  sleeve  to  loosen  the  (lower)  fixing  bolt  of

steering pump adjusting bracket.

Torque: 20+5Nm.









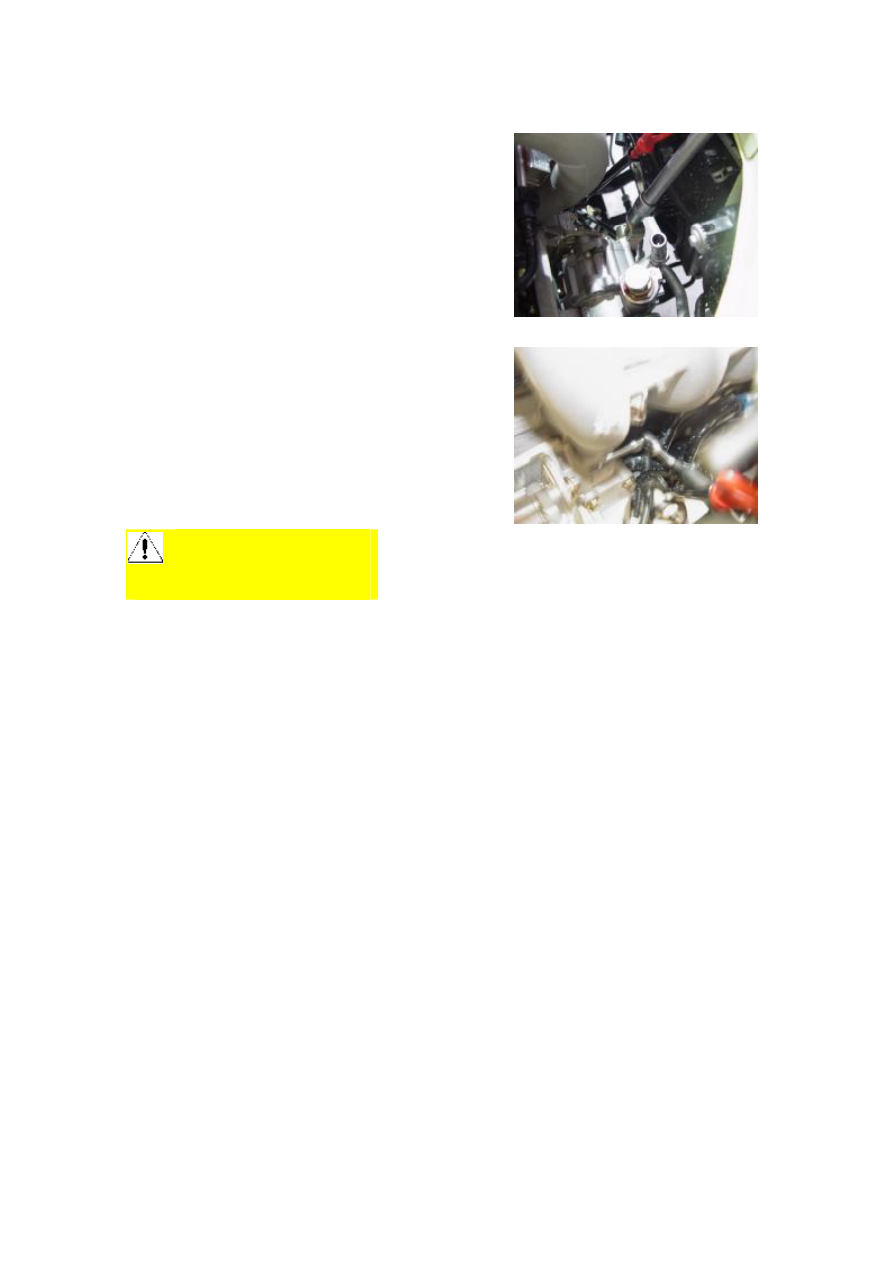

5.  Use  a  10#  open  end  wrench  to  loosen  the  adjusting

bolt  of steering  pump bracket, and then pull the steering

pump upwards to loosen and take off the belt.







6.  Use  a  10#  sleeve  to  loosen  the  connecting  bolt  of

steering  pump  and  compressor  bracket,  pull  out  harness

connector,  and  then  dismount  the  steering  pump

assembly.















II. Overhaul

Steering  pump  can  not  be  repair,  if  such  failure  as  abnormal  noise  or  oil  leak  exists,  replace  the

assembly.

III. Installation of the Steering Pump

1. Follow the order adverse to that of disassembly to install.

2. After installation of steering oil pump, duly adjust tightness of belt through adjusting bolt.

3. After power steering pump is  properly installed, refill  with special steering pump oil, and then

bleed air for the power steering pump after the engine starts.

4. Air bleeding method:

4.1 Hoist the vehicle to let its front wheels leave ground.

4.2 Turn the steering wheel left and right to the ends (duration for each time should not exceed 5s,

otherwise,  the  power  steering  pump  is  likely  to  be  burnt  out)  until  the  oil  pump  does  not  make

sound. Note that oil storage kettle should not be lack of steering pump oil.



Note:  when  dismounting  the

steering  pump,  please  block  the  oil

pipe joint with clean cotton cloth.



Chapter Six Disassembly of A/C Compressor

I. Disassembly Procedure

Before disassembling the compressor, disassemble the steering oil pump first.

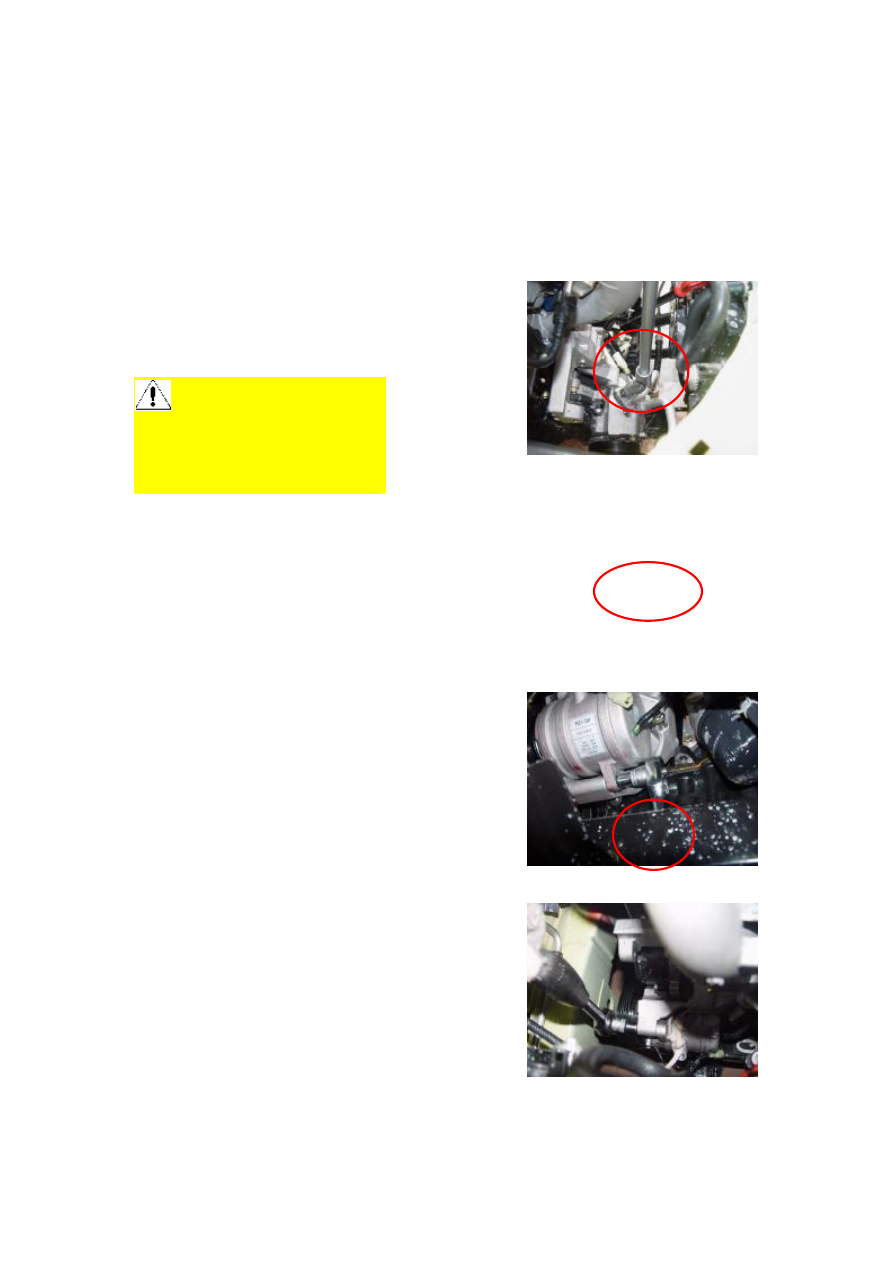

1. Use a 12# sleeve and a universal joint connecting rod to

loosen  the  connecting  bolt  of  A/C  high  and  low  pressure

pipelines.  (Note:  if  there  is  R134a  in  the  condenser,  use  a

special equipment to reclaim first.)















After

the

pipeline

is

loosened,  immediately  block  high

and  low  pressure  holes  of  the  compressor

with  clean  cotton  cloth  to  avoid  entry  of

foreign material into the compressor!



2. Hoist the vehicle and then use a 13# sleeve to loosen the

fixing bolt of the compressor from underside.

Torque: 20+5Nm.















3.  Lower  the  vehicle  and  then  use  a  13#  sleeve  to  loosen

the  fixing  bolt  of  the  compressor  from  upside.  Use  a  13#

sleeve  to  loosen  the  fixing  bolt  at  middle  of  the

compressor, and then dismount the compressor assembly.

Torque: 20+5Nm.
