Chery QQ6 (S21) / S12LHD. Manual - part 56

l The door lock and window glass regulator can’t act at the same time, and the former is

preferred if conflict.

l Automatic door lock control (pre-reserved signal, suitable for the speed locking of

vehicle equipped with air bag and the unlocking after the air bag explodes).

4. Anti-theft Alarm System

4.1. Door lock remote control function

When the remote control key’s UNLOCK/LOCK pushbutton is pressed down, the door

lock motor will act 0.6 s

50 ms.

When the door unlocks, the right/left turn signal lamp flashes: 0.5s

50ms On; 0.5s

50ms Off; 0.5s

50ms On. And then it extinguishes.

When the door locks, the right/left turn signal lamp flashes: 0.5s

50ms.

4.2. Vehicle safety system has five modes:

Ø Arming mode – When a driver presses down the ALARM button, the vehicle is in

arming condition.

Ø Disarm mode – The arming mode is removed by the driver.
Ø Alarm mode – When a invasion event is detected, the system may give an alarm (not

give an alarm for the vehicle without the alarm horn).

Ø Disalarm mode – The driver returns back to the side of vehicle and turns off the alarm.
Ø Arming failure mode – The vehicle fails to successfully establish the arming condition.

4.3. Arming mode:

How to enter into the arming mode:

Condition: ① Four doors close; ② Front hood and rear trunck close.

Operation : Press down the “LOCK” button on the remote controller.

b) Representation when entering into the arming mode:

Before the body enters into the normal arming mode: ① the left/right turn signal lamp

flashes once; ② the body anti-theft horn gives an alarm once (not give an alarm for the

vehicle without the alarm horn).

c) Specific representation when the failure to enter into the arming mode:

When the failure to enter into the arming mode, the system will has the following

representations: ① the left/right turn signal lamp continuously flashes twice; ② the body

anti-theft horn doesn’t give an alarm (not give an alarm for the vehicle without the alarm

horn).

d) Body state after entering into the arming mod:

After the body enters into the normal arming mode: ① the four doors are locked; ② the

arming indicator light continuously flashes; ③ if the ceiling lamp switch is in the

controlled position and the ceiling lamp is in OPEN position, the ceiling lamp closes.

4.4. Disarm mode:

How to disarm:

Condition: The body is in the normal arming mode.

Operation: Press down the “UNLOCK” button on the remote controller.

b) Representation when disarming:

Before the body changes from the normal arming mode to the disarm mode: ① the

left/right turn signal lamp continuously flashes twice; ② the body anti-theft horn

continuously gives an alarm twice (not give an alarm for the vehicle without the alarm

horn).

Body state after disarming:

After the body is disarmed: ① the four doors can be freely opened; ② the arming

indicator light stops flashing; ③ the ceiling lamp automatically extinguishes within 8 s

after it turns on.

(CAUTION: If no action on the body is implemented within 28 s after disarming, 28 s

later, the body control module will automatically make the body enter again into the

arming condition.

4.5. Alarm mode:

How to trigger the alarm mode:

Condition: The body is in the normal arming mode.

Operation: ① Enfocedly open any of four doors; ② enforcedly open front hood or trunk;

③ turn on the ignition switch.

b) Representation when entering the alarm mode:

After the body enters into the alarm mode: ① the left/right turn signal lamp continuously

flashes for 28 s; ② the body anti-theft horn continuously give an alarm for 28 s; ③ after

stopping alarming, 28 s later, if four door, front hood and trunk close and then open, the

left/right turn signal lamp and the body anti-theft horn will be triggered for 28 s, and

cycles; ④ if the door open or “ignition” state exists at all times, the alarm is given ten

cycles and then stops, with the cycle interval of 2 s (not give an alarm for the vehicle

without the alarm horn).

4.6. Disalarm mode

How to disalarm:

After the body enters into the alarm mode: ① press down any pushbutton on the remote

controller.

b) Body state after disalarming:

1. If the triggered alarm door is in open state (not give an alarm for the vehicle without

the alarm horn).

Press down the UNLOCK pushbutton on the remote controller to ① disalarm; ② unlock

the central door lock.

Press down the LOCK pushbutton on the remote controller to ① disalarm; ②enable the

arming to be failed.

2. If the triggered alarm door is in close state (not give an alarm for the vehicle without

the alarm horn):

Press down the LOCK pushbutton on the remote controller to ① disalarm; ② disarm, and

carry out the secondary arming after 28 s.

Press down the LOCK pushbutton on the remote controller to ① disalarm; ② enter into

the arming mode.

4.7. Arming failure mode

a) If door, engine hood, trunk fail to close at the same time, pressing the Arm key can’t set

up the arming condition:

After the failure of body arming: ① the left/right turn signal lamp lights.

III. Fog and Position Lamps Control

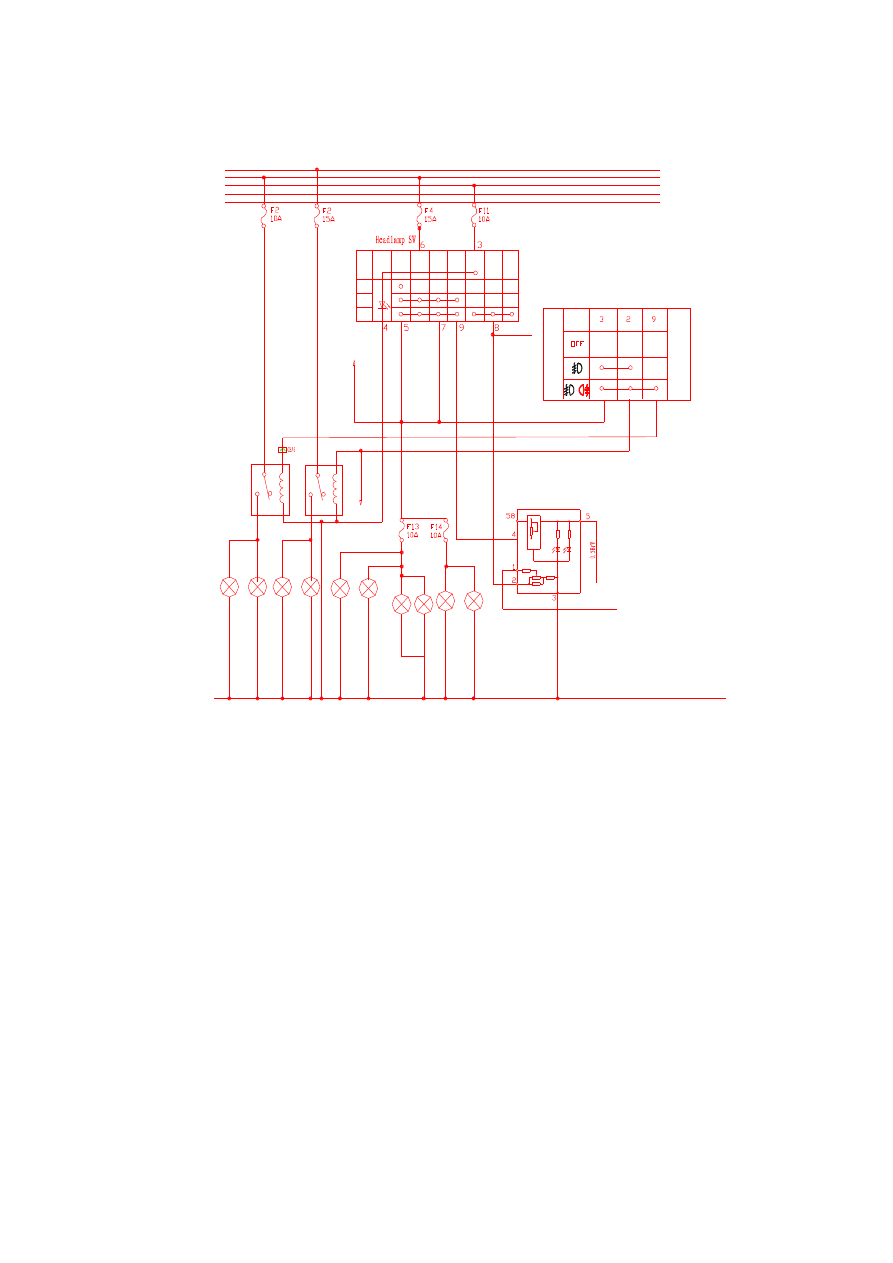

1. Principle of Fog Lamp Control

The fog lamp is controlled by the combination light switch which is used to control the open/close

of the fog lamp relay. When the light switch is turned to the clearance lamp position, the electric

power from the fuse F4 is supplied to the fog lamp switch via the angle 7#. When the fog lamp

switch is in the front fog lamp position, the 3# terminal of the fog lamp switch is successfully

connected to the 2# terminal to make the front fog lamp relay engaged and thus light up the front

fog lamp. When the fog lamp switch is in the rear fog lamp position, all terminals 3#, 2# and 9# of

the fog lamp switch turn on, and the rear fog lamp relay also engages. In this case, the front and

rear fog lamps light at the same time. So, the principle of the fog lamp control is just to turn on the

clearance lamp (position lamp) and then turn on the front fog lamp, and the rear fog lamp can be

turned on only after the front fog lamp turns on (this is implemented using the switch).

Terminal

Light
Control
Switch

Rear Right T

ail

Right Cleara

nce Lamp

License Pla

Lamp

Front
Fog
Lamp
To
Instrument

ar Fo

g Lamp

Relay

To
Instrument

OFF

Headlamp

Power

Clearance
Lamp

15a

30a

To
Each
Night
Light
Switch

Power

ft Clearance

Lamp

Rea

r Left

Tail

Lamp

Front Right

g L

amp

Fron

t Lef

t Fog

Lamp

ear Ri

ght Fo

g Lamp

Rear

Left F

Lamp

Clearance
Lamp

Headlamp

Front

Fog La

Rel
