Chapter 1 Brake System

I. System Maintenance Parameters

1. Brake disc check:

The friction surface of brake disc should be flat and has no apparent grooves; otherwise, replace it.

2. Thickness check

The standard thickness of front disc (ventilation disc) is 17 mm with service limit of 15 mm; when

exceeding the service limit, replace it.

3. Brake lining thickness check

Standard thickness of front brake lining shall be 10 mm, service limit shall be 3 mm, and the

remaining thickness of limit of brake pad thickness shall be not less than 3mm.

Standard thickness of rear brake lining shall be 5 mm, service limit shall be 1 mm, and the

remaining thickness of limit of brake pad thickness shall be not less than 1 mm.

4. Brake disc runout check

Check the brake disc side face runout with a dial gauge. The service limit of front disc is 0.03mm,

and, if exceeding the limit, replace the disc.

Important notice:

After completion of replacing friction lining or brake disc, stop down brake for several times to

enable breaking-in between brake lining and brake disc. Make sure safety!

After replacing brake lining, check brake fluid level if is between MIN and MAX.

Disassembly/Reassembly and Maintenance of Front Brake and Brake

Caliper

1. Structural Diagram of System

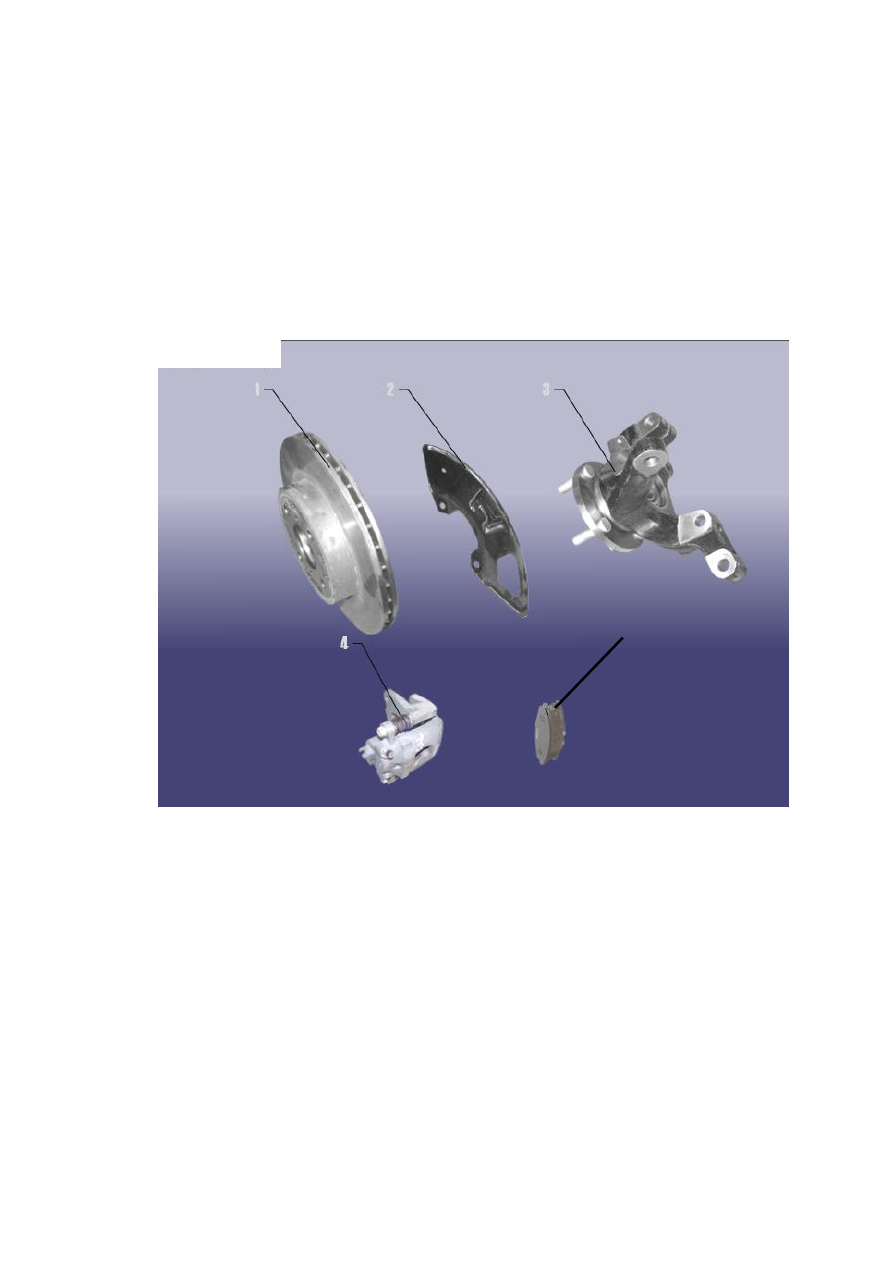

Structural Diagram of Front Brake Assy

(1) Brake Disc (2) Dust Cover

(3) Wheel Hub Bearing Unit (4) Caliper Assy

(5) Friction Lining (6) Steering Knuckle

Front Left Brake
