Chery QQ6 (S21) / S12LHD. Manual - part 12

II. Disassembly/Reassembly and Maintenance of Rear Bumper

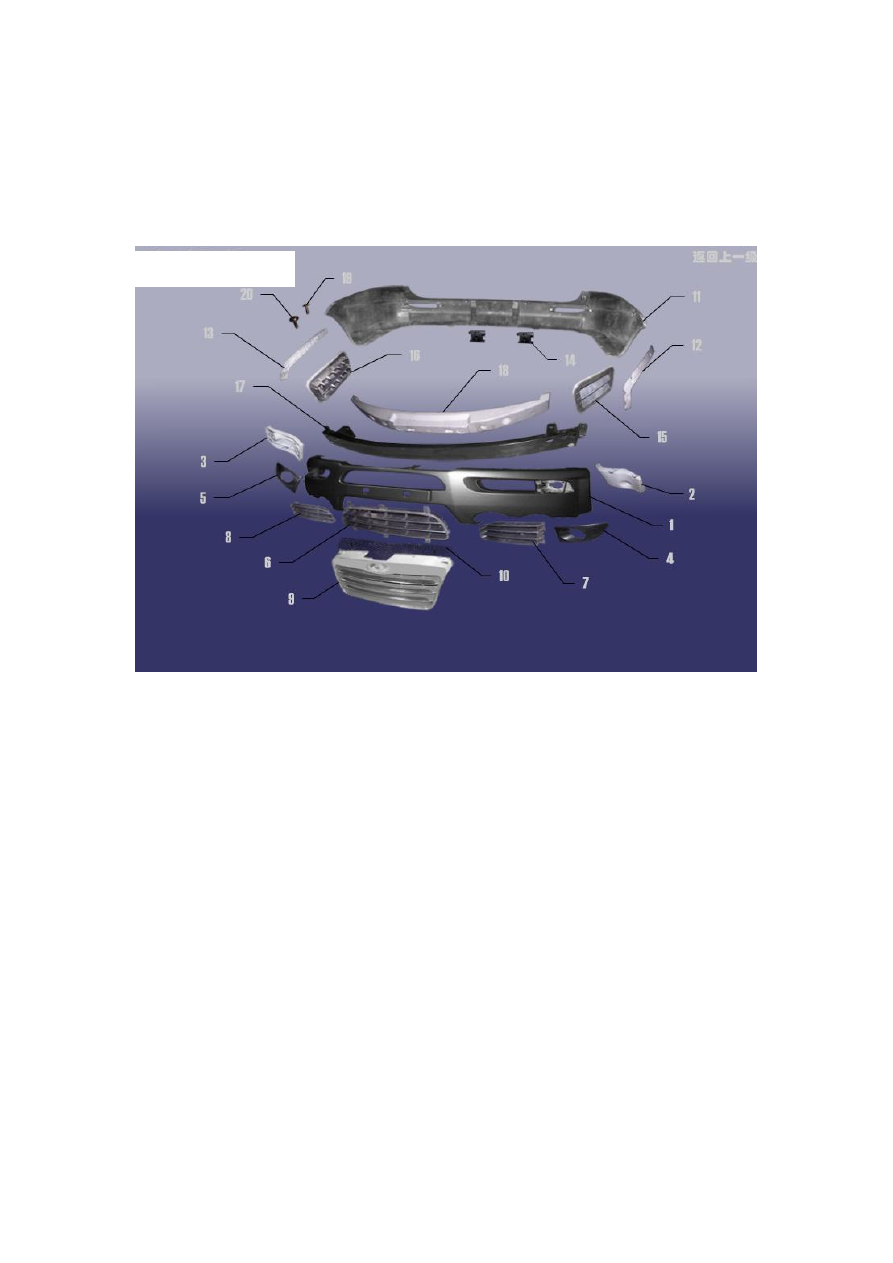

1. System Composition Diagram

2. Preparation

Tools: cross screwdriver, 7# sleeve.

3. Precautions

3.1. Please wear necessary labor protection supplies to avoid accidents.

3.2. To prevent scratch the bumper surface paint.

3.3. When the rear bumper is disassembled/reassembled in the low temperature environment, the

force applied can’t be big so as to avoid the breakage of the bumper.

Front/Rear Bumper

4. Removal Step

4.1. Open the luggage boot lid, and loosen two

fixing clips from the rear bumper with a cross

screwdriver. See right figure.

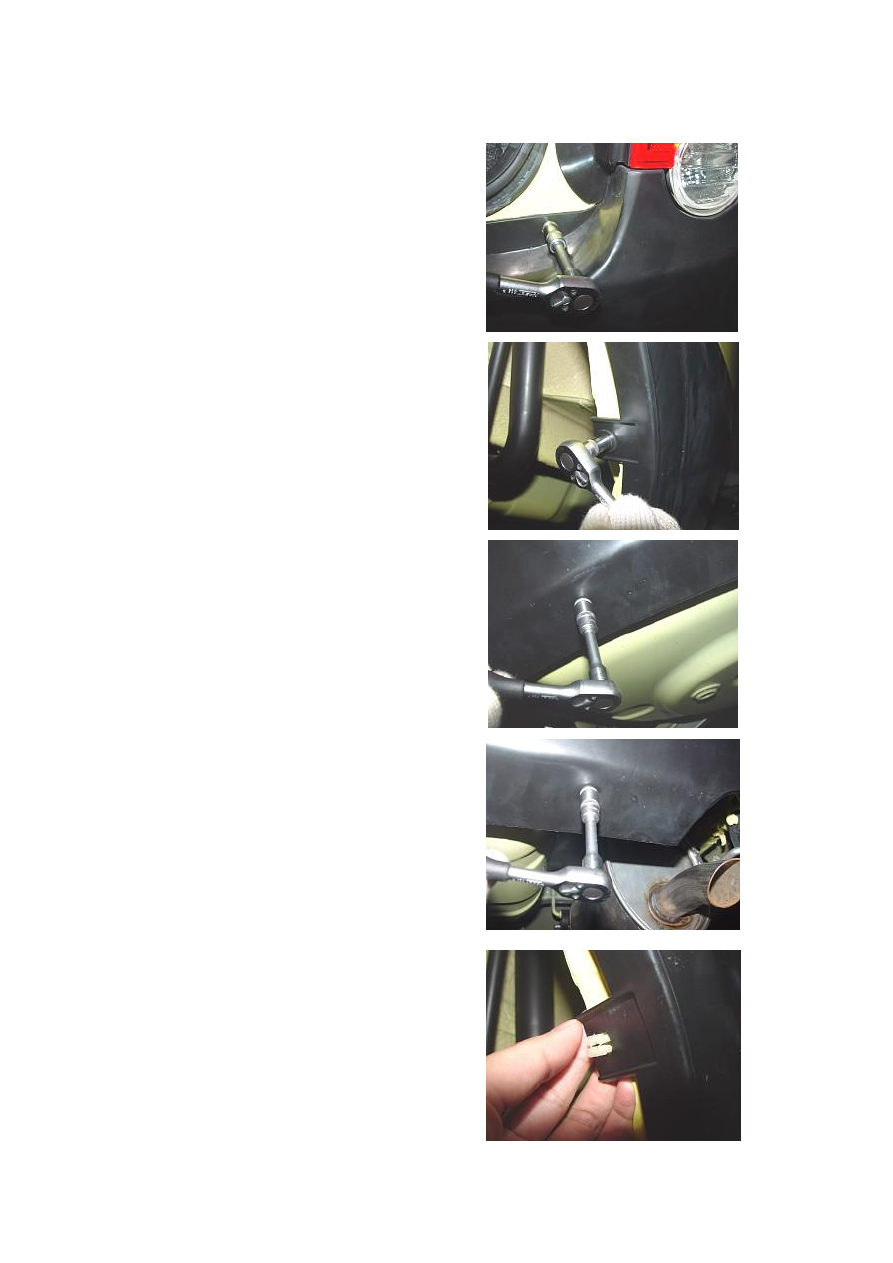

4.2. Loosen the fix screws and clips of rear

bumper and rear mud guard with a 7# sleeve.

Torque: 7N·m

4.3. Loosen the fix screws at the left side of

rear mud guard and rear bumper with a 7#

sleeve.

4.4. Loosen the fix screws at the right side of

rear mud guard and rear bumper with a 7#

sleeve.

4.5. Push out the fixing clips of rear bumper

from the rear mud guard by hand.

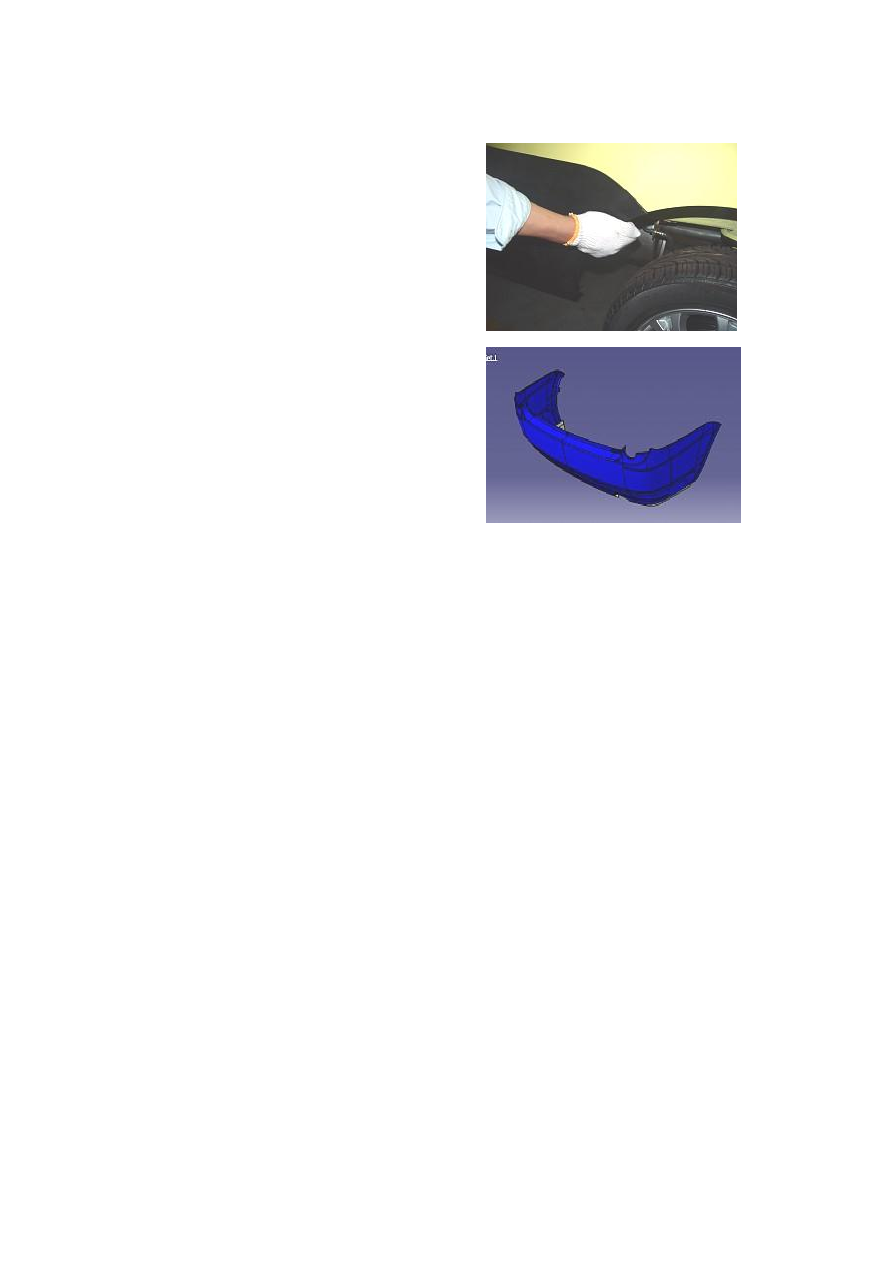

4.6 Pull out the bumper from the fixed

mounting at the fender by hand.

4.7. Take off rear bumper assy.

5. Installation Step

The installing steps are reverse to those for

removal.

Chapter 5 Disassembly/Reassembly and Maintenance of

Headlamp and Fog Lamp

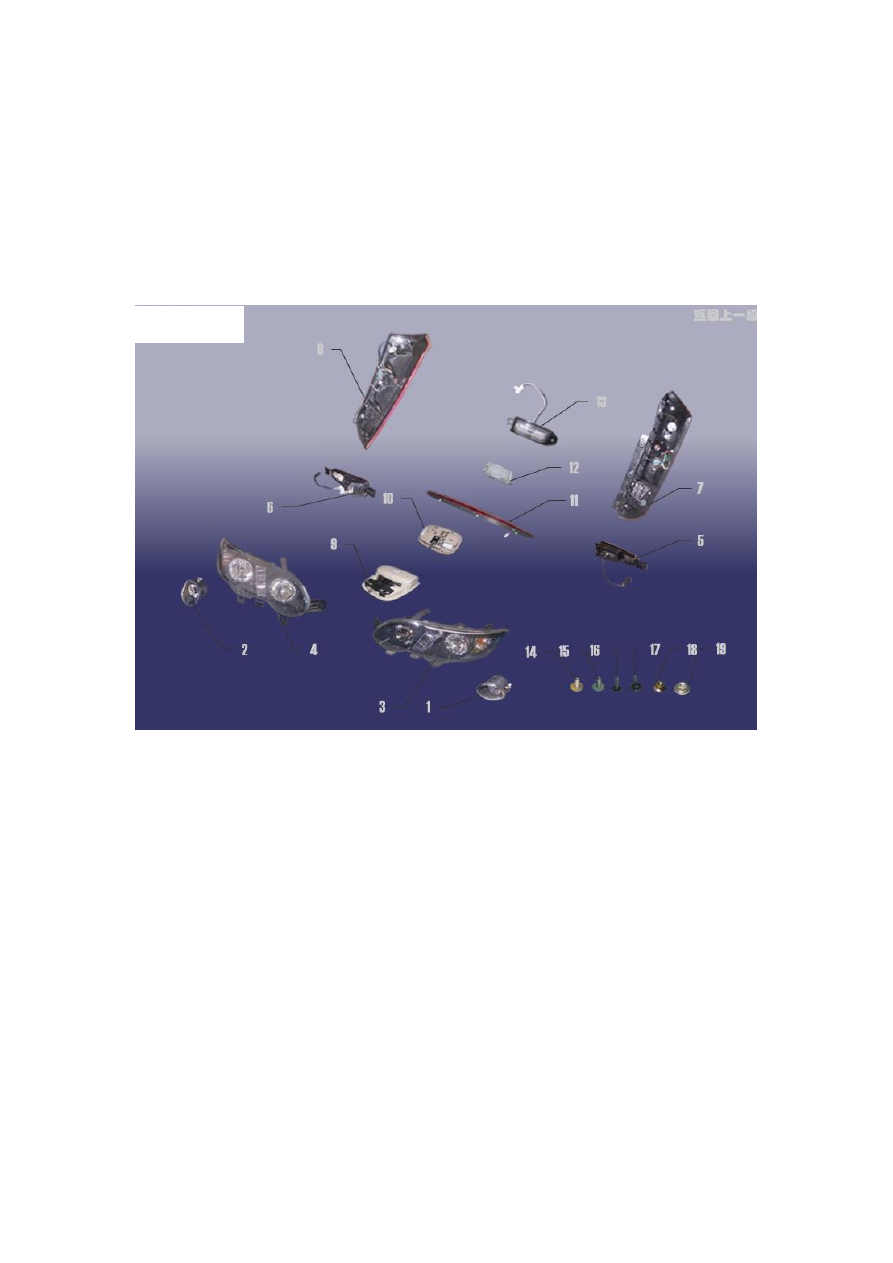

1. System Composition Diagram

Lamp
