(3) Confirm the bolt length and their
installation locations are a little different.
8mm-length bolt

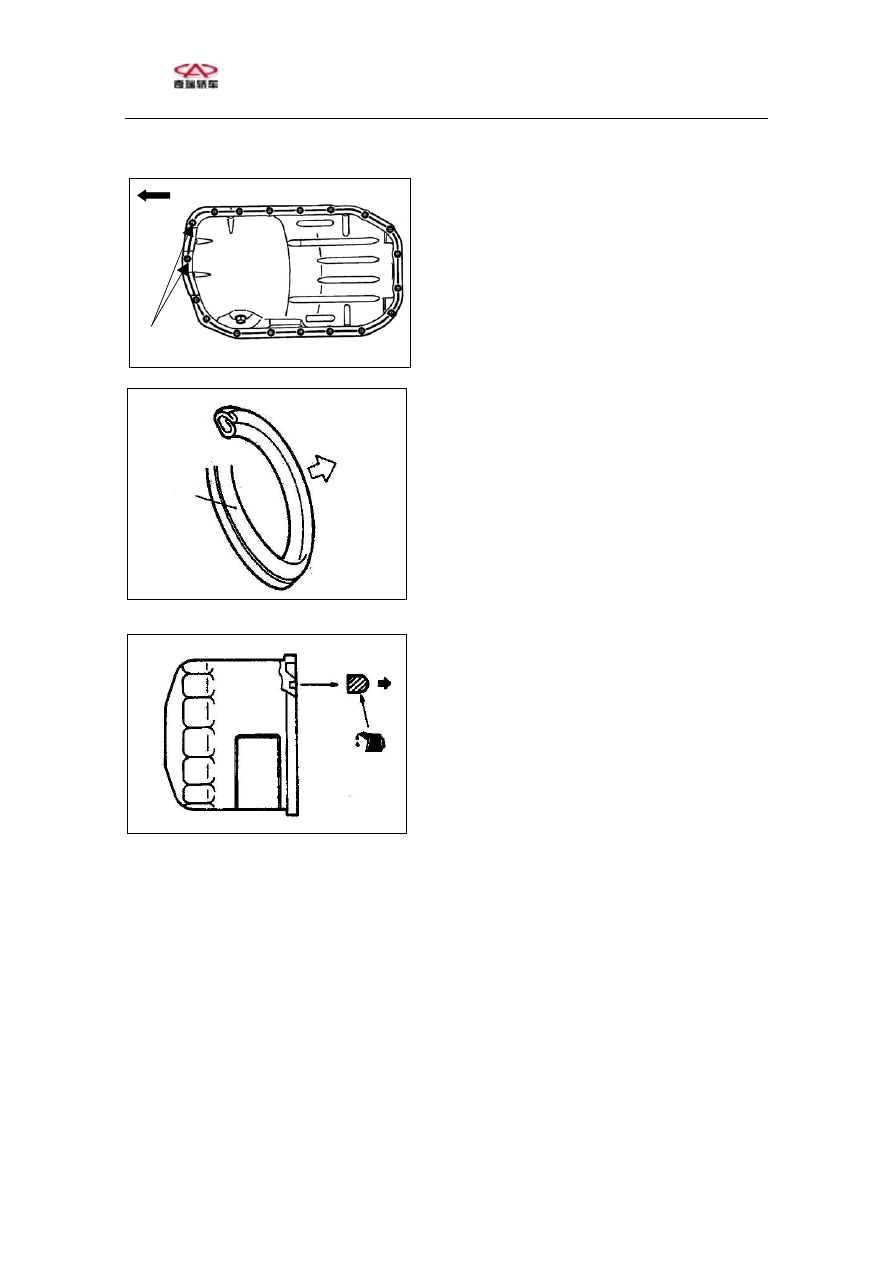

Oil pan bottom
view
Drain plug cushion installation
Install drain plug cushion according to the
direction as shown.
Caution：
Oil pan side
The incorrect installation direction may
result in oil leakage.
Drain plug
cushion
Oil cleaner installation
(1) Make installation surface of oil cleaner
bracket clean.
Bracket side
(2) Daub engine oil on O-shape ring of oil
cleaner.
(3) Screw on oil cleaner. When the O-shape
ring reaches installation surface, screw
3/4 cycle further. (Tighten torque:
1.4kg.m)
Check

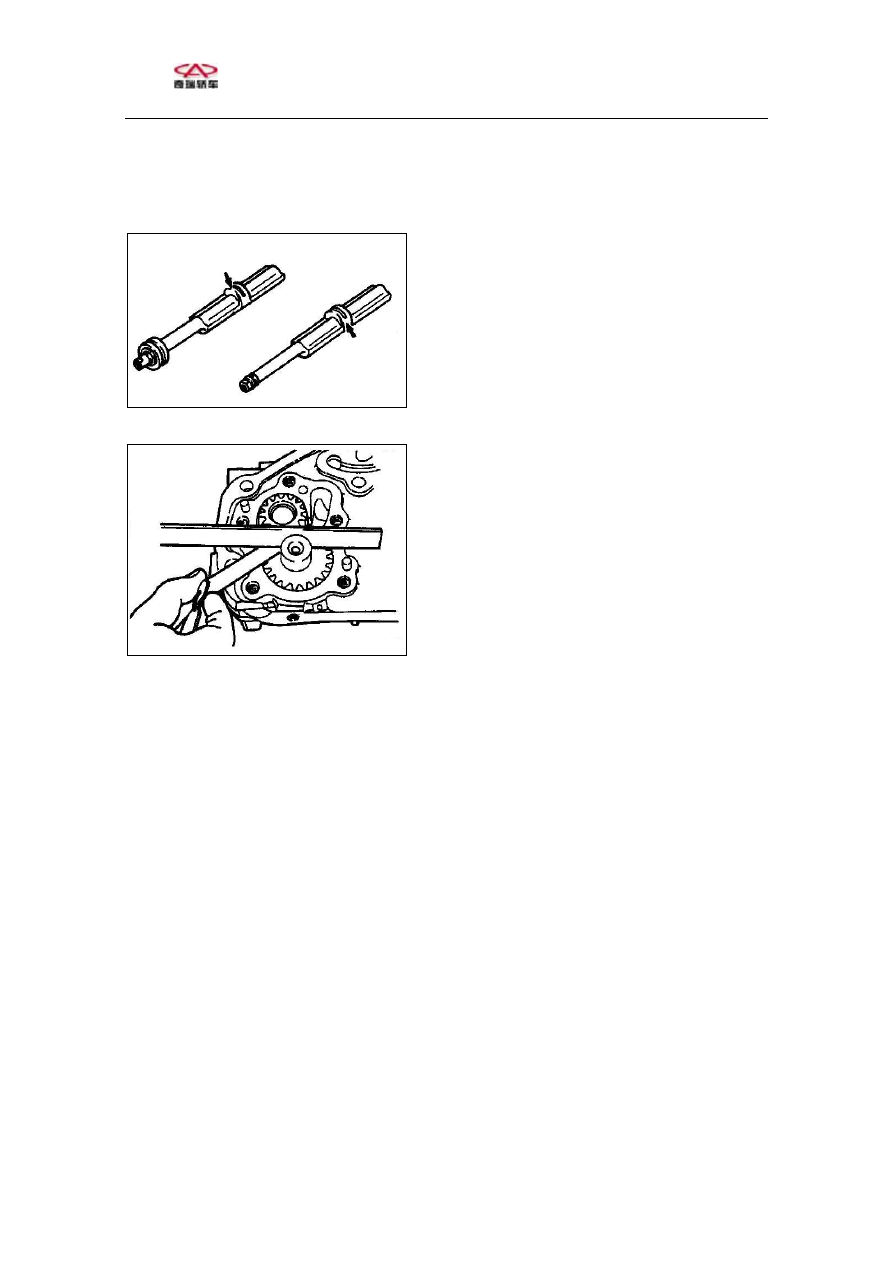

Front cover
(1) Check if oil hole is jammed. If necessary,
clear it up.
(2) Check if there is abrasion, damnification
or sinter on left balance axle front bearing.
If necessary, replace front cover.
(3) Check if there is crack or other
damnification. If any, replace front cover
component.
Oil seal
(1)
Check if there is abrasion or
damnification on oil seal lip. If necessary,
replace oil seal.
