Chery A15. Manual - part 174
Chery A15 Maintenance Manual
C322 Plug-in TQ3
Pin Color
Description Pin
Color
Description
1
Empty
2
0.5 Gray/blue
Brake switch
3
1.0 Black
Wiper intermitter relay
4
1.5 White/yellow
Rear fog light switch
5
Empty 6
Empty
7
1.0 Red/white
Light switch
8
2.5 Red/blue
Power supply X (E9)
9
1.5 Black
15 (D10) power supply
10
Empty

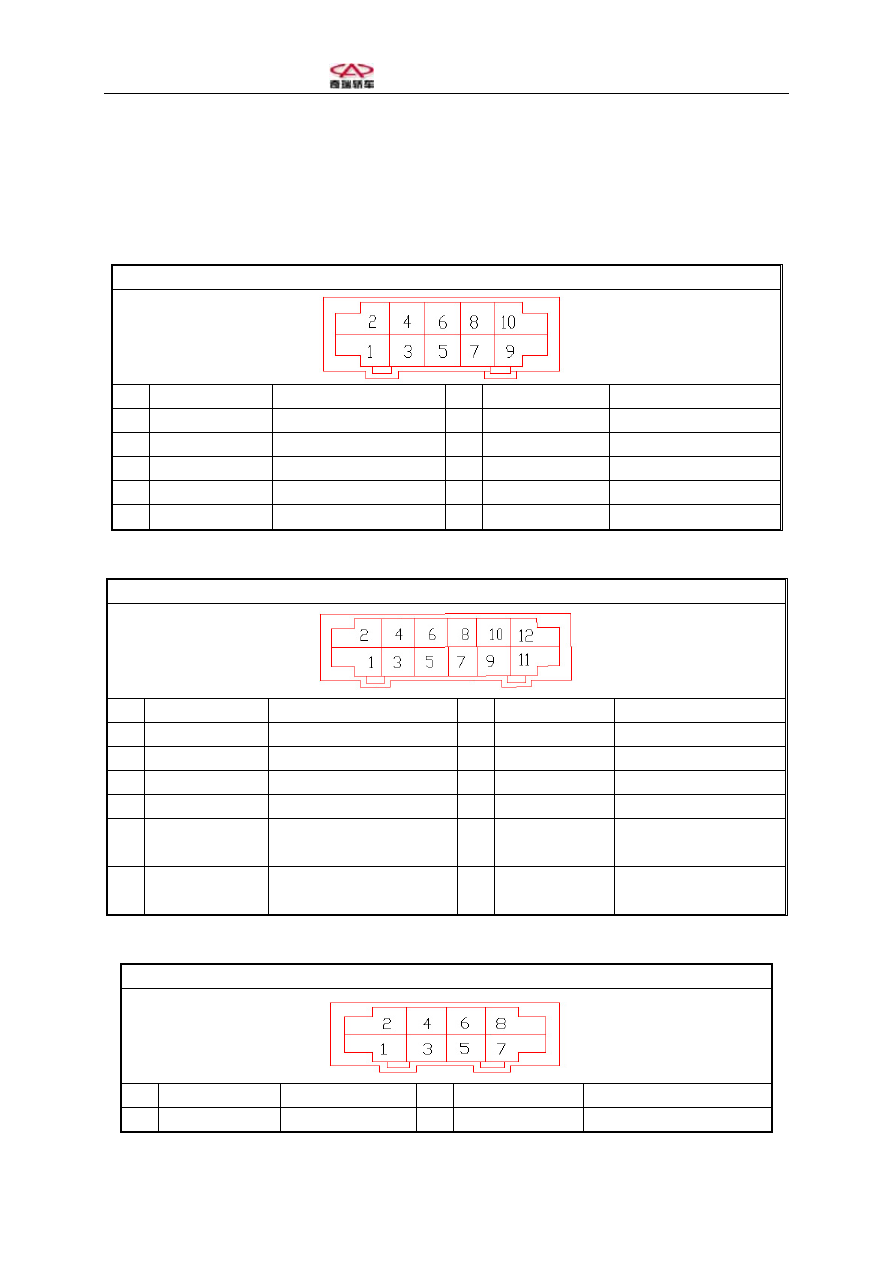

C323 Plug-in TS1
Pin Color
Description Pin
Color
Description
1
1.0 Red/black
Parking light switch
2
1.0 Black/green
Right taillight
3
1.0 Black/white
Parking light switch
4
Empty
5
1.0 Gray/white
Rear fog light
6
1.5 Black
Rear fan heater
7
Empty 8
Empty
9
1.0 Red
Trunk light, radio, dome
light
10
0.5 Purple/black
Oil level sensor
11
1.5 Red
Rearview mirror switch
12
1.5 Red/yellow
Central door lock
controller
C326 Plug-in TS3
Pin Color
Description
Pin
Color
Description
1
0.5 Brown/blue
Front right speaker
2
0.5 Brown/yellow
Front right speaker
