  Maintenance Manual for Chery·Windcloud

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

Sunroof





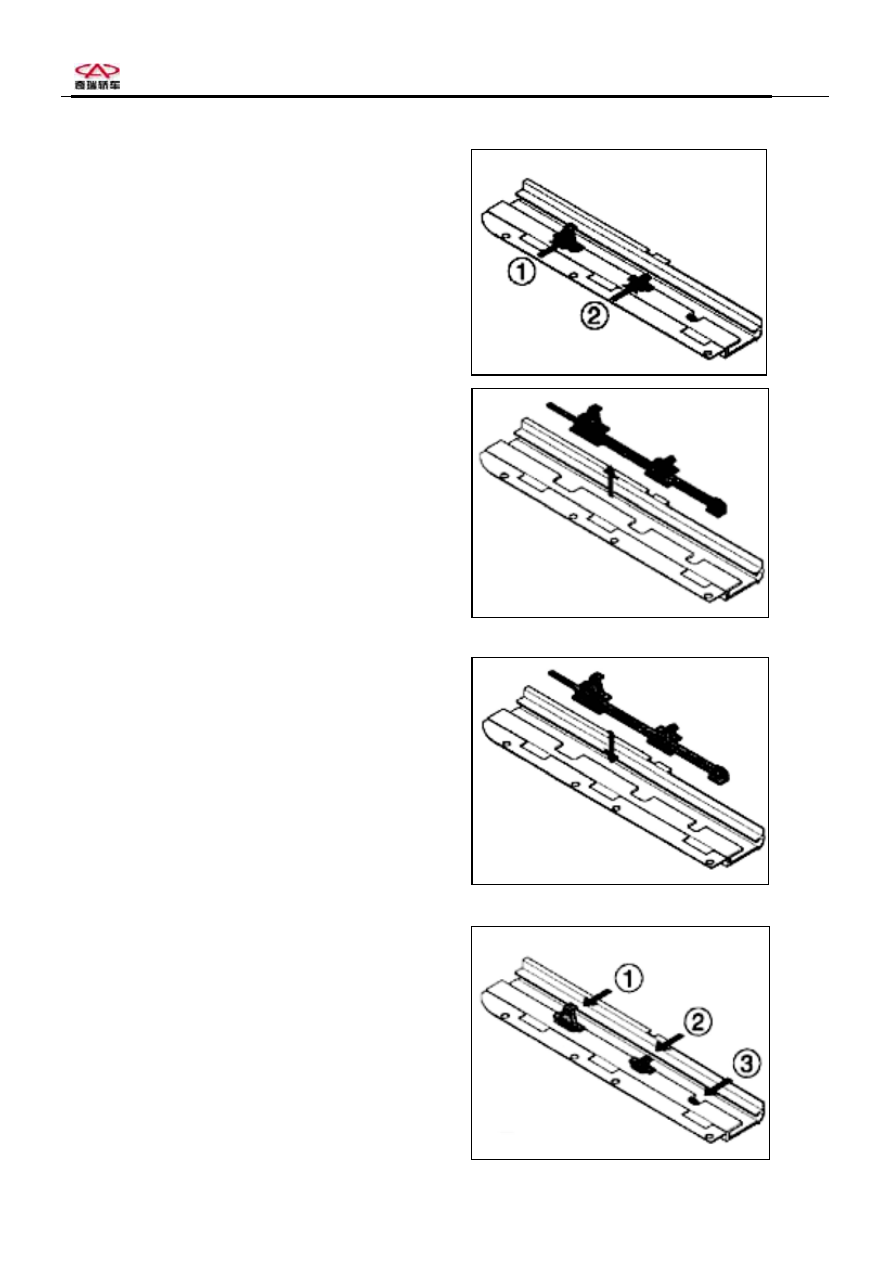

4.6.12 Push out guiding lock rod as shown in the figure.















4.6.13 Take out lock rod from the rail.















Assembling procedure

4.6.14 Insert a new guiding lock rod into the rail.

















4.6.15 Install guiding lock rod in position.

Page 29 of 37



  Maintenance Manual for Chery·Windcloud

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

Sunroof





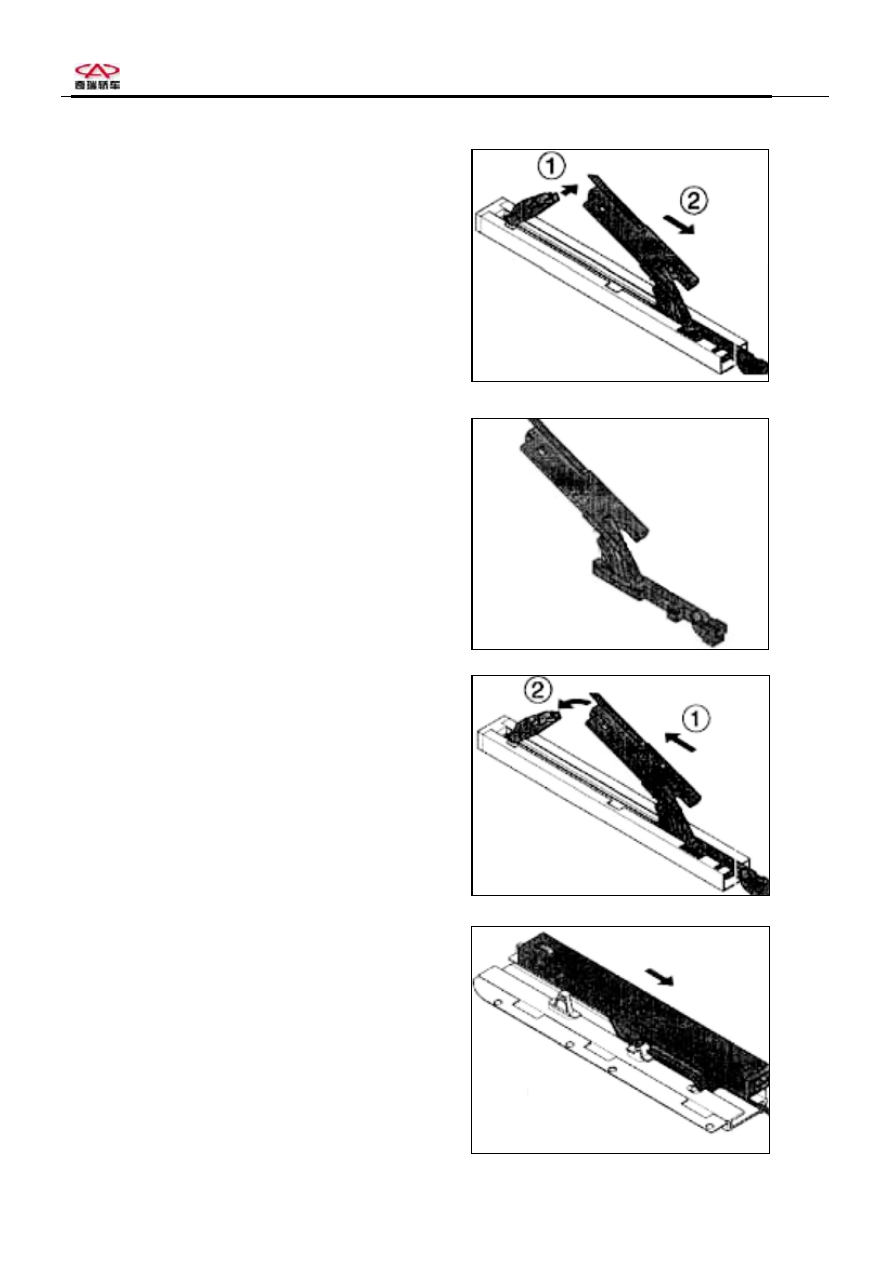

4.6.16 Disconnect front raiser and rail slider, then take

out rail slider.















4.6.17 Check the new rail slider.

















4.6.18 Install in the reverse order in step 16.















4.6.19 Install in the reverse order in step 11.

Page 30 of 37



  Maintenance Manual for Chery·Windcloud

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

Sunroof





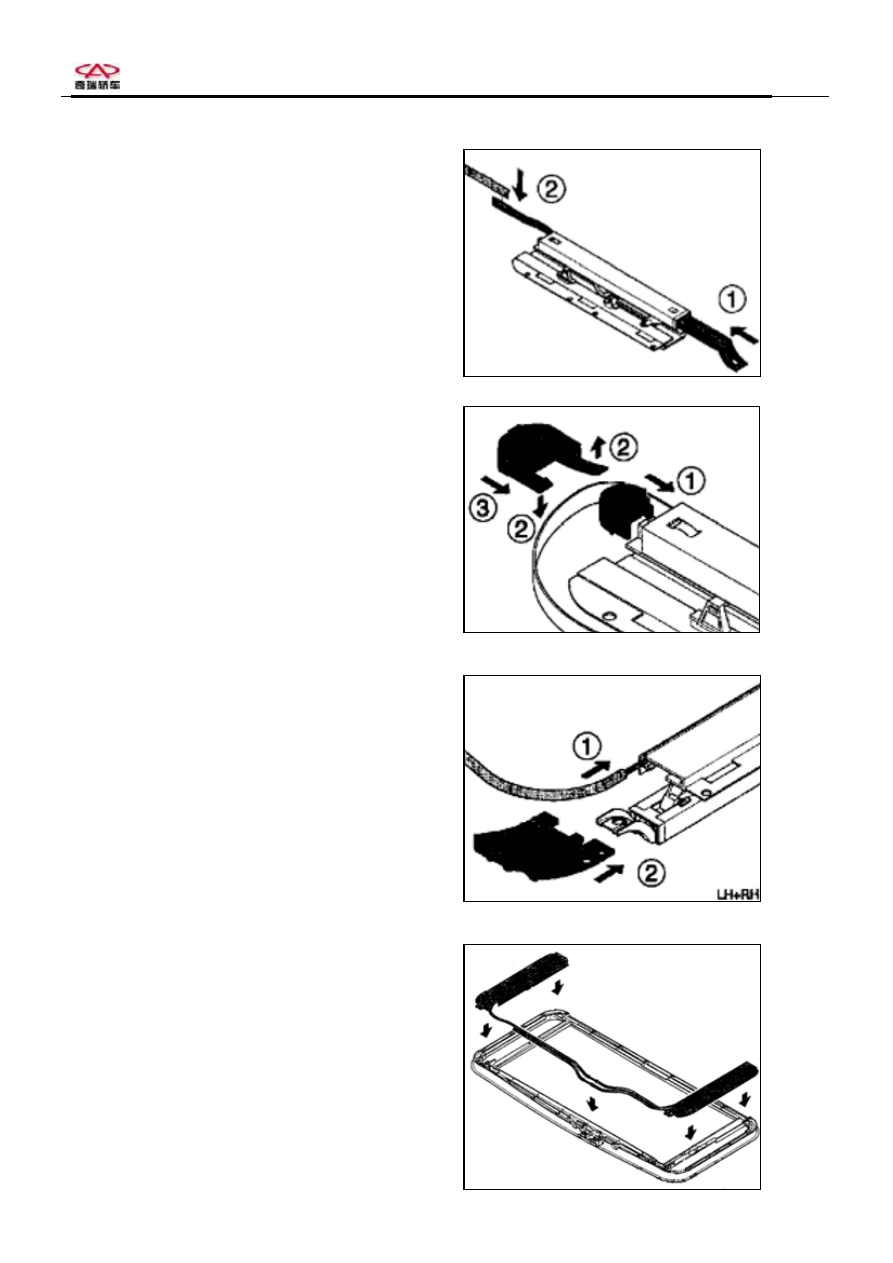

4.6.20 Install in the reverse order in step 10.

















4.6.21 Install in the reverse order in step 9.

















4.6.22 Install in the reverse order in step 8.

















4.6.23 Install in the reverse order in step 7.

Page 31 of 37



  Maintenance Manual for Chery·Windcloud

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

Sunroof





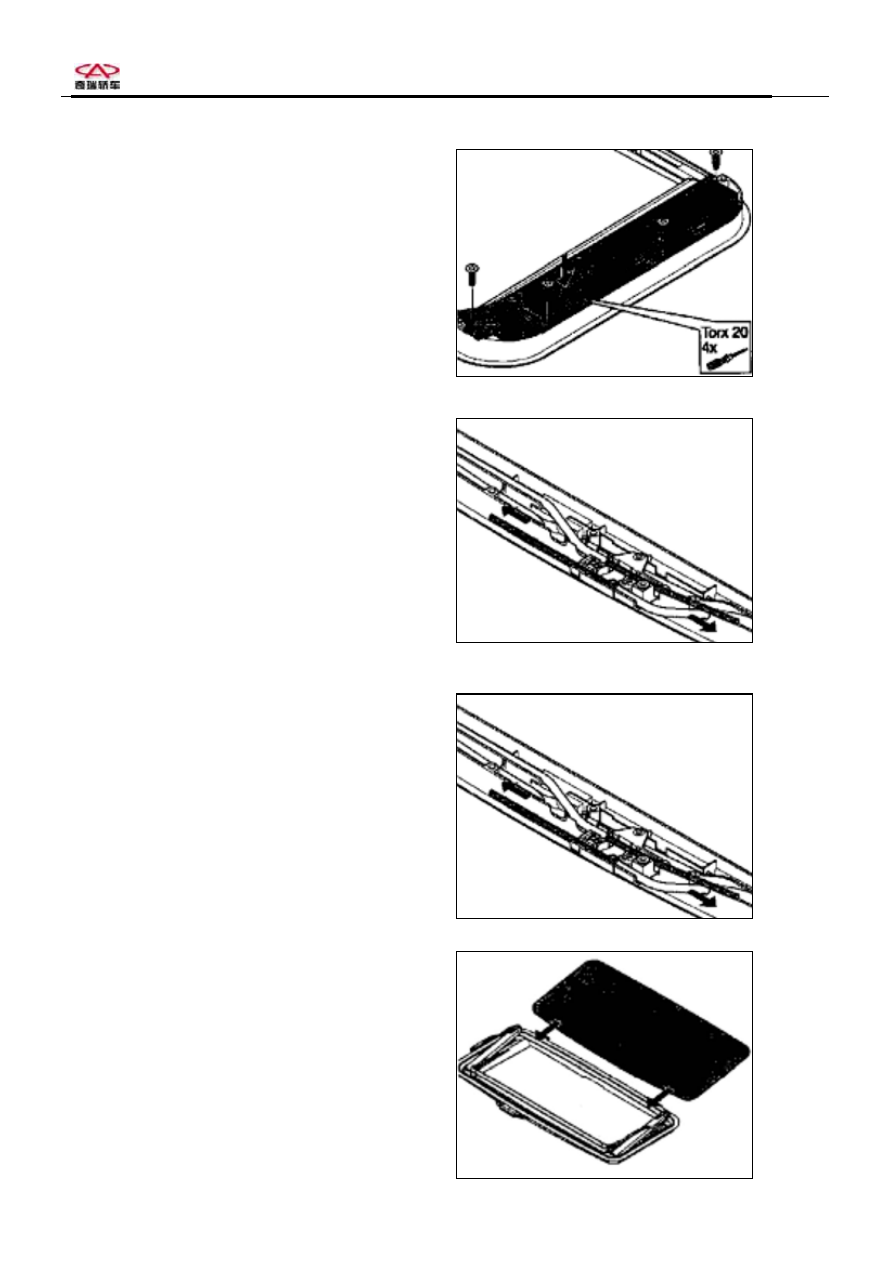

4.6.24 Install in the reverse order in step 6.

















4.6.25 Pull the chain to fully shut sunroof (must be fully

shut), make sure that the hinge is not stuck in

mechanism group.













4.6.26 Fix chain, gear and gear cover. Note that gear

shall be centered.















4.6.27 Slide glass plate into mechanism group with both

sides being parallel.

Page 32 of 37
