  Maintenance Manual for Chery·Windcloud

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

Sunroof





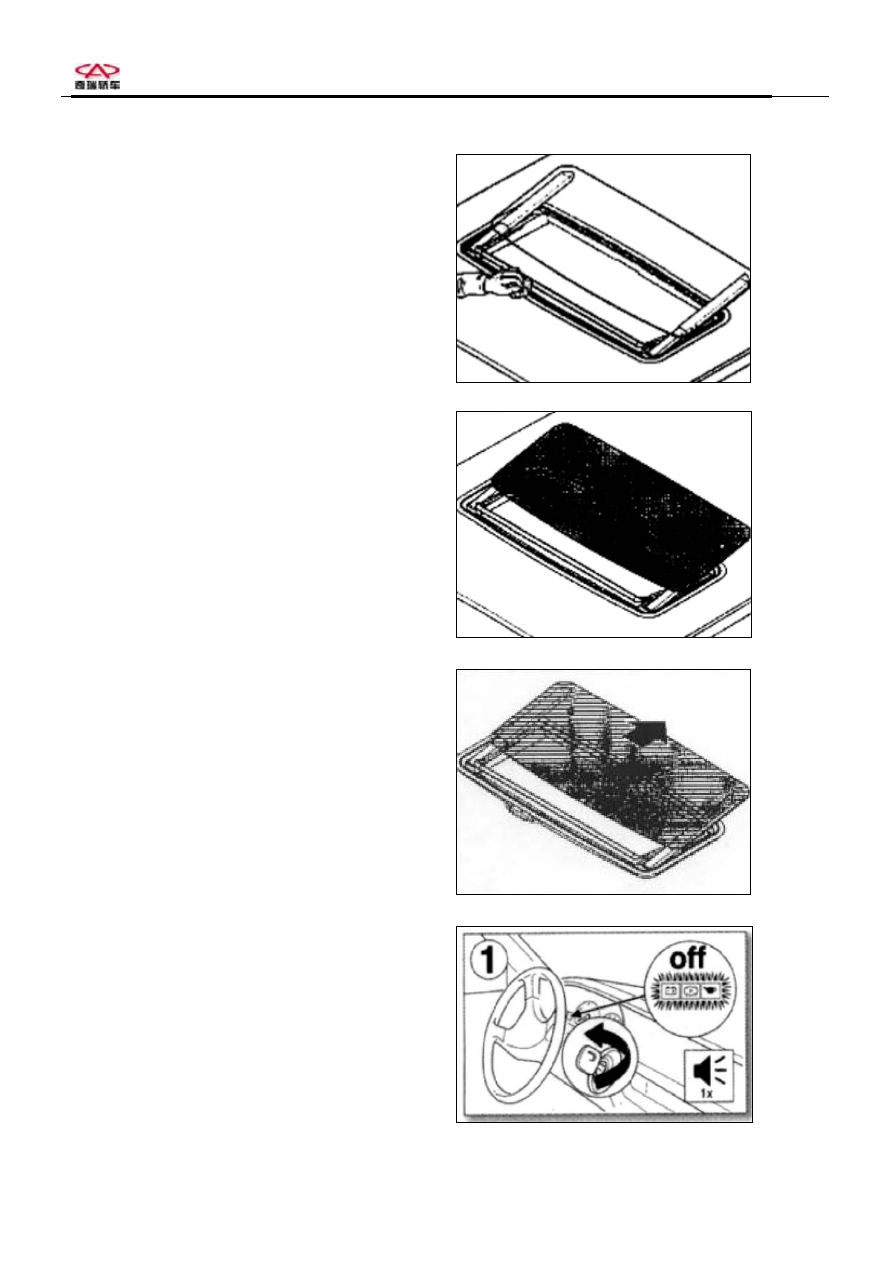

4.4.14 Remove excessive silica gel.















4.4.15 Wait for at least 2 hours before operating sunroof.













4.5 Replacing sunshade

4.5.1 Open sunroof.













4.5.2 Turn off ignition switch and press and hold control

button to prevent sunroof from automatically

shutting









Page 21 of 37



  Maintenance Manual for Chery·Windcloud

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

Sunroof





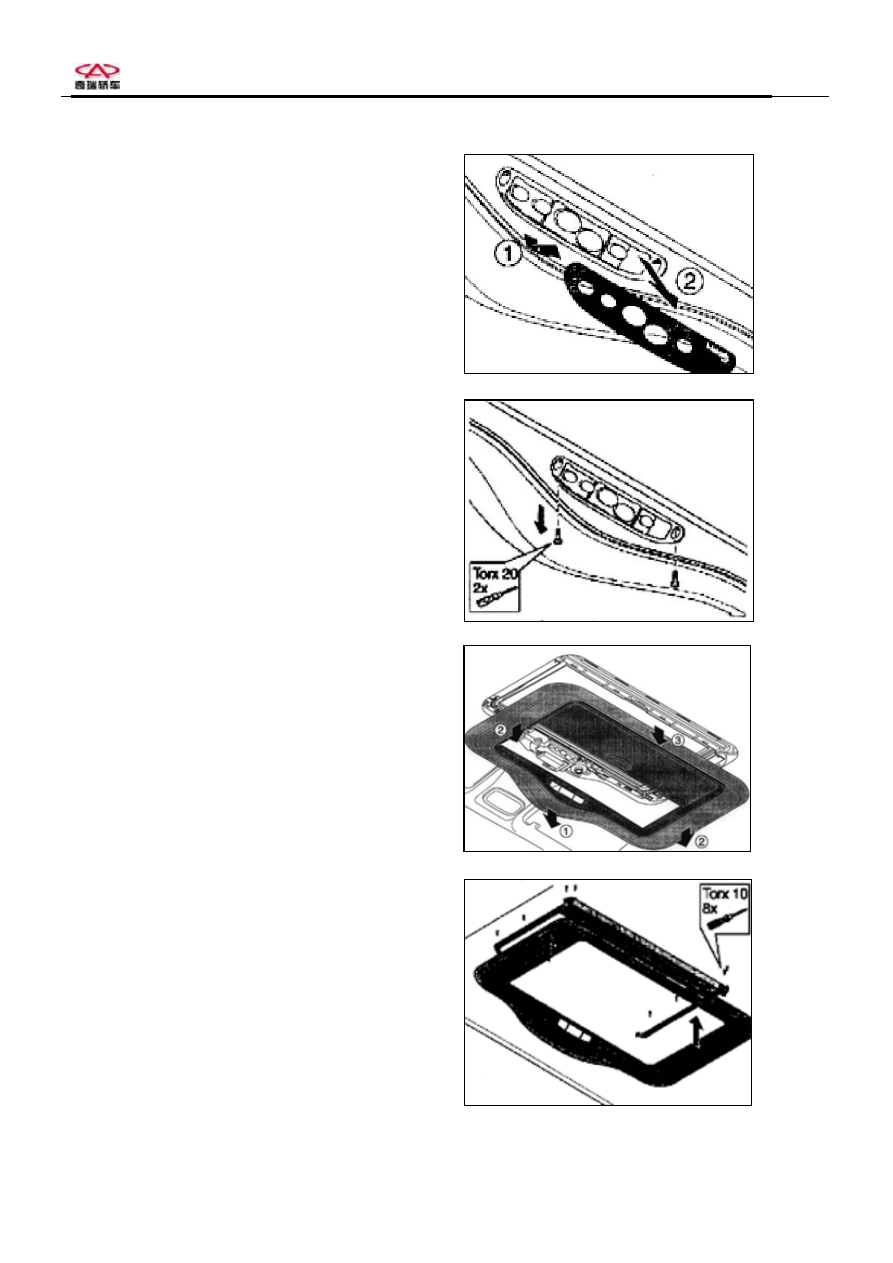

4.5.3 Take off the control panel cover plate.













4.5.4 Remove the two fixing bolts in front part of interior

decorative frame.











4.5.5 Remove the interior decorative frame (pull it down

in the direction shown in the figure). Take care not

to damage control buttons.









4.5.6 Remove the damaged sunshade.

Page 22 of 37



  Maintenance Manual for Chery·Windcloud

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

Sunroof





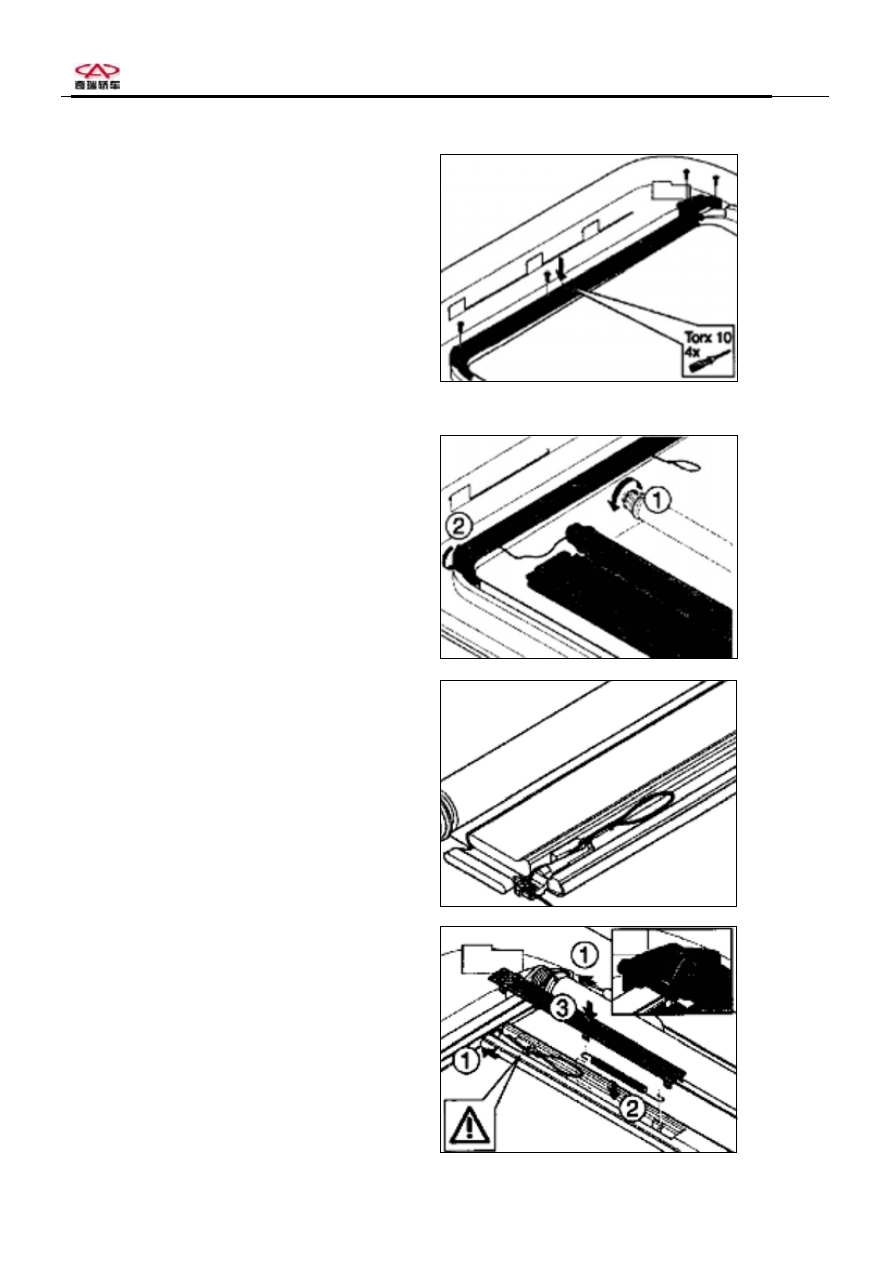

Assembling procedure

4.5.7 Install the right guiding device and rear support of

sunshade.











4.5.8 Roll up sunshade and reel the string on right

guiding roller.











4.5.9 Insert the string into sliding fixing cap and guiding

device.











4.5.10 Fix spring and cover plate.

Page 23 of 37



  Maintenance Manual for Chery·Windcloud

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

Sunroof

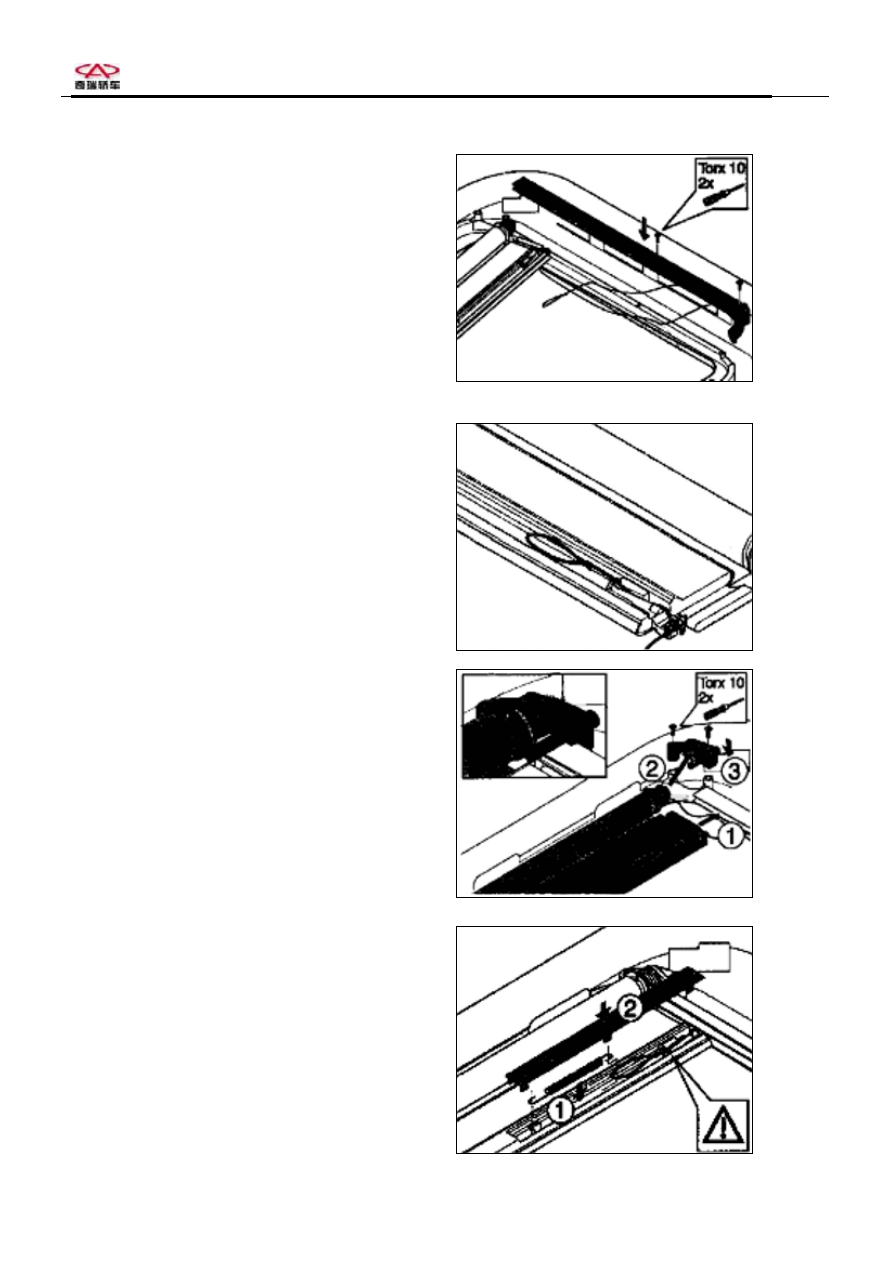

4.5.11 Reel the string on left guiding roller.















4.5.12 Insert the string into sliding fixing cap and

guiding device.











4.5.13 Insert guiding device into left side, and insert

sunshade end into rear support, then tighten the

two fixing bolts.









4.5.14 Fix spring and cover plate.
