The manual of 4HP14 A/T removing & installing CHERY AUTOMOBILE CO., LTD

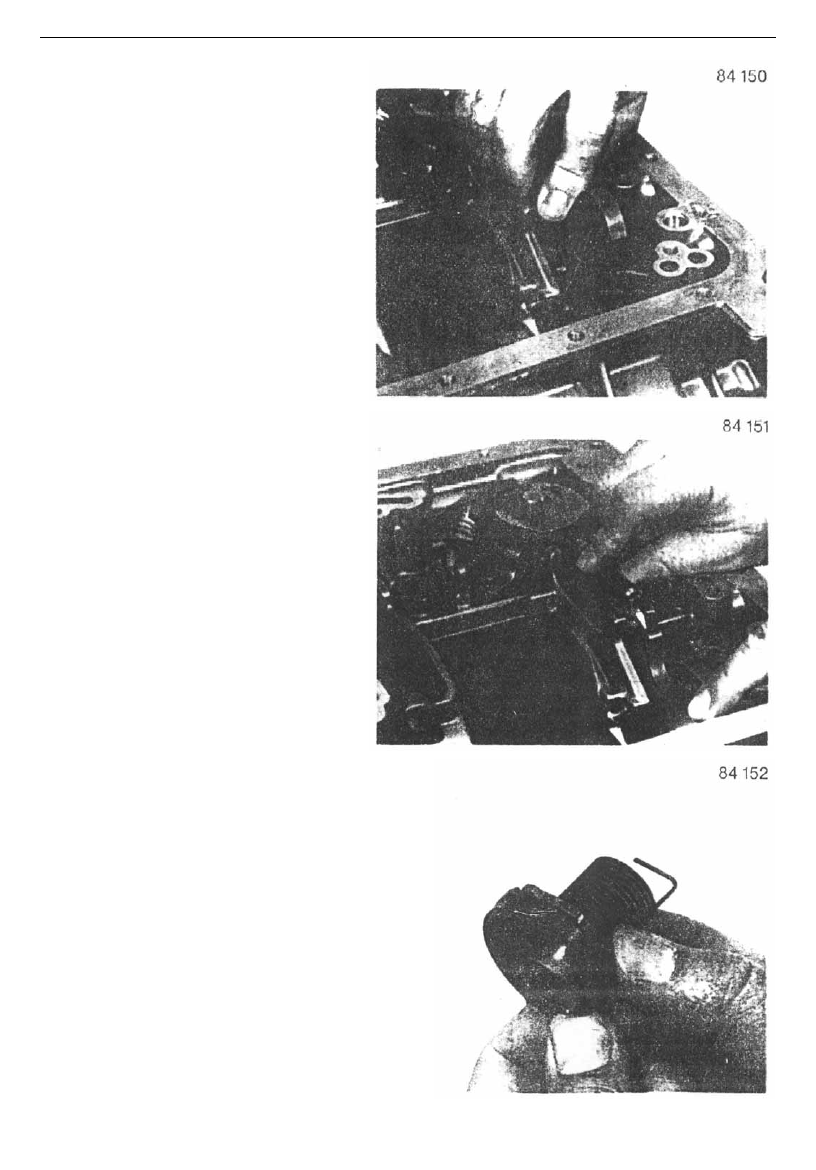

Install pawl 24 040 on dowel pin, and then install

dowel pin to stop.

Connect return spring and the pawl, and push

the spring outward.

Install the parking plunger 24 030.

As shown on figure, place return spring 06 140

on throttle valve cam 06 120..

-71-

The manual of 4HP14 A/T removing and installing CHERY AUTOMOBILE CO., LTD

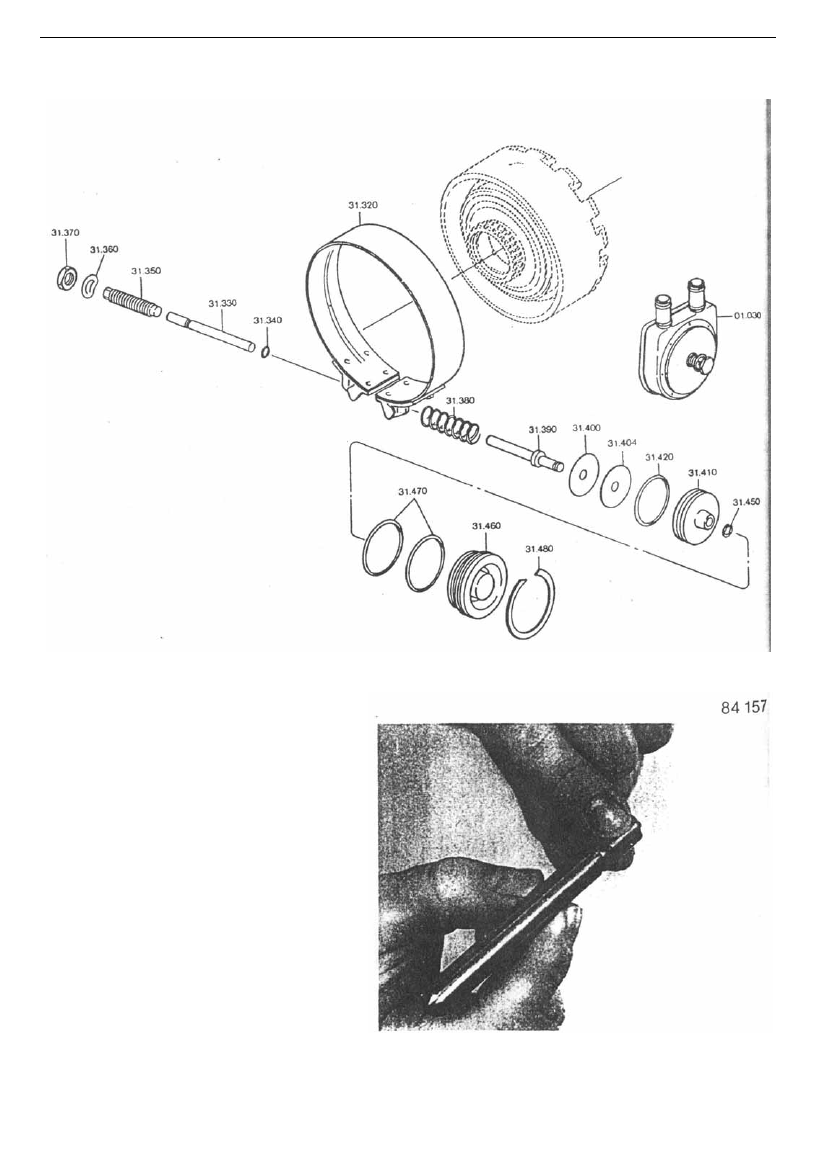

3.2、Installing band brake C’

Install O-ring 31 340 on groove on brake band

plunger 31 330 end. Oil O ring before installing.

-72-

The manual of 4HP14 A/T removing & installing CHERY AUTOMOBILE CO., LTD

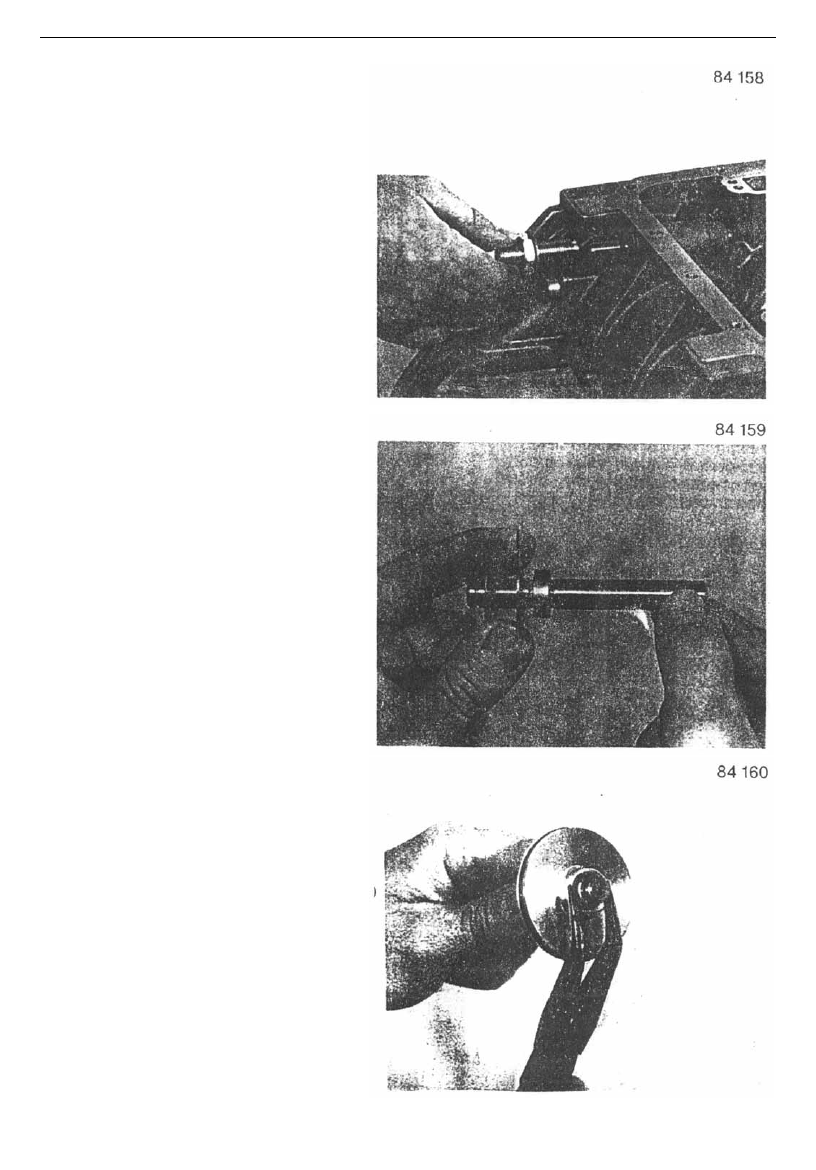

Insert plunger into the housing, with O-ring end

facing outward for sealing.

Install adjusting blot 31 350, washer 31 360, and

adjusting nut 31 370, and screw bolt into housing

half or so.

Installing piston C’

Place washer 31 400 (thick) on piston plunger 31

390, then install elastic washer 31 404 (thin).

NOTE:

Both washers are of U shape. When installing,

concave side face each other, and move them to

the piston shoulder.

Install new O-ring 31 420 on the brake band

piston.

Install brake band piston on piston rod.

NOTE:

Piston flange must be at safety snap ring 31 450

side.

-73-

The manual of 4HP14 A/T removing and installing CHERY AUTOMOBILE CO., LTD

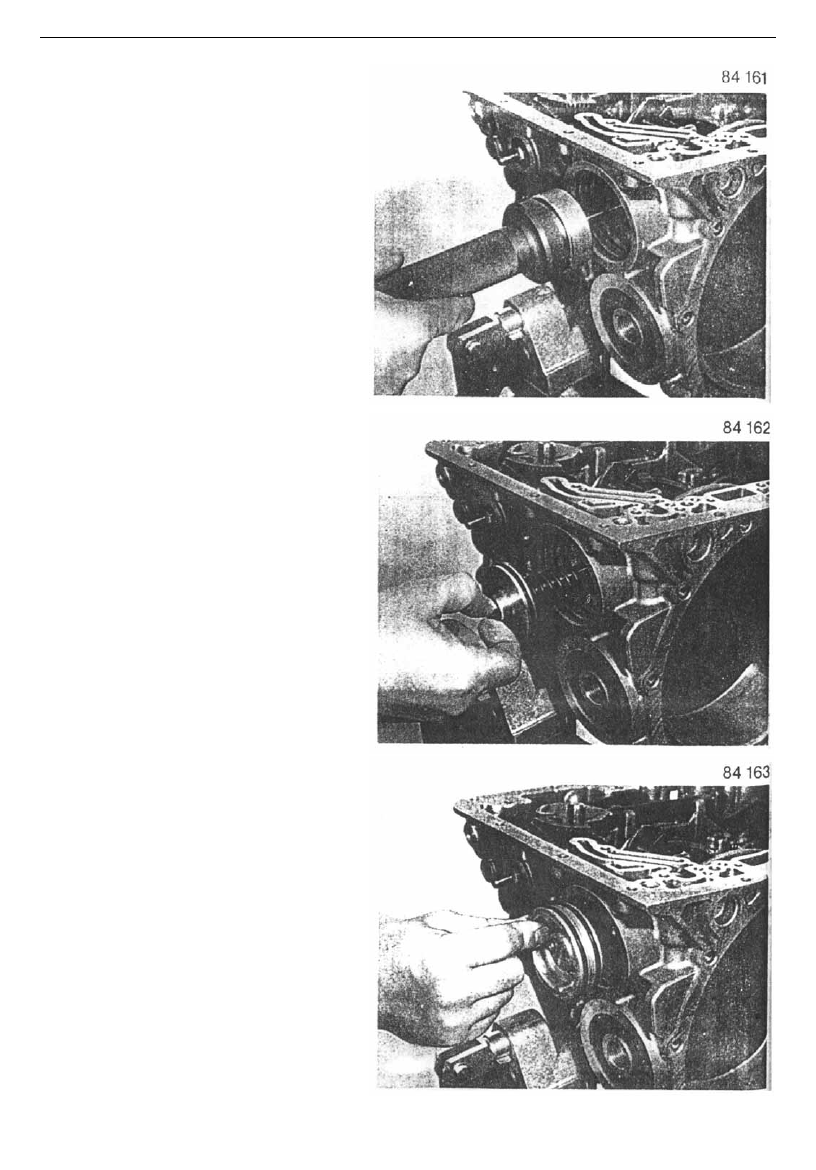

Place spring 31 430 on piston.

After oiling O-ring, mount whole piston into the

housing.

Place 2 O rings 31 470 on brake fluid hydraulic

cylinder cap and apply oil or Vaseline, and then

install cylinder cap.

Press cylinder cap using special tool 5 X 46 000

295, and then install snap ring.

Remove the special tool.
