Loader Bobcat 853, 853H. Manual - part 77





12 volt supply and
BOSS failure.

Sensor No Signal or
No RPM’s.

Lack of 5.0 volts
regulated power.

Low voltage (5.0)
triggered reset.

The display is not fault
tolerant. Also can be
an indication of poor
internal connections.

Bad display or BOSS
is not communicating.

Temperature related
shutdown codes
when no heating
occurs.

Intermittent code of
ES6 while engine
running.

Display is dead – No
Icons, Bar Graphs,
Hourmeter.

During an active
WARNING display,
reset occurs and the
hourmeter becomes
all zero’s.

Garbled message,
missing segments,
etc.

After glow sequence
or after a WARNING
goes away, the Icon
remains ON.

No Bar Graphs, no
Hours.

LCD DISPLAY

CONNECTOR

A B C D E

Ground

Positive Com. 3.5 to 4 Volts

5.0 Volts Regulated Power

Orange

NOTE: The display has caused the

problem by locking the
communication lines and
stopping communications from
the BOSS.

  1.

Check stored defects with the BOSS tool.

*2.

If  defect  list has EC1, HC1, EC2.1, HC2. EP3,
EP7,  HP7,   B2.2, low  fuel,  Fuel  7   and   last
occurrence hr. readings are within a  hundredth,
the BOSS is defective and must be replaced.

  3.

Using a voltmeter, check the alternator output.

  1.

ES6 will occur if the loader is stalled or shutdown
during run cycle. The code is generated due to the
lack   of   RPM  and    the   existence   of   residual
pressure in the system.

  1.

Check  pin A for 5.0 volts. If 5.0 volts is present
replace the display.

  2.

If no power exists at pin A, install BOSS backup
to confirm the BOSS system.

  3.

If  the  problem  still  exists,  check the harness for
continuity.

  1.

Turn  the  ignition  switch  OFF.  Re–starting will
return hourmeter reading.

    2.

If  re–starting  will   not return  hourmeter  reading,
check pins B & C as stated in Step 5 below.

  1.

Turn  the  ignition  switch  OFF  and  re–start. A
fault is an invalid message that the display tries
to    display.    Generally    a    fault    occurs    if
communications of two messages are combined
on the display.

  1.

Turn the key OFF and re–start.

  1.

Plug in the BOSS tool and start the engine.

  2.

If  data  is  being received by the BOSS tool, the
BOSS unit is not the cause of the problem.

  3.

If   no   data   is   received   at   the   BOSS   tool.
disconnect the LCD display.

*4.

If  messages  are  now  received  at  the  tool,  the
display is the problem. If problem still exists go to
Step 5.

  5.

Check pins B & C for signal.

  6.

If there is no signal, install BOSS backup unit.

  7.

If  the problem still exists, check the harness for
continuity.

TROUBLESHOOTING THE BOSS

®

 & LCD DISPLAY

Chart

NOTE: You may have some or all of the

codes  listed. You will have high
temps, high  press,  low  voltage
and low fuel.

BOSS

LCD Display



12 Volt – Back Light

Negative Com. .5 to 1.5 Volts

Black

Orange

Purple/Red

Purple/White

Power Display Operation

TO CORRECT SYMPTOM

INDICATES

SYMPTOM

SUBJECT

*

*

853,853H Loader

–8–7–

Service Manual

BOSS

®

 UNIT

Removal And Installation

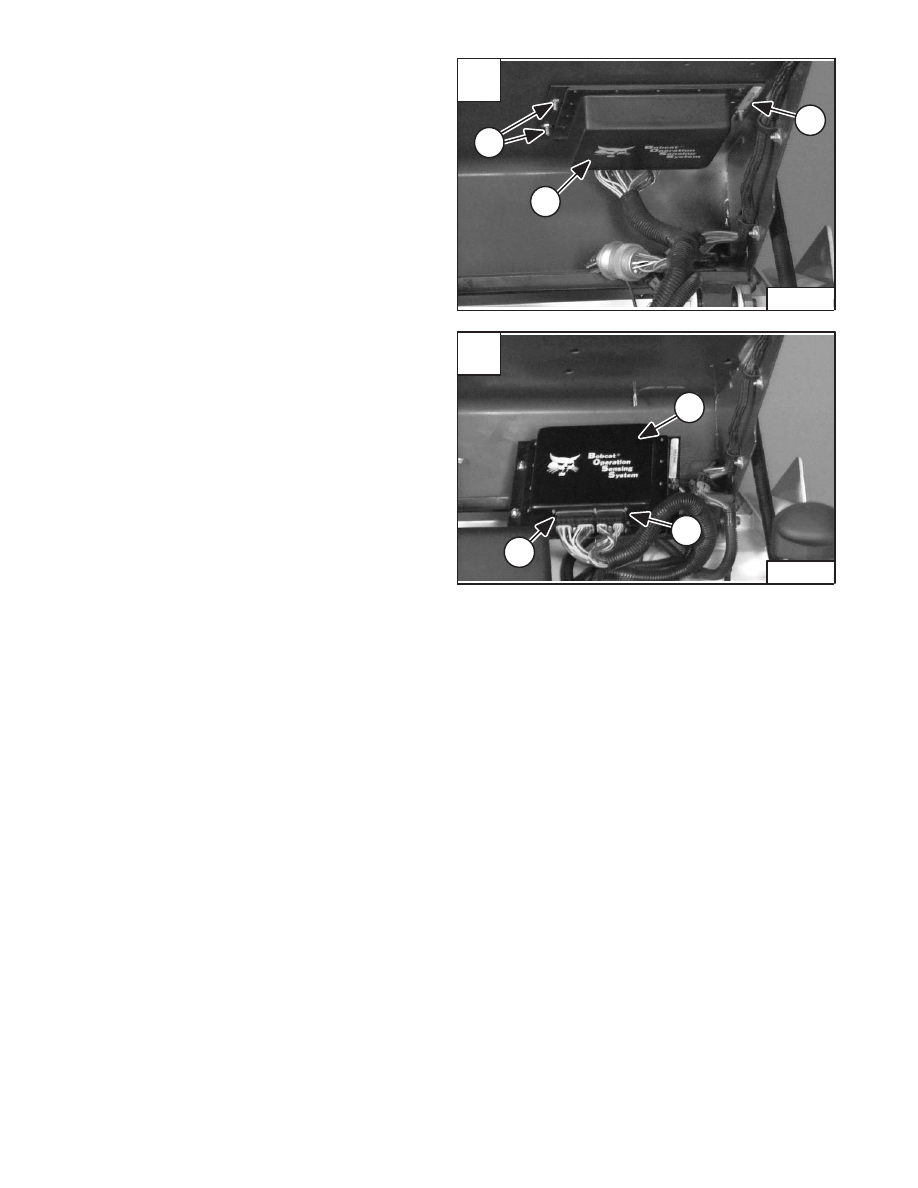

Raise the loader operator cab. (See Page 1–1.)

Loosen the nuts (Item 1) [A] from the sensing system unit
(Item 2) [A].

Slide the unit forward in the mounting slots and remove
it from the operator cab.

Remove the two connectors (Item 1) [B] from the sensing
system unit (Item 2) [B].

Installation: Put the heads of the mounting bolts into the
slots of the operator cab and slide the unit back into place.
Tighten the three mounting nuts to 80–90 in.–lbs. (9–10
Nm) torque.

A

P–04043

1

2

1

–8–8–

853, 853H Loader

Service Manual

B

P–04042

2

1

1

BOSS

®

 INSTRUMENT PANEL

Removal And Installation

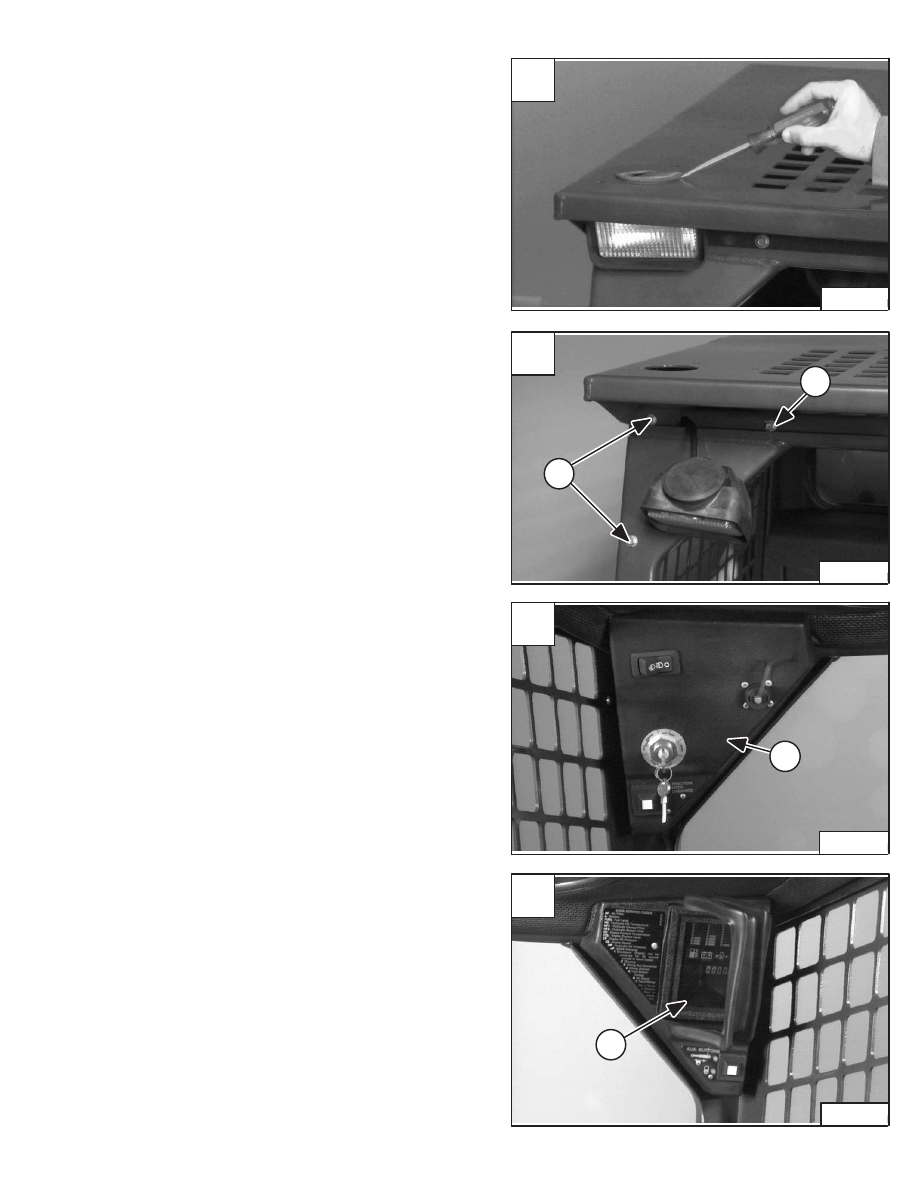

Pry the rubber light mount from the operator cab (both
sides) [A].

Lower the light from the operator cab and remove the
three panel mounting bolts (Item 1) [B] (both sides.)

Pull the left panel (Item 1) [C] down from the operator cab.

Installation: Do not overtighten the panel mounting bolts
to prevent stripping the threaded holes of the panels.

Disconnect the wire harness connectors from the panel
and remove the panel.

Remove the three mounting bolts and pull the right panel
(Item 1) [D] down from the operator cab.

Installation: Do not overtighten the panel mounting bolts
to prevent stripping the threaded holes of the panels.

Disconnect the wire harness connectors from the panel
and remove the panel.

A

P–03995

C

P–03958

1

D

P–03959

1

853,853H Loader

–8–9–

Service Manual

853, 853H Service Manual #6720755 – BICS System Section

B

P–03955

1

1

–8–10–

853, 853H Loader

Service Manual
