BYD F3DM. Service Manual - part 13

- 193 -

F3DM Owner’s Manual

Replace Wheels

When to Replace Wheels
When the wheel has damage such as
bending, crack or severe corrosion, it
shall be replaced.
If damaged wheel is not replaced
timely, the tire may slip off the wheel or
cause loss of handling control.

Wheel Selection
When  replacing  wheels,  make  sure
that the wheels are replaced by ones
with the same load capacity, diameter,
rim width and offset.
Correct replacement wheels are
available at BYD authorized dealer.
A wheel of a different size or type
may cause serious affect on handling,
wheel and bearing life, brake cooling,
speedometer/odometer  calibration,
stopping ability, headlight aim, bumper
height, vehicle ground clearance, and

tire or tire chain clearance to the body
and chassis.
Do not replace the wheel on your
vehicle with a used tire as they
may have been subjected to rough
treatment or high mileage and could
fail without warning. Also, bent wheels
which have been straightened may
have structural damage and therefore
should  not  be  used.  Never  use  an
inner tube in a leaking wheel which is
designed for a tubeless tire.

WARNING

Do not use a wheel of which the
size is not recommended by the
manufacturer, or the vehicle may
losing control and cause serious
injury or death.

Precautions on Aluminum

Wheel

●You are recommended to use
aluminum wheels with correct
specifications; for specific parameters,
please refer to chapter 8.
●When  installing  aluminum  wheels,
check that if the wheel nuts are tight
after driving your vehicle the first
1600km (1000 miles).
●  If  you  have  rotated,  repaired,  or
changed your tires, check that the
wheel nuts are still tight after driving
1600 km (1000 miles).
● When using tire chains, be careful
not to damage the aluminum wheels.
●Only use BYD wheel nuts and wrench
designed for your aluminum wheels.
●When  balancing  your  wheels,
use only BYD balance weights or
equivalent  and  a  plastic  or  rubber
hammer.

!

使用手册小330.indd   193

2011-4-13   18:36:56

- 194 -

F3DM Owner’s Manual

●As  any  wheel,  periodically  check
your aluminum wheels for damage. If
damaged, replace immediately.

使用手册小330.indd   194

2011-4-13   18:36:56

- 195 -

F3DM Owner’s Manual

Chapter 7

Section 7-3

—————————————————————————————

Self-maintenance

Electric Appliance

Check Auxiliary Battery Status …………………………………… 196
Check and Replace Fuses ……………………………………… 199
Add Washer Fluid ………………………………………………… 201
Replace Bulb ……………………………………………………… 201

使用手册小330.indd   195

2011-4-13   18:36:56

- 196 -

F3DM Owner’s Manual

Check Auxiliary Battery Status

The auxiliary battery is located behind
the rear seat backrest, when checking
it, you have to cut off the emergency
maintenance switch and
Open the luggage compartment shield.

 Precautions

WARNING

Precautions on auxiliary battery
The auxiliary battery produces
flammable and explosive hydrogen
gas.



y

Do not cause a spark from the

battery with tools.



y

Do not smoke or light a match

near the battery.

The electrolyte contains poisonous
and corrosive sulfuric acid.



y

Avoid contact with eyes, skin or

clothes.



y

Do not drink electrolyte by

mistake.



y

Wear protective safety glasses

when working near battery.



y

Keep children away from battery.

EMERGENCY TREATMENT



y

If electrolyte gets in your eyes,

flush your eyes with clean water
and get immediate medical
attention. If possible, continue
to apply water with a sponge or
cloth on the way to hospital.



y

If electrolyte gets on your skin,

thoroughly wash the contact area.
If there is any pain or burn, get
medical attention immediately.



y

If electrolyte gets on your clothes,

there is a possibility of its
soaking through to your skin, so
immediately take off the exposed
clothing and follow the procedure
above, if needed.



y

If you accidentally swallow

electrolyte, drink a large quantity
of water or milk. Follow with milk

!

使用手册小330.indd   196

2011-4-13   18:36:56

- 197 -

F3DM Owner’s Manual

of magnesia, beaten raw egg
o r   v e g e t a b l e   o i l .  T h e n   g o
immediately for emergency help.

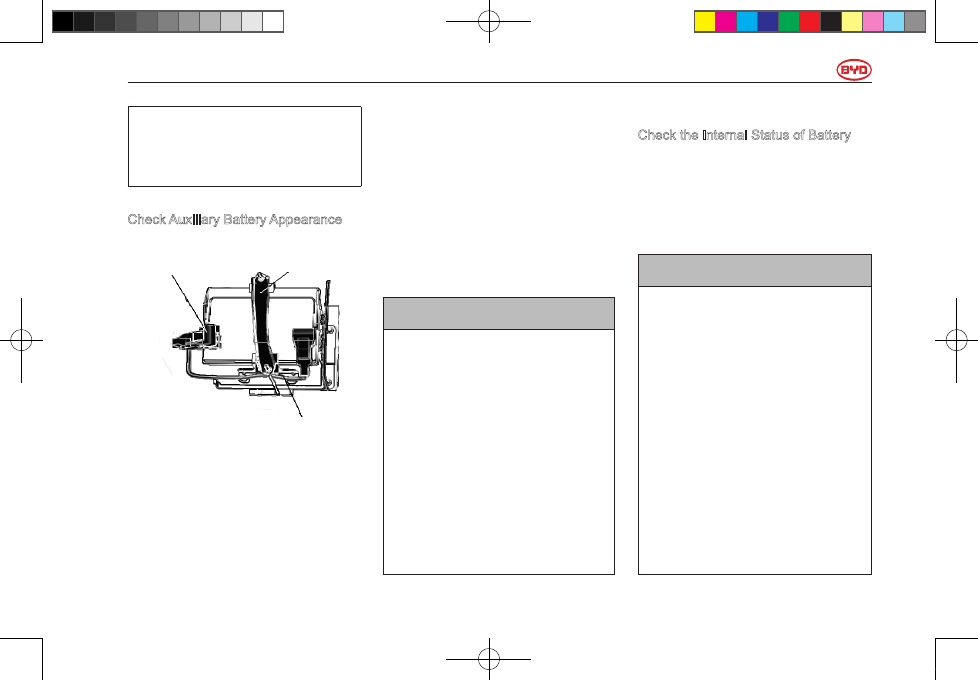

Check Auxiliary Battery Appearance

Electrode contact

Battery-pressing
board

Earth wire

Check whether the battery and its
terminal is corroded, loose, cracked or
has loose hold-down clamp.
a. If the battery is corroded, wash it
off with a solution of warm water and
baking soda. Coat the outside of the

terminals with grease to prevent further
corrosion.
b. If terminal is loose, tighten its clamp
nuts; but do not overtighten.
c. Tighten the hold–down clamp only
enough to keep the battery firmly in
place. Overtightening may damage the
battery case.

NOTICE



y

Make sure the power system and

all accessories are cut off before
performing maintenance.



y

When  checking  the  battery,

remove the ground cable from
the negative terminal (“–” mark)
first and reinstall it last.



y

Do not cause short circuit when

using tools.



y

Make sure no solution gets into

the battery when washing it.

Check the Internal Status of Battery
Check the internal status of the battery
according to instructions on the outer
shell and status indicators of the
battery.

NOTICE



y

Charging the battery without

disconnecting the wires may
cause serious damage on ECU
and other electrical devices on
the vehicle.  Remove the battery
wires first before connecting the
battery to charger.



y

When the engine is not running,

use electrical devices for a long
time may cause over discharge
of the battery, which may lead to
difficulty to start the car or even
permanent damage to the battery.

使用手册小330.indd   197

2011-4-13   18:36:56

- 198 -

F3DM Owner’s Manual



y

Do not use electrical devices,

such as audio system, light
system, for a long time when the
engine is not running.



y

Before leaving the vehicle, make

sure the doors are closed and
all electric appliances (such as
lights) are turned off.

NOTICE

Do not add electrolyte by yourself
when replace a new battery for its
lacking of electrolyte.

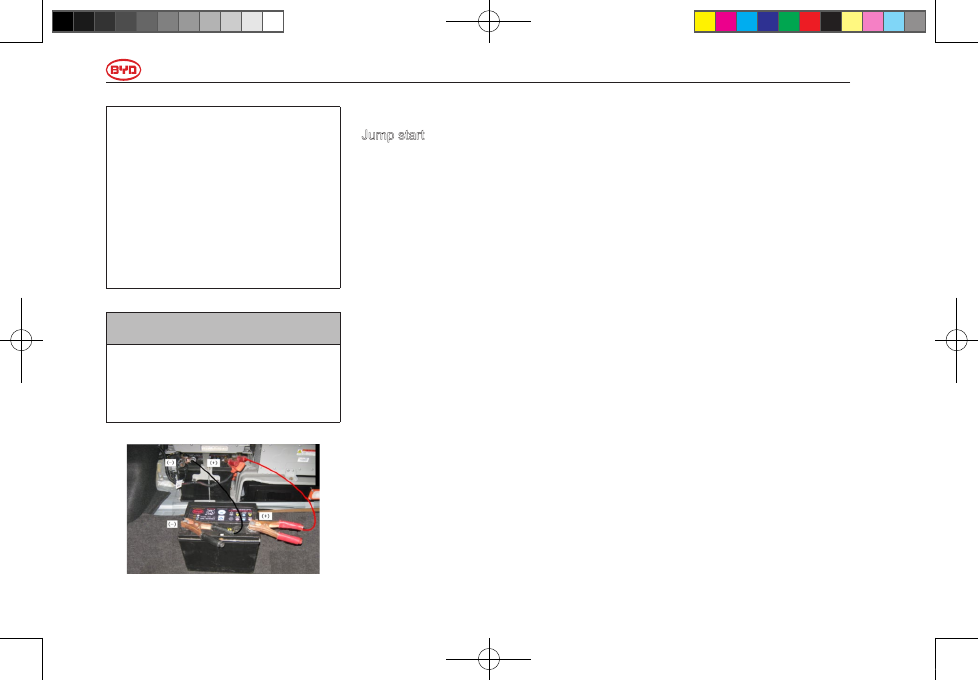

Jump start
If the auxiliary battery is run out,
the DM system can be started by
following procedures.
All needed tools are:
1. A set of jumper cable;
2. A vehicle with 12volt auxiliary battery
or a 12volt auxiliary battery.
You are highly recommended to call
BYD authorized dealer for help if you
are not sure about the procedures.
Before jump start your vehicle:
Turn off all the electrical components,
such as climate control, audio system,
lights .est. Turn  the  ignition switch to
OFF, and pull the parking brake;
To avoid causing spark, make sure that
the jumper cable connects correctly.
Procedure:
1) Remove the trunk board;
2) In order to clamp the positive and

negative terminal easily, you should
put the positive and negative plastic
protective cover aside.
3).Connect the clamp of the positive
jumper cable to the battery positive (+)
terminal;
4).Connect the clamp at the other end
of the positive jumper cable to the
positive (+) terminal on the booster
battery;
5).Connect the clamp of the negative
jumper cable to the battery negative
(–) terminal;
6).Connect the clamp at the other end
of the negative jumper cable to the
negative (–) terminal on the booster
battery.
7).Turn  on  the  ignition  switch  and
starting the DM system;
8).Once  your  vehicle  is  running,
disconnect the clamp of negative
cable from your vehicle, then from the

使用手册小330.indd   198

2011-4-13   18:36:56

- 199 -

F3DM Owner’s Manual

booster battery. Disconnect the clamp
of the positive jumper cable from your
vehicle, then from the booster battery.

WARNING

Keep the ends of the jumper cables
away from each other and any metal
on the vehicle until everything is
disconnected.
Do not touch the clamps of the
jumper cables while starting the
vehicle. Otherwise, you may cause
an electrical short.

Any following conditions happened,
please contact your BYD authorized
dealer for a check:
1. The instrument cluster display still
off when power is on.
2. The battery charging system

fault warning light is on in the multi-
information display when power is on.
3. The power battery fault warning light
is on when power is on.

WARNING



y

Make sure the clamps of the

jumper cables connect the right
terminal, and avoid accidentally
touching anything except the
right terminal.



y

Do not touch the clamps of the

jumper cables while starting the
vehicle. Otherwise, you may
cause an electrical short.



y

Do not let the jumper cable

connect the positive (+) terminal
with the negative (–) terminal is
connected.

WARNING

If the auxiliary battery is discharged
with the transaxle in “P”, your
vehicle cannot be moved unless
the front wheels are raised. This
is because the front wheels are
locked by means of the parking lock
mechanism.

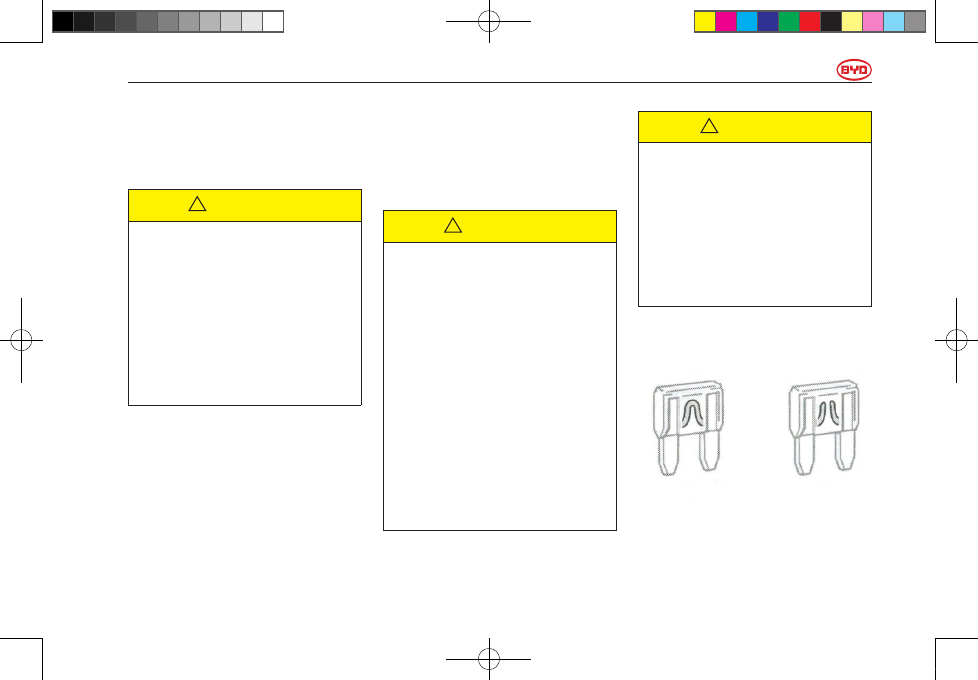

Check and Replace Fuses

Fine

Blown

A Type

!

!

!

使用手册小330.indd   199

2011-4-13   18:36:56

- 200 -

F3DM Owner’s Manual

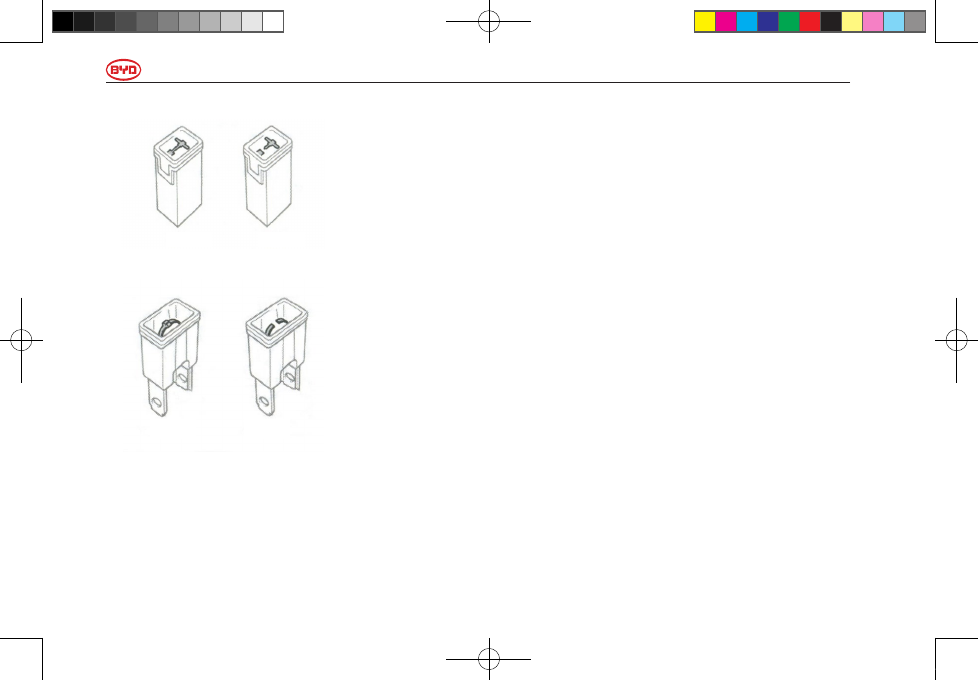

Fine

Blown

B Type

Fine

Blown

C Type

If headlight or other electric
components do not work, check the
fuses. Replace the fuses if necessary.
See Section 7-1 “Location of Fuses”

for locations of the fuses.
Turn the ignition switch and inoperative
component off. Pull a suspected fuse
straight out and check it.
Find out which fuse may be causing
the problem. The lid of the fuse box
shows the name of the circuit for each
fuse. See Chapter 8 for the functions
of each circuit.
Type A fuses can be pulled out by
the pull–out tool. The location of the
pull–out tool is shown in the illustration
“Front  Engine  Compartment”  in
Chapter 8.
If you are not sure whether the fuse is
burnt out, replace it with a good one.
If the fuse has blown, push a new fuse
into the socket.
Only install a fuse with the amperage
rating designated on the fuse box lid.
If there is no spare fuse in emergency
situation, you can pull out “Interior

light” fuse, which is not essential in
driving, and substitute it for a fuse with
the same amperage.
If you don’t have the same amperage,
use one that is lower, but as close as
possible to, the rating. If the amperage
is lower than that specified, the fuse
might be blown again. but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible
and return the substitute  to its original
socket.
You’d better purchase a set of spare
fuses and keep them in your vehicle
for emergencies.
 If the new fuse immediately be
blown again, there is a problem with
the electrical system. Contact BYD
authorized dealer for a check as soon
as possible.

使用手册小330.indd   200

2011-4-13   18:36:56

- 201 -

F3DM Owner’s Manual

WARNING



y

Make sure the key is turned to

LOCK before replacing the fuse.



y

Never  use  a  fuse  with  higher

amperage rating, or any other
object to replace a fuse. This
may cause serious damage and
possibly a fire.

Add Washer Fluid

If the washer does not work, the

washer tank may be empty. Check the
washer level on the content gauge. If
the washer level is below “LOW” mark,
you shall refill the washer.

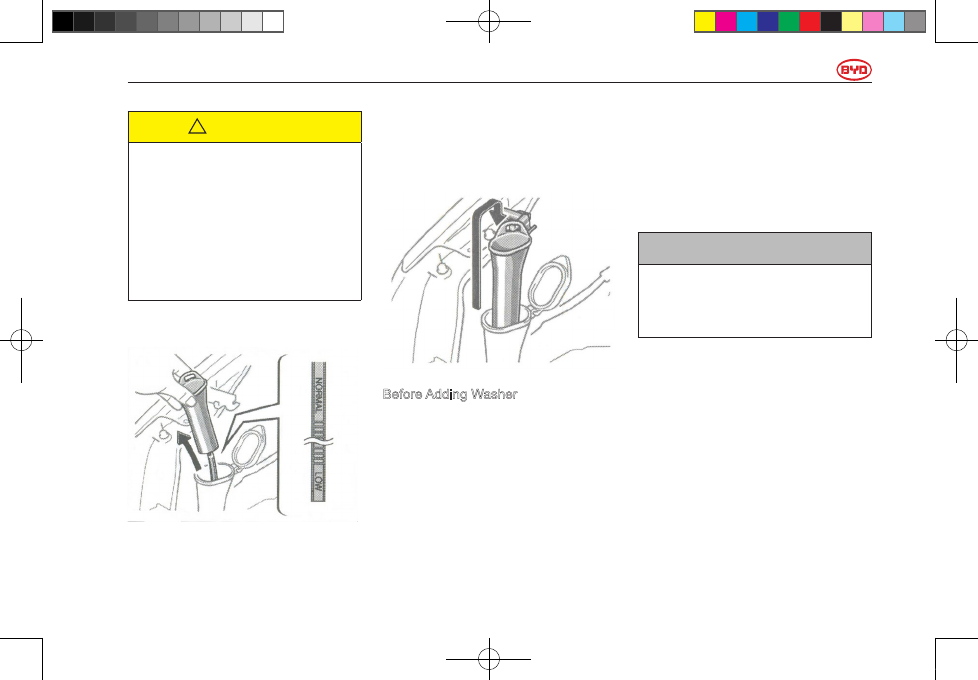

Before Adding Washer
Pull out Washer funnel and hang it on
the brake of front engine hood support.
You may use plain water as washer
fluid. However, in cold areas where
temperatures range below freezing
point, you have to use washer fluid
containing antifreeze. This product
is available at your BYD authorized

dealer and most auto parts stores.
Follow the manufacturer’s directions
for how much to mix with water.
Make sure to put back the funnel in
place after filling the washer tank.

NOTICE

Don’t use engine antifreeze or any
other substitutes for it will damage
the vehicle paint.

Replace Bulb

The following illustrations show how
to take off the bulbs. When replacing
a bulb, make sure the ignition switch
and light switch are off. Use bulbs with
the wattage ratings given in the table
below.
Parking light and rear parking light
consists of a group of luminous
diodes.  When  the  number  of  burnt

!

使用手册小330.indd   201

2011-4-13   18:36:56

- 202 -

F3DM Owner’s Manual

out luminous diodes affects the car’s
compliance with local laws, please
send the car to BYD authorized dealer
for replacing bulbs.

NOTICE



y

To prevent burning yourself, do

not replace the light bulbs when
it’s still hot



y

Halogen bulbs have pressurized

gas  inside  and  require  special
handling. They can burst or
shatter if scratched or dropped.
Hold  a  bulb  only  by  its  plastic
or metal case. Do not touch the
glass part of a bulb with bare
hands.

The inside of the lens of exterior lights
such as headlights may temporarily
fog up when the lens becomes wet in

the rain or in a car wash. This is not a
problem because the fogging is caused
by the temperature difference between
the outside and inside of the lens, just
like the windshield fogged up in the
rain. However, if there is a large drop
of water on the inside of the lens, or if
there is water pooled inside the light,
contact BYD authorized dealer.

Bulb

W

Type

Headlight (low beam)

55

H7

Headlight (high beam) 55

H1

Front fog light

55

H3

Parking light

5

LED

Front turn signal light

21 PY21W

Side turn signal light

5 WY5W

Rear turn signal light

21 PY21W

Backup light

21 P21W

Rear fog light

21 W21W

High mount brake light 16 W16W

Name plate light

5

W5W

Door light

5

W5W

Front interior light

5

R5W

Rear interior light

10 C10W

Luggage compartment
light

5

W5W

Front parking light

5

W5W

Rear parking light

0.5

LED

NOTICE

Only use a bulb of the above listed
type.

使用手册小330.indd   202

2011-4-13   18:36:56

- 203 -

F3DM Owner’s Manual

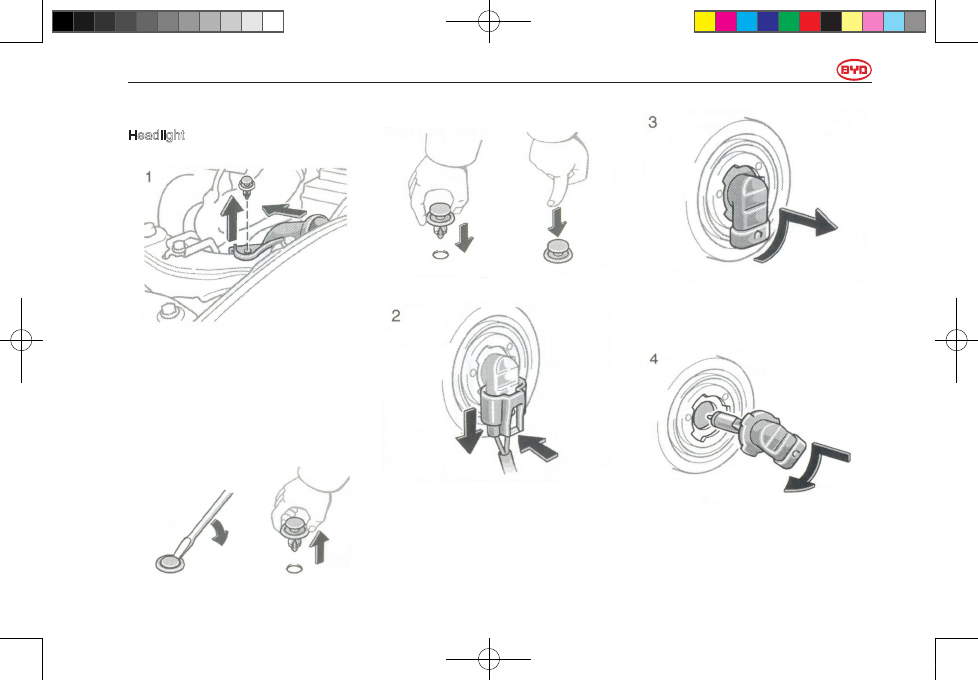

Headlight

1. Left Headlight: remove clamp and
take away the tube of air filter.

Remove and install the cover clamp as
shown in the following illustration.

Remove Clamp

Install Clamp

2. Pull off the connector while pressing
down the buckle.
If the connector is too tight, shake it
first.

3. Remove the bulb by turning it
counterclockwise, then pull it out.

4. Install the new bulb in reverse order.
You don’t have to adjust the headlight
after replacing the bulb. If it needed,

使用手册小330.indd   203

2011-4-13   18:36:57

- 204 -

F3DM Owner’s Manual

please contact BYD authorized dealer.

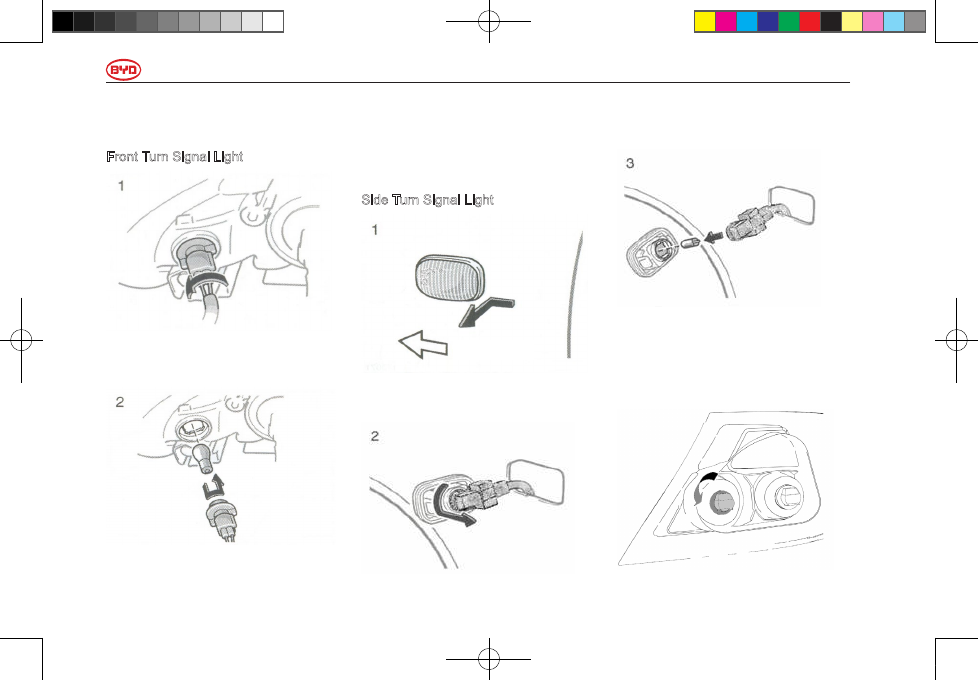

Front Turn Signal Light

1. Remove it by turning
counterclockwise

2. Remove the bulb by turning

clockwise.
The steps of installation are in reverse
order.

Side Turn Signal Light

Front of Car

1. Push forward and remove the bulb.

2. Remove the lamp holder by turning
counterclockwise.

3. Remove the bulb.
The steps of installation are in reverse
order.
Backup light

使用手册小330.indd   204

2011-4-13   18:36:57

- 205 -

F3DM Owner’s Manual

Remove the bulb and socket by turning
the socket counterclockwise, and then
pull out the bulb counterclockwise.
The steps of installation are in reverse
order.

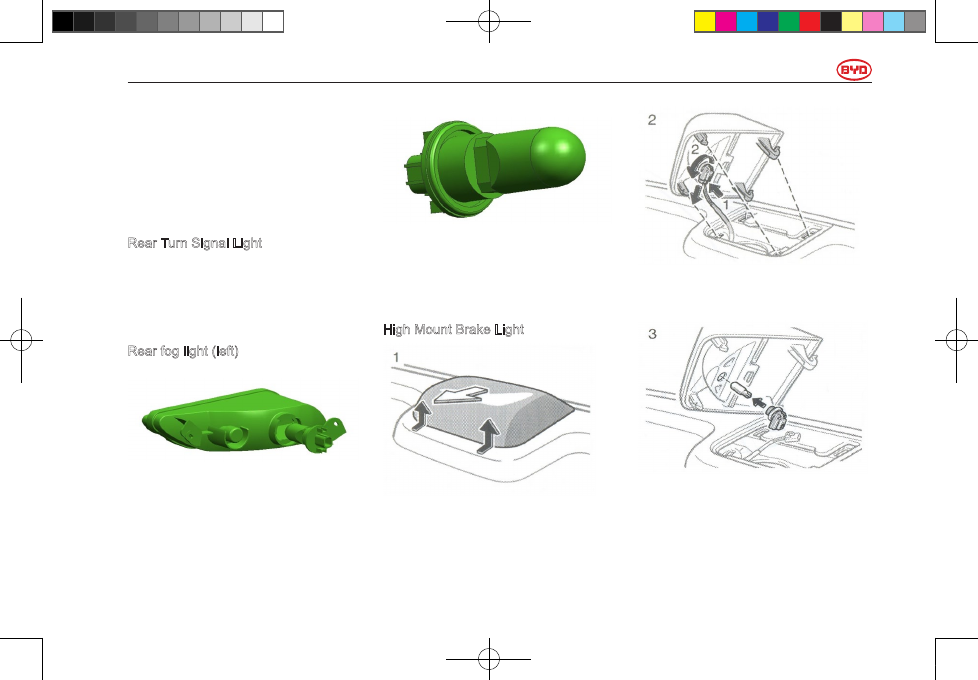

Rear Turn Signal Light
The steps to replace the bulb of rear
turn signal light are the same with
backup light.

Rear fog light (left)

1. Remove the bulb socket from the
fog light by turning counterclockwise.

2. Pull the bulb straight out of socket.
The steps of installation are in reverse
order.

High Mount Brake Light

Push it forward and remove it.

2. Remove the bulb socket by turning
counterclockwise.

3. Remove the bulb.
The steps of installation are in reverse
order.

使用手册小330.indd   205

2011-4-13   18:36:57

- 206 -

F3DM Owner’s Manual

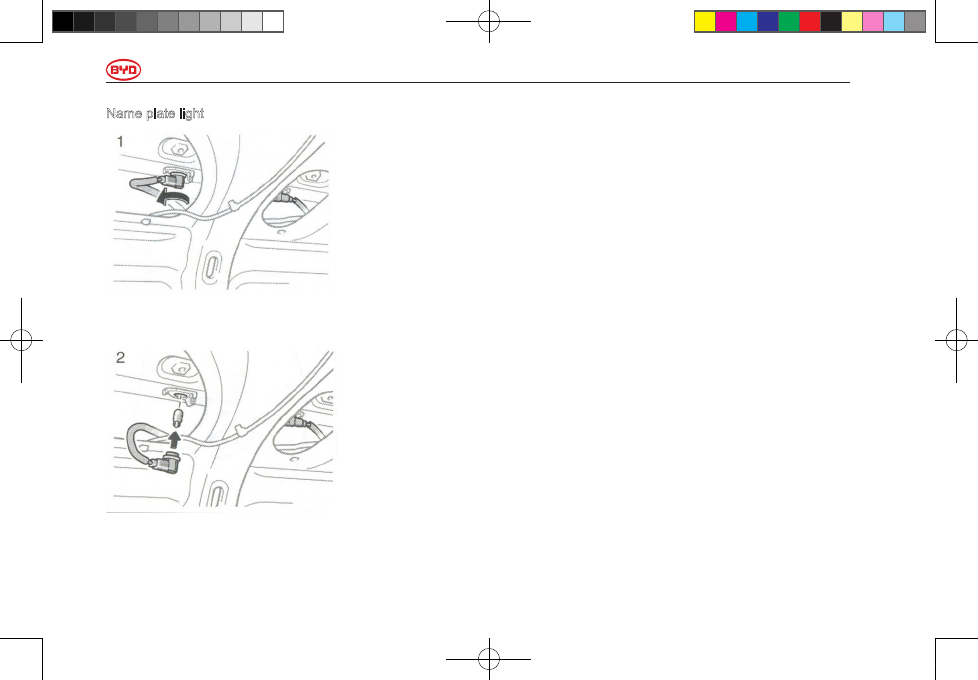

Name plate light

1. Remove the bulb socket by turning
counterclockwise.

2. Remove the bulb.
The steps of installation are in reverse
order.

使用手册小330.indd   206

2011-4-13   18:36:57

- 207 -

F3DM Owner’s Manual

Chapter 8

—————————————————————————————

Part Specifications

Maintenance Specifications ……………………………………… 208
Fuse and Relay …………………………………………………… 209
High-voltage Cable ………………………………………………… 213



使用手册小330.indd   207

2011-4-13   18:36:57

- 208 -

F3DM Owner’s Manual

Maintenance Specifications

Power Train Lubricating
Electric engine Maintenance Parameters:

Items

Parameters

Amount of Transmission
lubricant

3.7   L

Amount of generator oil

1. 2  L

Amount of electric motor oil

1.6L

Amount of hydraulic oil

0.6L  (between  the  upper
and lower limits of hydraulic
oil tank)

Lubricant type

ATF220

Electric engine oil type

ATF220

Hydraulic oil type

Shell Tellus Arctic32

Engine Maintenance Parameters:

Items

L

Using amount of engine lubricant:

3 L

Gasoline Engine Oil Level:

Items

Parameters

Apply to all the seasons for South
and Spring, Summer and Autumn
for North

10W-30/40

Apply to Winter for North

5W—30

Others

SG grade or above

Cooling System

Items

L

Total Capacity

8.9

Tire Specifications and Pressure

Original Tire

Spare Tire

Tire Specifications

205/60R16

T125/90R16 98M

Tire Pressure KPa
(kg/cm2)

230

420

使用手册小330.indd   208

2011-4-13   18:36:57
