BYD AUTO
F3 OWNER’S MANUAL
After filling the washer fluid
CAUTION
water on the inside of the lens, or if
reservoir, ensure that the funnel is put
there is water pooled inside the light,
back in its original position.
● To prevent burns, do not
contact your BYD AUTO service
replace the light bulbs while
station.
NOTICE
they are hot.
NOTICE
Do not use engine antifreeze or any
● Halogen bulbs have pressurized
other substitutes because it may
gas inside and require special
Use a bulb of the listed type only.
damage you vehicle’s paint.
handling. They can burst or
shatter if scratched or dropped.
Replacing light bulbs
Hold a bulb only by its plastic
or metal case. Do not touch the
The following illustrations show how
glass part of a bulb with bare
to take bulbs off. When replacing a
hands.
bulb, make sure the ignition switch
and light switch are turned off. Use
bulbs with the wattage ratings given
The inside of the lens of exterior
in the table.
lights such as headlights may
Parking and rear position light
temporarily fog up when the lens
(parking light, rear turn-light, and
becomes wets in the rain or after your
braking light of F3-R) are composed
car is washed. This is not a problem.
of a LED set. If the blown LED
Fogging is caused by the temperature
number does not comply with the
difference between the outside and
local rules, send your vehicle to BYD
inside of the lens, just like the
AUTO service station for removing
windshield fogs up in the rain.
bulbs.
However, if there is a large drop of
180
BYD AUTO
F3 OWNER’S MANUAL
Headlights
Light bulb
W
Type
Door light
5
W5 W
Headlight (low
Front interior light
5
R5 W
55
H7
beam)
Rear interior light
10
C10 W
Headlight (high
Luggage
55
H1
beam)
compartment light
5
W5 W
Front fog light
55
H3
(F3)
Parking light (F3)
5
LED
Luggage
Front turn signal
compartment light
10
W10 W
light
21
PY21 W
(F3-R)
Side turn signal
Front position light
5
W5 W
5
WY5 W
light
Rear position light
0.5
LED
1.
Left headlight: remove the clip
Rear turn signal
(F3)
21
PY21 W
and move the air cleaner duct.
light (F3)
Rear position light
1
LED
Remove and install the clip as
Rear turn signal
(F3-R)
4.2
LED
shown in the following
light (F3-R)
Stoplight (F3-R)
3.4
LED
illustration.
Backing light
21
P21 W
Rear fog light
21
W21 W
Items unmarked with model are
High brake lamp
16
W16 W
interchangeable between your F3 and
(F3)
F3R.
High brake lamp
25
W25 W
(F3-R)
License plate light
5
W5 W
181
BYD AUTO
F3 OWNER’S MANUAL

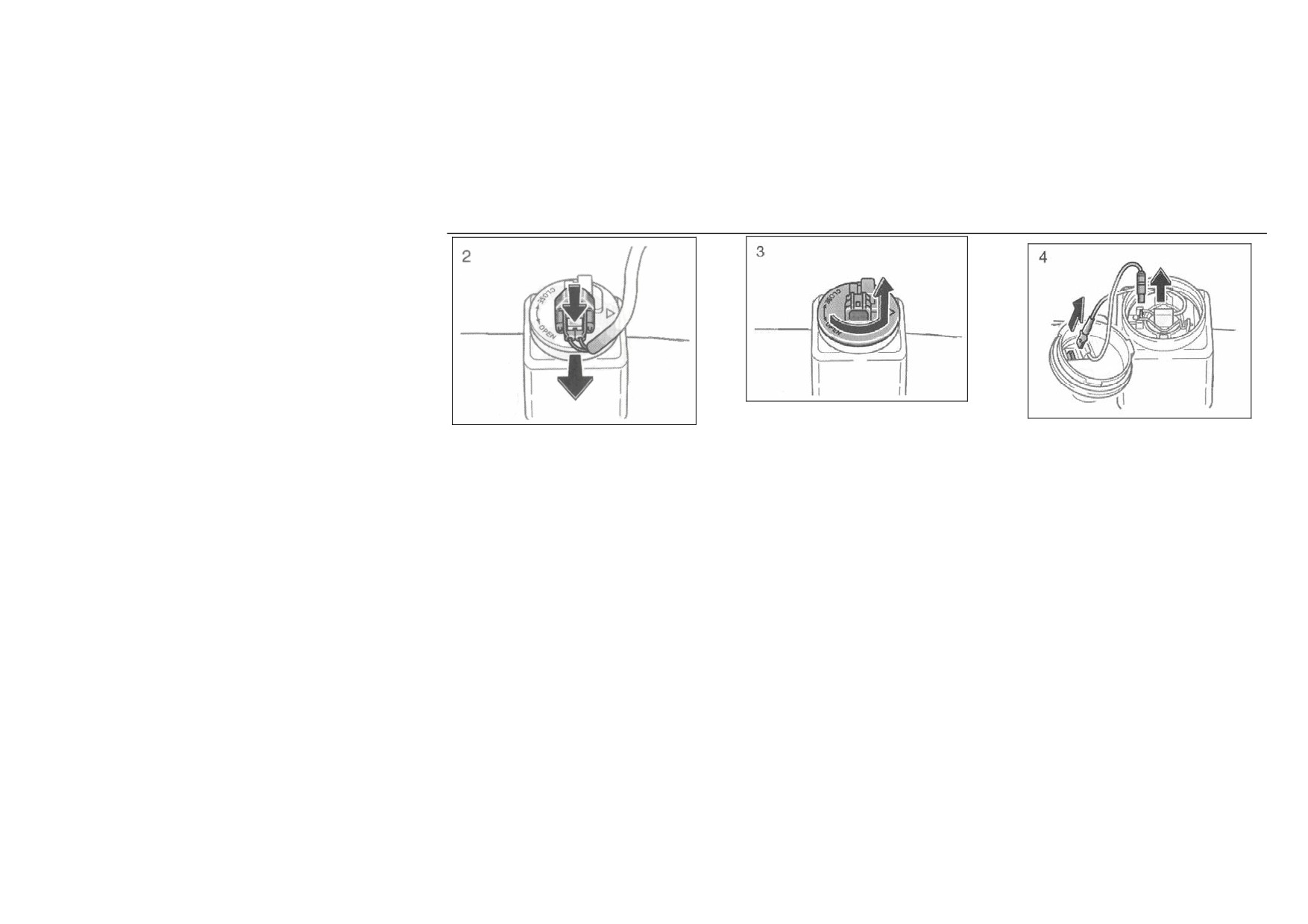

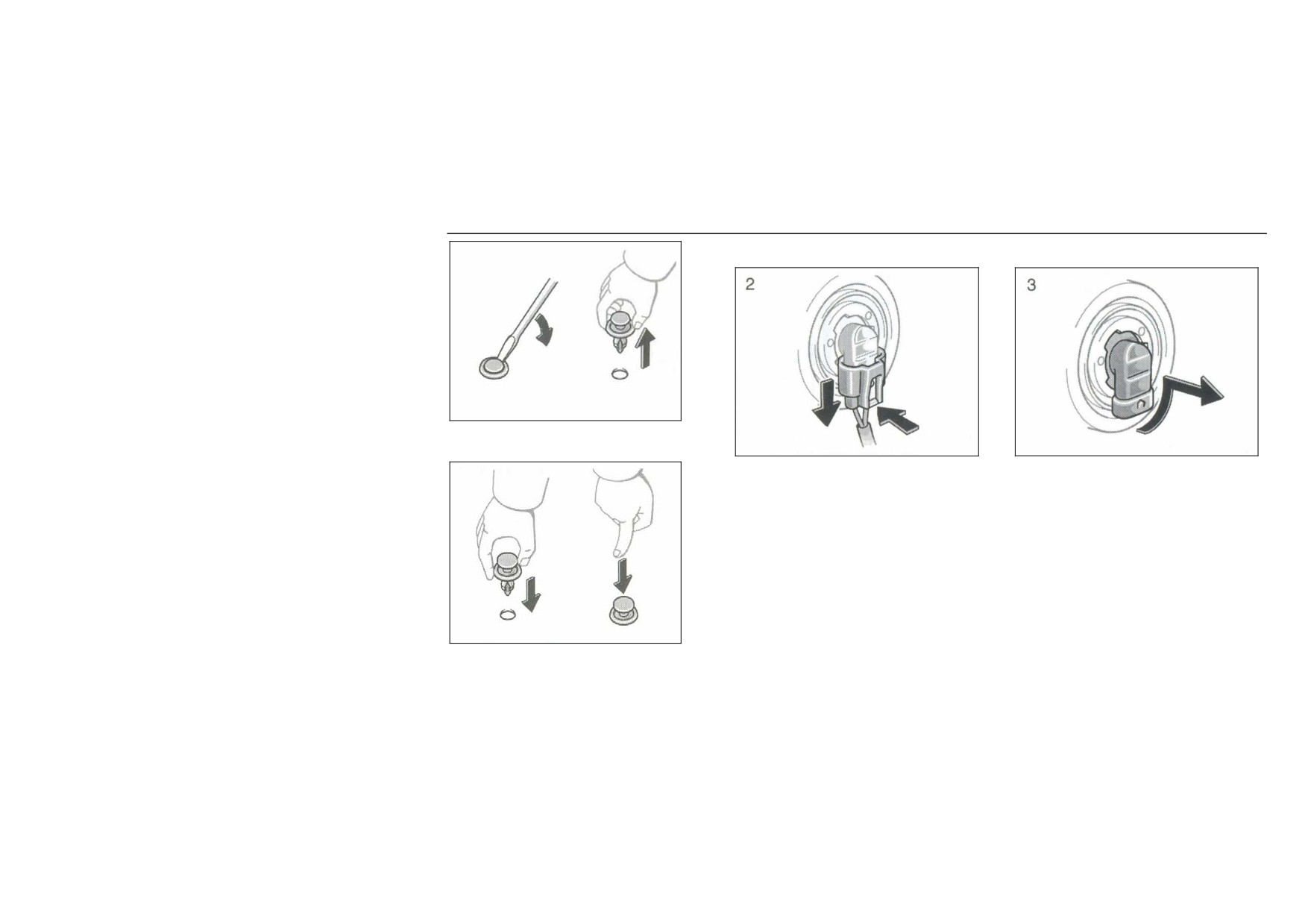

Remove the clip
2. Unplug the connector while
3. Turn the bulb anticlockwise and
pressing the lack release.
remove it.
If the connector is tight, wiggle it.
Install the clip
182
BYD AUTO
F3 OWNER’S MANUAL

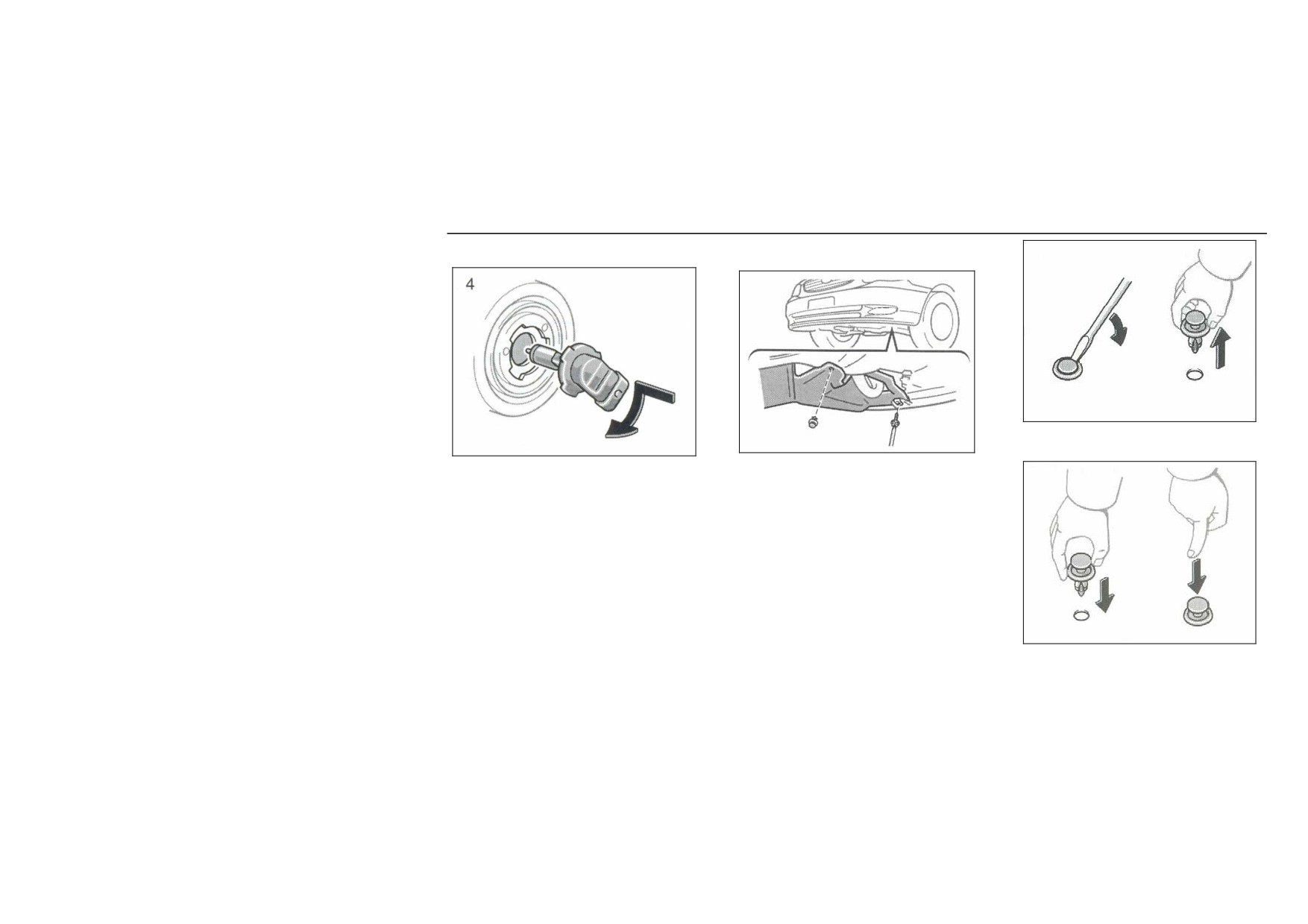

Front fog lights (Optional)
Remove the clip
4. Install a new bulb into the
1. Remove the bolt with a
mounting hole by turning it
cross-head screwdriver and the
clockwise.
clips.
There is no need to adjust the
Remove and install the cover clip as
headlight after changing the bulb. If
shown in the following illustration.
necessary, contact BYD AUTO
service station.
Install the clip
183
BYD AUTO
F3 OWNER’S MANUAL

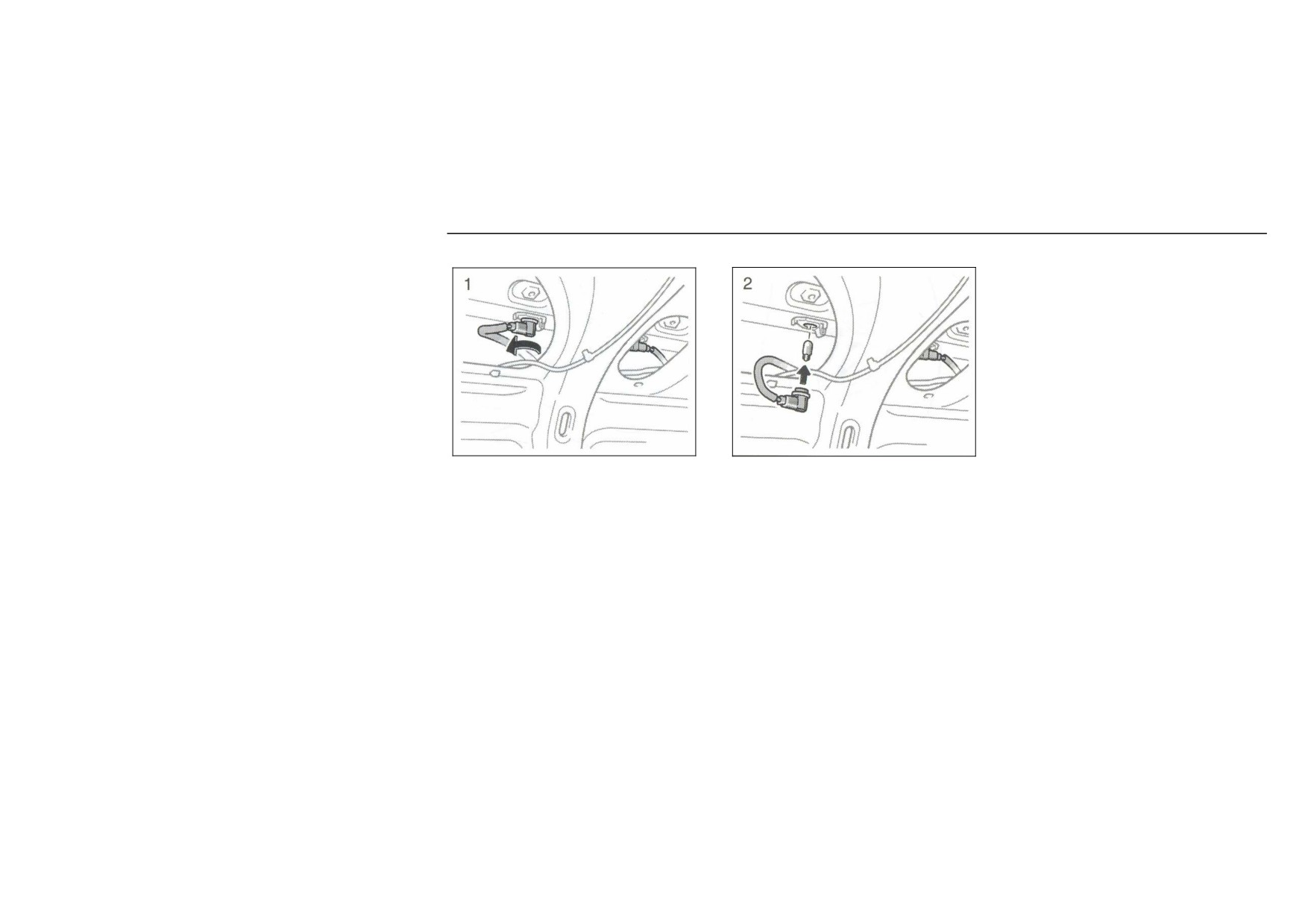

3. Turn the bulb base anticlockwise
and remove it
2. Press the lock and unplug the
4. Release the connecting cable
connector.
If the connector is tight, wiggle it.
184
BYD AUTO
F3 OWNER’S MANUAL

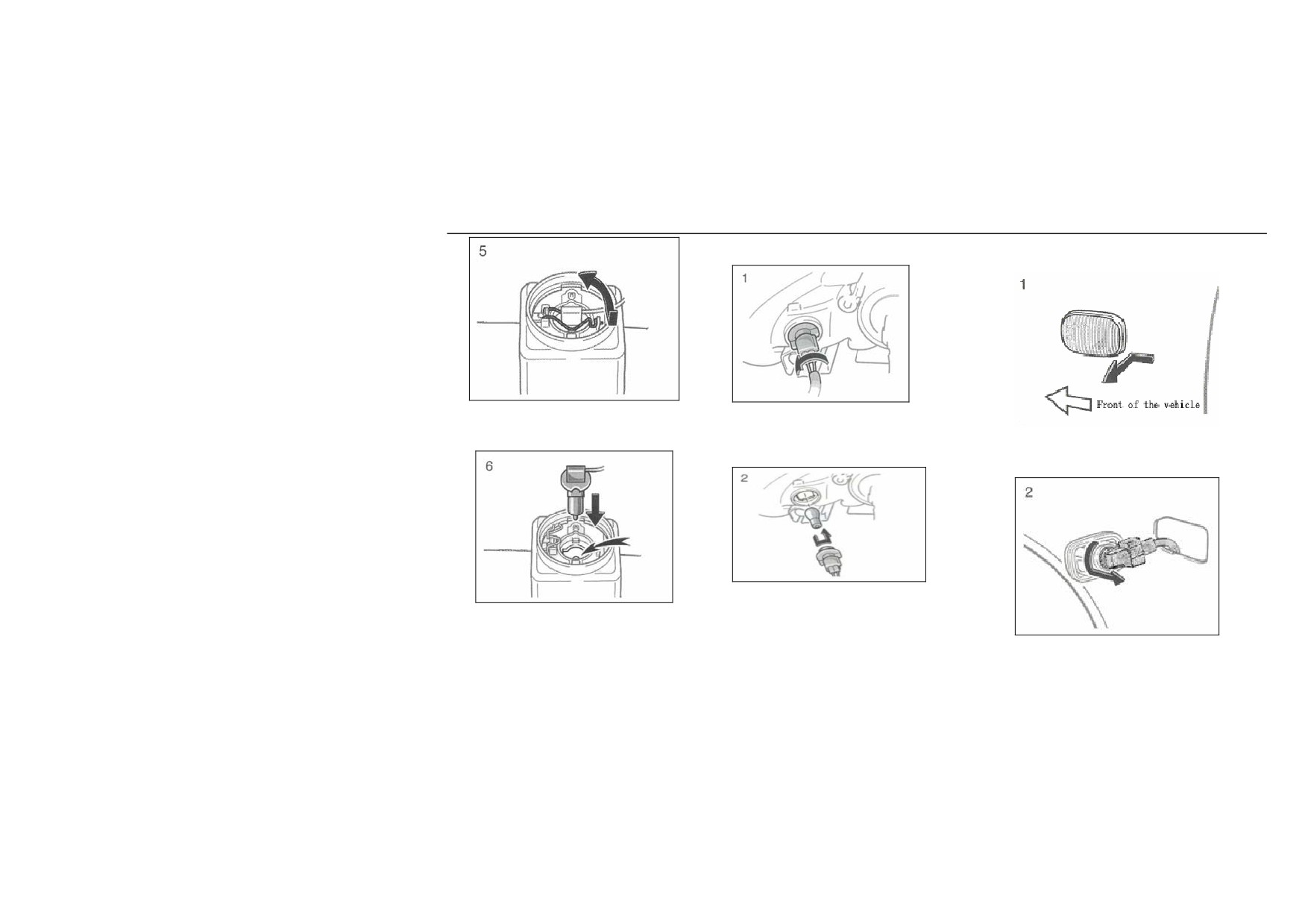

Front turn signal lights
Side turn signal lights
5. Release the bulb fixation spring
1. Turn the bulb anticlockwise
and remove the seat.
1. Push forward and pull it out.
2. Turn the bulb clockwise and
pull it out, and then remove it.
6. Install new bulb
2. Turn the seat anticlockwise and
Upon installing, align the circular
To install the bulb, follow the step
pull it out.
notching on the bulb.
opposite to the disassembling.
185
BYD AUTO
F3 OWNER’S MANUAL

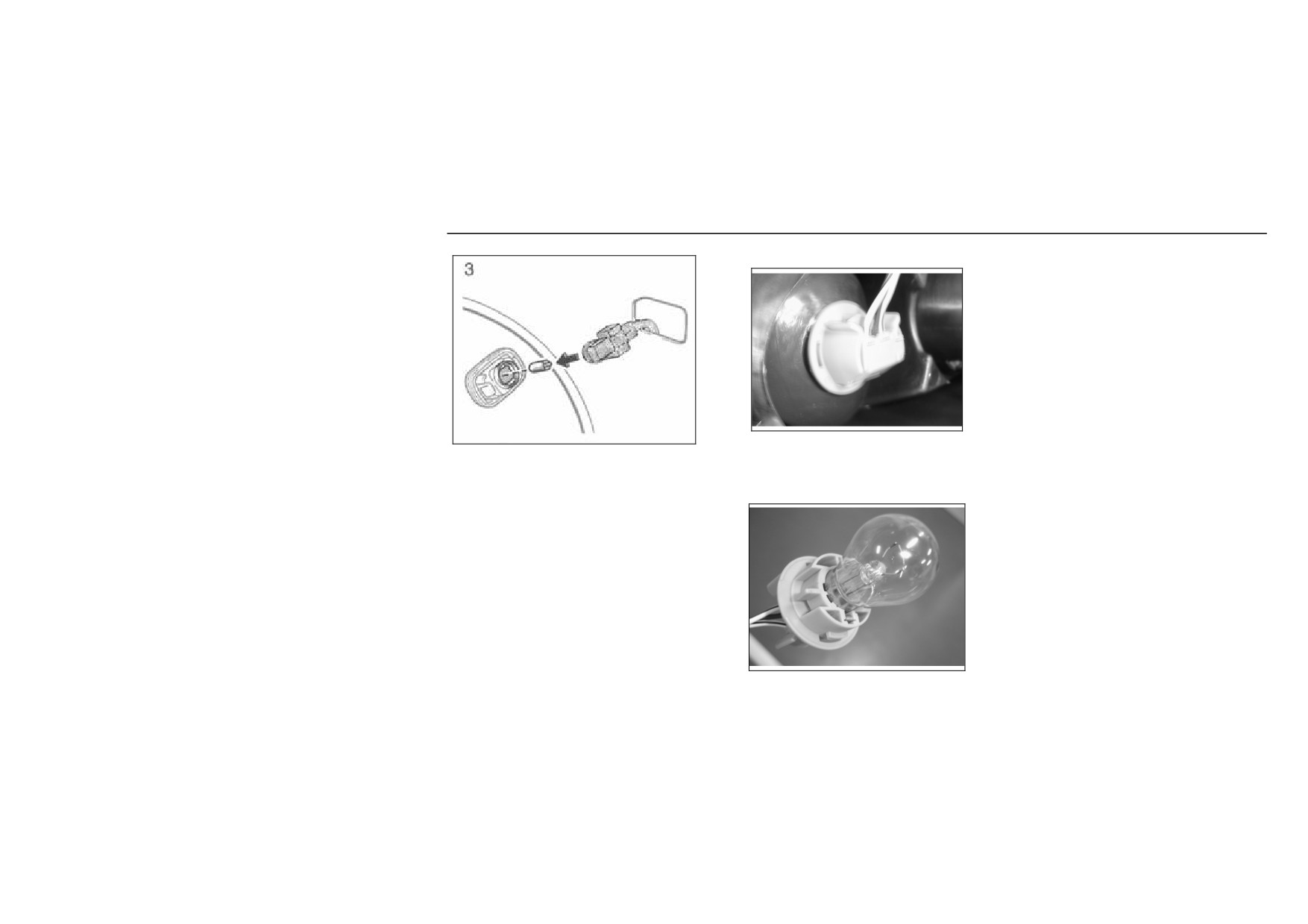

Backing lights
Turn the bulb anticlockwise, pull it
out, and remove it.
To install the bulb, follow the step
opposite to the disassembling.
Rear turn signal lights
It is same with the steps of replacing
the backing lights
Turn the light base anticlockwise.
Then, remove the light base and
3. Pull the bulb out.
bulb.
To install the bulb, follow the step
opposite to the disassembling.
186
BYD AUTO
F3 OWNER’S MANUAL
Rear fog lights
To install the bulb, follow the step
anticlockwise and remove it.
opposite to the disassembling.

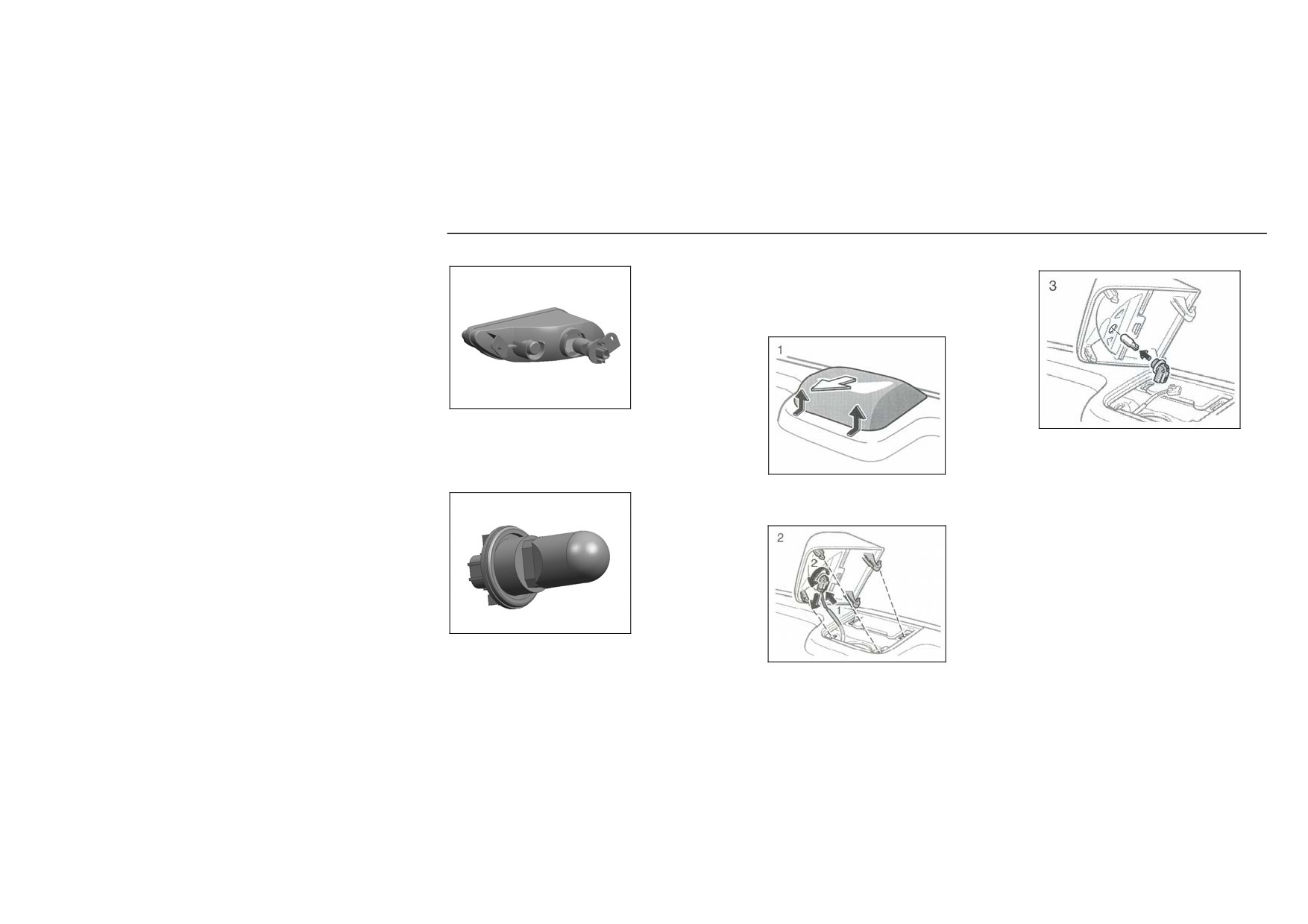

High mounted stoplight (Optional
for F3)
1. Turn the light base anticlockwise
and pull base out. Then, remove the
3. Remove the bulb.
light base.
To install the bulb, follow the step
1. Push forward and remove it.
opposite to the disassembling.
2. Pull the bulb out, and remove it
from light base.
2. Turn the light base
187
BYD AUTO
F3 OWNER’S MANUAL

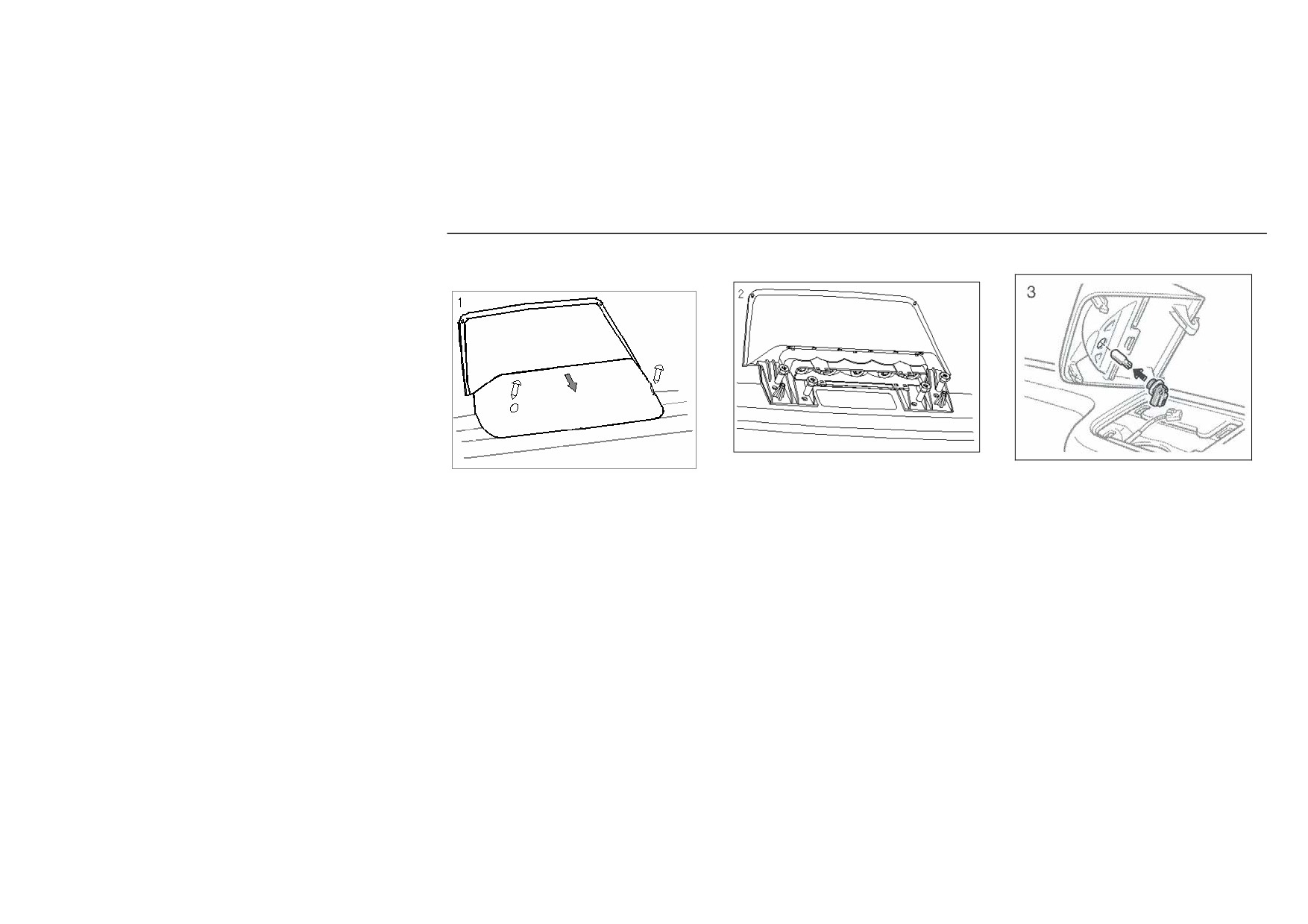

High mounted stoplight (F3-R
optional)
2. Push along the opposite direction
3. Remove the bulb
1. Unscrew the bolts.
and remove the lampshade.
To install the bulb, follow the step
opposite to the disassembling.
188
BYD AUTO
F3 OWNER’S MANUAL
License plate lights
1. Turn the light base
2. Remove the bulb.
anticlockwise and remove it.
To install the bulb, follow the step
opposite to the disassembling.
189
BYD AUTO
F3 OWNER’S MANUAL
Section 8 Specifications
Service specifications………………………………………………………………………………………………………..
Fuses and relays……………………………………………………………………………………………………………...
190
BYD AUTO
F3 OWNER’S MANUAL
Service specifications
Lubricating the engine
Oil grade for gasoline engine:
Gear oil grade for transmission:
Cooling system
Total capability: 6.8 L
SAE 5 W-30
-30°C above
75 W-90
Cold area
(Northern),
SAE 15 W-40
-15°C above
winter
Tire size: 195/60R15 88 H
API grade: SG or above.
80 W-90
Cold area
(Northern),
summer
Tire pressure: KPa (kilogram/cm2)
80 W-90 or 80 W-140 Hot
area
Dosage: 3 L
210 (2.1)
(Southern), whole year
API grade: GL-4 or above.
Torque for tire nut，N· m
Dosage: 2.1 L
103 (10.5)
191
BYD AUTO
F3 OWNER’S MANUAL

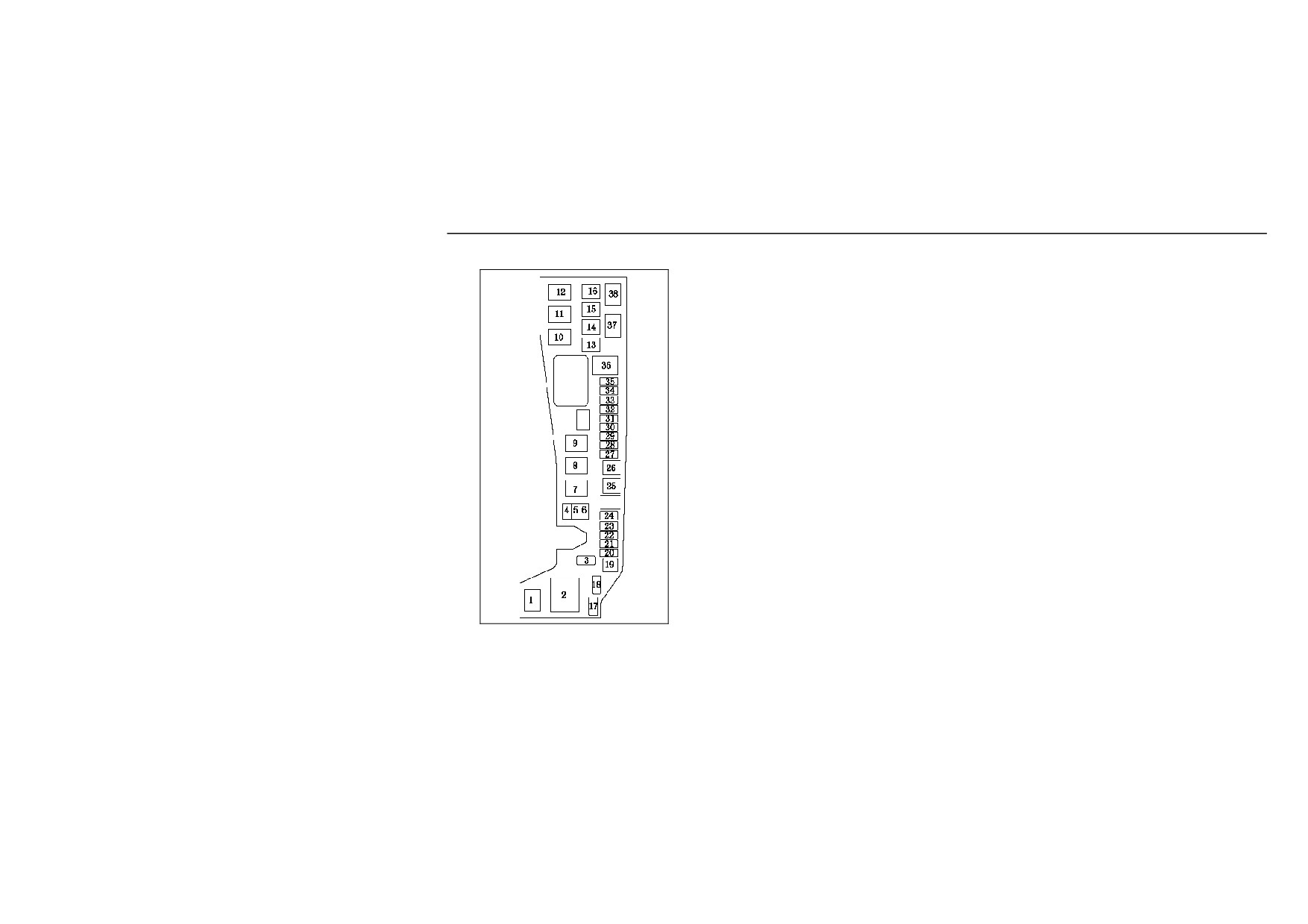

Fuses and relays
Relays
14. Electric fan
1. A/C electromagnetic clutch
15. Neutral
2. Front headlights
16. ABS
7. NO. 3 fan
17. Spare fuse
8. Neutral
18. Spare fuse
9. Horn
19. Pull out tool
10.NO.2 fan
20. Left front high beam
11.Neutral
21. Right front high beam
12.NO. 1 fan
22. Right front low beam
37. Neutral
23. Left front low beam
38. Electronic injection main relay
24. Neutral
Fuses
25. Neutral
3. Spare fuse
26. Front headlights break device
4. Spare fuse
27. Neutral
5. Spare fuse
28. Electronic injection (15
A)-MT20U/2 or (30 A)-M7.9.7.1
Engine compartment
6. Spare fuse
13. Neutral
192
BYD AUTO
F3 OWNER’S MANUAL

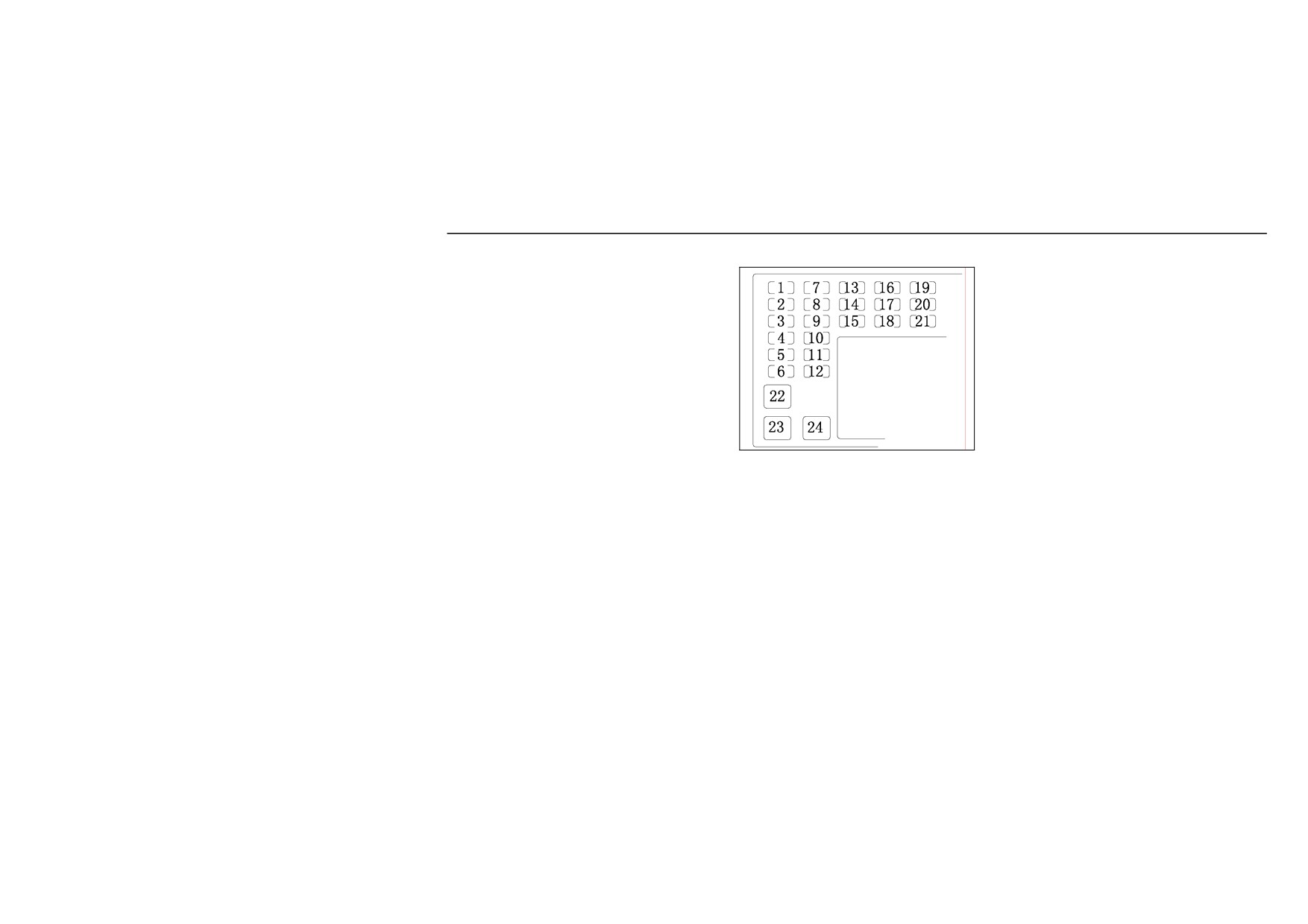

29. Interior lights
8. Wiper (20 A)
30. NO. 2 source of Ignition switch
9. Position light (15 A)
31. Neutral
10. Brake lights (15 A)
11. Door (25 A)
32. Horn (10 A)
12 NO. 2 source of windows (30 A)
33. Warning light (10A)
13. NO.1 source of ignition switch
34. Neutral
(25 A)
35. Neutral
14. Rear fog lights (15 A)
36. Main source (10A)
15. Front fog lights (10 A)
Instrument panel LH (lower)
16. Start source (7.5 A)
Fuses
17. Air conditioning system (10 A)
1. Neutral
18. NO. 2 ignition source (15 A)
2. On-board ECU (10 A)
19. Defogger compensation (10 A)
20. Headlight control system (5 A)
3. Instrument (10 A)
21. Cigarette lighter (15 A)
4. Electrical seat (25 A)
22. Warm air (40 A)
5. Neutral
23. Rear window defogger (30 A)
6. Neutral
24. NO. 1 source of windows (30 A)
7. On-board diagnosis system (7.5 A)
193
