Engine Does Not Start

Checking the Engine

If the engine does not start, check the starter.

Starter condition

Checklist

Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.

Check for a message on the MID.

●

If the To Start, Hold Remote Near Start Button message appears

2 If the Keyless Access Remote Battery is Weak P. 647

u

Make sure the keyless access remote is in its operating range.

2 ENGINE START/STOP Button Operating Range P. 169

Check the brightness of the interior lights.
Turn on the interior lights and check the brightness.

●

If the interior lights are dim or do not come on at all

2 Battery P. 611

●

If the interior lights come on normally

2 Fuses P. 658

The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly.

Review the engine start procedure.
Follow its instructions, and try to start the engine again.

2 Starting the Engine P. 465

Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.

2 Immobilizer System P. 163

Check the fuel level.
There should be enough fuel in the tank.

2 Fuel Gauge P. 119

Check the fuse.
Check all fuses, or have the vehicle checked by a dealer.

2 Inspecting and Changing Fuses P. 665

If the problem continues:

2 Emergency Towing P. 666

1

Checking the Engine

If you must start the vehicle immediately, use an
assisting vehicle or booster battery to jump start it.

2 Jump Starting P. 649

18 ACURA MDX-31TZ56400.book  646 ページ  ２０１７年８月２３日　水曜日　午後４時１分

647

uu

Engine Does Not Start

u

If the Keyless Access Remote Battery is Weak

Han

d

lin
g the U

n

expected

If the Keyless Access Remote Battery is Weak

If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the multi-information display, and the indicator on the ENGINE START/
STOP button flashes, and the engine won’t start, start the engine as follows:

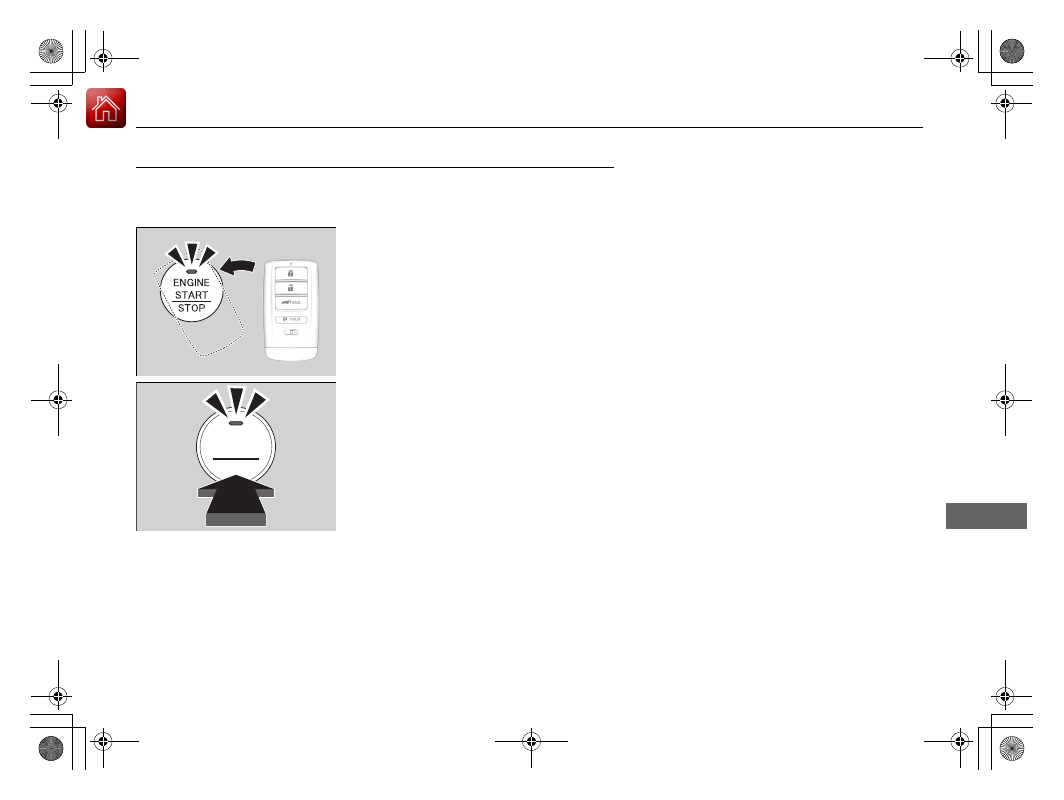

1. Touch the center of the ENGINE START/

STOP button with the A logo on the keyless
access remote while the indicator on the
ENGINE START/STOP button is flashing.
The buttons on the keyless access remote
should be facing you.

u

The indicator flashes for about 30
seconds.

2. Depress the brake pedal and press the

ENGINE START/STOP button within 10
seconds after the beeper sounds while the
indicator stays on.

u

If you don’t depress the pedal, the mode
will change to ACCESSORY.

ENGINE

START

STOP

18 ACURA MDX-31TZ56400.book  647 ページ  ２０１７年８月２３日　水曜日　午後４時１分

648

uu

Engine Does Not Start

u

Emergency Engine Stop

Han

d

lin
g the U

n

expected

Emergency Engine Stop

The ENGINE START/STOP button may be used to stop the engine due to an
emergency situation even while driving. If you must stop the engine, do either of the
following operations:
• Press and hold the ENGINE START/STOP button for about two seconds.
• Firmly press the ENGINE START/STOP button three times.

The steering wheel will not lock. However, because turning off the engine disables
the power assist the engine provides to the steering and braking systems, it will
require significantly more physical effort and time to steer and slow the vehicle. Use
both feet on the brake pedal to slow down the vehicle and stop immediately in a
safe place.

The gear position automatically changes to

(

P after the vehicle comes to a complete

stop. Then, the power mode changes to VEHICLE OFF.

The gear position automatically changes to P after the vehicle comes to a complete
stop. Then press the ENGINE START/STOP button twice without depressing the
brake pedal to change the mode to VEHICLE OFF.

1

Emergency Engine Stop

Do not press the button while driving unless it is
absolutely necessary for the engine to be turned off.

U.S. models

Canadian models

18 ACURA MDX-31TZ56400.book  648 ページ  ２０１７年８月２３日　水曜日　午後４時１分

649

Continued

Han

d

lin
g the U

n

expected

Jump Starting

Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood.

1. Pull up on the engine cover, remove it from

the pins.

u

Start on the passenger side and lift the
outermost edge of the cover.

u

Move towards the driver side while
applying uniform upward pressure.

2. Connect the first jumper cable to your

vehicle’s battery + terminal.

3. Connect the other end of the first jumper

cable to the booster battery + terminal.

u

Use a 12-volt booster battery only.

u

When using an automotive battery
charger to boost your 12-volt battery,
select a lower charging voltage than 15
volt. Check the charger manual for the
proper setting.

4. Connect the second jumper cable to the

booster battery - terminal.

■

Jump Starting Procedure

1

Jump Starting

Securely attach the jumper cables clips so that they
do not come off when the engine vibrates. Also be
careful not to tangle the jumper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.

Battery performance degrades in cold conditions and
may prevent the engine from starting.

3

WARNING

A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.

Keep all sparks, open flames, and smoking
materials away from the battery.

Engine Cover

Pin

Booster Battery

18 ACURA MDX-31TZ56400.book  649 ページ  ２０１７年８月２３日　水曜日　午後４時１分

650

uu

Jump Starting

u

Han

d

lin
g the U

n

expected

5. Connect the other end of the second

jumper cable to the engine hanger as
shown. Do not connect this jumper cable to
any other part.

6. If your vehicle is connected to another

vehicle, start the assisting vehicle’s engine
and increase its rpm slightly.

7. Attempt to start your vehicle’s engine. If it

turns over slowly, check that the jumper
cables have good metal-to-metal contact.

Once your vehicle’s engine has started, remove the jumper cables in the following
order.

1. Disconnect the jumper cable from your vehicle’s ground.
2. Disconnect the other end of the jumper cable from the booster battery -

terminal.

3. Disconnect the jumper cable from your vehicle’s battery + terminal.
4. Disconnect the other end of the jumper cable from the booster battery +

terminal.

Have your vehicle inspected by a nearby service station or a dealer.

■

What to Do After the Engine Starts

18 ACURA MDX-31TZ56400.book  650 ページ  ２０１７年８月２３日　水曜日　午後４時１分

651

Continued

Han

d

lin
g the U

n

expected

Overheating

How to Handle Overheating

Overheating symptoms are as follows:
• The temperature gauge needle is at the

 mark or the engine suddenly loses

power.

• The Stop Driving When Safe. Engine Temperature Too Hot message appears

on the multi-information display (MID).

• Steam or spray comes out of the engine compartment.

■

First thing to do

1. Immediately park the vehicle in a safe place.
2. Turn off all accessories and turn on the hazard warning lights.

u

No steam or spray present: Keep the engine running and open the hood.

u

Steam or spray is present: Turn off the engine and wait until it subsides.
Then, open the hood.

1

How to Handle Overheating

NOTICE

Continuing to drive with the temperature gauge
needle at the

 mark may damage the engine.

3

WARNING

Steam and spray from an overheated
engine can seriously scald you.

Do not open the hood if steam is coming
out.

H

H

18 ACURA MDX-31TZ56400.book  651 ページ  ２０１７年８月２３日　水曜日　午後４時１分

uu

Overheating

u

How to Handle Overheating

652

Han

d

lin
g the U

n

expected

■

Next thing to do

1. Check that the cooling fan is operating and

stop the engine once the temperature
gauge needle comes down.

u

If the cooling fan is not operating,
immediately stop the engine.

2. Once the engine has cooled down, inspect

the coolant level and check the cooling
system components for leaks.

u

If the coolant level in the reserve tank is
low, add coolant until it reaches the
MAX mark.

u

If there is no coolant in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.

■

Last thing to do

Once the engine has cooled sufficiently, restart it and check the temperature gauge.
If the temperature gauge needle has gone down, resume driving. If it has not gone
down, contact a dealer for repairs.

1

How to Handle Overheating

If the coolant is leaking, contact a dealer for repairs.

Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.

Continuing to drive with the Stop Driving When
Safe. Engine Temperature Too Hot message on
the multi-information display may damage the
engine.

3

WARNING

Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.

Always let the engine and radiator cool
down before removing the radiator cap.

Reserve Tank

MAX

MIN

18 ACURA MDX-31TZ56400.book  652 ページ  ２０１７年８月２３日　水曜日　午後４時１分

653

Han

d

lin
g the U

n

expected

Indicator, Coming On/Blinking

If the Low Oil Pressure Indicator Comes On

■

Reasons for the indicator to come on

Comes on when the engine oil pressure is low.

■

What to do as soon as the indicator comes on

1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the hazard warning lights on.

■

What to do after parking the vehicle

1. Stop the engine and let it sit for approximately three minutes.
2. Open the hood and check the oil level.

2 Oil Check P. 585

3. Start the engine and check the low oil pressure indicator.

u

The indicator goes off: Start driving again.

u

The indicator does not go off within 10 seconds: Immediately stop
the engine and contact a dealer for repairs.

If the Charging System Indicator Comes On

■

Reasons for the indicator to come on

Comes on when the battery is not being charged.

■

What to do when the indicator comes on

Turn off the climate control system, rear defogger, and other electrical
systems, and immediately contact a dealer for repairs.

1

If the Low Oil Pressure Indicator Comes On

NOTICE

Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.

1

If the Charging System Indicator Comes On

If you need to stop temporarily, do not turn off the
engine. Restarting the engine may rapidly discharge
the battery.

18 ACURA MDX-31TZ56400.book  653 ページ  ２０１７年８月２３日　水曜日　午後４時１分

654

uu

Indicator, Coming On/Blinking

u

If the Malfunction Indicator Lamp Comes On or Blinks

Han

d

lin
g the U

n

expected

If the Malfunction Indicator Lamp Comes On or
Blinks

■

Reasons for the indicator lamp to come on or blink

• Comes on when there is a problem with the engine emissions control

system.

• Blinks when engine misfiring is detected.

■

What to do when the indicator lamp comes on

Avoid high speeds and immediately get your vehicle inspected at a
dealer.

■

What to do when the indicator lamp blinks

Park the vehicle in a safe place with no flammable items and wait at least
10 minutes or more with the engine stopped until it cools.

1

If the Malfunction Indicator Lamp Comes On or Blinks

NOTICE

If you drive with the malfunction indicator lamp on,
the emissions control system and the engine could be
damaged.

If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest dealer at
31 mph (50 km/h) or less. Have your vehicle
inspected.

18 ACURA MDX-31TZ56400.book  654 ページ  ２０１７年８月２３日　水曜日　午後４時１分

655

uu

Indicator, Coming On/Blinking

u

If the Brake System Indicator (Red) Comes On

Han

d

lin
g the U

n

expected

If the Brake System Indicator (Red) Comes On

■

Reasons for the indicator to come on

• The brake fluid is low.
• There is a malfunction in the brake system.

■

What to do when the indicator comes on while driving

Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate action. If necessary, downshift the

transmission to slow the vehicle using engine braking.

If the Speed-Sensitive Electric Power Steering (EPS)
System Indicator Comes On

■

Reasons for the indicator to come on

• Comes on when there is a problem with the EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine

speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.

■

What to do when the indicator comes on

Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.

1

If the Brake System Indicator (Red) Comes On

Have your vehicle repaired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe place. If necessary downshift
the gears.

If the brake system indicator and ABS indicator come
on simultaneously, the electronic brake distribution
system is not working. This can result in vehicle
instability under sudden braking.
Have your vehicle inspected by a dealer immediately.

U.S.

Canada

18 ACURA MDX-31TZ56400.book  655 ページ  ２０１７年８月２３日　水曜日　午後４時１分

656

uu

Indicator, Coming On/Blinking

u

If the Electric Parking Brake System Indicator Comes On

Han

d

lin
g the U

n

expected

If the Electric Parking Brake System Indicator Comes
On

■

Reasons for the indicator to come on

Comes on when there is a problem with the electric parking brake
system.

■

What to do when the indicator comes on

Avoid using the parking brake and immediately get your vehicle
inspected at a dealer.

■

What to do when the electric parking brake indicator comes on
or blinks at the same time

Release the parking brake.

2 Parking Brake P. 528

• If the electric parking brake indicator remains on or blinks even after

releasing the parking brake, immediately stop the vehicle in a safe
place and call a dealer.

u

To prevent your vehicle from moving, change the gear position to

(

P.

• If only the electric parking brake indicator goes off, immediately get

your vehicle inspected at a dealer.

1

If the Electric Parking Brake System Indicator Comes On

If you apply the parking brake, it may not release.

If the electric parking brake indicator also turns on,
the parking brake is still applied.

When the electric parking brake indicator blinks at
the same time as the electric parking brake system
indicator, the system must be checked. The parking
brake may not operate under these conditions.

18 ACURA MDX-31TZ56400.book  656 ページ  ２０１７年８月２３日　水曜日　午後４時１分

657

uu

Indicator, Coming On/Blinking

u

If the Low Tire Pressure/TPMS Indicator Comes On or Blinks

Han

d

lin
g the U

n

expected

If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks

■

Reasons for the indicator to come on or blink

A tire pressure is significantly low. If there is a problem with the TPMS
with Tire Fill Assist or the compact spare tire

*

 is installed, the indicator

blinks for about one minute, and then stays on.

■

What to do when the indicator comes on

Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Check the tire pressure and adjust the
pressure to the specified level. The specified tire pressure is on a label on
the driver side doorjamb.

■

What to do when the indicator blinks

Have the tire inspected by a dealer as soon as possible. If the compact
spare tire

*

 causes the indicator to blink, change the tire to a full-size tire.

The indicator goes off after driving for a few miles (kilometers).

If the Transmission System Indicator Blinks along
with the Warning Message

■

Reasons for the indicator to blink

There is a problem with the transmission system.

■

What to do when the indicator blinks

• Immediately have your vehicle inspected by a dealer.
• Select

(

N after starting the engine.

u

Check if the

(

N position in the instrument panel and the indicator

on the

(

N button light/blink.

u

The engine cannot be turned on unless the parking brake is set.

2 Starting the Engine P. 465

1

If the Low Tire Pressure/TPMS Indicator Comes On or Blinks

NOTICE

Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.

TPMS Fill Assist provides visual and audible assistance
during tire pressure adjustment. With the power
mode in ON, while you adjust tire pressure up or
down, the system alerts you as follows:
Below recommended pressure: The beeper
sounds and exterior lights flash once every five
seconds.
At recommended pressure: The beeper sounds
and exterior lights flash rapidly for ~ five seconds.
Above recommended pressure: The beeper
sounds and lights flash twice every three seconds.

1

If the Transmission System Indicator Blinks along with the
Warning Message

You may not be able to start the engine.

Make sure to set the parking brake when parking
your vehicle.

Call a professional towing service if you need to tow
your vehicle.

2 Emergency Towing P. 666

* Not available on all models

18 ACURA MDX-31TZ56400.book  657 ページ  ２０１７年８月２３日　水曜日　午後４時１分

658

Han

d

lin
g the U

n

expected

Fuses

Fuse Locations

If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.

Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.

■

Engine Compartment Fuse
Box Type A

Tab

■

Circuit protected and fuse rating

Circuit Protected

Amps

1

STRLD

*2

7.5 A

2

−

−

3

ACG FR

15 A

4

Washer

15 A

5

IG1 OP

*1

(7.5 A)

6

ECU FR

7.5 A

7

VBSOL

*1

(10 A)

Starter

*2

7.5 A

8

FI  Sub

15 A

9

DBW

15 A

10

FI Main

15 A

11

IG Coil

15 A

12

DRL R

10 A

13

DRL L

10 A

14

Injector

20 A

15

Radio

*1

20 A

*1:Models without Auto Idle Stop
*2:Models with Auto Idle Stop

16

Back Up

10 A

17

MG Clutch

(7.5 A)

18

FR Fog

*

7.5 A

19

−

−

20

H/L HI R

7.5 A

21

−

−

22

Small

*1

10 A

23

−

−

24

H/L HI L

7.5 A

25

SBW

15 A

26

H/L LO R

10 A

27

H/L LO L

10 A

28

Oil LVL

7.5 A

29

Main Fan

30 A

30

Sub Fan

30 A

31

Wiper Main

30 A

Circuit Protected

Amps

* Not available on all models

18 ACURA MDX-31TZ56400.book  658 ページ  ２０１７年８月２３日　水曜日　午後４時１分

659

uu

Fuses

u

Fuse Locations

Continued

Han

d

lin
g the U

n

expected

Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the battery. Push the tabs to
open the box.

■

Engine Compartment Fuse
Box Type B

Tab

■

Circuit protected and fuse rating

Circuit Protected

Amps

1

Main Fuse

150 A

2

VSA MTR

40 A

VSA FSR

20 A

Stop&Horn Hazard

*

30 A

Hazard

*

RR BLOWER&BMS

30 A

DC/DC 3

*

60 A

RR F/B-2

60 A

AS F/B-2

60 A

EPS

60 A

3

H/L Washer

*

(30 A)

IG1B Main

30 A

R/B Main

60 A

DR F/B-1

50 A

AS F/B-1

50 A

RR F/B-1

60 A

IG1A Main

30 A

DR F/B-2

50 A

4

FI Main

40 A

5

FR Blower

40 A

6

RR  DEF

40 A

7

IG1 Main ST

30 A

8

Stop & Horn

*

20 A

Stop

*

10 A

9

Hazard

10 A

10

BMS

7.5 A

11

Small LT

*

7.5 A

Circuit Protected

Amps

* Not available on all models

18 ACURA MDX-31TZ56400.book  659 ページ  ２０１７年８月２３日　水曜日　午後４時１分

660

uu

Fuses

u

Fuse Locations

Han

d

lin
g the U

n

expected

Located near the + terminal on the battery.

Pull up the cover.
Replacement of this fuse should be done by
a dealer.

Fuse location is shown on the back of the
positive battery terminal cover.

■

Engine Compartment Fuse
Box Type C

Fuse

Positive Battery
Terminal Cover

■

Circuit protected and fuse rating

Circuit Protected

Amps

Fan Main

60 A

18 ACURA MDX-31TZ56400.book  660 ページ  ２０１７年８月２３日　水曜日　午後４時１分

661

uu

Fuses

u

Fuse Locations

Continued

Han

d

lin
g the U

n

expected

Located under the dashboard.

Fuse locations are shown on the label on
the outer side of the side panel cover.
Locate the fuse in question by the fuse
number and label number.

■

Driver’s Side Interior Fuse Box
Type A

Fuse Box

Fuse Label

■

Circuit protected and fuse rating

Circuit Protected

Amps

1

AS Door Lock

10 A

2

RR DR Door Lock

7.5 A

3

DR Door Lock

7.5 A

4

FR AS Door Unlock

10 A

5

RR DR Door Unlock

7.5 A

6

DR Door Unlock

(7.5 A)

7

D/L Main

20 A

8

−

−

9

ETS TELE

20 A

10

IG1 RR

15 A

11

Meter

*

7.5 A

Shifter

*

12

IG1 FR

20 A

13

ACC

7.5 A

14

−

−

15

DR P/Seat (SLI)

20 A

16

S/R

20 A

17

RR DR P/W

20 A

18

Smart

10 A

19

FR DR P/W

20 A

20

−

−

21

Fuel Pump

20 A

22

IG1 AS

15 A

23

ABS/VSA

*

Smart

*

7.5 A

24

ACG AS

7.5 A

25

STRLD

*

7.5 A

26

IG2 HAC

7.5 A

27

DRL

7.5 A

28

ACC Key Lock

7.5 A

29

DR P/Seat (LUM)

7.5 A

30

INT Lights

7.5 A

31

ETS TILT

20 A

32

DR P/Seat (REC)

20 A

33

−

−

34

−

−

Circuit Protected

Amps

* Not available on all models

18 ACURA MDX-31TZ56400.book  661 ページ  ２０１７年８月２３日　水曜日　午後４時１分
