Acura RLX Hybrid (2017 year). Manual

118

Gauges and Displays

Multi-Information Display

strum

nt Pa

nel

*1: Default Setting

Setup Group

Customizable Features

Description

Selectable Settings

Driving
Position
Setup

Memory Position Link

Turns the driving position memory system on and
off.

/Off

Steering Wheel
Movement At Entry/Exit

Moves the steering wheel fully up when you get in/
get out of the vehicle.

/Off

Auto Seat Belt Tension

Turns the auto seatbelt tension setting for the seat
belt e-pretensioner on and off.

/Off

Keyless
Access
Setup

Door Unlock Mode

Changes which doors unlock when you grab the
driver’s door handle.

Driver Door Only

/All Doors

Keyless Access Light
Flash

Causes some exterior lights to flash when you
unlock/lock the doors.

/Off

Keyless Access Beep

Causes the beeper to sound when you unlock/lock
the doors.

/Off

Remote Start System On/
Off

Turns the remote engine start feature on and off.

/Off

Lighting
Setup

Interior Light Dimming
Time

Changes the length of time the interior lights stay on
after you close the doors.

60sec/30sec

/15sec

Headlight Auto Off
Timer

Changes the length of time the exterior lights stay
on after you close the driver’s door.

60sec/30sec/15sec

/0sec

Auto Light Sensitivity

Changes the timing for the headlights to come on.

Max/High/Mid

/Low/Min

* Not available on all models

17 ACURA RLX E-AWD-31TY36300.book 118 ページ２０１６年６月１７日　金曜日　午前８時２９分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

119

Gauges and Displays

Multi-Information Display

Continued

strum

nt Pa

nel

*1: Default Setting

Setup Group

Customizable Features

Description

Selectable Settings

Door Setup

Auto Door Lock

Changes the setting for when the doors
automatically lock.

With Vehicle Speed

/Shift

from P/Off

Auto Door Unlock

Changes the setting for when the doors
automatically unlock.

All Doors When Driver’s
Door Opens

/All Doors

When Shifted To Park/All
Doors When Ignition
Switched Off/Off

Key And Remote Unlock
Mode

Sets up either the driver’s door or all doors to unlock
on the first operation of the remote or built-in key.

Driver Door

/ All Doors

Keyless Lock Answer
Back

LOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.

/Off

Security Relock Timer

Changes the time it takes for the doors to relock and
the security system to set after you unlock the
vehicle without opening any door.

90sec/60sec/30sec

Auto Folding Door
Mirror

Changes how you can fold the door mirrors.

Auto Fold With Keyless

Manual Only

17 ACURA RLX E-AWD-31TY36300.book 119 ページ２０１６年６月１７日　金曜日　午前８時２９分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

120

Gauges and Displays

Multi-Information Display

strum

nt Pa

nel

*1: Default Setting

Setup Group

Customizable Features

Description

Selectable Settings

Wiper Setup

Wiper Action

Changes the setting for the automatic intermittent
wipers in the AUTO position.

Rain Sensing

/Intermittent/

Speed Sensitive

Maintenance
Info.

Maintenance Reset

Resets/Cancels the engine oil life display when you
have performed the maintenance service.

Cancel/Reset

Default All

—

Cancels/Resets all the customized settings as
default.

Cancel/Set

17 ACURA RLX E-AWD-31TY36300.book 120 ページ２０１６年６月１７日　金曜日　午前８時２９分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

121

Gauges and Displays

Multi-Information Display

Continued

strum

nt Pa

nel

■

Example of customization settings

The steps for changing the “Trip A” Reset Timing setting to When Refueled are
shown below. The default setting for “Trip A” Reset Timing is Manually Reset.

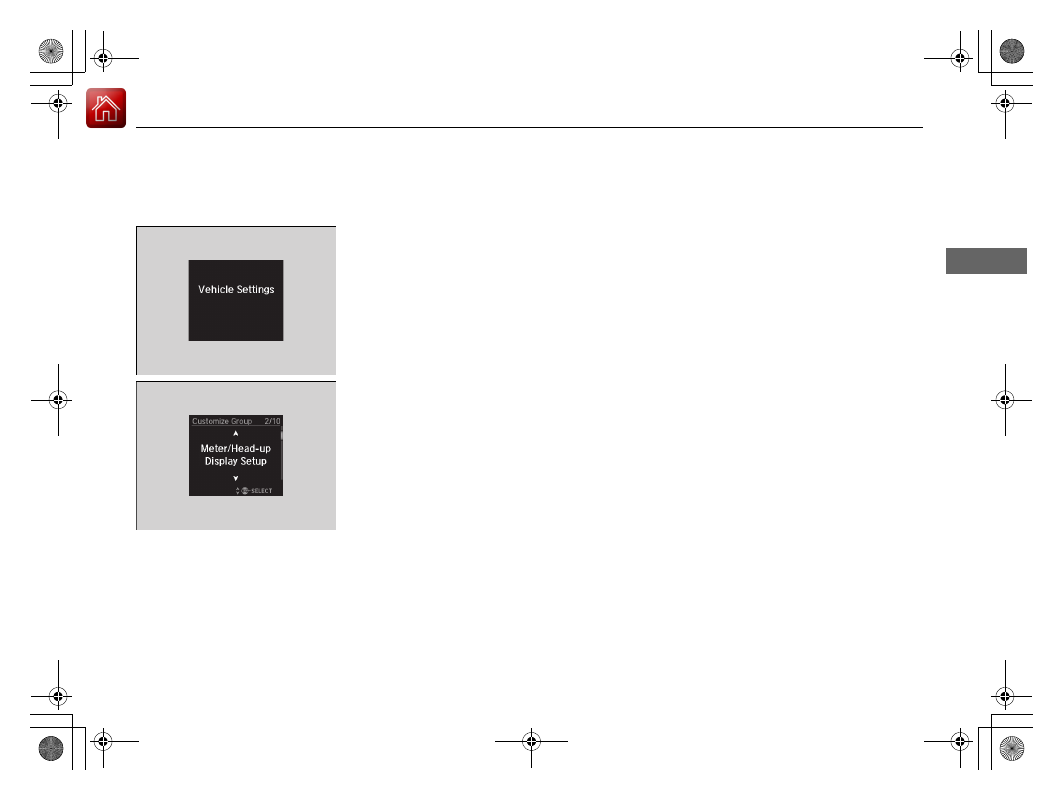

1. Roll the right selector wheel to select

Vehicle Settings, then push the right
selector wheel.

2. Roll the right selector wheel until Meter/

Head-up Display Setup appears on the
display.

3. Push the right selector wheel.

Language Selection appears first on
the display.

17 ACURA RLX E-AWD-31TY36300.book 121 ページ２０１６年６月１７日　金曜日　午前８時２９分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

122

Gauges and Displays

Multi-Information Display

strum

nt Pa

nel

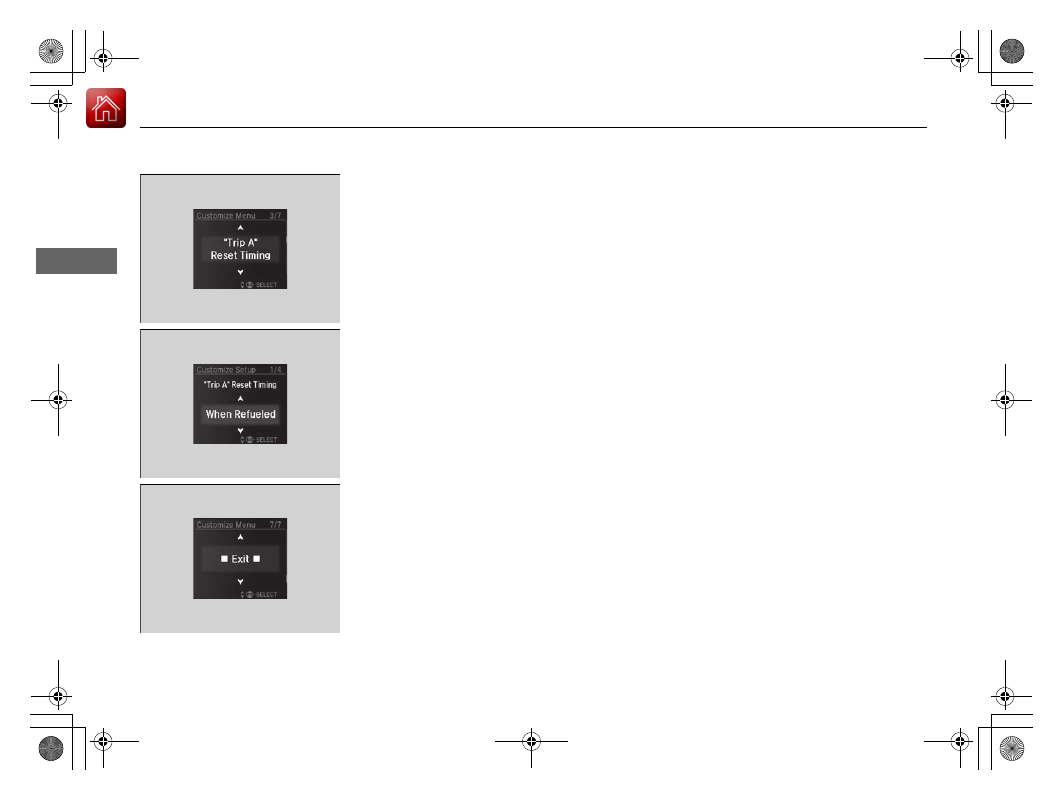

4. Roll the right selector wheel until “Trip A”

Reset Timing appears on the display, then
push the right selector wheel.

The display switches to the
customization setup screen, where you
can select When Refueled, IGN Off,
Manually Reset, or Exit.

5. Roll the right selector wheel and select

When Refueled, then push the right
selector wheel.

The When Refueled Setup screen
appears, then the display returns to the
customization menu screen.

6. Roll the right selector wheel until Exit

appears on the display, then push the right
selector wheel.

7. Repeat Step 6 until you return to the

normal screen.

17 ACURA RLX E-AWD-31TY36300.book 122 ページ２０１６年６月１７日　金曜日　午前８時２９分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

123

Gauges and Displays

Head-Up Display

Continued

strum

nt Pa

nel

Head-Up Display

Shows the power distribution monitor, current mode for ACC with LSF, tachometer,
gear position indicator, or turn-by-turn directions along with the vehicle speed. You
can choose which item to be displayed using the multi-information display. They are
displayed when the power mode is in ON.

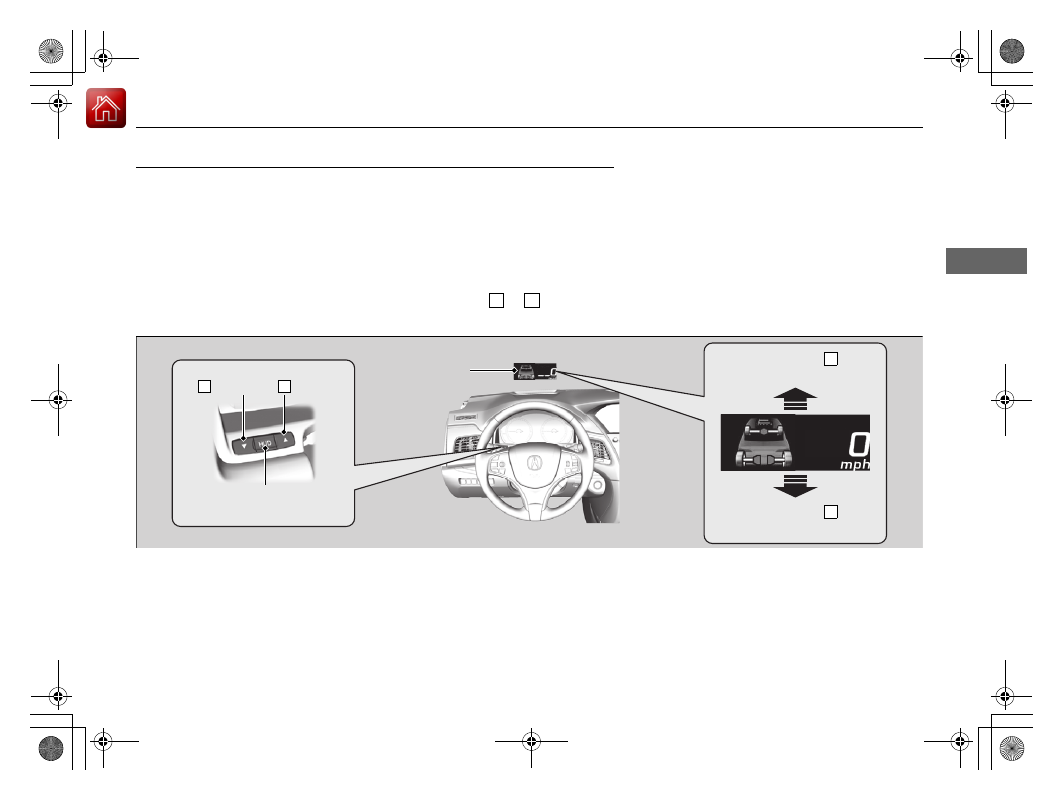

To turn the head-up display on and off: Press the HUD button.
The display can be moved up and down to come level with your eyes.
To raise or lower the head-up display: Press and hold the

button until

the desired position is reached.

Button

HUD Button

Head-Up Display

Press and hold the

button

to raise the display.

Press and hold the

button

to lower the display.

17 ACURA RLX E-AWD-31TY36300.book 123 ページ２０１６年６月１７日　金曜日　午前８時２９分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

124

Gauges and Displays

Head-Up Display

strum

nt Pa

nel

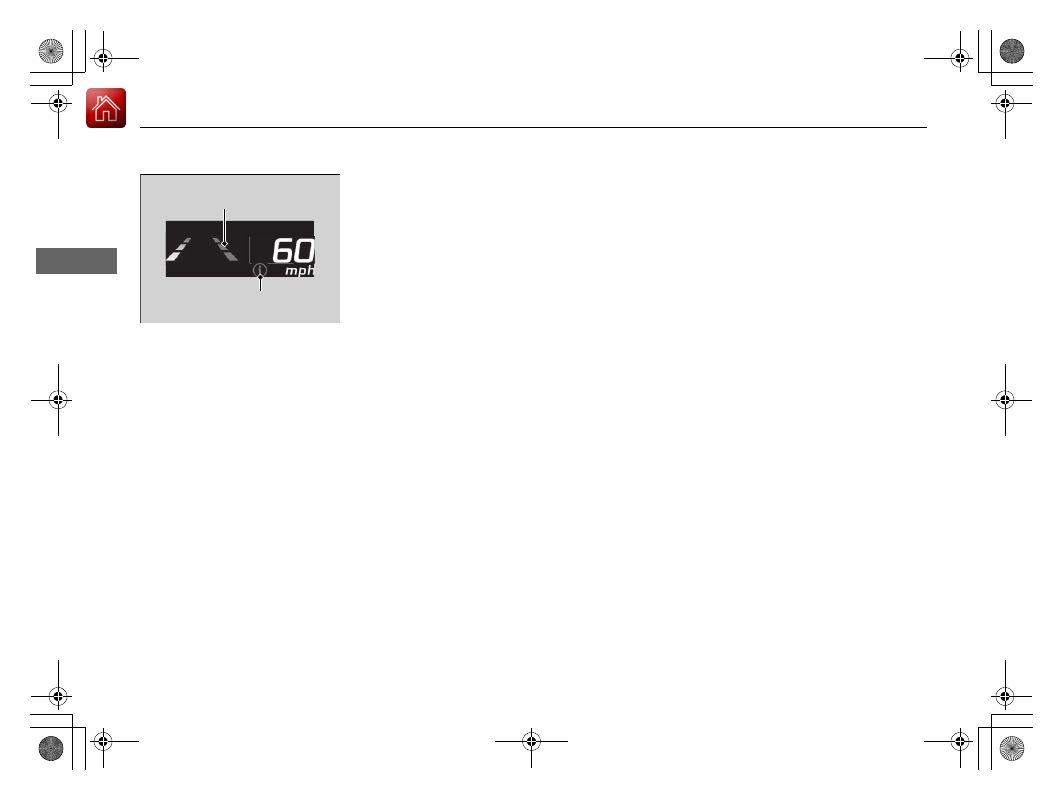

The display also shows the following
warnings.
• System Message Indicator: Appears

when a problem is detected. A system
message on the multi-information display
appears at the same time.

2 Multi-Information Display Warning

and Information Messages P. 92

• Lane Departure Warning: When your

vehicle is too close to the traffic lane lines,
the lane departure warning appears.

2 Lane Keeping Assist System (LKAS)

P. 401

• Head-up Warning Lights:

Flash when the BRAKE message appears
on the multi-information display.

2 Collision Mitigation Braking System

(CMBS

) P. 426

Come on when the BRAKE message
appears on the multi-information display.

2 Adaptive Cruise Control (ACC) with

Low Speed Follow (LSF) P. 383

Lane Departure Warning

System Message Indicator

17 ACURA RLX E-AWD-31TY36300.book 124 ページ２０１６年６月１７日　金曜日　午前８時２９分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Continued

125

Gauges and Displays

Head-Up Display

strum

nt Pa

nel

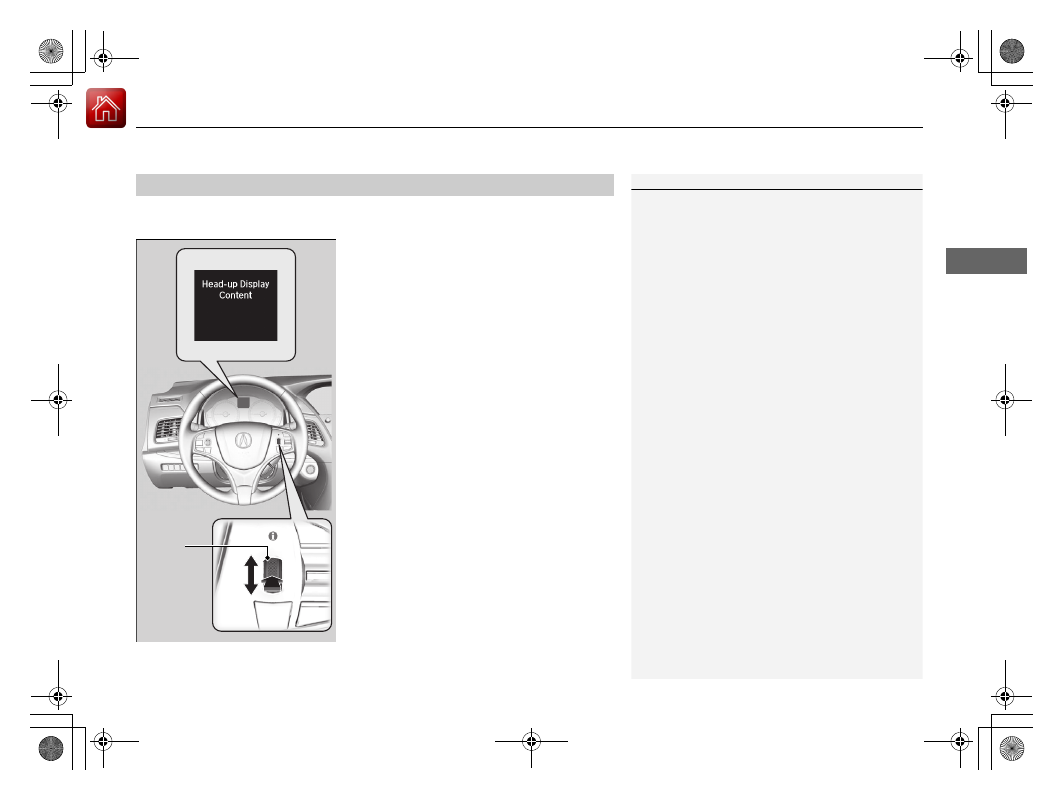

To change the item that comes on along with the vehicle speed on the head-up
display, do the following:

1. Roll the right selector wheel to select Head-

up Display Content on the multi-
information display, then push the right
selector wheel.

2 Switching the Display P. 108

■

To Change Head-Up Display Content

To Change Head-Up Display Content

Accessing the Head-up Display Content menu on
the multi-information display turns on the head-up
display.

When pushing the right selector wheel on any other
display except Vehicle Settings on the multi-
information display, you can also access the Head-up
Display Content menu.

Right
Selector
Wheel

17 ACURA RLX E-AWD-31TY36300.book 125 ページ２０１６年６月１７日　金曜日　午前８時２９分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

126

Gauges and Displays

Head-Up Display

strum

nt Pa

nel

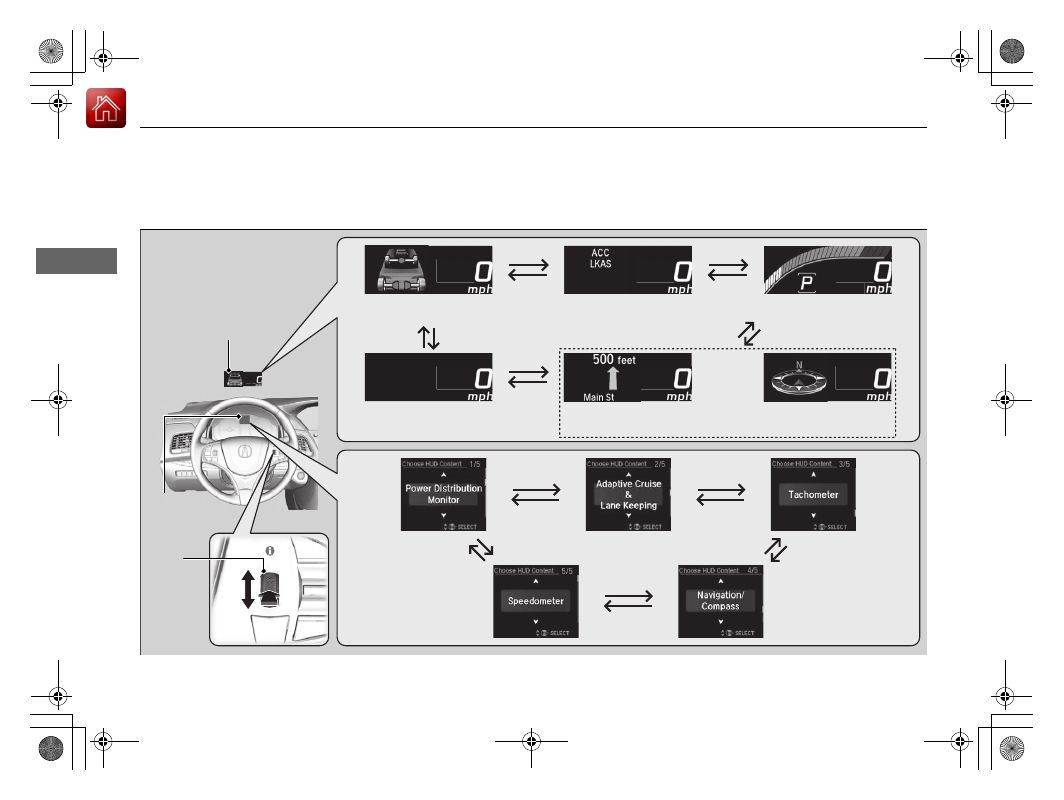

2. Roll the right selector wheel to select the vehicle information you want to display,

then push the right selector wheel.

The head-up display and multi-information display show the same content.

Head-Up Display

Multi-
Information
Display

Right
Selector
Wheel

Power Distribution Monitor,
Vehicle Speed

Current Mode for ACC with LSF,
Vehicle Speed

Tachometer, Gear Position
Indicator, Vehicle Speed

Vehicle Speed

Turn-by-Turn Directions,
Vehicle Speed

Compass, Vehicle Speed

17 ACURA RLX E-AWD-31TY36300.book 126 ページ２０１６年６月１７日　金曜日　午前８時２９分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Continued

127

Gauges and Displays

Head-Up Display

strum

nt Pa

nel

Shows your driving speed in mph or km/h.

Shows the number of engine revolutions as a bar graph.

Shows the current gear selection.

2 Gear Position Indicator P. 80

Shows the current mode for ACC with LSF.

2 To Switch ACC with LSF to Cruise Control P. 395

Shows you turn-by-turn driving directions to your destination linked with the
navigation system.

2 Refer to the Navigation System Manual

■

Vehicle Speed

■

Tachometer

■

Gear Position Indicator

■

Current Mode for ACC with LSF

■

Turn-by-Turn Directions

Vehicle Speed

Switch between mph and km/h by using the
customized features on the multi-information
display.

2 Customized Features P. 113, 283

Turn-by-Turn Directions

The head-up display shows a compass when the
route guidance is not used.

You can select whether the turn-by-turn display
comes on during the route guidance.

2 Customized Features P. 113, 283

17 ACURA RLX E-AWD-31TY36300.book 127 ページ２０１６年６月１７日　金曜日　午前８時２９分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Gauges and Displays

Head-Up Display

128

strum

nt Pa

nel

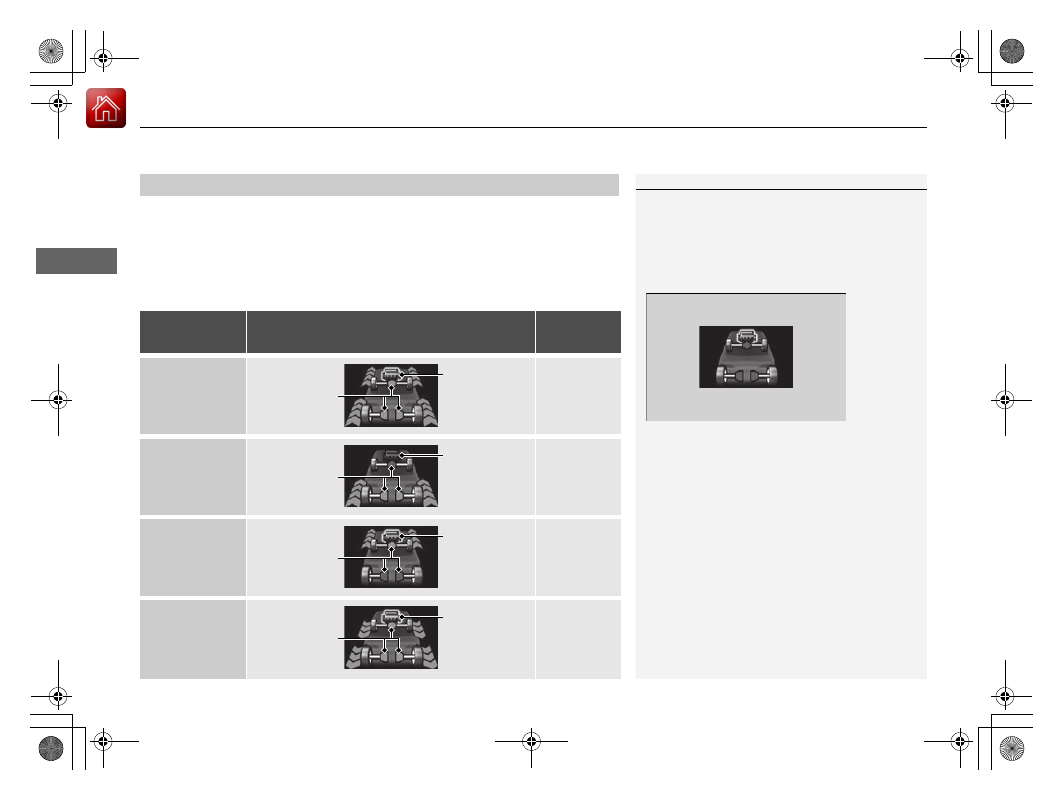

Consists of two monitoring displays, one that indicates the vehicle’s power flow,
and the other, the torque distribution.

■

Power flow monitor

Shows motor and engine power flow, indicating what supplies power to the vehicle,
or if the battery is being charged.

■

Power Distribution Monitor

Head-up display

Color of

indicators

Power is
supplied by the
motors and the
engine.

Blue

Power is only
supplied by the
motors.

Blue

Power is only
supplied by the
engine.

Blue

The motors
charge the High
Voltage battery.

Green

Power Distribution Monitor

The power distribution monitor can be also displayed
on the audio/information display.

2 Audio/Information Screen P. 225

While the vehicle is stationary with the engine
running, the following may appear on the display.

Engine Icon
(Engine on)

Power Flow
Indicator

Engine Icon
(Engine off)

Power Flow
Indicator

Engine Icon
(Engine on)

Power Flow
Indicator

Engine Icon
(Engine on)

Power Flow
Indicator

17 ACURA RLX E-AWD-31TY36300.book 128 ページ２０１６年６月１７日　金曜日　午前８時２９分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

129

Gauges and Displays

Head-Up Display

strum

nt Pa

nel

■

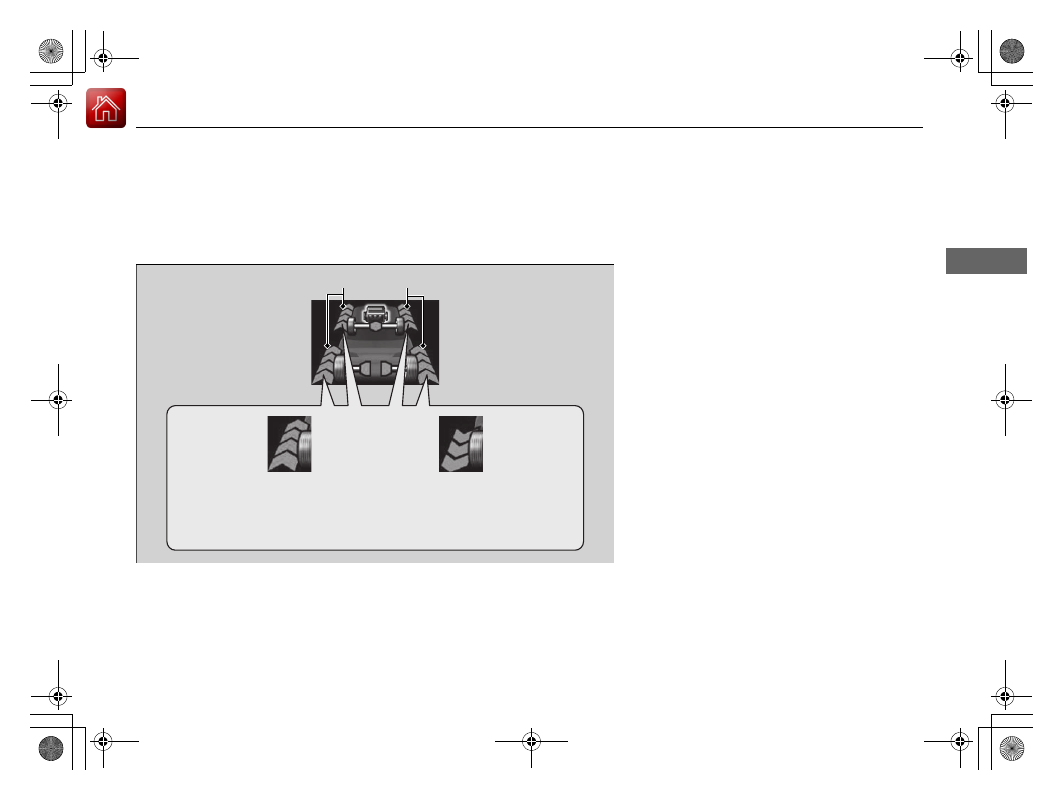

SPORT HYBRID SH-AWD® torque distribution monitor

The indicators on the display show the amount of torque being transferred to each
wheel or regenerative energy being supplied to the High Voltage battery.

2 SPORT HYBRID Super Handling-All Wheel Drive

(SPORT HYBRID SH-AWD®)

P. 411

Torque Indicator

How much torque is being
transferred is shown in
four scales. The indicators
appear in blue.

How much regenerative
braking is being supplied to
the High Voltage battery is
shown in three scales. The
indicators appear in green.

17 ACURA RLX E-AWD-31TY36300.book 129 ページ２０１６年６月１７日　金曜日　午前８時２９分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

132

Co
ntrols

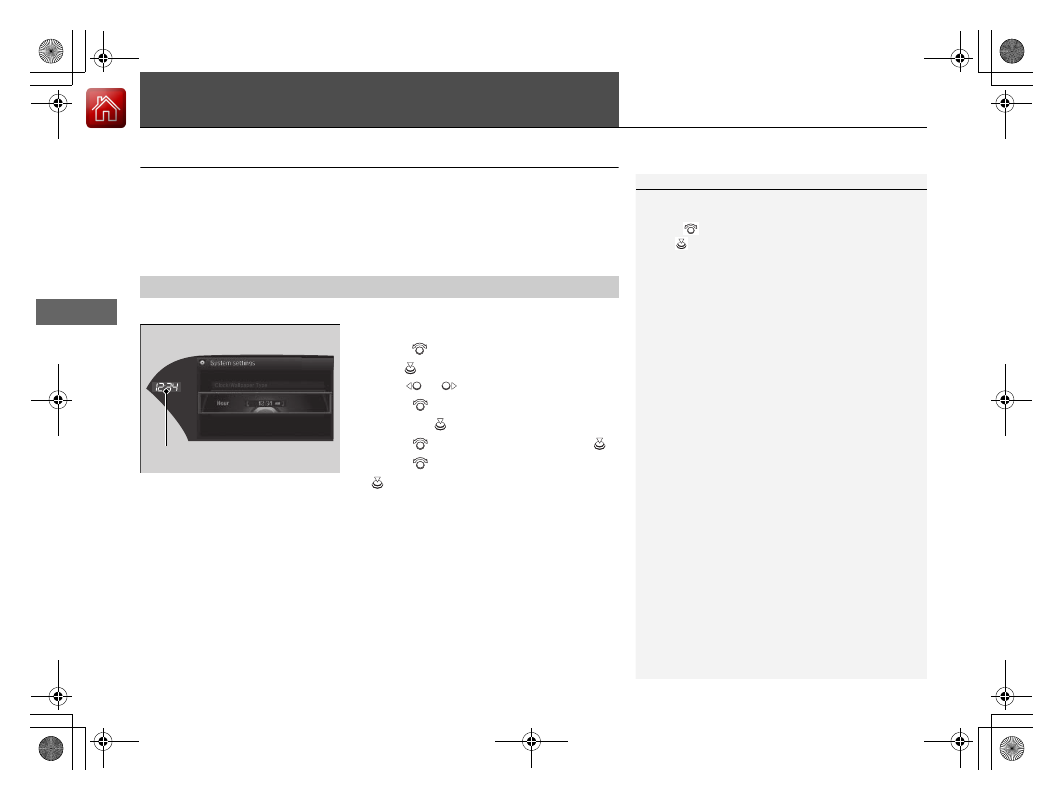

Clock

Adjusting the Clock

The clock is automatically updated through the navigation system, so the time does
not need to be adjusted.

You can also adjust the time manually in the audio/information screen, with the
power mode in ON.

■

Using the Settings menu on the audio/information screen

1. Press the SETTINGS button.
2. Rotate

to select System Settings, then

press .

3. Move

to select the Clock tab.

4. Rotate

to select Clock Adjustment,

then press

5. Rotate

to change hour, then press

6. Rotate

to change minute, then press

■

Adjusting the Time

Adjusting the Clock

These indications are used to show how to operate
the interface dial.
Rotate

to select.

Press

enter.

You can customize the clock display to show the 12
hour clock or 24 hour clock.

2 Customized Features P. 283

Hour

Clock/Wallpaper Type

System settings

Clock Display

17 ACURA RLX E-AWD-31TY36300.book 132 ページ２０１６年６月１７日　金曜日　午前８時２９分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

133

Continued

Co
ntrols

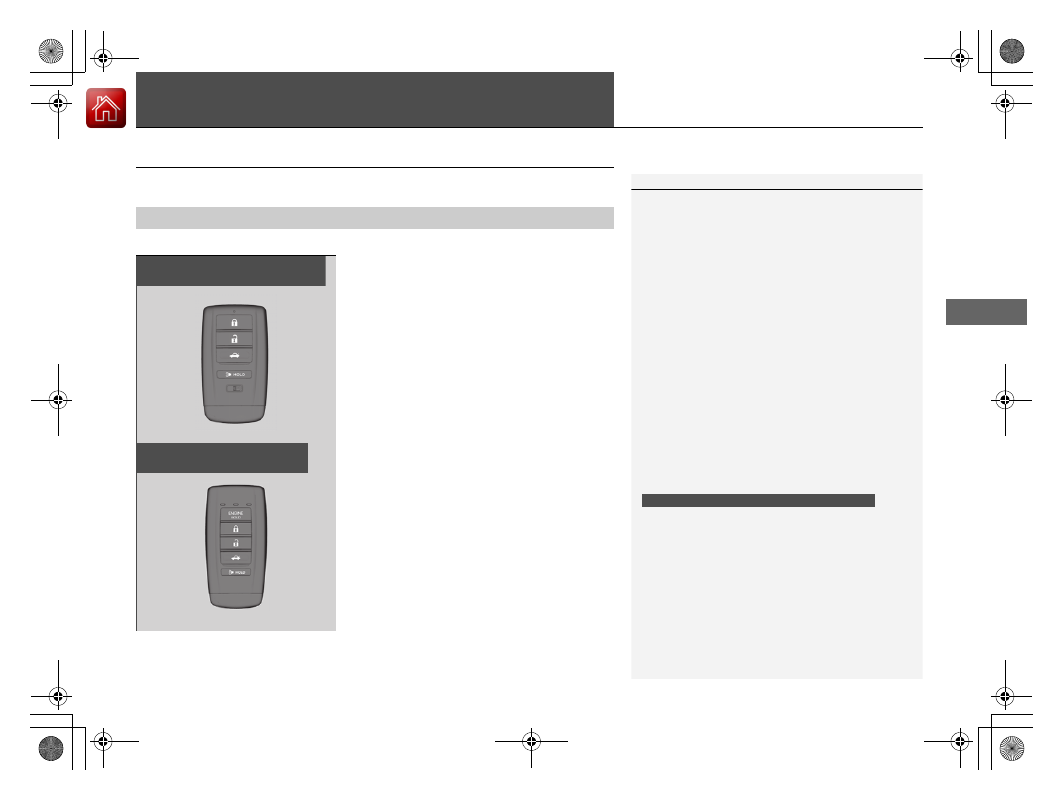

Locking and Unlocking the Doors

Key Types and Functions

This vehicle comes with the following keys:

■

Keyless access remote

Use the keyless access remote to turn on and
off the power system, to lock and unlock the
doors and to open the trunk. You can also use
the keyless access system to lock and unlock
the doors and trunk.

■

Keys

Key Types and Functions

All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft.

2 Immobilizer System P. 149

The keys contain precision electronics.
Adhere to the following advice to prevent damage to
the electronics:

•

Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.

•

Do not drop the keys or set heavy objects on them.

•

Keep the keys away from liquids.

•

Do not take the keys apart except for replacing the
battery.

If the circuits in the keys are damaged, the power
system may not activate, and the keyless access
system may not work.
If the keys do not work properly, have them
inspected by a dealer.

You can remotely turn the power system on using the
two-way keyless access remote.

2 Remote Engine Start with Vehicle

Feedback

P. 366

Models with two-way keyless access remote

Models without two-way keyless
access remote

Models with two-way keyless
access remote

* Not available on all models

17 ACURA RLX E-AWD-31TY36300.book 133 ページ２０１６年６月１７日　金曜日　午前８時２９分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

134

Locking and Unlocking the Doors

Key Types and Functions

Co
ntrols

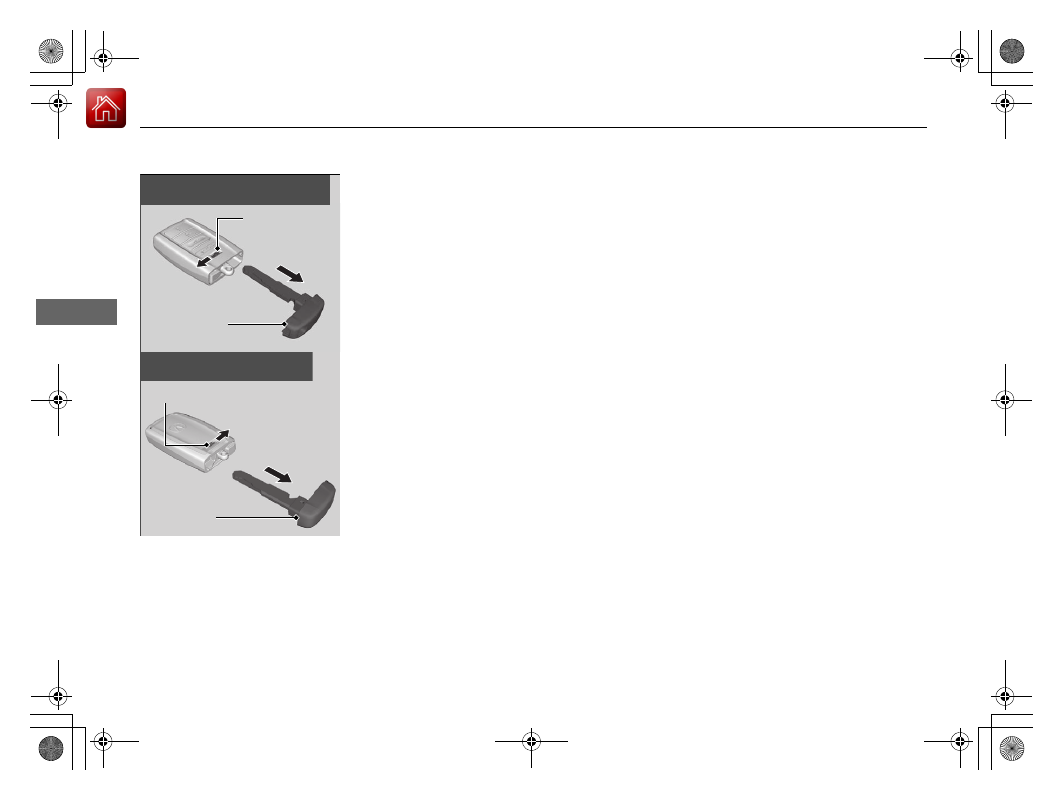

The built-in key can be used to lock/unlock the
doors when the keyless access remote battery
becomes weak and the power door lock/
unlock operation is disabled.

To remove the built-in key, pull it out while
sliding the release knob. To reinstall the built-
in key, push the built-in key into the keyless
access remote until it clicks.

Built-in Key

Release Knob

Built-in Key

Release Knob

Models without two-way keyless
access remote

Models with two-way keyless
access remote

17 ACURA RLX E-AWD-31TY36300.book 134 ページ２０１６年６月１７日　金曜日　午前８時２９分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Acura RLX Hybrid (2017 year). Manual - part 8
