DTC 3-3:

Special Tools Required

YES

23-48

SRS

DTC Troubleshooting (cont’d)

07TAZ-SZ5011A

07SAZ-TB4011A

07XAZ-SZ30100

C504

Short to Another Wire or Decreased

Resistance in Driver’s Seat Belt Tensioner

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead C 07TAZ-SZ5011A
• SRS simulator lead F 07XAZ-SZ30100

1. Erase the DTC memory (see page 23-23).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures
(see page 23-24). If another DTC is indicated, go to
the DTC Troubleshooting Index.

3. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

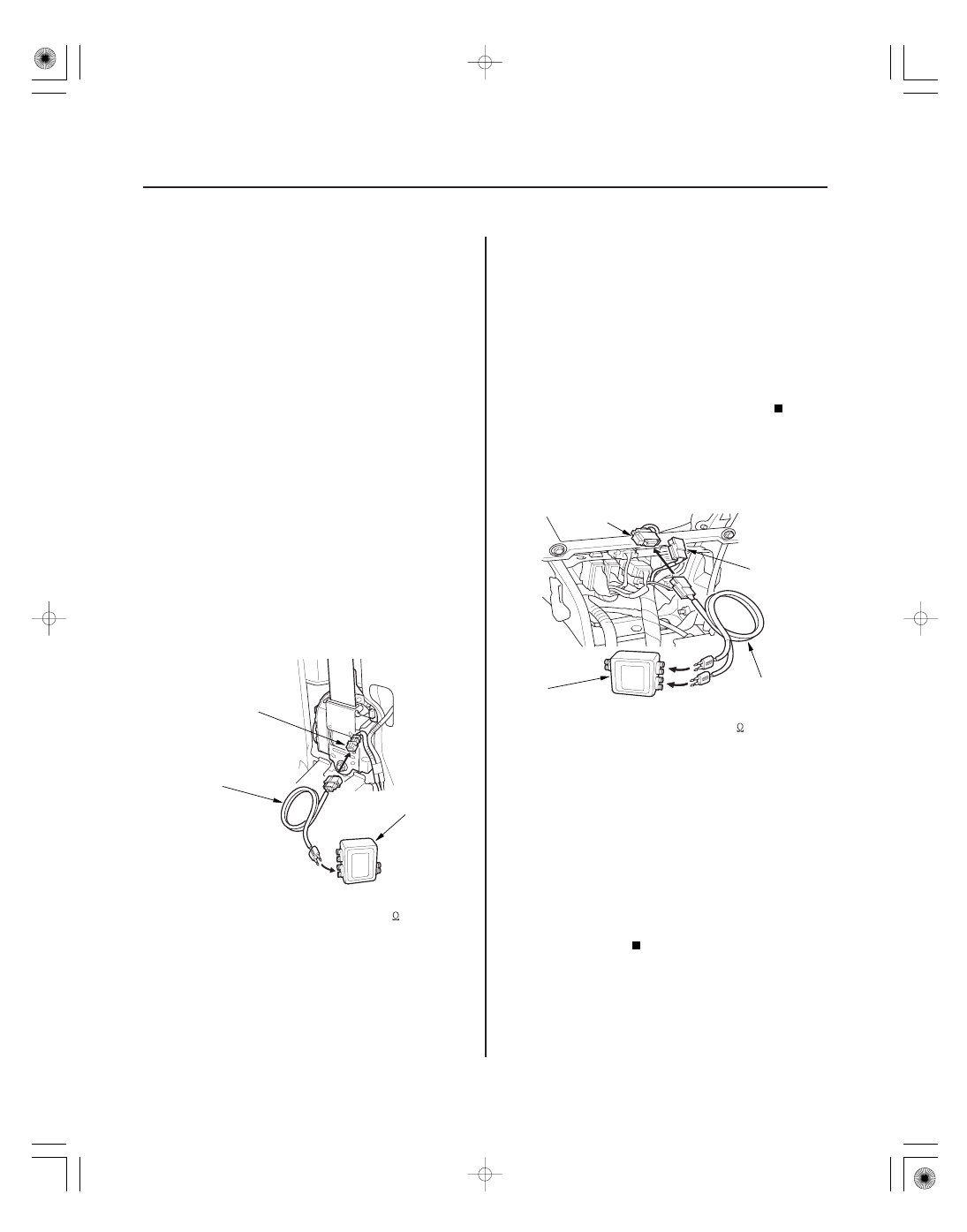

4. Disconnect the driver’s seat belt tensioner 2P

connector from the floor wire harness (A).

5. Connect the SRS inflator simulator (2

connector) and the simulator lead C to the floor
wire harness 2P connector.

6. Reconnect the battery negative cable.

7. Erase the DTC memory.

8. Read the DTC.

Go to step 9.

Short in the driver’s seat belt tensioner;

replace the driver’s seat belt (see page 23-4).

9. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

10. Disconnect the floor wire harness 4P connector (A)

from the dashboard wire harness C504.

11. Connect the SRS inflator simulator (2

connectors) and the simulator lead F to the
dashboard wire harness 4P connector C504.

12. Reconnect the battery negative cable.

13. Erase the DTC memory.

14. Read the DTC.

Go to step 15.

Short in the floor wire harness; replace the

floor wire harness.

15. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

Does the SRS indicator stay on?

Is DT C 3-3 indicated?

05/06/27 18:09:17 61S6M040_230_0048

０３

０２

＊０１

−

YES

23-49

SRS UNIT CONNECTOR A (18P)

16. Disconnect the driver’s airbag connector (A), front

passenger’s airbag connector (B), and front
passenger’s seat belt tensioner connector (C).

17. Disconnect SRS unit connector A (18P) from the

SRS unit.

18. Disconnect the simulator lead from the dashboard

wire harness 4P connector.

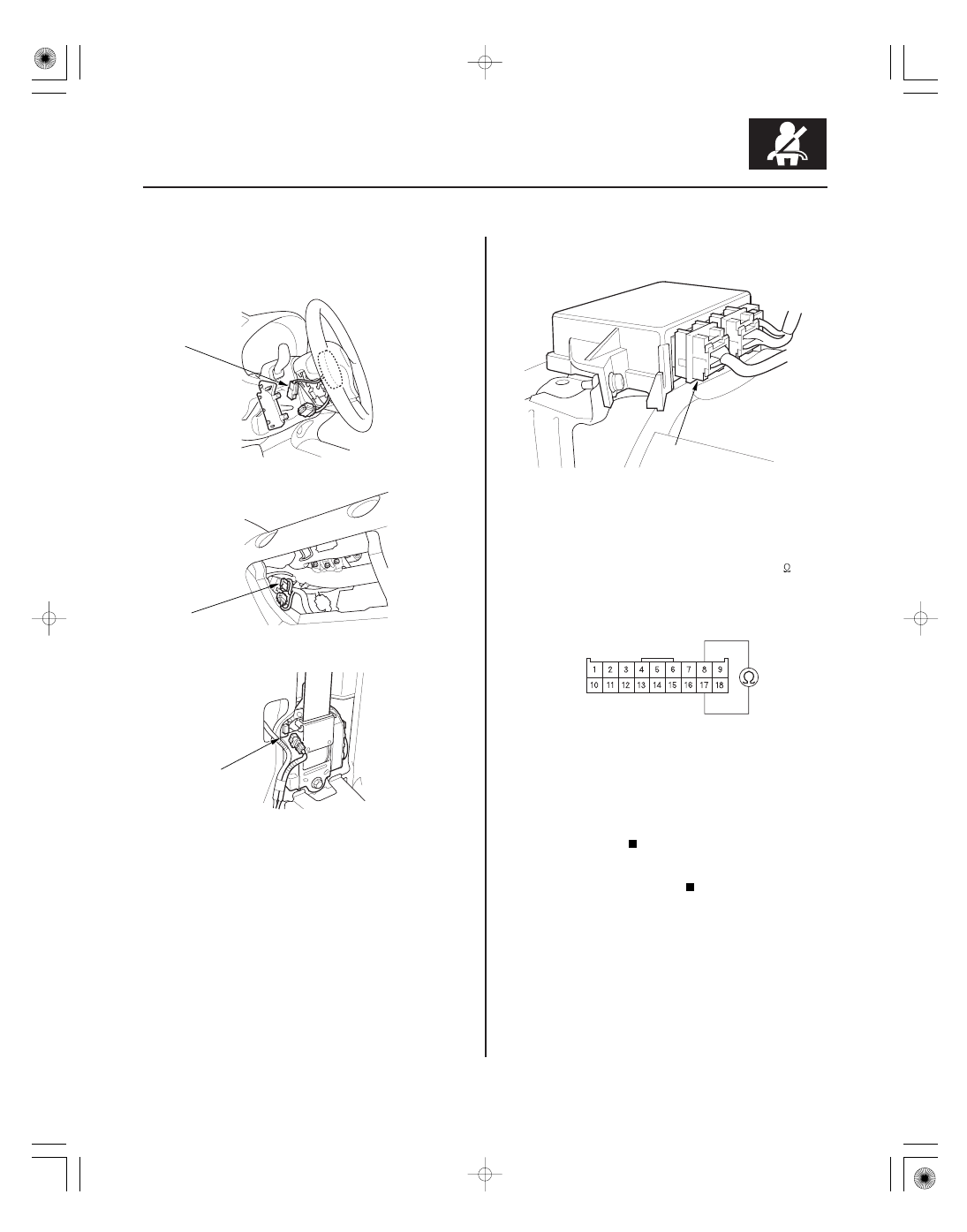

19. Check resistance between the No. 8 terminal and

the No. 17 terminal of SRS unit connector A (18P).
There should be an open circuit or at least 1 M

Faulty SRS unit; replace the SRS unit

(see page 23-141).

Short in the dashboard wire harness; replace

the dashboard wire harness.

Wire side of female terminals

Is the r esistance as specif ied?

05/06/27 18:09:18 61S6M040_230_0049

０１

０３

Ｓ６Ｍ６Ａ００Ｋ７９１０００８１０３４ＦＡＡＴ００

−

DTC 3-4:

Special Tools Required

YES

23-50

SRS

DTC Troubleshooting (cont’d)

07TAZ-SZ5011A

07SAZ-TB4011A

07XAZ-SZ30100

C504

Short to Power in Driver’s Seat Belt

Tensioner

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead C 07TAZ-SZ5011A
• SRS simulator lead F 07XAZ-SZ30100

1. Erase the DTC memory (see page 23-23).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures
(see page 23-24). If another DTC is indicated, go to
the DTC Troubleshooting Index.

3. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

4. Disconnect the driver’s seat belt tensioner 2P

connector from the floor wire harness (A).

5. Connect the SRS inflator simulator (2

connector) and the simulator lead C to the floor
wire harness 2P connector.

6. Reconnect the battery negative cable.

7. Erase the DTC memory.

8. Read the DTC.

Go to step 9.

Short to power in the driver’s seat belt

tensioner; replace the driver’s seat belt (see page
23-4).

9. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

10. Disconnect the floor wire harness 4P connector (A)

from the dashboard wire harness C504.

11. Connect the SRS inflator simulator (2

connectors) and the simulator lead F to the
dashboard wire harness 4P connector C504.

12. Reconnect the battery negative cable.

13. Erase the DTC memory.

14. Read the DTC.

Go to step 15.

Short to power in the floor wire harness;

replace the floor wire harness.

15. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

Does the SRS indicator stay on?

Is DT C 3-4 indicated?

05/06/27 18:09:18 61S6M040_230_0050

０３

０１

＊０１

−

YES

23-51

SRS UNIT CONNECTOR A (18P)

16. Disconnect the driver’s airbag connector (A), front

passenger’s airbag connector (B), and front
passenger’s seat belt tensioner connector (C).

17. Disconnect SRS unit connector A (18P) from the

SRS unit.

18. Disconnect the simulator lead from the dashboard

wire harness 4P connector.

19. Reconnect the battery negative cable.

20. Turn the ignition switch ON (II).

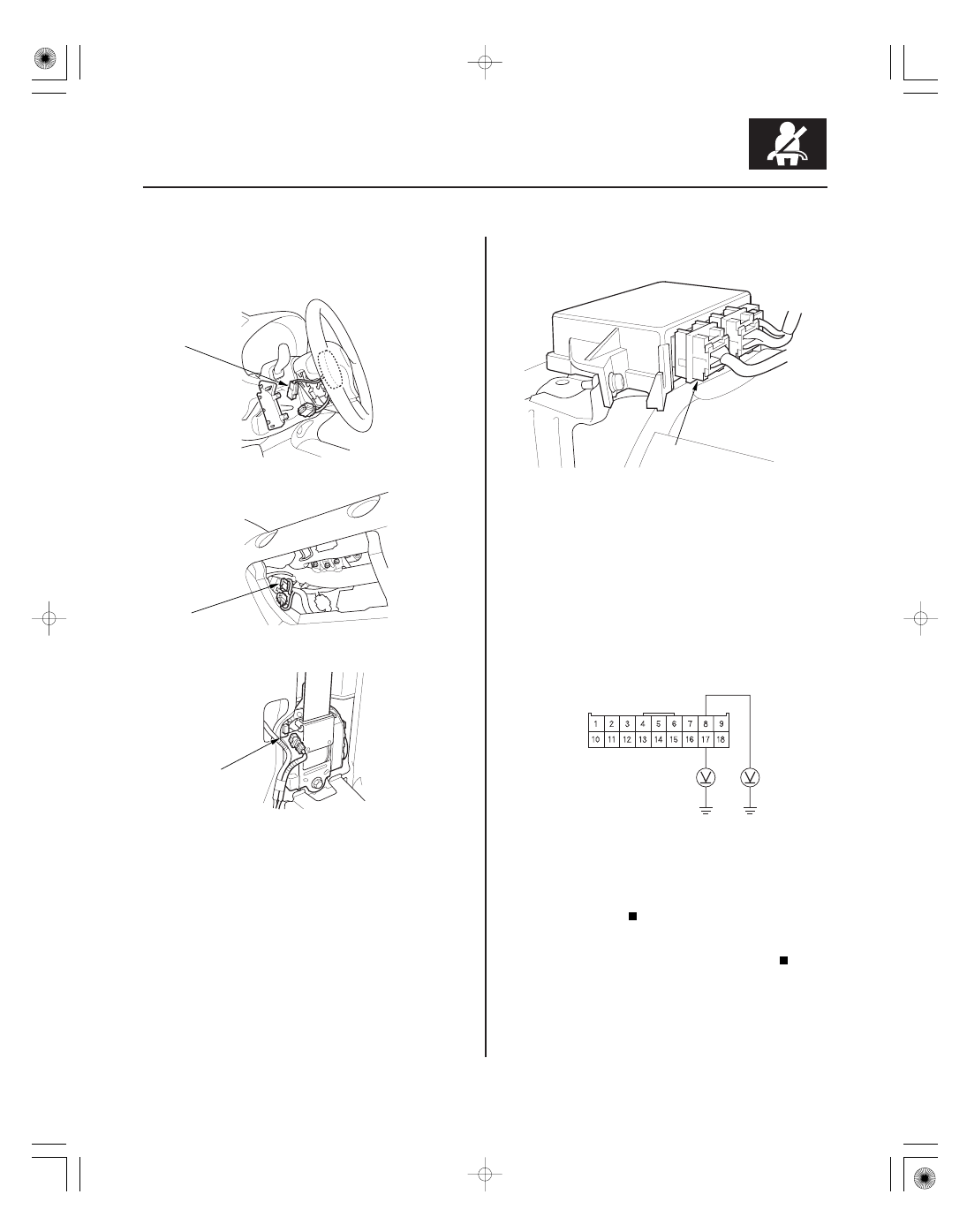

21. Check for voltage between the No. 8 terminal of
