Acura RSX Honda Integra. Manual - part 477

０１

０２

Ｓ６Ｍ６Ａ００Ｋ７９１０００８１０２１ＦＡＡＴ２０

−

DTC 2-1:

Special Tools Required

YES

23-40

SRS

DTC Troubleshooting (cont’d)

07XAZ-SZ30100

07SAZ-TB4011A

Open or Increased Resistance in

Front Passenger’s Airbag Inflator

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead F 07XAZ-SZ30100

1. Erase the DTC memory (see page 23-23).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures
(see page 23-24). If another DTC is indicated, go to
the DTC Troubleshooting Index.

3. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

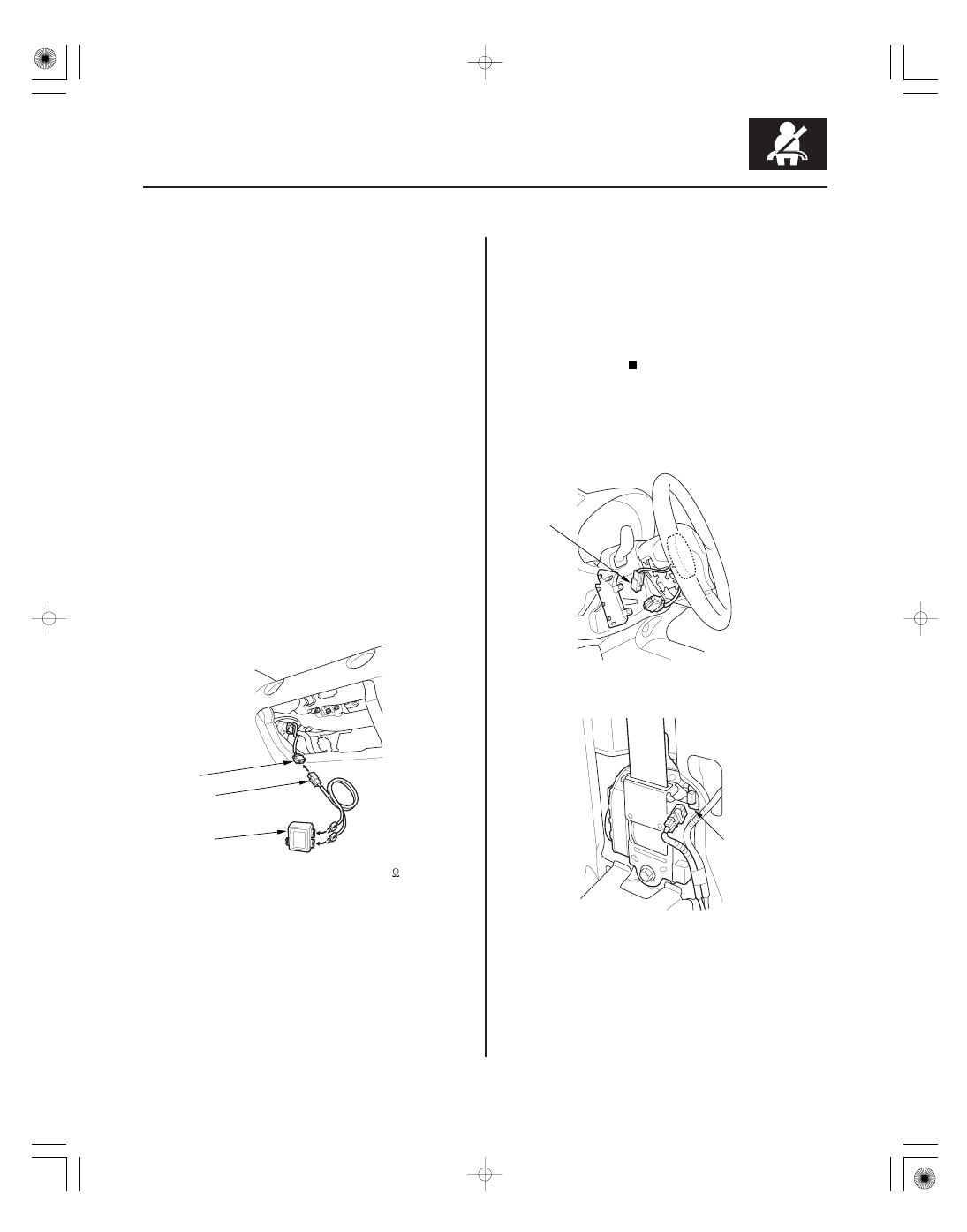

4. Disconnect the front passenger’s airbag 4P

connector from the dashboard wire harness (A).

5. Connect the SRS inflator simulator (2

connectors) and the simulator lead F to the
dashboard wire harness 4P connector.

6. Reconnect the battery negative cable.

7. Erase the DTC memory.

8. Read the DTC.

Go to step 9.

Open or increased resistance in the front

passenger’s airbag inflator; replace the front
passenger’s airbag (see page 23-132).

9. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

10. Disconnect the driver’s airbag 4P connector (A)

from the cable reel.

11. Disconnect both seat belt tensioner 2P connectors

(A) from the floor wire harness.

Does the SRS indicator stay on?

Is DT C 2-1 indicated?

05/06/27 18:08:46 61S6M040_230_0040

−

０１

＊０１

０１

Ｓ６Ｍ６Ａ００Ｋ７９１０００８１０２３ＦＡＡＴ００

−

YES

Special Tools Required

YES

DTC 2-3:

23-41

SRS UNIT CONNECTOR A (18P)

07XAZ-SZ30100

07SAZ-TB4011A

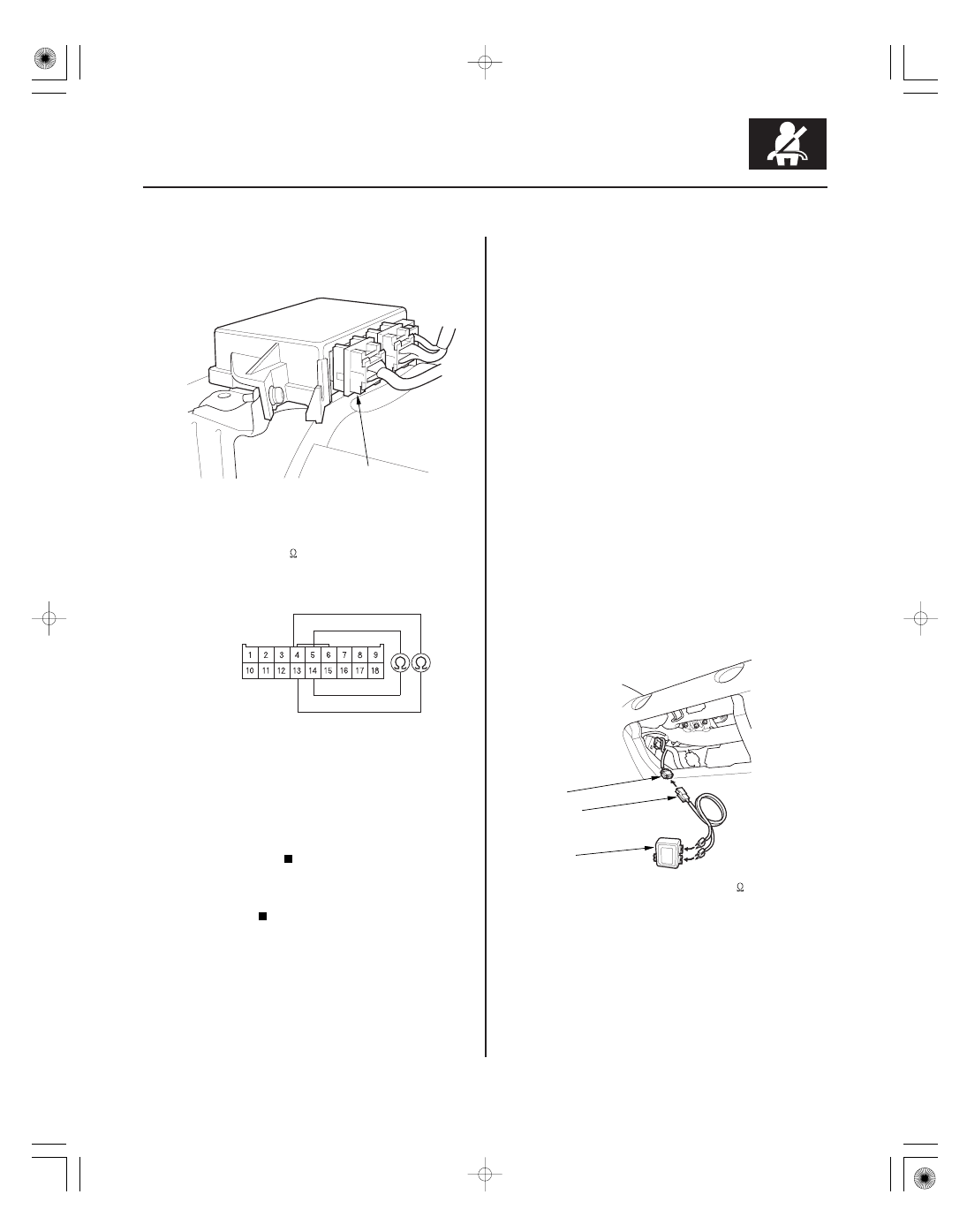

12. Disconnect SRS unit connector A (18P) from the

SRS unit. Do not disconnect the simulator lead
from the dashboard wire harness.

13. Check resistance between the No. 4 and No. 13

terminals and between the No. 5 and No. 14
terminals of SRS unit connector A (18P). There
should be 2.0

3.0

Faulty SRS unit or poor connection at the

SRS unit connector A (18P). Check the connection;
if the connection is OK, replace the SRS unit
(see page 23-141).

Open or increased resistance in the

dashboard wire harness; replace the dashboard
wire harness.

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead F 07XAZ-SZ30100

1. Erase the DTC memory (see page 23-23).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures
(see page 23-24). If another DTC is indicated, go to
the DTC Troubleshooting Index.

3. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

4. Disconnect the front passenger’s airbag 4P

connector from the dashboard wire harness (A).

5. Connect the SRS inflator simulator (2

connectors) and the simulator lead F to the
dashboard wire harness 4P connector.

6. Reconnect the battery negative cable.

7. Erase the DTC memory.

(cont’d)

Short to Another Wire or Decreased

Resistance in Front Passenger’s Airbag
Inflator

Wire side of female terminals

Is the r esistance as specif ied?

Does the SRS indicator stay on?

05/06/27 18:09:14 61S6M040_230_0041

０１

０３

０１

＊０１

−

YES

23-42

SRS

DTC Troubleshooting (cont’d)

SRS UNIT CONNECTOR A (18P)

8. Read the DTC.

Go to step 9.

Short in the front passenger’s airbag inflator;

replace the front passenger’s airbag (see page
23-132).

9. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

10. Disconnect the driver’s airbag 4P connector (A)

from the cable reel.

11. Disconnect both seat belt tensioner 2P connectors

(A) from the floor wire harness 2P connectors (B).

12. Disconnect SRS unit connector A (18P) from the

SRS unit.

13. Disconnect the simulator lead from the dashboard

wire harness 4P connector.

14. Check resistance between the No. 4 and No. 13

terminals and between the No. 5 and No. 14
terminals of SRS unit connector A (18P). There
should be an open circuit or at least 1 M

Faulty SRS unit; replace the SRS unit

(see page 23-141).

Short in the dashboard wire harness; replace

the dashboard wire harness.

Wire side of female terminals

Is DT C 2-3 indicated?

Is the r esistance as specif ied?

05/06/27 18:09:15 61S6M040_230_0042

０１

０２

Ｓ６Ｍ６Ａ００Ｋ７９１０００８１０２４ＦＡＡＴ００

−

DTC 2-4:

Special Tools Required

YES

23-43

07XAZ-SZ30100

07SAZ-TB4011A

Short to Power in Front Passenger’s

Airbag Inflator

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead F 07XAZ-SZ30100

1. Erase the DTC memory (see page 23-23).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures
(see page 23-24). If another DTC is indicated, go to
the DTC Trouble shooting Index.

3. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

4. Disconnect the front passenger’s airbag 4P

connector from the dashboard wire harness (A).

5. Connect the SRS inflator simulator (2

connectors) and the simulator lead F to the
dashboard wire harness 4P connector.

6. Reconnect the battery negative cable.

7. Erase the DTC memory.

8. Read the DTC.

Go to step 9.

Short to power in the front passenger’s airbag

inflator; replace the front passenger’s airbag
(see page 23-132).

9. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

10. Disconnect the driver’s airbag 4P connector (A)

from the cable reel.

11. Disconnect both seat belt tensioner 2P connectors

(A) from the floor wire harness.

(cont’d)

Does the SRS indicator stay on?

Is DT C 2-4 indicated?

05/06/27 18:09:15 61S6M040_230_0043
