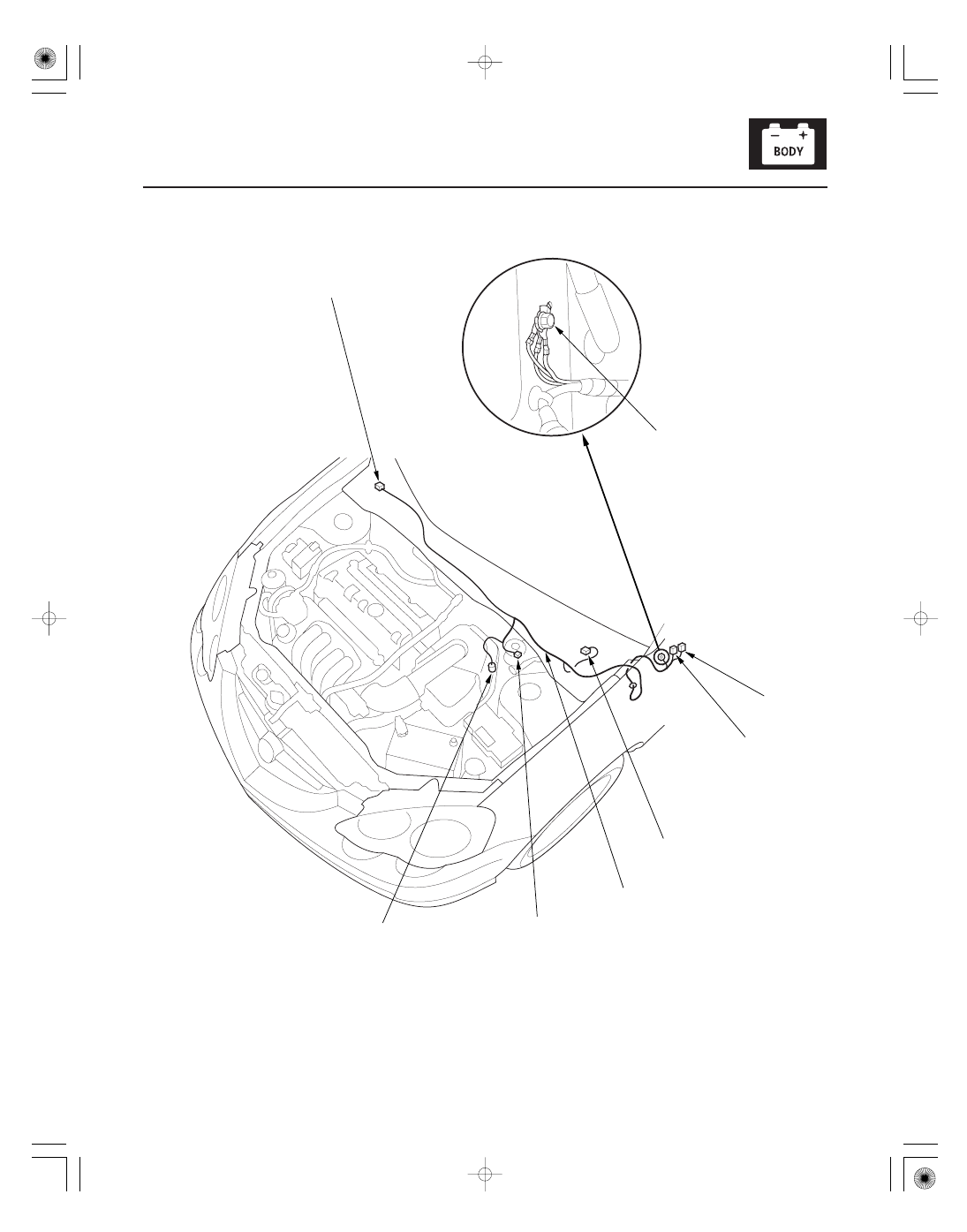

Dashboard Wire Harness (Right branch) (cont’d)
Connector or Terminal
Ref
Cavities
Location
Connects to
Notes
22-30
Connectors and Harnesses
Connector to Harness Index (cont’d)
Airbag inflator (passenger’s)
24
4
Under right side of dash
Antenna sublead connector
35
1
Behind audio unit
’05-06 models
Audio unit
1
20
Behind audio unit
A/F sensor relay
11
4
Behind glove box
Climate control unit
2
30
Behind climate control unit
ECM/PCM connector E
20
31
Under glove box
Glove box light
14
2
Behind glove box
Hazard warning switch
3
10
Middle of dash
Ignition coil relay
6
4
Behind glove box
’05-06 models
No. 31 (15 A) (IG COIL) fuse
9
Behind glove box
’05-06 models
No. 32 (15 A) (IGP) fuse
10
Behind glove box
’05-06 models
Park pin switch and transmission gear
selection switch
28
8
Under shift lever console panel
A/T
PCM connector D
19
17
Under glove box
A/T
PGM-Fl main relay 1
12
4
Behind glove box
PGM-Fl main relay 2
13
4
Behind glove box
Reverse relay
7
5
Behind glove box
A/T
Right tweeter
15
2
Right side of dash
Seat heater relay
7
4
Behind glove box
Canada
Shift lock relay
8
4
Behind glove box
A/T
Shift lock solenoid
29
2
Under shift lever console panel
A/T
SRS unit connector A
31
18
Under middle of dash
C101
18
20
Under middle of dash
Engine wire harness
(see page 22-14)
C401
32
24
Under middle of dash
Engine compartment wire
harness (see page 22-18)
C402
33
12
Under middle of dash
Engine compartment wire
harness (see page 22-18)
C403
34
4
Under middle of dash
Engine compartment wire
harness (see page 22-18)
C405
17
4
Under right side of dash
Front SRS sensor harness
(see page 22-48)
C481
22
21
Under right side of dash
A/C wire harness (see page
22-52)
C482
23
1
Under right side of dash
A/C wire harness (see page
22-52)
C503
27
21
Under middle of dash
Floor wire harness
(see page 22-34)
’02-04 models
C503
27
20
Under middle of dash
Floor wire harness
(see page 22-34)
’05-06 models
C504
26
4
Under middle of dash
Floor wire harness
(see page 22-34)
C505
25
14
Under middle of dash
Floor wire harness
(see page 22-34)
BOSE
C505
25
2
Under middle of dash
Floor wire harness
(see page 22-34)
’02-04 models
C505
25
4
Under middle of dash
Floor wire harness
(see page 22-34)
’05-06 models
C571
16
18
Under right side of dash
Passenger’s door wire
harness (see page 22-51)
’02-04 models
C571
16
20
Under right side of dash
Passenger’s door wire
harness (see page 22-51)
’05-06 models
G402
21
Under right side of dash
Body ground via
dashboard wire harness
G403
4
Behind audio unit
Body ground via
dashboard wire harness
G404
30
Under shift lever console panel
Body ground via
dashboard wire harness
: Without BOSE Stereo Sound System
