PCM CONNECTOR A (31P)

VCC2 (YEL/BLU)

PCM CONNECTORS

NM (WHT/RED)

LG1 (BRN/YEL)

A (31P)

C (22P)

29. Check for continuity between PCM connector

terminal A20 and body ground.

Repair short to ground in the wire between

PCM connector terminal A20 and the input shaft
(mainshaft) speed sensor connector, then go to
step 31.

Check for loose or poor connections at PCM

connector terminal A20. If the connection is OK,
update the PCM if it does not have the latest
software, or substitute a known-good PCM
(see page 14-11), then recheck. If the symptom/
indication goes away with a known-good PCM,
replace the original PCM.

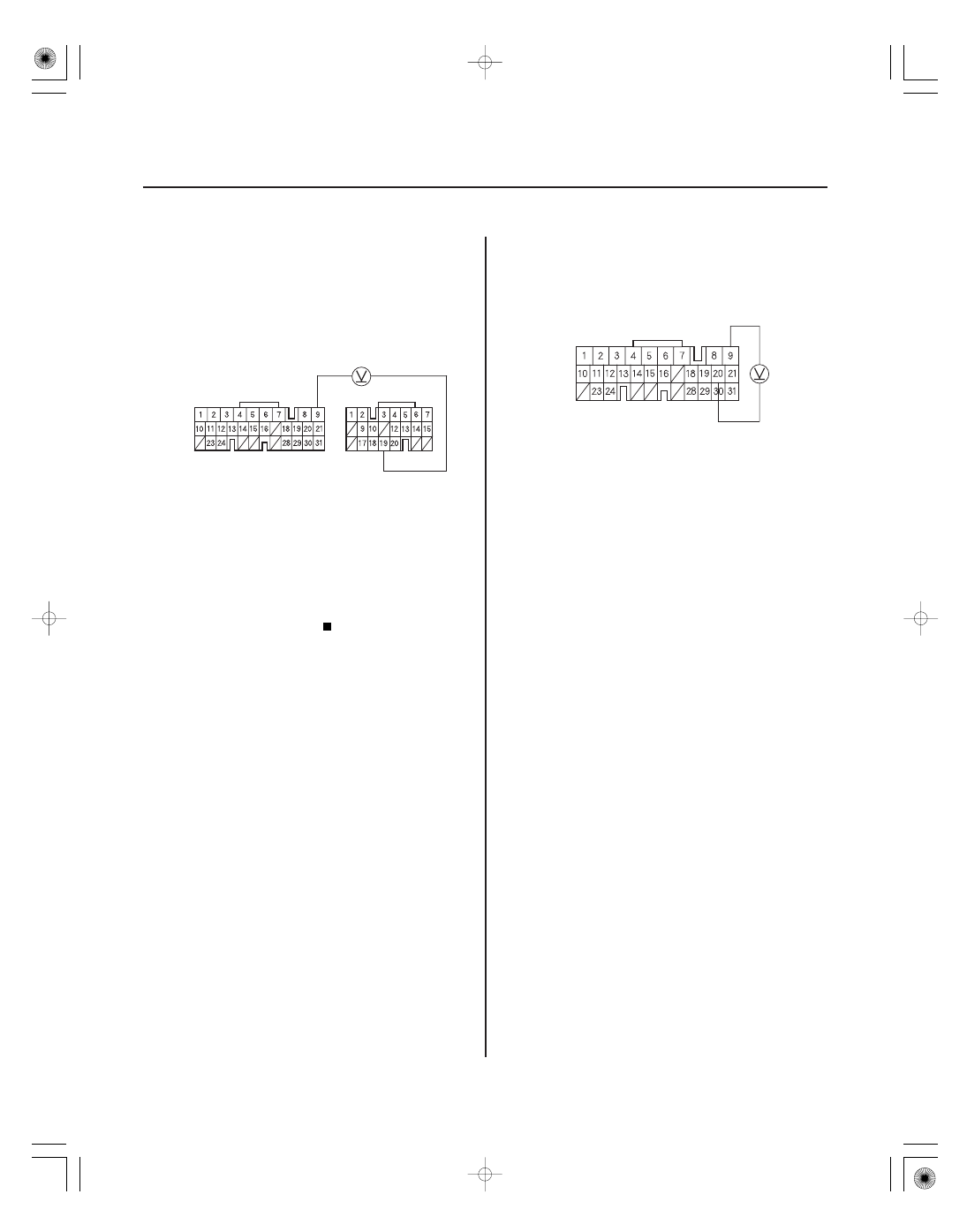

30. Measure the voltage between PCM connector

terminals C19 and A9.

Repair open in the wire between PCM

connector terminal C19 and the input shaft
(mainshaft) speed sensor connector, then go to
step 31.

Check for loose or poor connections at PCM

connector terminal C19. If the connection is OK,
update the PCM if it does not have the latest
software, or substitute a known-good PCM
(see page 14-11), then recheck. If the symptom/
indication goes away with a known-good PCM,
replace the original PCM.

31. Clear the DTC with the HDS.

32. Start the engine, drive the vehicle in the D position,

and hold the vehicle at speeds over 30 mph (48
km/h) for more than 10 seconds.

33. Monitor the OBD status for P0716 in the DTCs/

Freeze Data in A/T Mode Menu for a pass/fail.

Troubleshooting is completed.

Return to step 1 and recheck.

Wire side of female terminals

Is ther e continuity?

Is ther e about 5 V ?

Does the r esult indicate a passed?

05/06/27 17:51:22 61S6M040_140_0158

０１

０２

Ｓ６Ｍ６ＡＰＰＫ７７１０００９０７１７ＦＡＡＴ００

−

DTC P0717:

2005-2006 Models

YES

14-158

Automatic Transmission

DTC Troubleshooting (cont’d)

PCM CONNECTOR A (31P)

LG1 (BRN/YEL)

LG2 (BRN/YEL)

INPUT SHAFT (MAINSHAFT)
SPEED SENSOR CONNECTOR

VCC2 (YEL/BLU)

Problem in Input Shaft

(Mainshaft) Speed Sensor Circuit (No Signal
Input)

NOTE:

• Record all freeze data and review General

Troubleshooting Information (see page 14-8) before
you troubleshoot.

• This code is caused by an electrical circuit problem

and cannot be caused by a mechanical problem in the
transmission.

1. Clear the DTC with the HDS.

2. Check for proper input shaft (mainshaft) speed

sensor installation (see page 14-266).

3. Raise the front of the vehicle, make sure it is

securely supported, and allow the front wheels to
rotate freely.

4. Start the engine, drive the vehicle in the D position,

and hold the vehicle at speeds over 30 mph
(48 km/h) for more than 10 seconds. Slow down
and stop the wheels.

5. Moniter the OBD status for P0717 in the DTCs/

Freeze Data in A/T Mode Menu for a pass/fail.

Go to step 6.

Intermittent failure, the system is OK at this

time. Check for loose or poor connections at the
PCM and input shaft (mainshaft) speed sensor. If
the tester indicates NOT COMPLETED, return to
step 4 and recheck.

6. Turn the ignition switch OFF.

7. Jump the SCS line with the HDS.

8. Disconnect PCM connector A (31P) and input shaft

(mainshaft) speed sensor connector.

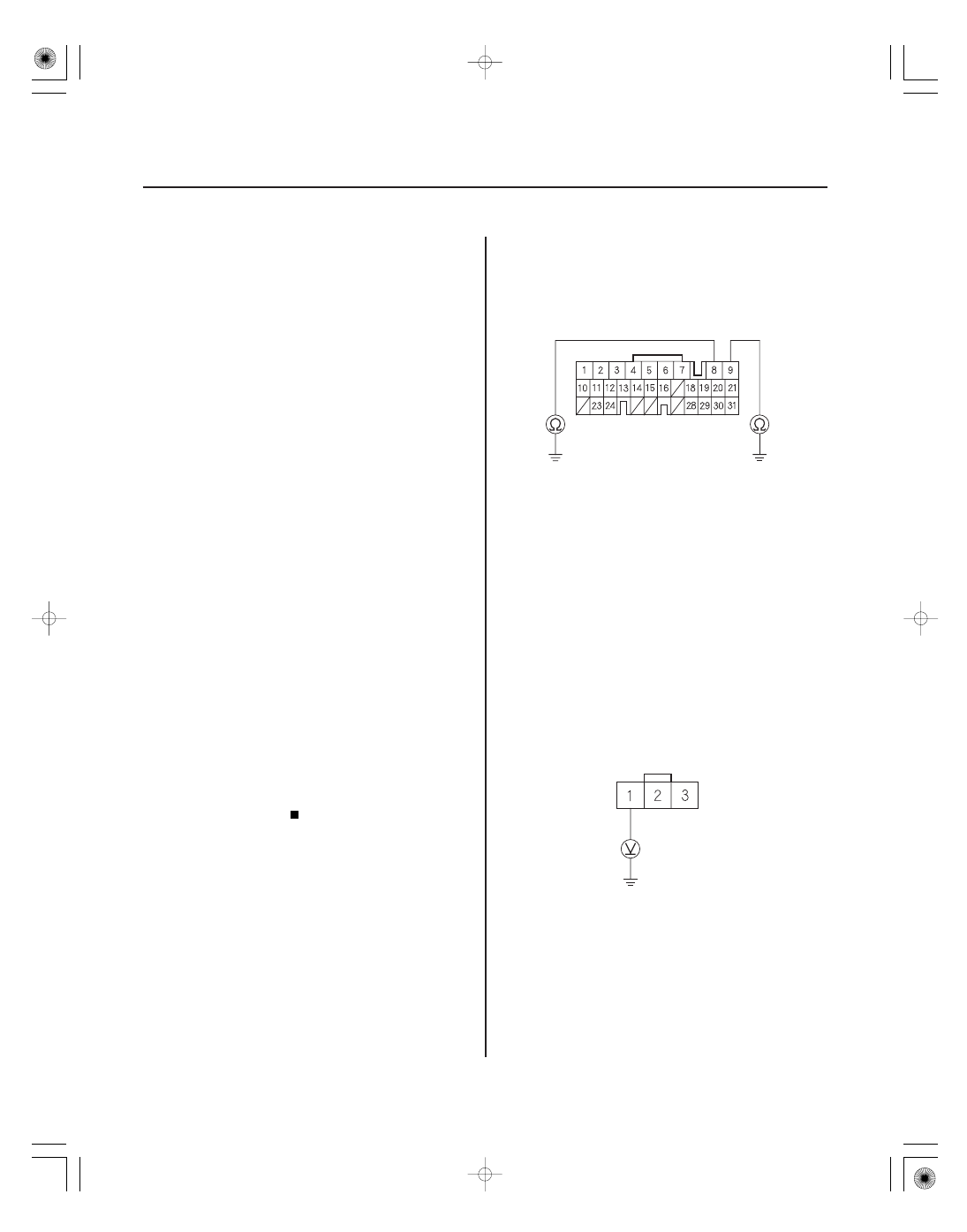

9. Check for continuity between PCM connector

terminals A8 and body ground, and between A9
and body ground.

Go to step 10.

Repair open in the wires between PCM

connector terminals A8, A9, and ground (G101), or
repair poor ground (G101), then go to step 30.

10. Connect PCM connector A (31P).

11. Turn the ignition switch ON (II).

12. Measure the voltage between input shaft

(mainshaft) speed sensor connector terminal No. 1
and body ground.

Go to step 13.

Go to step 25.

Wire side of female terminals

Does the r esult indicate a f ailed?

Is ther e continuity?

Is ther e about 5 V ?

05/06/27 17:51:22 61S6M040_140_0159

０３

＊０１

０５

＊０２

−

YES

14-159

INPUT SHAFT (MAINSHAFT)
SPEED SENSOR CONNECTOR

NM (WHT/RED)

INPUT SHAFT
(MAINSHAFT) SPEED
SENSOR CONNECTOR

SG2 (GRN/YEL)

PCM CONNECTOR A (31P)

INPUT SHAFT (MAINSHAFT)
SPEED SENSOR CONNECTOR

SG2 (GRN/YEL)

NM (WHT/RED)

PCM CONNECTORS

NM (WHT/RED)

LG1 (BRN/YEL)

A (31P)

C (22P)

13. Turn the ignition switch OFF.

14. Disconnect PCM connector C (22P).

15. Check for continuity between input shaft

(mainshaft) speed sensor connector terminal No. 2
and body ground.

Repair short to ground in the wire between

PCM connector terminal C19 and input shaft
(mainshaft) speed sensor, then go to step 31.

Go to step 16.

16. Disconnect PCM connector A (31P).

17. Check for continuity between PCM connector

terminal A23 and input shaft (mainshaft) speed
sensor connector terminal No. 3.

Go to step 18.

Repair open in the wire between the

connector terminal A23 and input shaft (mainshaft)
speed sensor connector, then go to step 31.

18. Connect PCM connectors A (31P) and C (22P).

19. Turn the ignition switch ON (II).

20. Measure the voltage between input shaft

(mainshaft) speed sensor connector terminals
No. 2 and No. 3.

Go to step 21.

Go to step 30.

21. Connect the input shaft (mainshaft) speed sensor

connector.

22. Measure the voltage between PCM connector

terminals C19 and A9.

Go to step 23.

Replace the input shaft (mainshaft) speed

sensor (see page 14-266), then go to step 31.

(cont’d)

Wire side of female terminals

Is ther e continuity?

Is ther e about 5 V ?

Is ther e 0 V or about 5 V ?

05/06/27 17:51:23 61S6M040_140_0160

−

＊０３

＊０４

−

YES

14-160

Automatic Transmission

DTC Troubleshooting (cont’d)

PCM CONNECTORS

NM (WHT/RED)

LG1 (BRN/YEL)

A (31P)

C (22P)

PCM CONNECTOR A (31P)

VCC2 (YEL/BLU)

LG1 (BRN/YEL)

23. Shift to the P position. Start the engine, and let it

idle.

24. With the engine idling, measure the voltage

between PCM connector terminals C19 and A9.

Update the PCM if it does not have the latest

software, or substitute a known-good PCM
(see page 14-11), then recheck. If the symptom/
indication goes away with a known-good PCM,
replace the original PCM.

Replace the input shaft (mainshaft) speed

sensor (see page 14-266), then go to step 31.

25. Measure the voltage between PCM connector

terminals A20 and A9.

Repair open in the wire between PCM

connector terminal A20 and the input shaft
(mainshaft) speed sensor connector, then go to
step 31.

Go to step 26.

26. Turn the ignition switch OFF.

27. Jump the SCS line with the HDS.

28. Disconnect PCM connector A (31P).
