Intake Air System

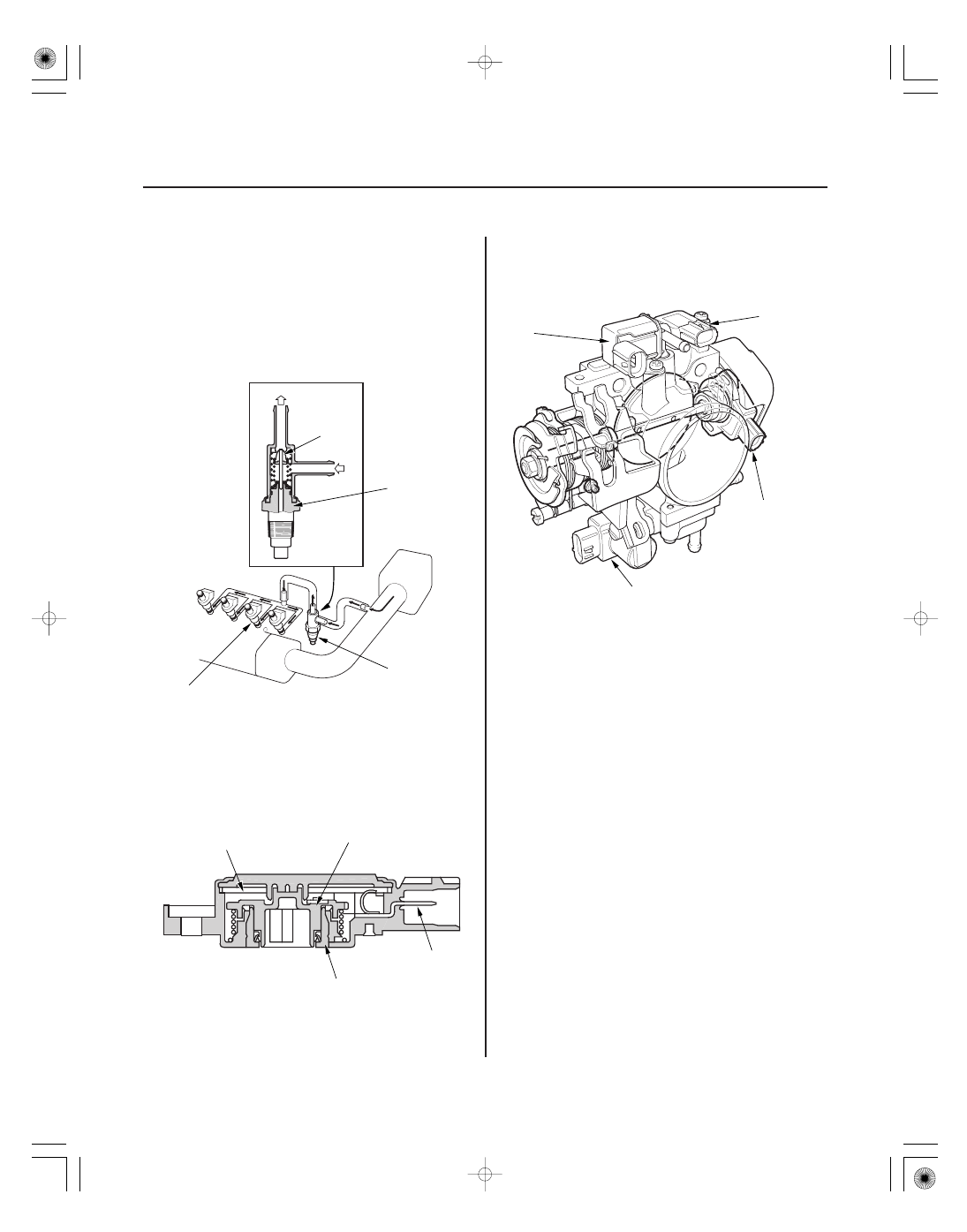

Intake Air Bypass Control Thermal Valve

Intake Manifold Tuning (IMT) (Intake Manifold Runner
Control (IMRC)) Valve Position Sensor (K20A3 engine)

Throttle Body

11-62

Fuel and Emissions Systems

System Description (cont’d)

OUT

IN

VALVE

WAX
ELEMENT

INJECTOR

INTAKE AIR
BYPASS CONTROL
THERMAL VALVE

ELEMENT

BRUSH HOLDER

BRUSH

TERMINAL

TP SENSOR

IAC VALVE

EVAP CANISTER
PURGE VALVE

MAP
SENSOR

Refer to the System Diagram to see the functional
layout of the system.

When the engine is running during warm up, the intake
air bypass control thermal valve sends air to the
injector.

The IMT (IMRC) position sensor is a potentiometer
connected to the IMT (IMRC) valve shaft. As the IMT
(IMRC) valve position changes, the sensor varies the
signal voltage to the ECM/PCM.

The throttle body is a single-barrel side draft type. The
lower portion of the IAC valve is heated by engine
coolant from the cylinder head.

05/06/27 17:32:43 61S6M040_110_0062

22

23

24

Catalytic Converter System

Positive Crankcase Ventilation (PCV) System

Three Way Catalytic Converter (TWC)

K20A2/K20Z1 engines

K20A3 engine

11-63

FRONT OF
VEHICLE

HOUSING

THREE WAY
CATALYST

BREATHER PIPE

PCV
VALVE

INTAKE MANIFOLD

PCV
HOSE

: BLOW-BY VAPOR
: FRESH AIR

BREATHER PIPE

PCV
VALVE

INTAKE MANIFOLD

PCV
HOSE

: BLOW-BY VAPOR
: FRESH AIR

The TWC converts hydrocarbons (HC), carbon
monoxide (CO), and oxides of nitrogen (NOx) in the
exhaust gas to carbon dioxide (CO ), dinitrogen (N ),
and water vapor.

The PCV valve prevents blow-by gasses from escaping
into the atmosphere by venting them into the intake
manifold.

(cont’d)

2

2

05/06/27 17:32:44 61S6M040_110_0063

*16

34

*17

*18

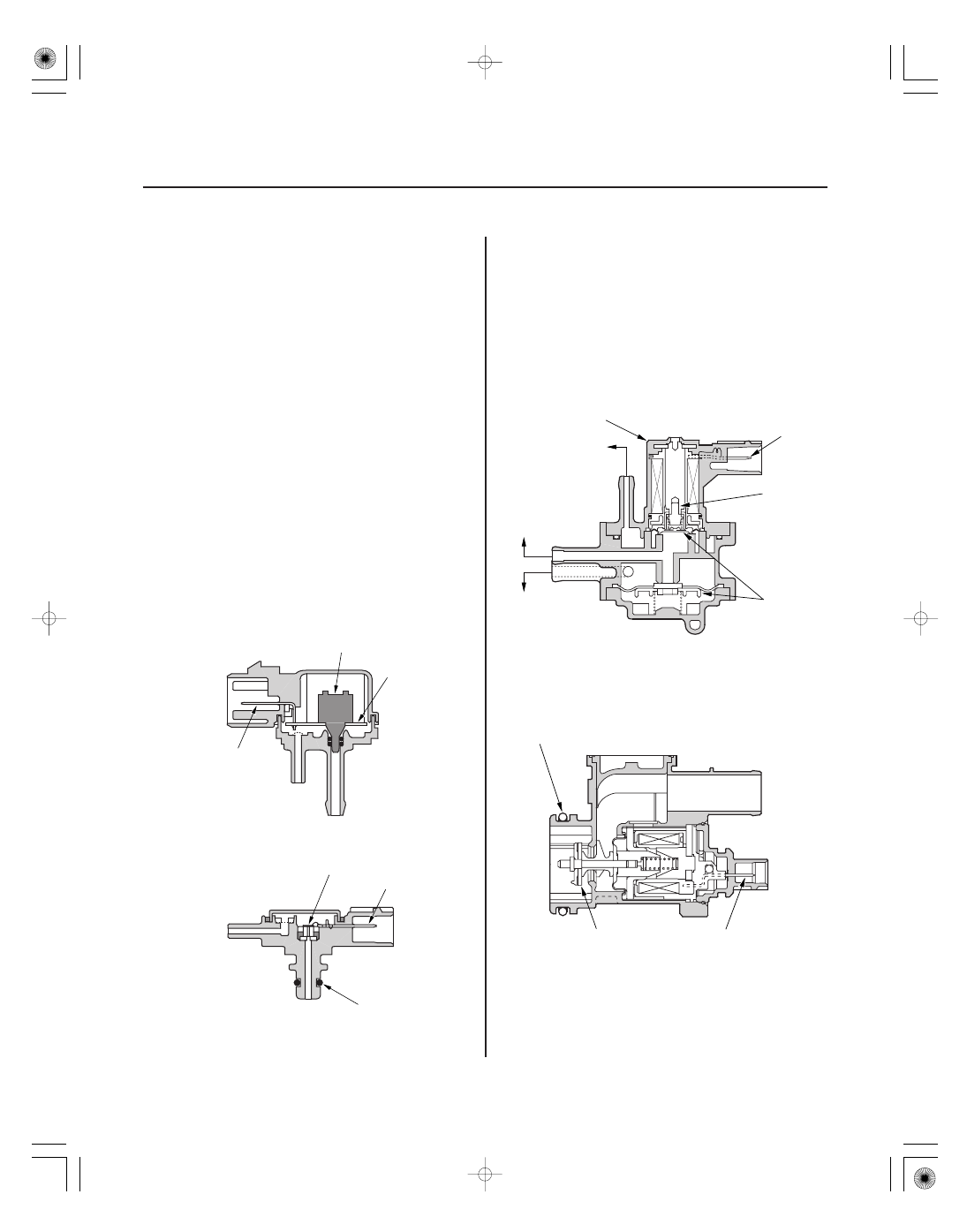

Evaporative Emission (EVAP) Control
System

EVAP Canister

EVAP Canister Purge Valve

2002-2004 Models

EVAP Canister Purge Valve

2005-2006 Models

Fuel Tank Pressure (FTP) Sensor

2002-2004 models

2005-2006 models

EVAP Two Way Valve and EVAP Bypass Solenoid
Valve (2002-2004 Models)

EVAP Canister Vent Shut Valve

11-64

Fuel and Emissions Systems

System Description (cont’d)

SENSOR UNIT

CIRCUIT
ASSEMBLY

TERMINAL

O-RING

TERMINAL

SENSOR UNIT

EVAP BYPASS
SOLENOID VALVE

To FTP SENSOR

To FUEL TANK

VALVE

DIAPHRAGM
VALVE

To EVAP
CANISTER

TERMINAL

O-RING

TERMINAL

VALVE

Refer to the System Diagram to see the functional
layout of the system.

The EVAP canister temporarily stores fuel vapor from
the fuel tank until it can be purged back into the engine
and burned (refer to the System Diagram to see the
functional layout of the system).

When the engine coolant temperature is below 149 °F
(65 °C), the ECM/PCM turns off the EVAP canister purge
valve which cuts vacuum to the EVAP canister.

When the engine coolant temperature is below 140 °F
(60 °C), the ECM/PCM turns off the EVAP canister purge
valve which cuts vacuum to the EVAP canister.

The FTP sensor converts fuel tank absolute pressure
into an electrical input to the ECM/PCM.

The EVAP two way valve is installed between the fuel
tank and the EVAP canister.
The EVAP two way valve sends fuel vapor into the
EVAP canister corresponding to the pressure inside the
fuel tank and relieves excess vacuum by drawing fresh
air in through the canister.
The EVAP bypass solenoid valve opens to bypass the
two way valve when doing at the EVAP leak check.

The EVAP canister vent shut valve is on the EVAP
canister.
The EVAP canister vent shut valve control the venting of
the EVAP canister.

*: This illustration shows 2005-2006 models.

05/06/27 17:32:44 61S6M040_110_0064

36

37

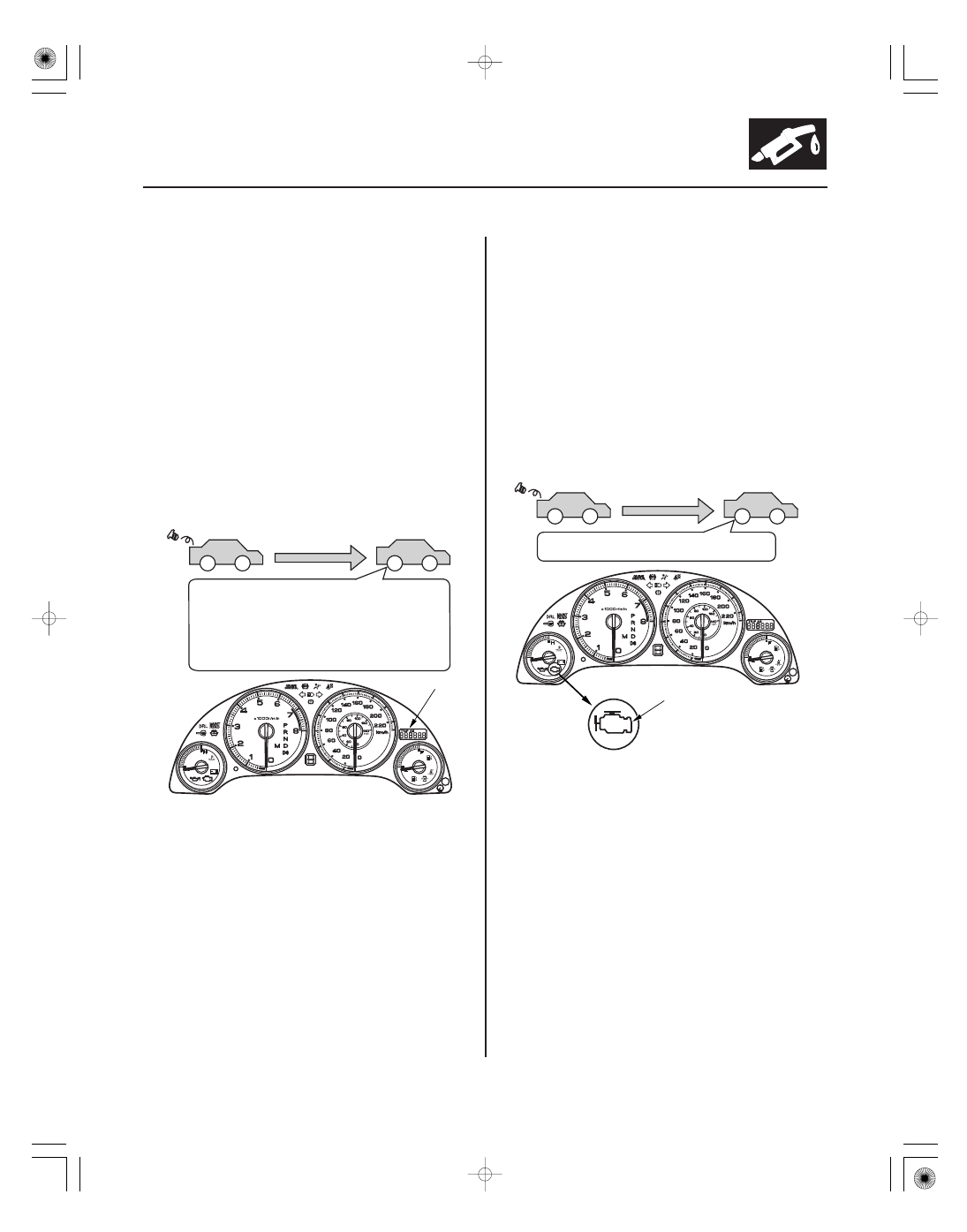

Fuel Cap Warning Message (2005-2006
Models)

First drive cycle

To make the message go off

Second drive cycle

Third drive cycle

11-65

A

Shows ’’CHECK FUEL CAP’’ in the

odometer/trip meter display

and stores Temporary DTC

Stores DTC and MIL comes on

A

The ECM/PCM detects whether the fuel fill cap is loose
or missing under certain conditions and alerts the
driver by showing the information in the odometer/trip
meter display. If the ECM/PCM detects a small volume
leak, the MIL may come on during the second drive
cycle and store a DTC.

During the first drive cycle after a cold start, the ECM/
PCM alerts the driver to check the fuel fill cap by
showing a ‘‘CHECK FUEL CAP’’ message in the
odometer/trip meter display (A), and it stores
Temporary DTC P0457 ‘‘Evaporative Emission (EVAP)
System Leak Detected/Fuel Cap Loose or Missing’’.
Tightening the fuel cap does not make the message go
off immediately.

Tighten the fuel fill cap properly, and do this procedure
several times.

1. Turn the ignition switch OFF.

2. Start the engine, and drive at a steady speed over

28 mph (45 km/h), without moving the accelerator
pedal, for about 1 minute.

During the second drive cycle after a cold start, if the
fuel fill cap is still loose or missing, the ECM/PCM alerts
the driver to check the fuel fill cap by showing a
‘‘CHECK FUEL CAP’’ message in the odometer/trip
meter display as same as the first drive cycle.
Tightening the fuel cap does not make the message go
off immediately.

During the third drive cycle after a cold start, if the fuel
fill cap is still loose or missing, the ECM/PCM stores
DTC P0457 ‘‘Evaporative Emission (EVAP) System Leak
Detected/Fuel Cap Loose or Missing’’. The malfunction
indicator lamp (MIL) (A) comes on, and the ‘‘CHECK
FUEL CAP’’ message goes off.

(cont’d)

05/06/27 17:32:45 61S6M040_110_0065
