Cooling System
Water Passage Replacement (cont’d)
D
B
C
6 x 1.0 mm
12 N·m
(1.2 kgf·m,
8.7 lbf·ft)
A
10 x 1.25 mm
44 N·m
(4.5 kgf·m, 33 lbf·ft)
D
B
C
F
6 x 1.0 mm
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)
A
E

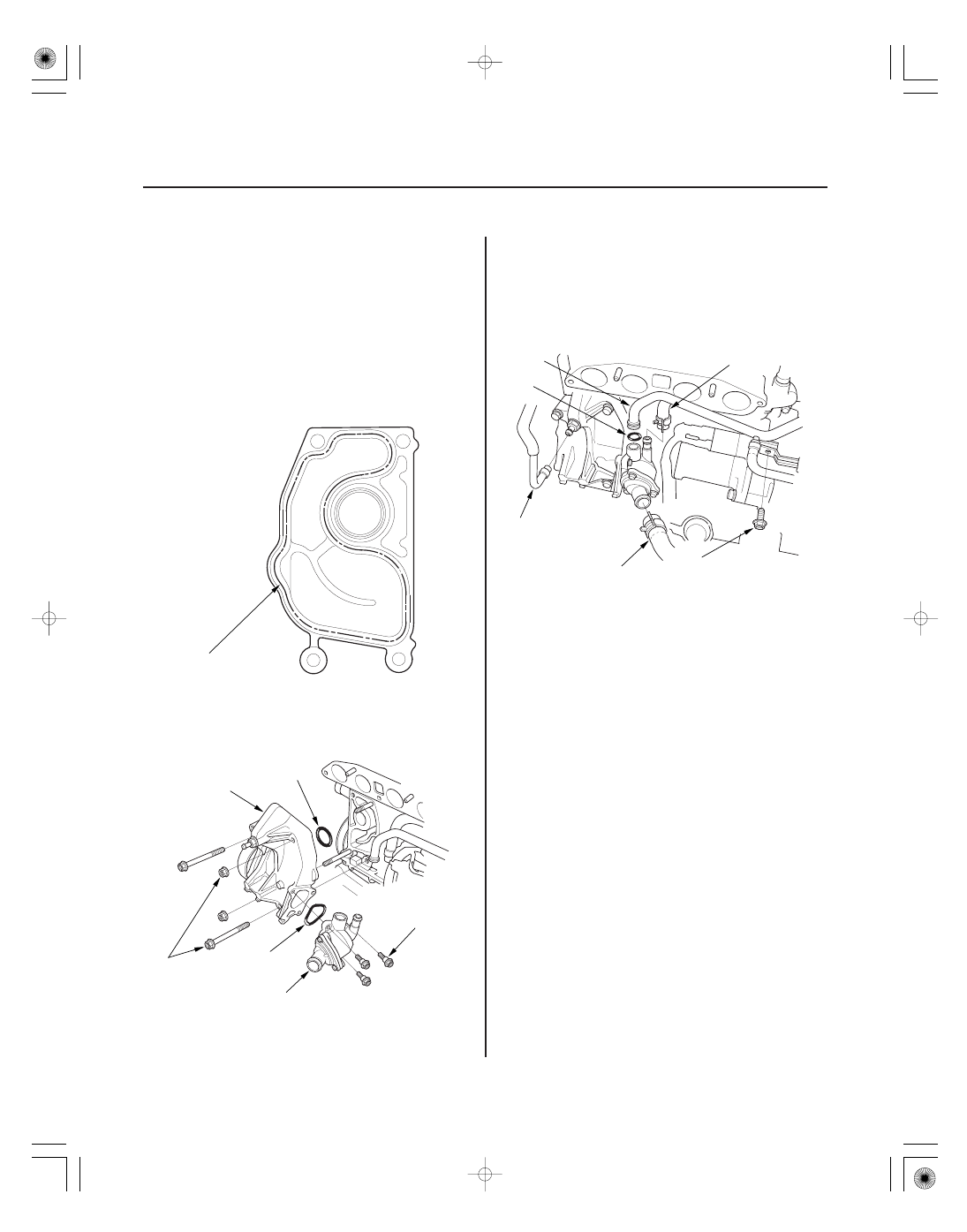

10. Clean and dry the water passage mating surfaces.
11. Apply liquid gasket, P/N 08717-0004, 08718-0001,
08718-0002, 08718-0003, or 08718-0009 evenly to
the cylinder block mating surface of the water
passage.
NOTE: Do not install components if too much time
has passed after applying the liquid gasket (for P/N
08718-0002, no more than 4 minutes, for all others,
no more than 5 minutes). Instead, remove the old
residue and reapply the liquid gasket.
12. Install the water pump (see page 10-5).
13. Install the thermostat housing (A) with a new O-ring
(B).
14. Install the water passage (C) with a new O-ring (D).
NOTE: Wait at least 30 minutes before filling the
engine with coolant.
15. Install the lower hose (A), water bypass hose (B),
and positive crankcase ventilation (PCV) hose (C).
16. Install the connecting pipe (D) with a new O-ring(E).
17. Tighten a bolt (F) securing the connecting pipe.
18. Install the intake manifold:
• K20A3 engine (see page 9-5)
• K20A2, K20Z1 engines (see page 9-11)
19. Install the A/C compressor (see step 3 on page
5-12).
20. Install the alternator (see page 4-46).
Apply liquid gasket
along the broken line.
