Acura RSX Honda Integra. Manual - part 51





01

Intake Valve Stem Installed Height
Standard (New): 44.0

44.5 mm (1.73

1.75 in.)

Service Limit:

44.7 mm (1.76 in.)

Exhaust Valve Stem Installed Height
Standard (New): 44.1

44.6 mm (1.74

1.76 in.)

Service Limit:

44.8 mm (1.76 in.)

6-48

Cylinder Head

Valve Seat Reconditioning (cont’d)

A

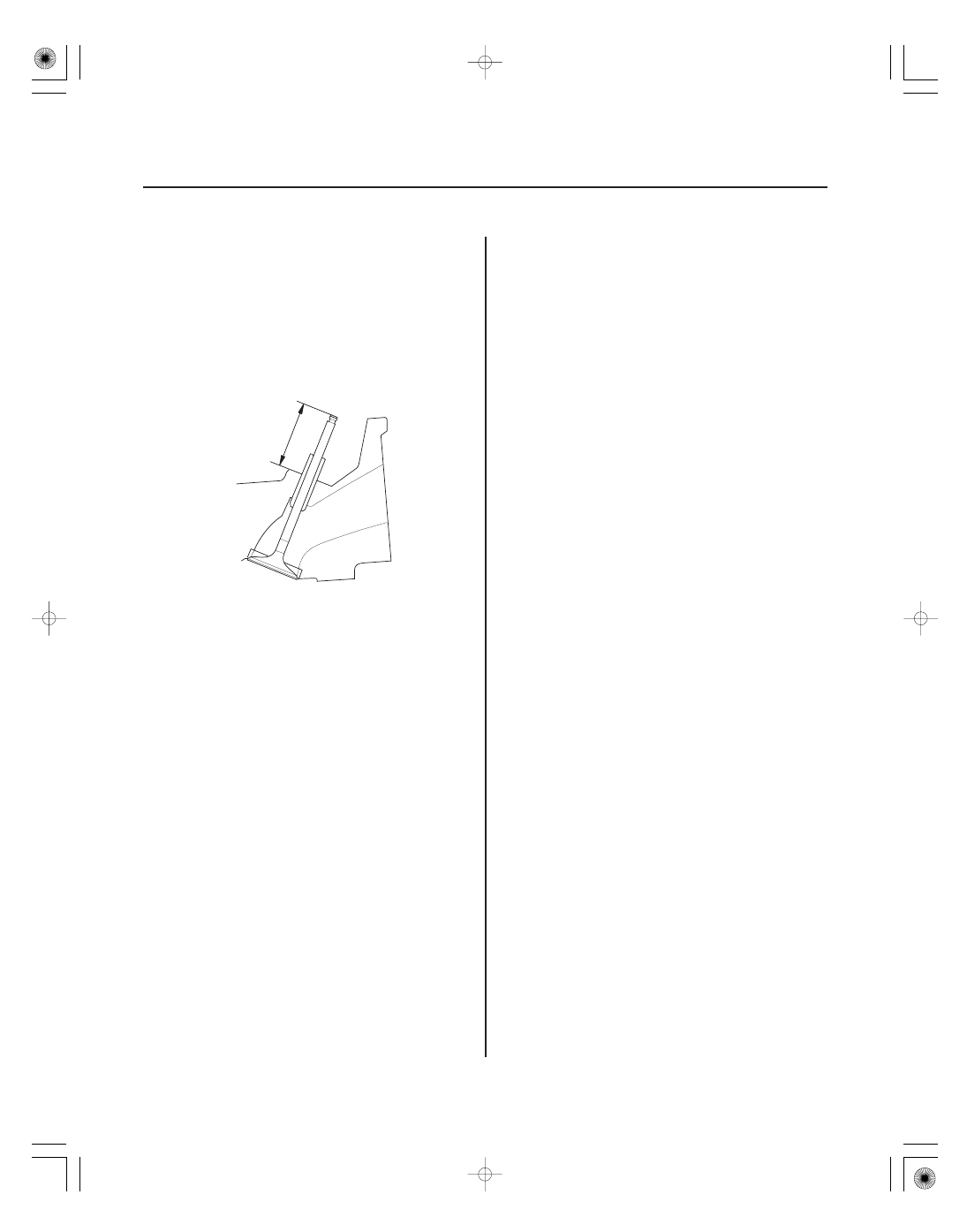

8. Insert the intake and exhaust valves in the head,

and measure valve stem installed height (A).

9. If valve stem installed height is over the service

limit, replace the valve and recheck. If it is still over
the service limit, replace the cylinder head; the
valve seat in the head is too deep.

01

02

02

S6M6A00A14680200000KCAT00

Special Tools Required

6-49

Valve, Spring, and Valve Seal Installation

F

D

E

C

A

B
07PAD-0010000

07757-PJ1010A

A

• Stem seal driver 07PAD-0010000
• Valve spring compressor attachment 07757-PJ1010A

1. Coat the valve stems with engine oil. Install the

valves in the valve guides.

2. Check that the valves move up and down smoothly.

3. Install the spring seats on the cylinder head.

4. Install the new valve seals (A) using the stem seal

driver (B).

NOTE: The exhaust valve seal (C) has a black spring
(D), and the intake valve seal (E) has a white spring
(F). They are not interchangeable.

5. Install the valve spring(s) (the 2002 model K20A2

engine has inner and outer valve springs). Place the
end of the valve spring with closely wound coils
toward the cylinder head.

6. Install the valve retainer.

7. Install the valve spring compressor. Compress the

spring, and install the valve cotters.

8. Lightly tap the end of each valve stem two or three

times with a plastic mallet (A) to ensure proper
seating of the valve and valve cotters. Tap the valve
stem only along its axis so you do not bend the
stem.

NOTE: Use 5.5 mm side.

01

02

03

04

S6M6A00A14666300000KCAT00

Specified Torque:
8 mm Bolts: 22 N·m (2.2 kgf·m, 16 lbf·ft)
6 mm Bolts: 12 N·m (1.2 kgf·m, 8.7 lbf·ft)
6 mm Bolts:

,

,

6-50

Cylinder Head

Rocker Arm Assembly Installation

A

A

B

B

A

C

1. Reassemble the rocker arm assembly (see page

6-36).

2. Clean and dry the No. 5 rocker shaft holder mating

surface.

3. Apply liquid gasket, P/N 08717-0004, 08718-0001,

08718-0002, 08718-0003, or 08718-0009 evenly to
the cylinder head mating surface of the No. 5
rocker shaft holder.

NOTE: Do not install components if too much time
has passed after applying the liquid gasket (for P/N
08718-0002, no more than 4 minutes, for all others,
no more than 5 minutes). Instead, remove the old
residue and reapply the liquid gasket.

4. Insert the bolts (A) into the rocker shaft holder, then

install the rocker arm assembly (B) on the cylinder
head.

5. Remove the bolts from the rocker shaft holder.

6. Punch marks on the VTC actuator and exhaust

camshaft sprocket are facing up, then set the
camshafts (A) in the holder.

7. Set the camshaft holders (B) and cam chain guide B

(C) in place.

8. Tighten the bolts to the specified torque.

NOTE: If the engine does not have bolt

, skip it

and continue the torque sequence.

9. Install the cam chain (see page 6-17), and adjust the

valve clearance (see page 6-11).

Apply liquid gasket
along the broken line.

01

02

01

04

S6M6A00A14600000000KCAT00

6-51

Cylinder Head Installation

A

B

B

A

B 50 mm (2.0 in.)

A 45 mm (1.8 in.)

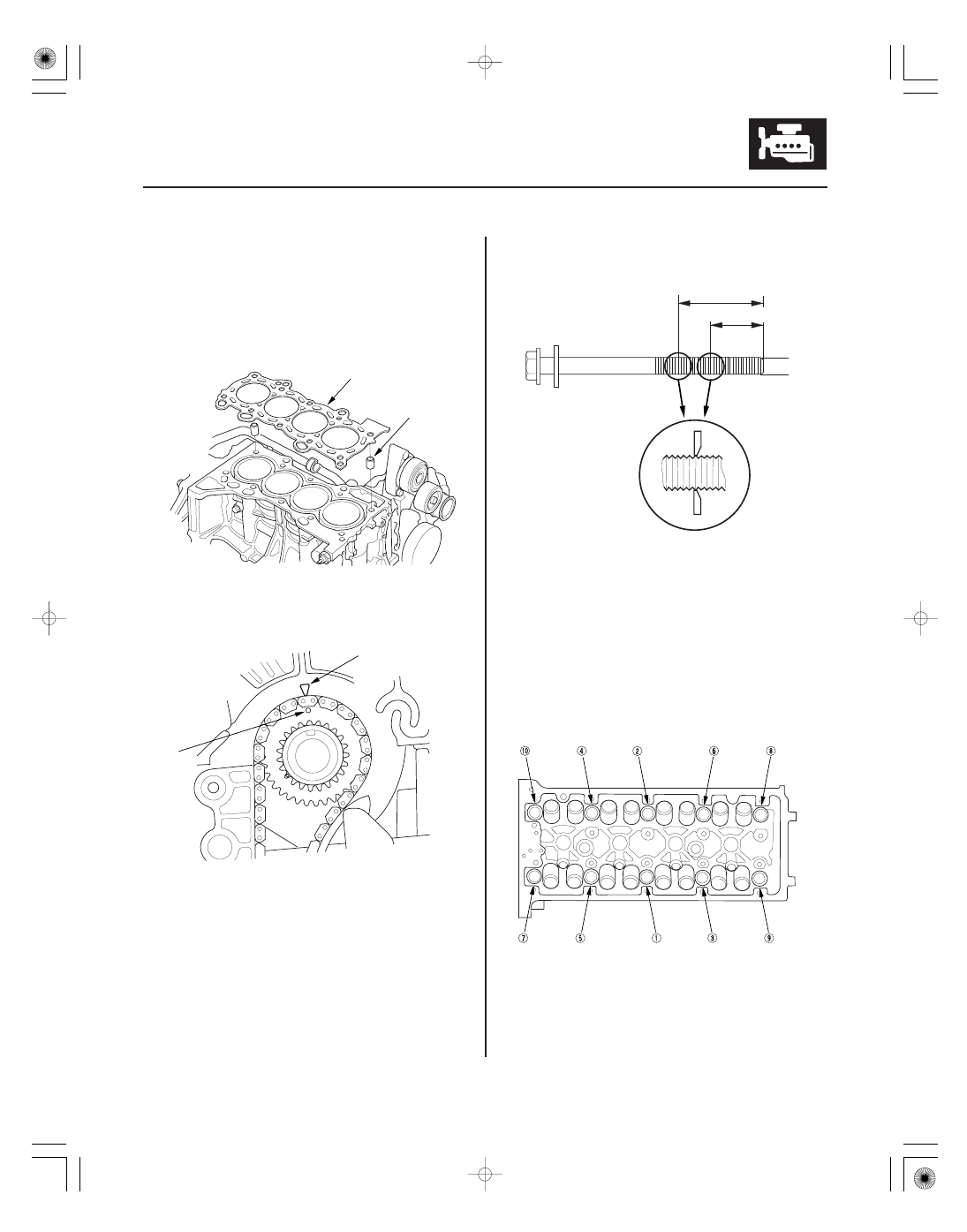

Install the cylinder head in the reverse order of
removal:

1. Clean the cylinder head and block surface.

2. Install the new cylinder head gasket (A) and dowel

pins (B) on the engine block. Always use a new
cylinder head gasket.

3. Set the crankshaft to top dead center (TDC). Align

the TDC mark (A) on the crankshaft sprocket with
the pointer (B) on the engine block.

4. Install the cylinder head on the block.

5. Measure the diameter of each cylinder head bolt at

point A and point B.

6. If either diameter is less than 10.6 mm (0.42 in.),

replace the cylinder head bolt.

7. Apply new engine oil to the bolt threads and flange

of all the cylinder head bolts.

8. Tighten the cylinder head bolts in sequence to

39 N·m (4.0 kgf·m, 29 lbf·ft). Use a beam-type
torque wrench. When using a preset-type torque
wrench, be sure to tighten slowly and do not
overtighten. If a bolt makes any noise while you are
torquing it, loosen the bolt and retighten it from the
first step.

(cont’d)
