Acura RSX Honda Integra. Manual - part 16

Ｓ６Ｍ６Ａ０００００００００Ｊ０４０１ＺＣＡＴ００

Engine Electrical

Starting System

Ignition System

Charging System

Cruise Control

...........................

Special Tools

. 4-2

...

.....................................

.......................

..................

..............

.......

...........................

.....................

...

.....................................

.......................

..................

..............

.......

...........................

.....................

Component Location Index

. 4-3

Symptom Troubleshooting

Index

. 4-4

Circuit Diagram

. 4-5

Starter Circuit

Troubleshooting

. 4-6

Clutch Interlock Switch Test

. 4-8

Starter Solenoid Test

. 4-8

Starter Performance Test

. 4-9

Starter Removal and

Installation

. 4-11

Starter Overhaul

. 4-14

...

.......................

.....

...........................

..................

.............

...

.......................

.....

...........................

..................

.............

Component Location Index

. 4-22

Circuit Diagram

. 4-23

Ignition Timing Inspection

. 4-25

Ignition Coil Removal/

Installation

. 4-26

Ignition Coil Relay Circuit

Troubleshooting

. 4-26

Spark Plug Inspection

. 4-28

...

.....................................

.......................

......

...

.....................................

.......................

......

Component Location Index

. 4-29

Symptom Troubleshooting

Index

. 4-30

Circuit Diagram

. 4-31

Charging System Indicator

Circuit Troubleshooting

. 4-32

Alternator and Regulator

Circuit Troubleshooting

. 4-39

......

..............

..........

............................

........................

...........................

......................

........

......

..............

..........

............................

........................

...........................

......................

........

Alternator Control

Circuit Troubleshooting

. 4-40

Drive Belt Inspection

. 4-43

Drive Belt Replacement

. 4-43

Drive Belt Auto-tensioner

Inspection

. 4-44

Drive Belt Auto-tensioner

Replacement

. 4-45

Alternator Removal and

Installation

. 4-46

Alternator Overhaul

K20A3 engine

. 4-48

K20A2, K20Z1 engines

. 4-53

...

.....................................

.......................

........

.............................

...

.......................

.............

....

..........................

...

.....................................

.......................

........

.............................

...

.......................

.............

....

..........................

Component Location Index

. 4-59

Symptom Troubleshooting

Index

. 4-60

Circuit Diagram

. 4-62

Cruise Control

Communication Circuit
Troubleshooting (A/T)

. 4-63

Cruise Control Unit

Input Test

. 4-64

Cruise Control Main

Switch Test/Replacement

. 4-67

Cruise Control Set/decel,

Resume/accel, Cancel
Switch Test/Replacement

. 4-68

Cruise Control

Actuator Test

. 4-68

Cruise Control Actuator/

Cable Replacement

. 4-69

Actuator Cable Adjustment

. 4-71

Clutch Pedal Position

Switch Test

. 4-71

０１

Ｓ６Ｍ６Ａ０００００００００Ｊ０４０１ＰＡＡＴ００

Ref. No.

Tool Number

Description

Qty

4-2

Engine Electrical

Special Tools

07746-0010300

Attachment, 42 x 47 mm

07749-0010000

Driver

＊０１

Ｓ６Ｍ６Ａ００Ａ４６５００００００００ＤＡＡＴ００

4-3

Starting System

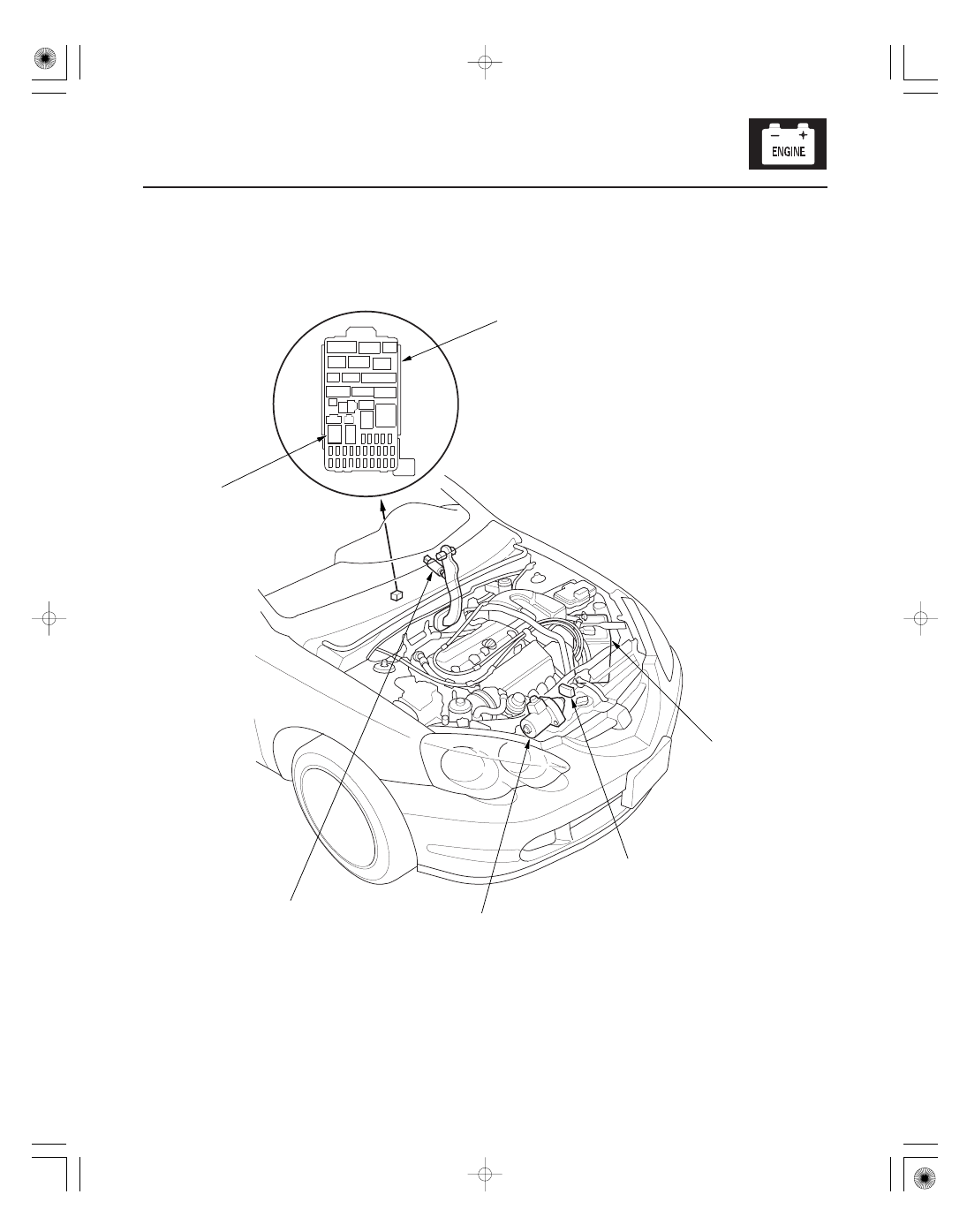

Component Location Index

UNDER-DASH
FUSE/RELAY BOX

STARTER CUT RELAY

TRANSMISSION RANGE
SWITCH (A/T)

STARTER

CLUTCH INTERLOCK SWITCH (M/T)

BATTERY

Test, page 22-62

Test, page 14-306
Replacement, page 14-308

Starter Circuit Troubleshooting, page 4-6
Solenoid Test, page 4-8
Performance Test, page 4-9
Removal and Installation, page 4-11
Overhaul, page 4-14

Test, page 4-8
Adjustment, page 12-6

Test, page 22-61

Ｓ６Ｍ６Ａ００Ａ４６５００００００００ＨＢＡＴ０１

Symptom

Diagnostic procedure

Also check for

4-4

Starting System

Symptom Troubleshooting Index

•
•

Engine does not start
(does not crank)

1.
2.
3.
4.
5.

6.
7.

Check for loose battery terminals or connections.
Test the battery for a low charge (see page 22-61).
Check the starter (see page 4-6).
Check the starter cut relay (see page 22-62).
Check the transmission range switch (A/T) (see page
14-306).
Check the clutch interlock switch (M/T) (see page 4-8).
Check the ignition switch or wire (see page 22-64).

Poor ground at G101
(A/T) or G402 (M/T)

Engine cranks, but does
not start

1.
2.

5.
6.
7.

Check for PGM-FI DTCs (see page 11-3).
Check the fuel pressure.

2002-2004 models (see page 11-375)
2005-2006 models (see page 11-376)

Check for a plugged or damaged fuel line (see page
11-365).
Check for a plugged fuel filter.

2002-2004 models (see page 11-374)
2005-2006 models (see page 11-374)

Check the throttle body (see page 11-403).
Check for low engine compression (see page 6-6).
Check for a damaged or broken cam chain.

Engine is hard to start

1.
2.

Check for PGM-FI DTCs (see page 11-3).
Check the fuel pressure.

2002-2004 models (see page 11-375)
2005-2006 models (see page 11-376)

Check for a plugged or damaged fuel line (see page
11-365).
Check for a plugged fuel filter.

2002-2004 models (see page 11-374)
2005-2006 models (see page 11-374)

Engine cranks slowly

1.
2.
3.
4.

Check for loos batte terminals or connections.
Test the battery for a low charge (see page 22-61).
Check the starter for binding (see page 4-6).
Check for an excessive drag in the engine
