25. Remove the P/S heat shield (A). A

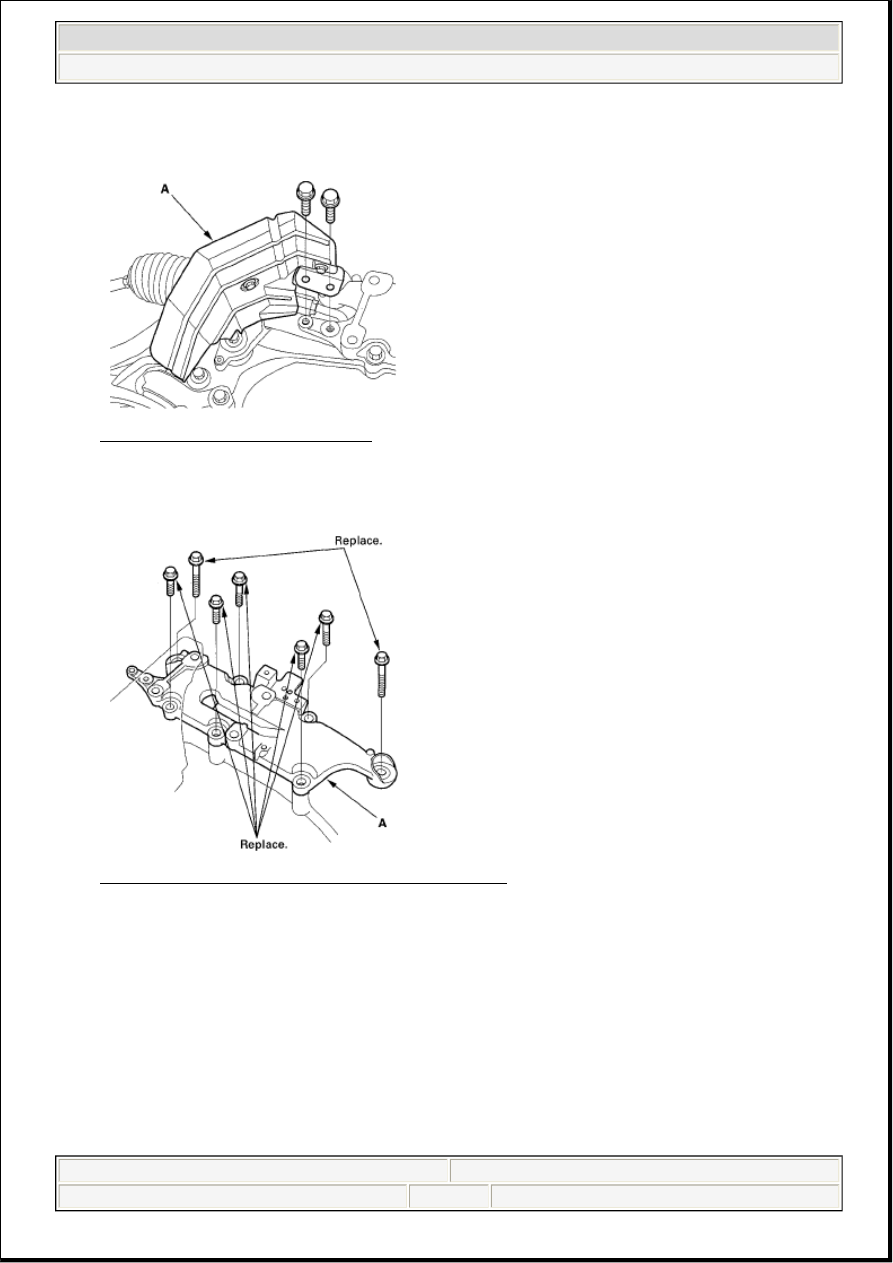

Fig. 72: Identifying P/S Heat Shield
Courtesy of AMERICAN HONDA MOTOR CO., INC.

26. Remove the gearbox stiffener (A).

Fig. 73: Identifying Gearbox Stiffener And Fasteners
Courtesy of AMERICAN HONDA MOTOR CO., INC.

27. Remove the dynamic damper between the gearbox stiffener and front suspension subframe.

28. Remove the steering gearbox mounting bolt (A) and washer (B) on the right gearbox mount.



2007 Acura RL

2005-08 STEERING Steering - RL



me



Friday, June 05, 2009 2:20:15 PM

Page 47

© 2005 Mitchell Repair Information Company, LLC.

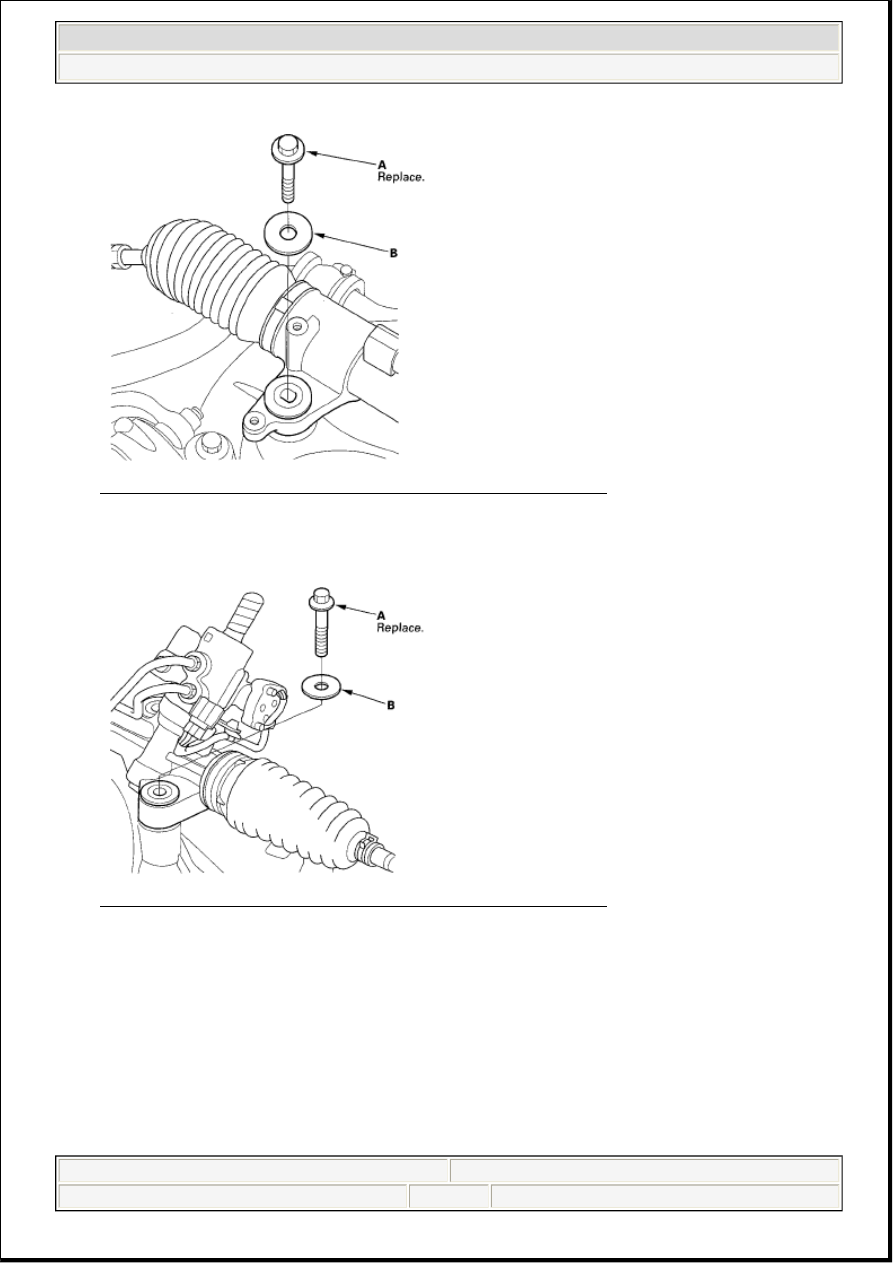

Fig. 74: Identifying Steering Gearbox Mounting Bolt And Washer
Courtesy of AMERICAN HONDA MOTOR CO., INC.

29. Remove the steering gearbox mounting bolt (A) and washer (B) on the left gearbox mount.

Fig. 75: Identifying Steering Gearbox Mounting Bolt And Washer
Courtesy of AMERICAN HONDA MOTOR CO., INC.

30. Remove the 4-way brake line joint bolts (A). Do not disconnect the lines.



2007 Acura RL

2005-08 STEERING Steering - RL



me



Friday, June 05, 2009 2:20:15 PM

Page 48

© 2005 Mitchell Repair Information Company, LLC.

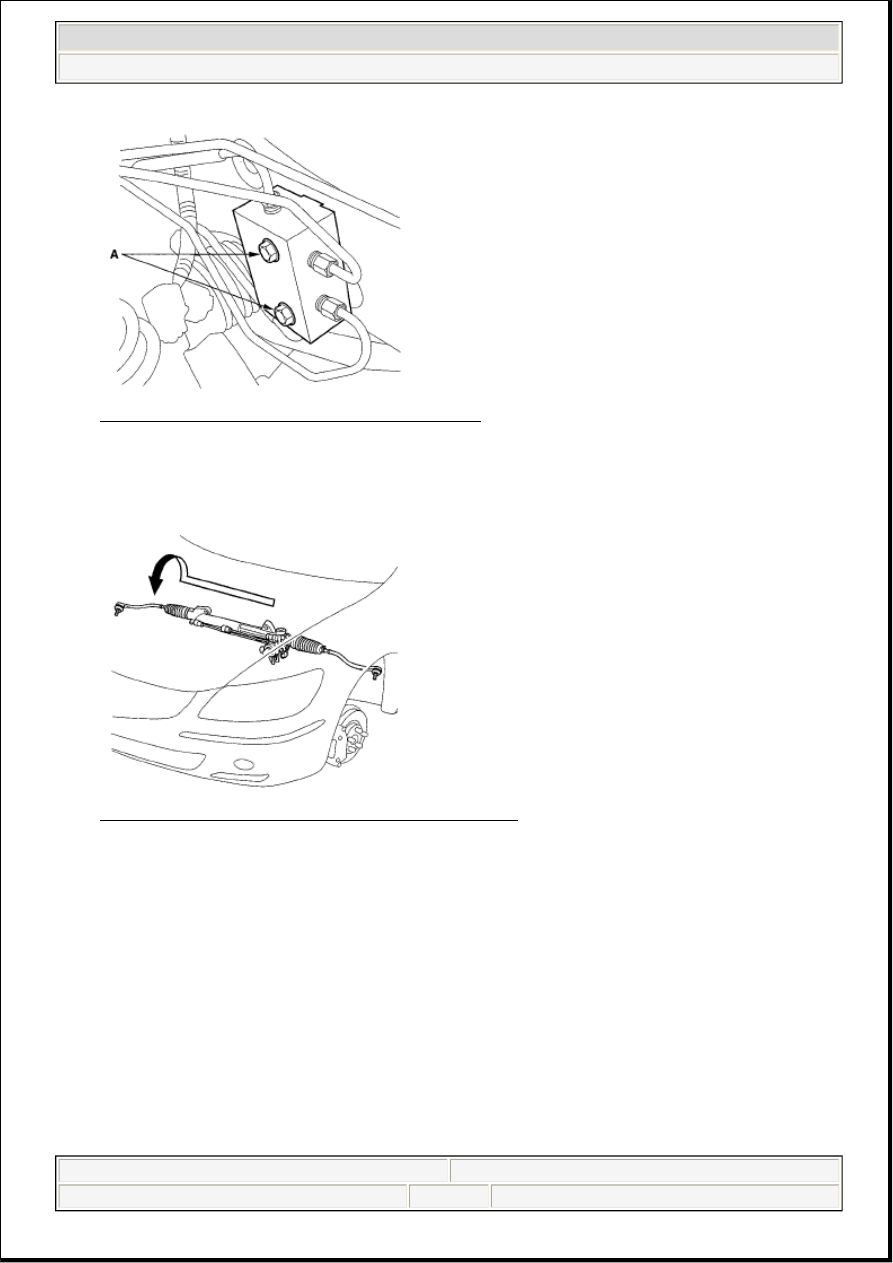

Fig. 76: Identifying 4-Way Brake Line Joint Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

31. Move the steering gearbox to the passenger's side, and rotate it so the pinion shaft points toward the

front of the vehicle.

Fig. 77: Moving Steering Gearbox To Passenger's Side
Courtesy of AMERICAN HONDA MOTOR CO., INC.

32. Carefully move the steering gearbox as an assembly toward the left side of the vehicle until the pinion

shaft clears the wheelwell opening. Be careful not to damage the brake lines with the pinion shaft.



2007 Acura RL

2005-08 STEERING Steering - RL



me



Friday, June 05, 2009 2:20:15 PM

Page 49

© 2005 Mitchell Repair Information Company, LLC.

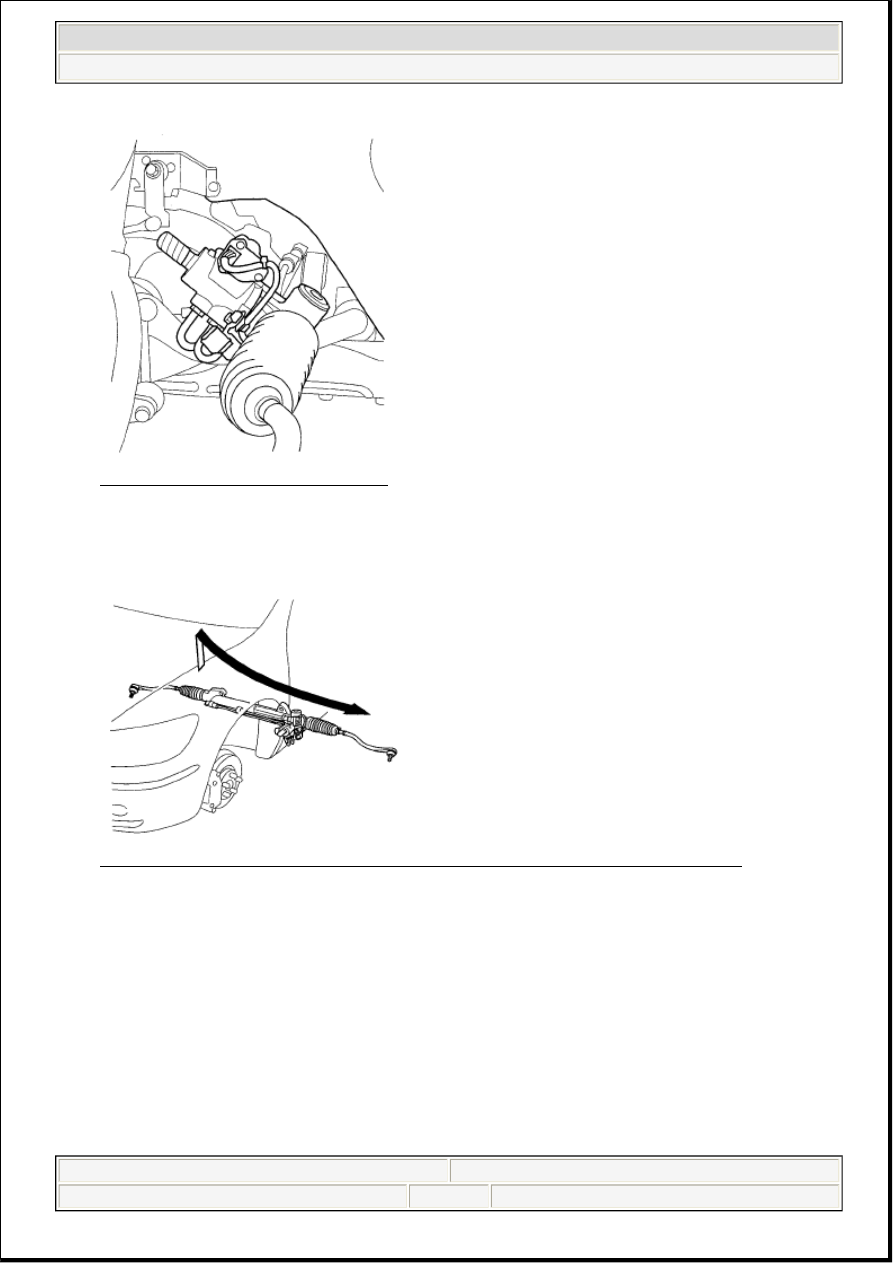

Fig. 78: Identifying Steering Gearbox
Courtesy of AMERICAN HONDA MOTOR CO., INC.

33. Lift the passenger's side, and remove the steering gearbox through the wheelwell opening on the

driver's side.

Fig. 79: Removing Steering Gearbox Through Wheelwell Opening On Driver's Side
Courtesy of AMERICAN HONDA MOTOR CO., INC.

34. After removing the steering gearbox, make sure that no power steering fluid gets on the gearbox

mount cushions, gearbox housing, surface of the front suspension subframe, and stiffener. Wipe off
any spilled fluid at once.

STEERING GEARBOX OVERHAUL

Exploded View
