1. Remove these items:



Back panel (see step 3 )



Center cover (see step 4 )

2. Driver's: Release the hooks (A), then turn over the seat-back cover (B). Disconnect the power lumbar

support motor connector (C), then release the harness band (D).

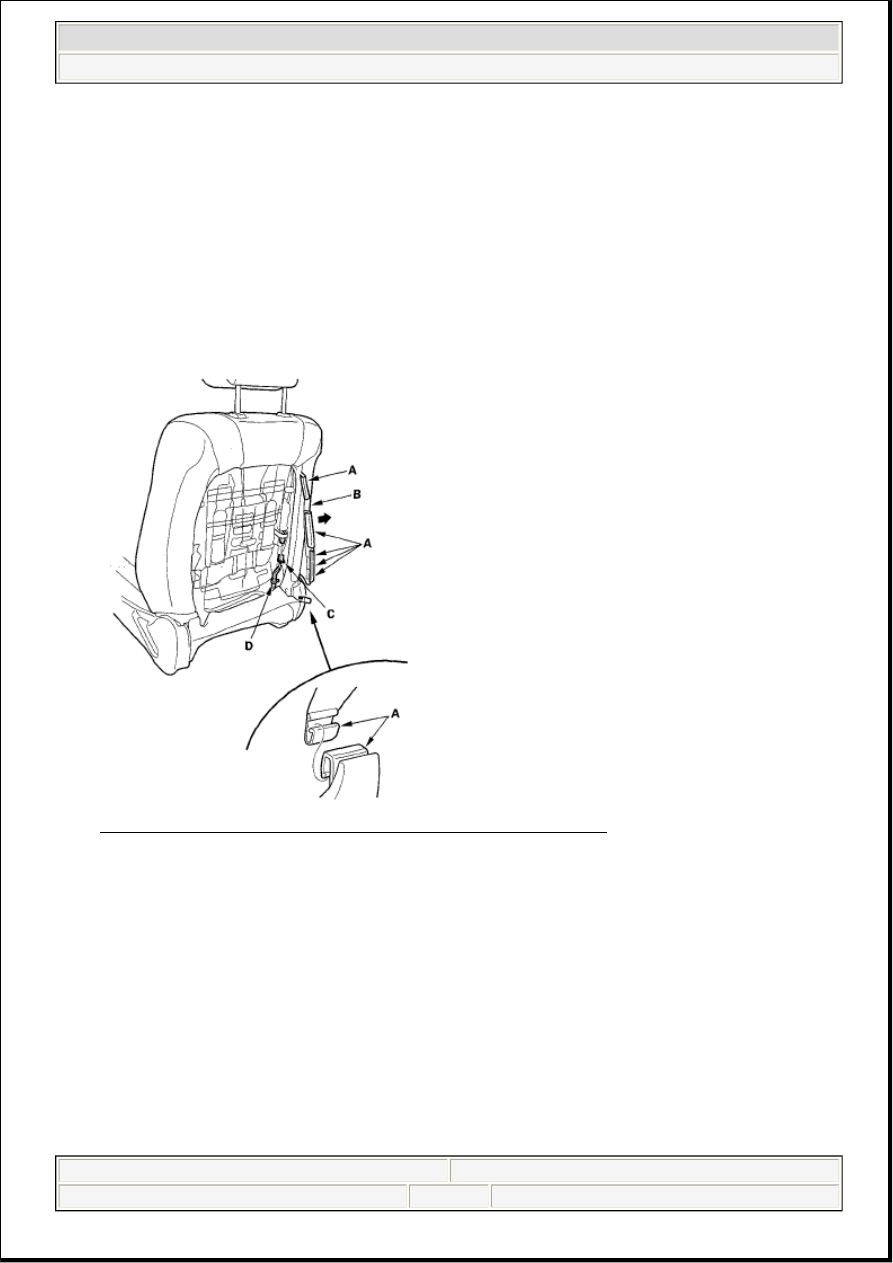

Fig. 20: Identifying Front Seat Back Side Hooks And Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Passenger's: Release the hooks (A), then turn over the seat-back cover (B). Detach the hooks (C), then

remove the OPDS unit cover (D). Disconnect the OPDS unit sensor connector (E) and power lumbar
support motor connector (F), then release the harness band (G).

NOTE:



Take care not to bend the cable.



Take care not to tear the seams or damage the seat covers.



Put on gloves to protect your hands.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Seats - RL



me



Friday, June 05, 2009 3:27:16 PM

Page 14

© 2005 Mitchell Repair Information Company, LLC.

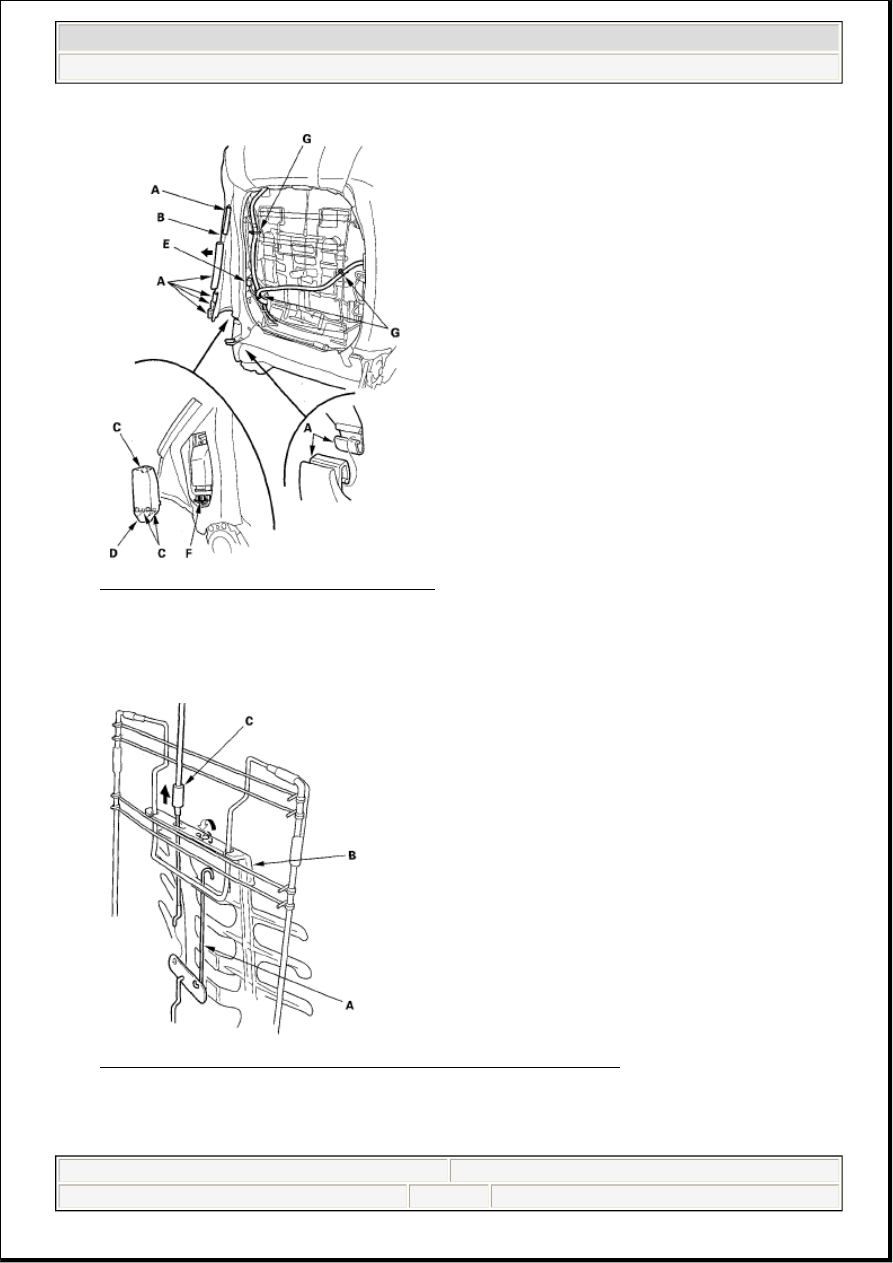

Fig. 21: Identifying Front Seat Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Release the hook of the yoke wire (A) from the top of the basket (B) to loosen the lumbar support

cable (C), then disconnect it.

Fig. 22: Identifying Yoke Wire, Basket And Lumbar Support Cable
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Release both lower springs (A) from inside the seat-back. Release the lumbar support from both upper

springs (B).



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Seats - RL



me



Friday, June 05, 2009 3:27:16 PM

Page 15

© 2005 Mitchell Repair Information Company, LLC.

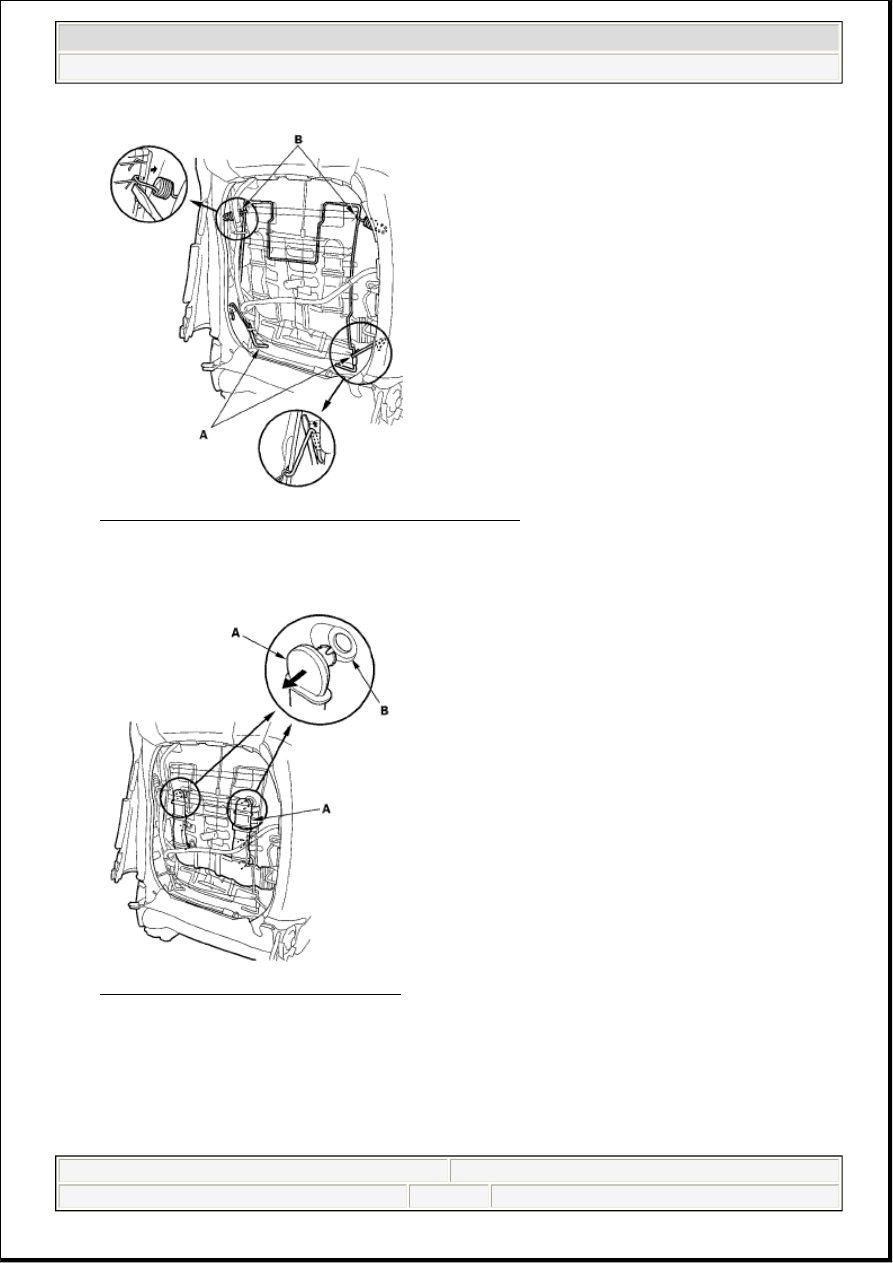

Fig. 23: Identifying Lower Springs And Upper Springs
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Pull out the duct (A) from the seat-back pad (B). A.

Fig. 24: Pulling Duct Of Seat-Back Pad
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Driver's: Pull back the seat-back cover (A) and seat-back pad (B), then remove the bolts.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Seats - RL



me



Friday, June 05, 2009 3:27:16 PM

Page 16

© 2005 Mitchell Repair Information Company, LLC.

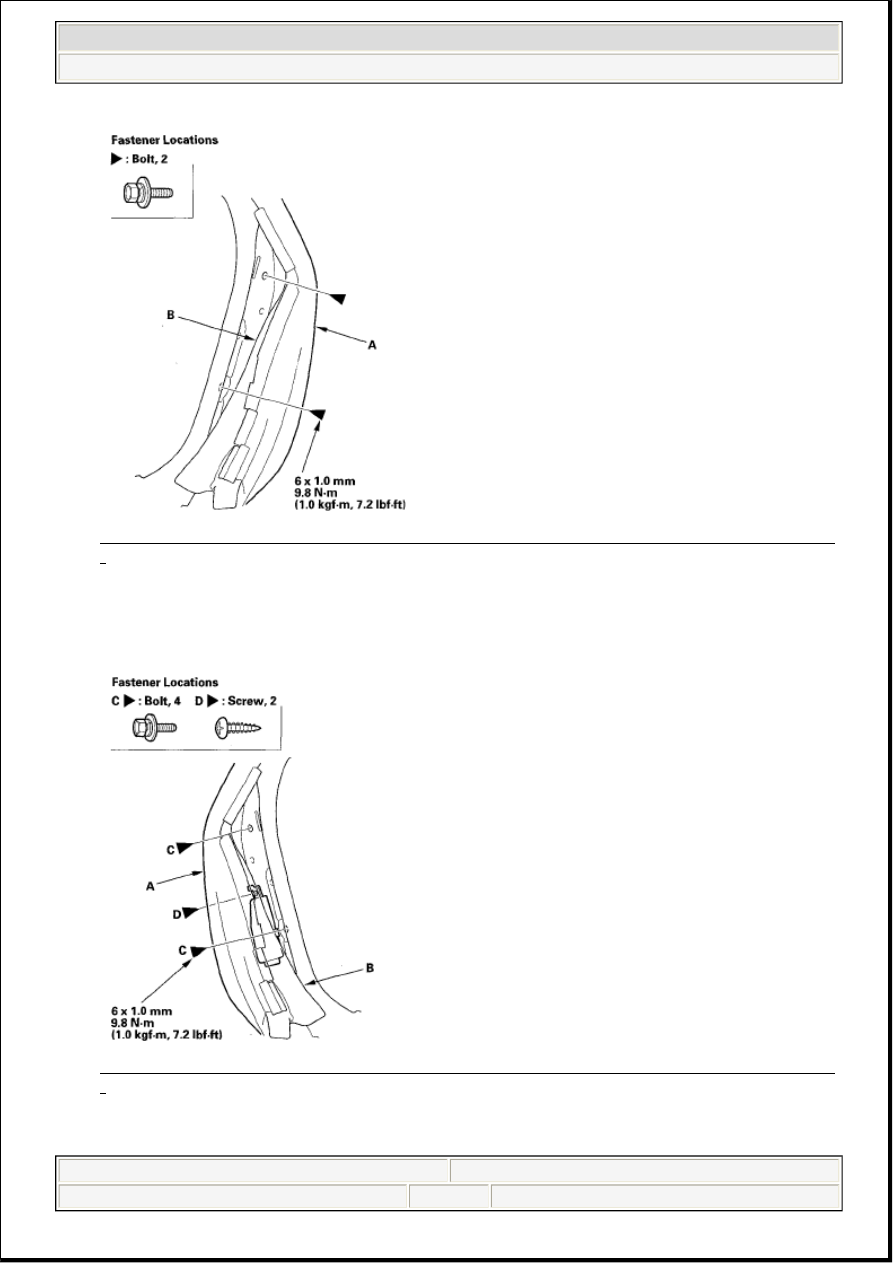

Fig. 25: Identifying Seat-Back Cover, Seat-Back Pad And Fasteners With Torque Specifications
(
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Passenger's: Pull back the seat-back cover (A) and seat-back pad (B), then remove the bolts (C) and

screw (D).

Fig. 26: Identifying Seat-Back Cover, Seat-Back Pad And Fasteners With Torque Specifications
(
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. Release the wire tie (A), then remove the lumbar support cable (B) and motor (C) as an assembly.
