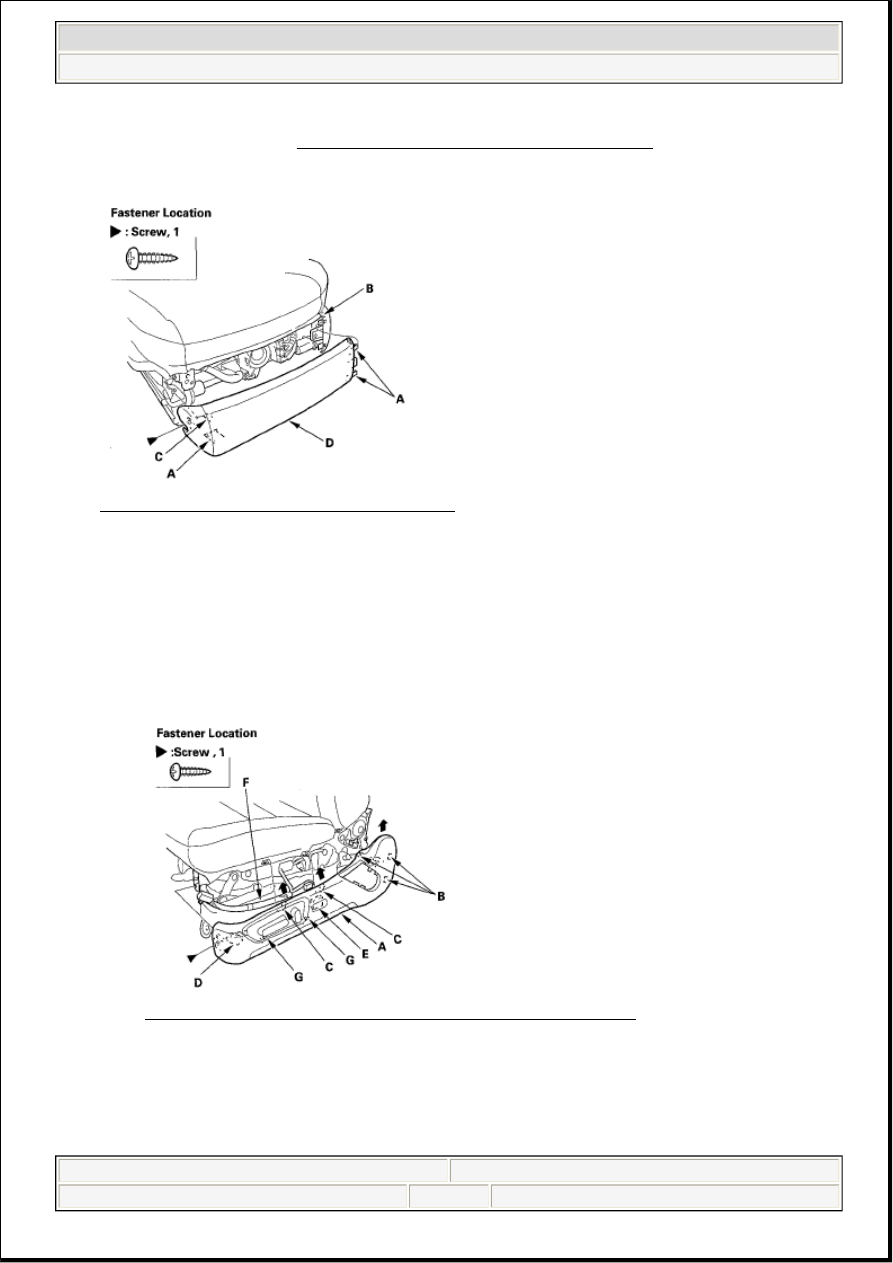

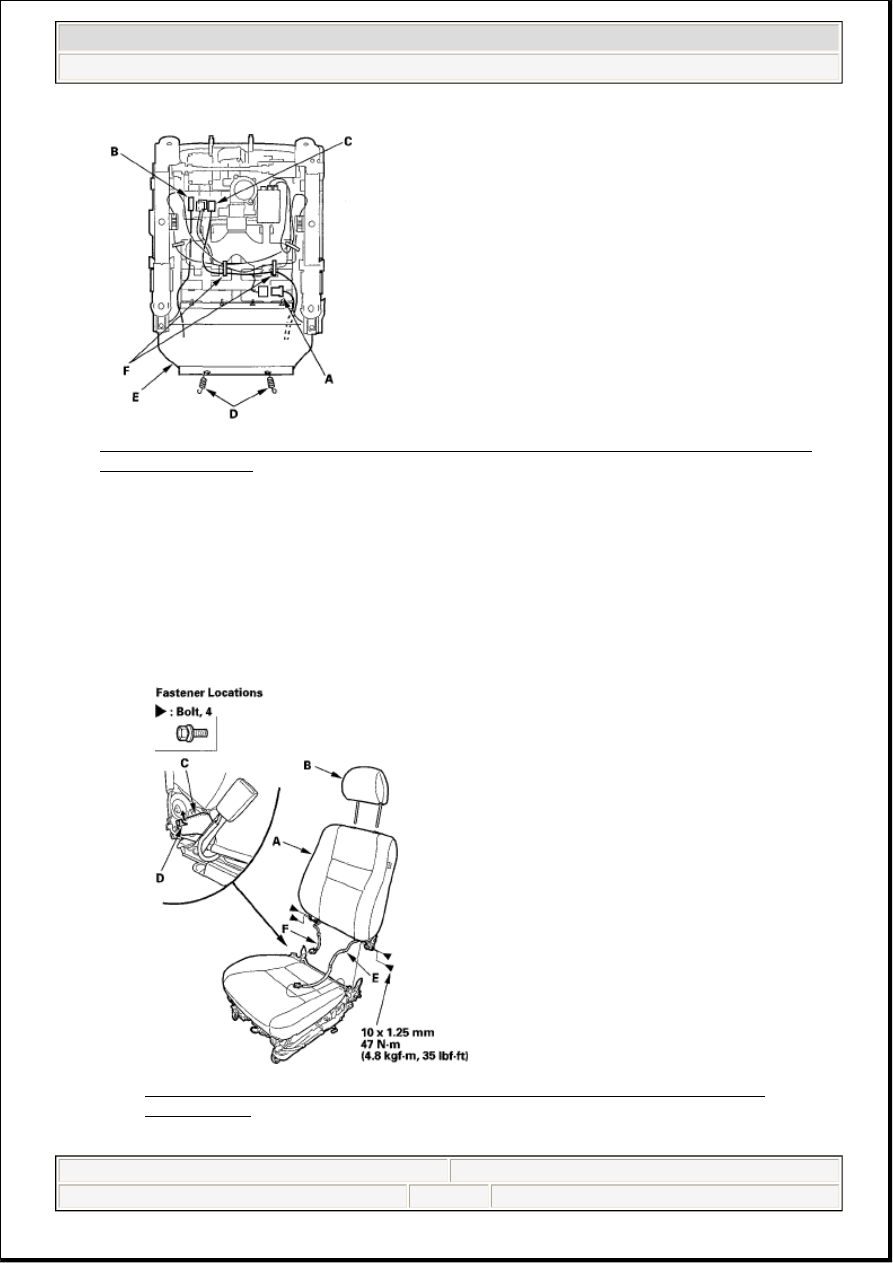

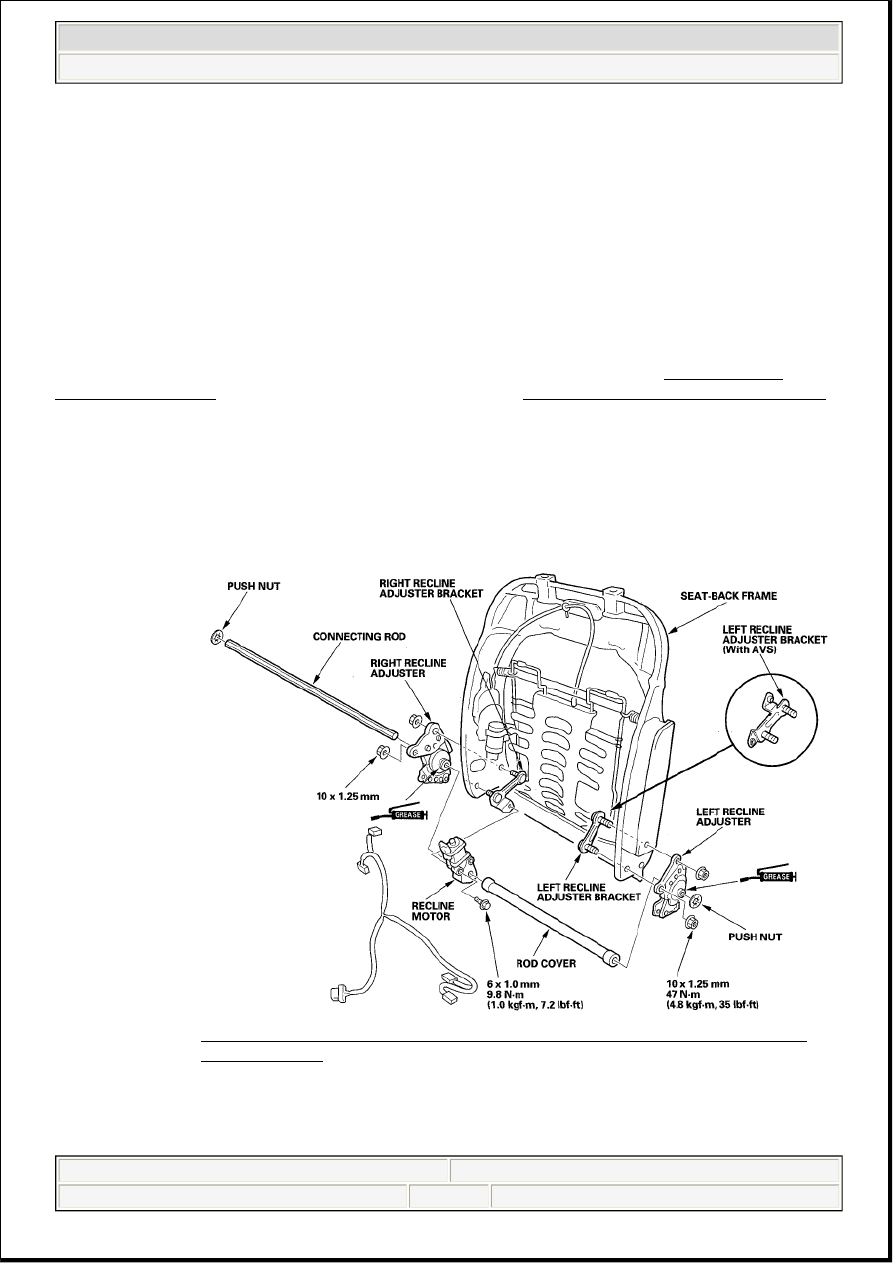

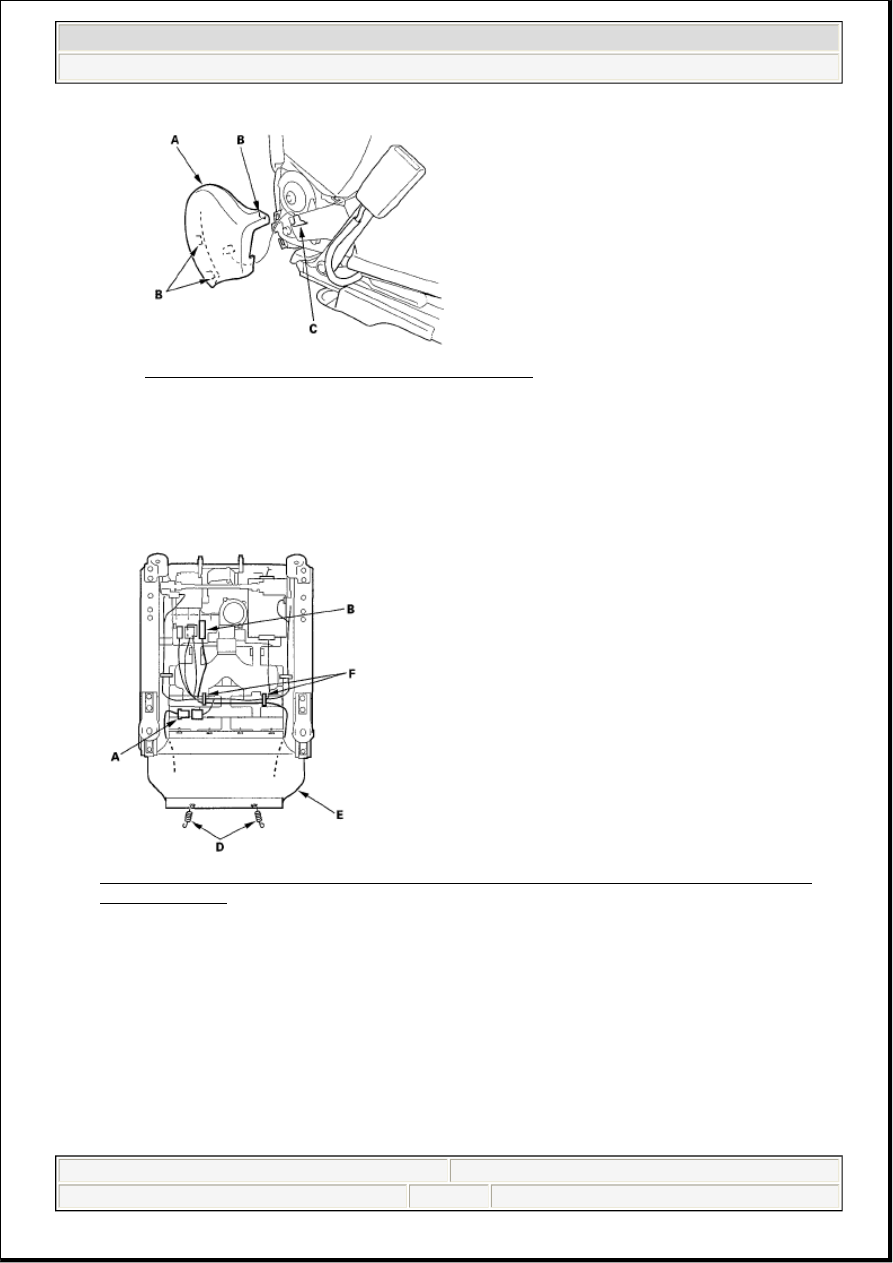

1. Remove the front seat (see FRONT SEAT REMOVAL/INSTALLATION ). 2. Remove the screw and release the hooks (A), tab (B), and pin (C), then remove the front cover (D). Fig. 9: Identifying Seat Front Cover Fasteners 3. Remove the recline cover (A). 1. Remove the screw and detach the tabs (B). 2. Pull up the cover, then detach the hooks (C). 3. Disconnect the recline switch and up-down switch connector (D), lumbar support switch connector (E). 4. Remove the wire harness (F) from the hooks (G). Fig. 10: Identifying Recline Cover And Lumbar Support Switch 4. Remove the center cover (A). 1. Release the tabs (B). 2. Pull up the cover, then detach the hook (C).
