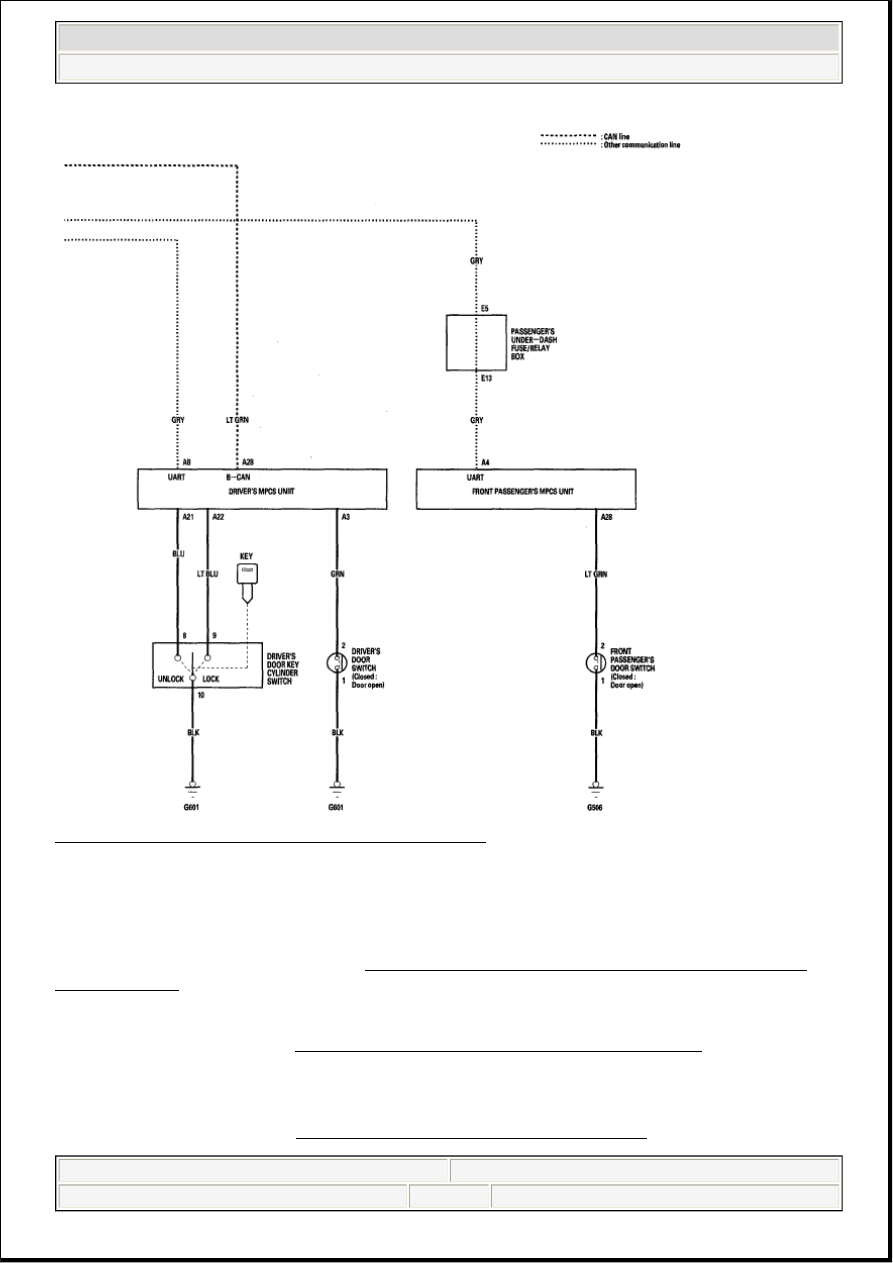

Fig. 3: Moonroof Component - Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

MOONROOF CONTROL UNIT INPUT TEST

Before troubleshooting the moonroof circuit, troubleshoot the multiplex integrated control system using B-
CAN System Diagnosis Test Mode A (see TROUBLESHOOTING - B-CAN SYSTEM DIAGNOSIS
TEST MODE A ).

If the moonroof works OK manually, but will not work in AUTO, or reverses frequently (pinch detection),
do the moonroof calibration (see RESETTING THE MOONROOF CONTROL UNIT ) before
proceeding with the input test.

1. Turn the ignition switch OFF.

2. Remove the headliner (see HEADLINER REMOVAL/INSTALLATION ).



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Moonroof (Body Electrical) - RL



me



Friday, June 05, 2009 3:24:12 PM

Page 3

© 2005 Mitchell Repair Information Company, LLC.

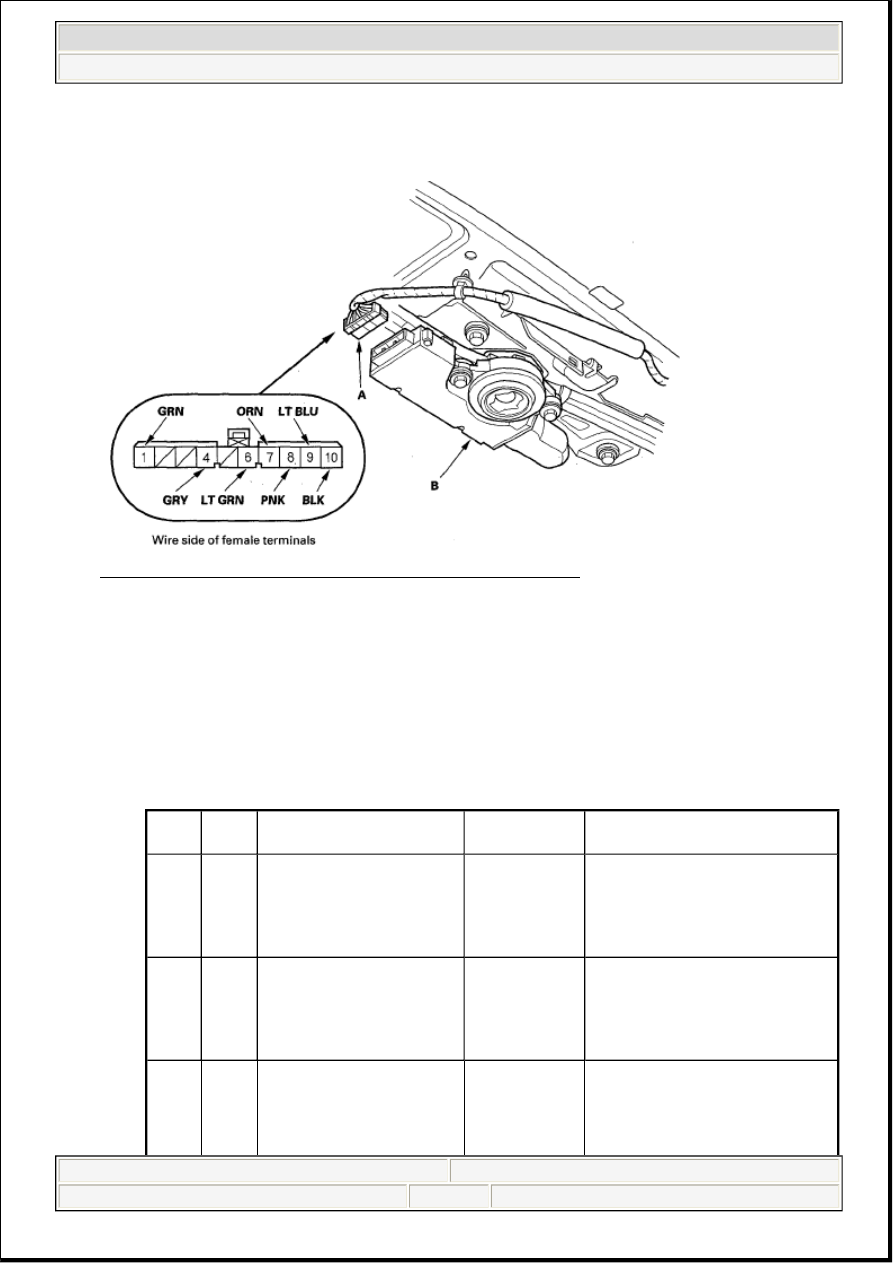

3. Disconnect the 10P connector (A) from the moonroof control unit (B).

Fig. 4: Identifying Moonroof Control Unit And 10P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Inspect the connector and socket terminals to be sure they are all making good contact.



If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.



If the terminals look OK, go to step 5.

5. Reconnect the connector to the control unit, and make these input tests at the connector.



If any test indicates a problem, find and correct the cause, then recheck the system.



If all the input tests prove OK, go to step 6.

WIRE CAVITY REFERENCE CHART

Cavity Wire

Test condition

Test: Desired

result

Possible cause if desired result

is not obtained

10

BLK Under all conditions

Measure the
voltage to
ground:
There should be
less then 0.5 V.



Poor ground (G601)



An open in the wire

1

GRIM Under all conditions

Measure the
voltage to
ground:
There should be
battery voltage.



Blown No. 28 (20 A) fuse
in the driver's under-dash
fuse/relay box



An open in the wire

Moonroof switch in OPEN

Measure the
voltage to



Blown No. 15 (40 A) fuse
in the under-hood fuse/relay
box



Blown No. 7 (10 A) fuse in



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Moonroof (Body Electrical) - RL



me



Friday, June 05, 2009 3:24:12 PM

Page 4

© 2005 Mitchell Repair Information Company, LLC.

6. Disconnect the 10P connector from the control unit, and make these input tests at the connector.



If any test indicates a problem, find and correct the cause, then recheck the system.



If all the input tests prove OK, go to step 7.

WIRE CAVITY REFERENCE CHART

6

LT

GRN

(AUTO) or CLOSE
(AUTO) position

ground:
There should be
battery voltage.

the driver's under-dash
fuse/relay box



Faulty moonroof switch



Faulty roof console



An open in the wire

7

ORN

Moonroof switch in TILT
position

Measure the
voltage to
ground:
There should be
battery voltage.



Blown No. 15 (40 A) fuse
in the under-hood fuse/relay
box



Blown No. 7 (10 A) fuse in
the driver's under-dash
fuse/relay box



Faulty moonroof switch



Faulty roof console



An open in the wire

8

PNK

Moonroof switch in
CLOSE position

Measure the
voltage to
ground:
There should be
battery voltage.



Blown No. 15(40 A) fuse in
the under-hood fuse/relay
box



Blown No. 7 (10 A) fuse in
the driver's under-dash
fuse/relay box



Faulty moonroof switch



Faulty roof console



An open in the wire

9

LT

BLU

Moonroof switch in OPEN
position

Measure the
voltage to
ground:
There should be
battery voltage.



Blown No. 15 (40 A) fuse
in the under-hood fuse/relay
box



Blown No. 7 (10 A) fuse in
the driver's under-dash
fuse/relay box



Faulty moonroof switch



Faulty roof console



An open in the wire

Cavity Wire

Test

condition

Test: Desired result

Possible cause if

desired result is not

obtained

Under all
conditions

Check for continuity between the No. 4
terminal and driver's MPCS unit connector A
(40P) No. 8 terminal:

An open in the wire



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Moonroof (Body Electrical) - RL



me



Friday, June 05, 2009 3:24:12 PM

Page 5

© 2005 Mitchell Repair Information Company, LLC.

7. If all the input tests are OK and multiple failures are found, replace the moonroof motor assembly. If

the problem is related to the key-off operation, go to the driver's MPCS unit input test (see
CONTROL UNIT INPUT TEST ), and front passenger's MPCS unit input test (see CONTROL
UNIT INPUT TEST ).

MOONROOF SWITCH TEST/REPLACEMENT

1. Remove the roof console (see ROOF CONSOLE REPLACEMENT ).

2. Remove the HomeLink unit from the top of the roof console.

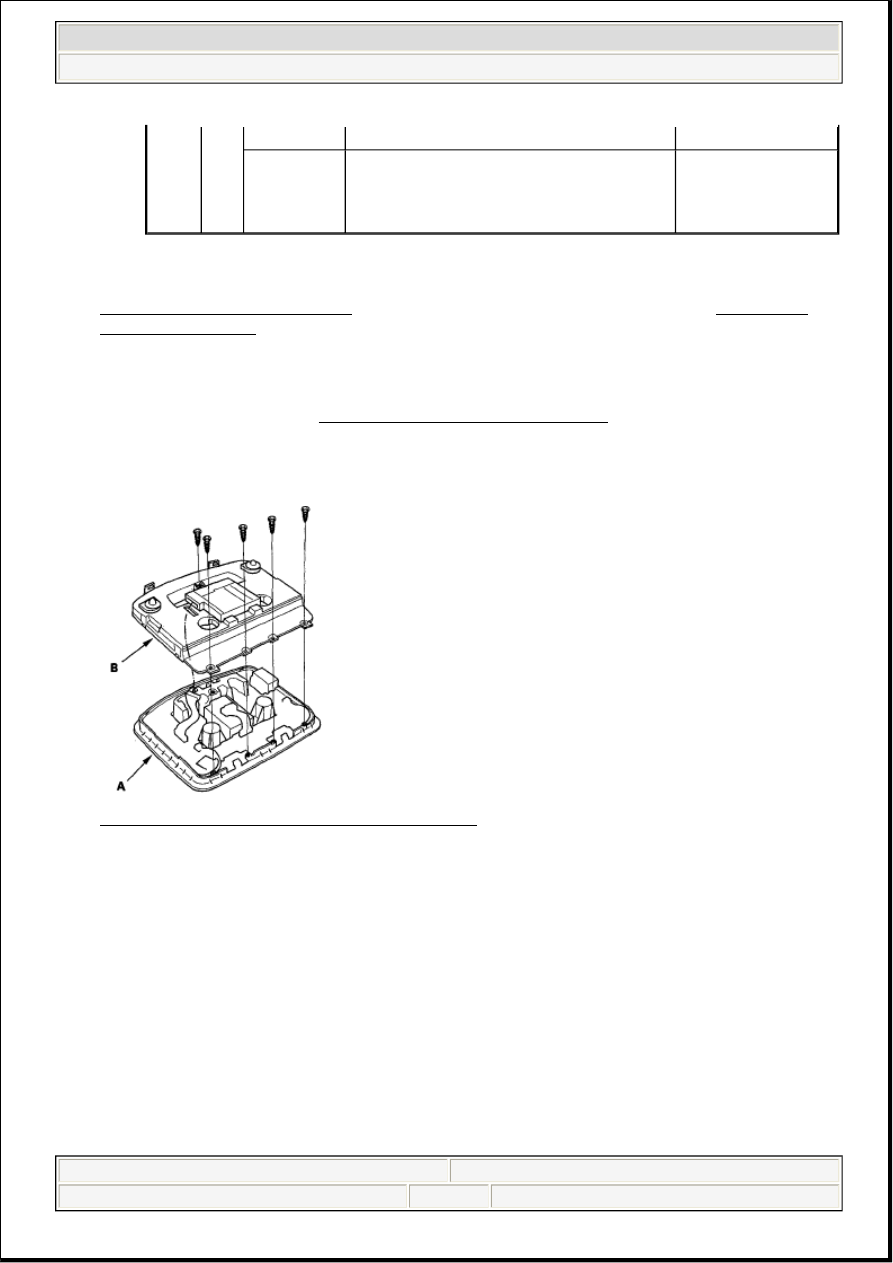

3. Remove the five screws from the roof console (A) and remove the rear cover (B).

Fig. 5: Identifying Rear Cover And Roof Console
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Disconnect the 7P connector (A) from the moonroof switch (B), then remove the two screws and

switch.

4

GRY

There should be continuity.

Under all

conditions

Check for continuity between the No. 4
terminal and front passenger's MPCS unit
connector A (28P) No. 4 terminal:
There should be continuity.

An open in the wire
