6. Remove the screws and separate the actuator (A) from the housing (B), then disconnect the side turn

signal light 2P connector (C).

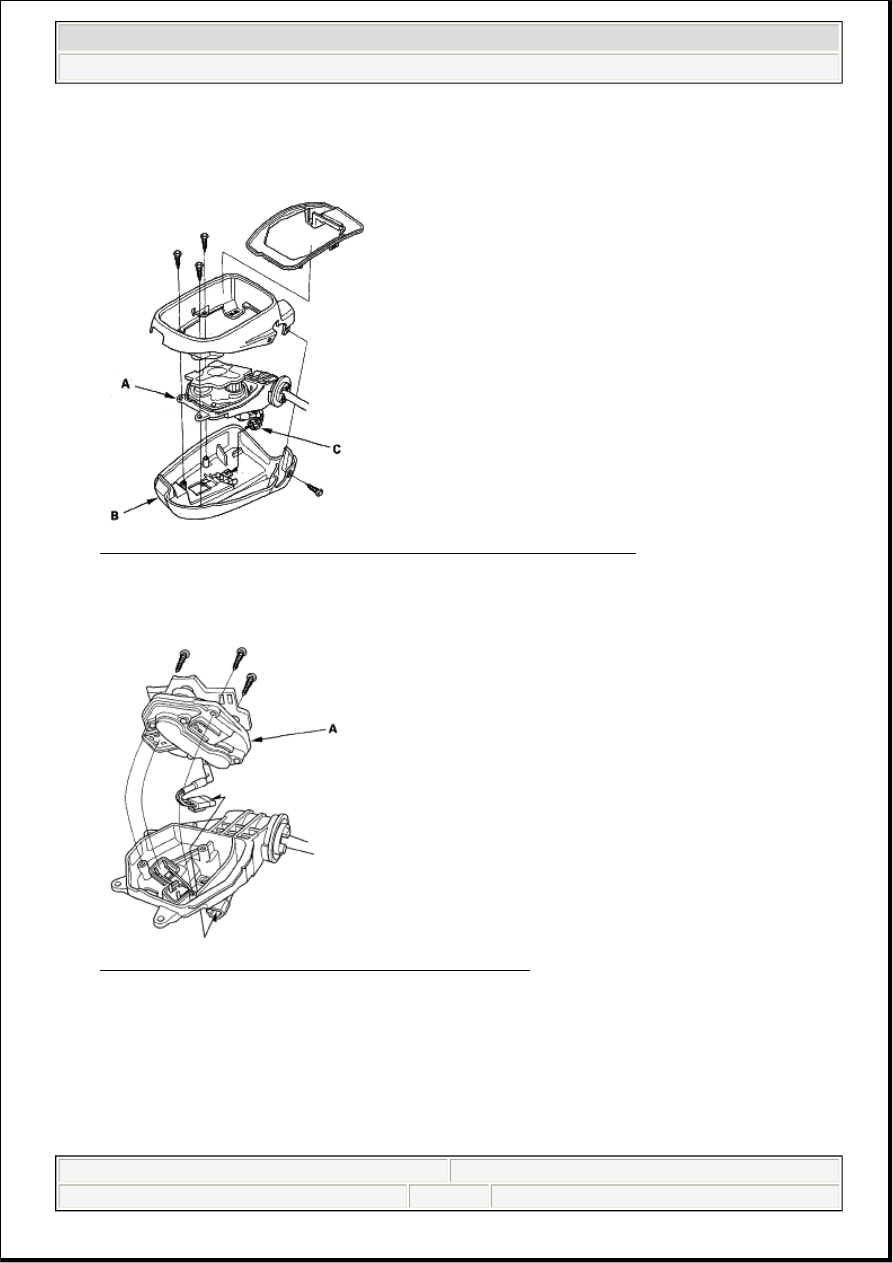

Fig. 9: Identifying Side Turn Signal Light 2P Connector And Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Remove the three screws and power mirror actuator (A).

Fig. 10: Identifying Power Mirror Actuator And Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Installation

8. Route the wire harness of the new actuator through the hole in the bracket and gasket.

9. Install the actuator, bracket, harness clip, and gasket in the reverse order of removal.

10. Install the new actuator terminals into the connector in the original arrangement as shown.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Power Mirrors - RL



me



Friday, June 05, 2009 3:29:57 PM

Page 5

© 2005 Mitchell Repair Information Company, LLC.

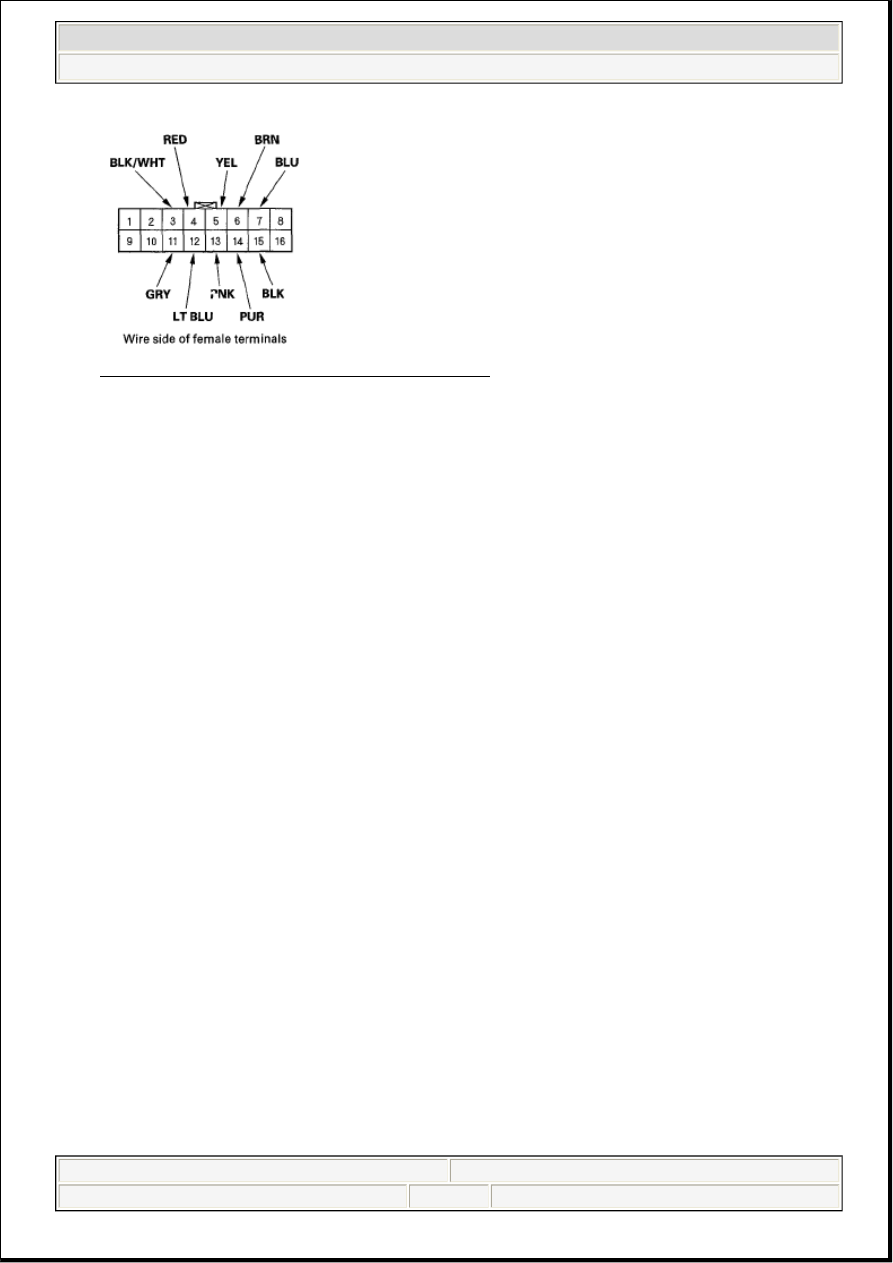

Fig. 11: Identifying Actuator Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

11. Reassemble in the reverse order of disassembly. Be careful not to break the mirror holder when

reinstalling it to the actuator.

12. Reinstall the mirror assembly to the door.

13. Operate the power mirror to ensure smooth operation.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Power Mirrors - RL



me



Friday, June 05, 2009 3:29:57 PM

Page 6

© 2005 Mitchell Repair Information Company, LLC.

2005-08 ACCESSORIES AND EQUIPMENT

Moonroof (Body Electrical) - RL

COMPONENT LOCATION INDEX

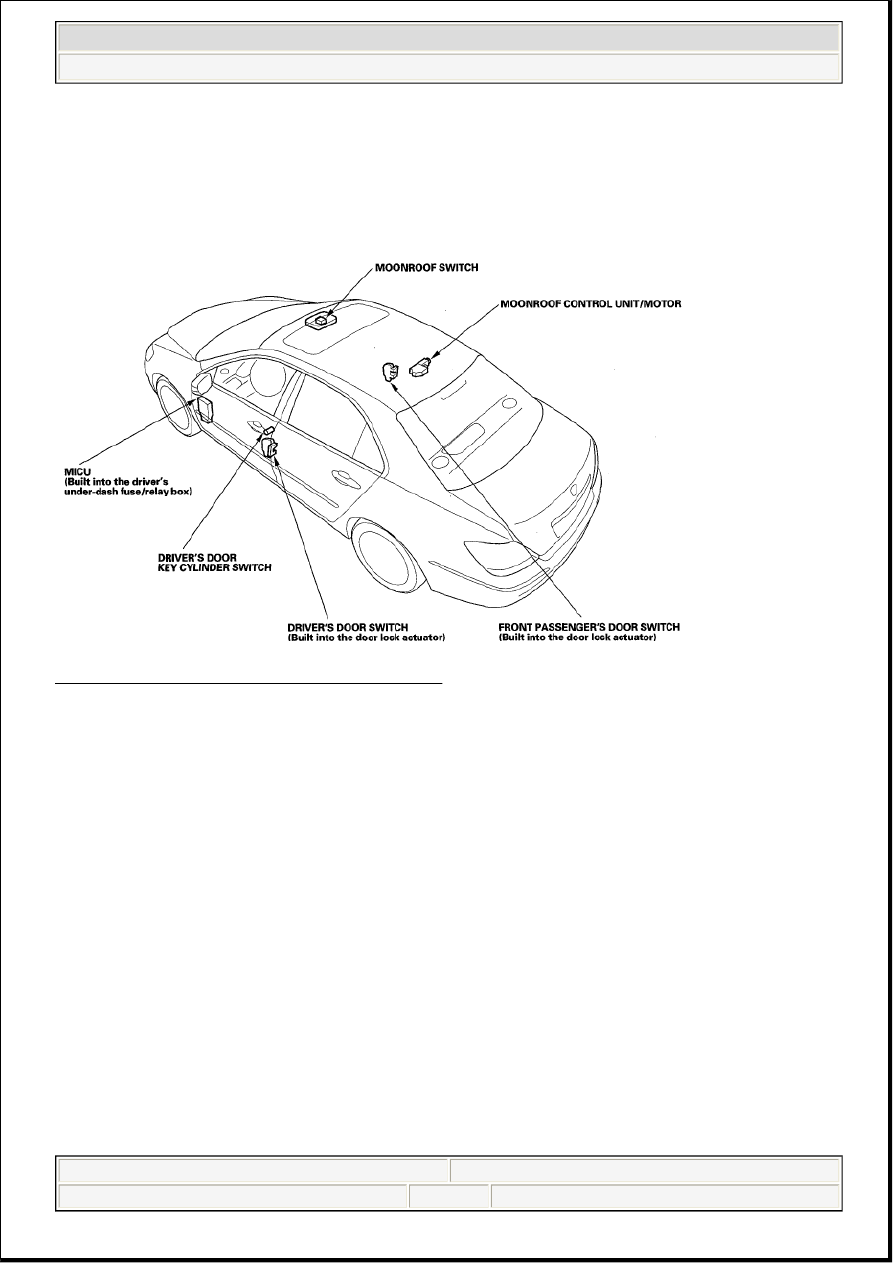

Fig. 1: Identifying Moonroof Component Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.

RESETTING THE MOONROOF CONTROL UNIT

Resetting the moonroof is required when any of the following have occurred.



The moonroof was moved manually with the battery dead or disconnected.



The moonroof motor was replaced with a new one.



Any of components related to the moonroof were replaced.



Wind deflector



Moonroof glass



Moonroof seal



Moonroof glass bracket



Moonroof cables, etc.

To reset the moonroof control unit, do these steps.

1. Close all doors and trunk.

2. Turn the ignition switch OFF.

3. Press and hold the tilt switch, and turn the ignition switch ON (II).



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Moonroof (Body Electrical) - RL





2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Moonroof (Body Electrical) - RL



me



Friday, June 05, 2009 3:24:12 PM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

me



Friday, June 05, 2009 3:24:15 PM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

4. Release the tilt switch, and turn the ignition switch OFF.

5. Repeat steps 2 and 3 four times.

6. Press and hold the moonroof open switch until 3 seconds after the moonroof is fully opened.

7. Press and hold the moonroof close switch until 3 seconds after the moonroof is fully closed (tilted).

8. Confirm that the moonroof control unit is reset by using the moonroof AUTO OPEN and AUTO

CLOSE function.

CIRCUIT DIAGRAM

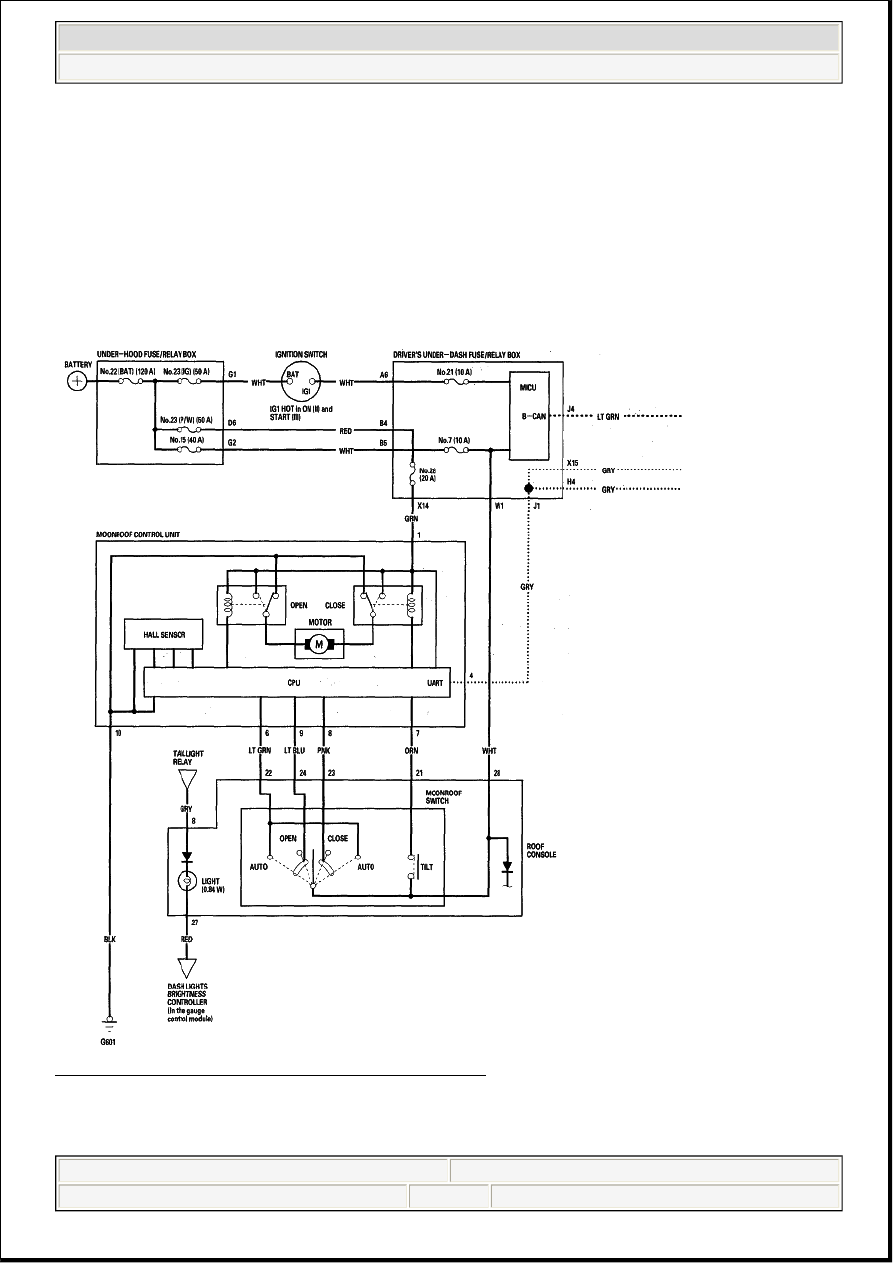

Fig. 2: Moonroof Component - Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
