Is DTC U0122 indicated?

YES - Go to step 4.

NO - Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals
at the gauge control module, the VSA modulator-control unit, and the PCM

4. Check for DTCs in the DTCs MENU with the HDS.

Is VSA system DTC 86 indicated?

YES - Go to step 5.

NO - Go to step 8.

5. Turn the ignition switch OFF.

6. Disconnect the VSA modulator-control unit 47P connector.

7. Check for continuity between VSA modulator-control unit 47P connector terminals No. 14 and No.

30.

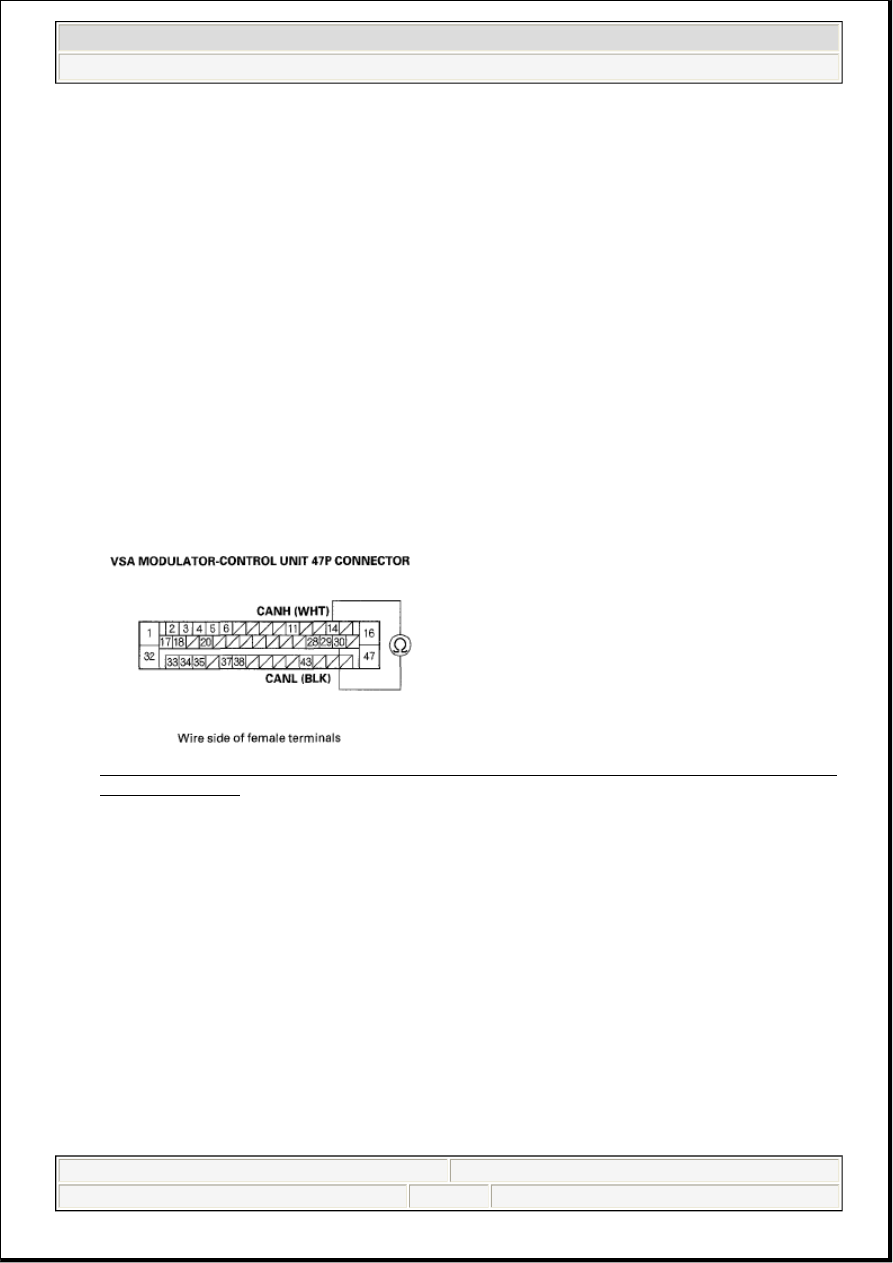

Fig. 126: Checking Continuity Between VSA Modulator-Control Unit 47P Connector Terminals
No. 14 And No. 30
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Substitute a known-good VSA modulator-control unit, then go to step 15 and recheck. If DTC
U0122 is not indicated, replace the original VSA modulator-control unit, then go to step 15.

NO - Repair open in the wire between the VSA modulator-control unit (No. 14 (No. 30)) and the
PCM (E15 (E26)), then go to step 15.

8. Check for a poor connection at the VSA modulator-control unit 47P connector.

Are the connection OK?

YES - Go to step 9.

NO - Repair the connection(s), then go to step 16.



2007 Acura RL

2005-08 ENGINE PERFORMANCE PGM-FI System - RL



me



Friday, June 05, 2009 2:35:00 PM

Page 154  © 2005 Mitchell Repair Information Company, LLC.

9. Turn the ignition switch OFF.

10. If not already done, disconnect the VSA modulator-control unit 47P connector.

11. Turn the ignition switch ON (II).

12. Measure voltage between VSA modulator-control unit 47P connector terminal No. 38 and body

ground.

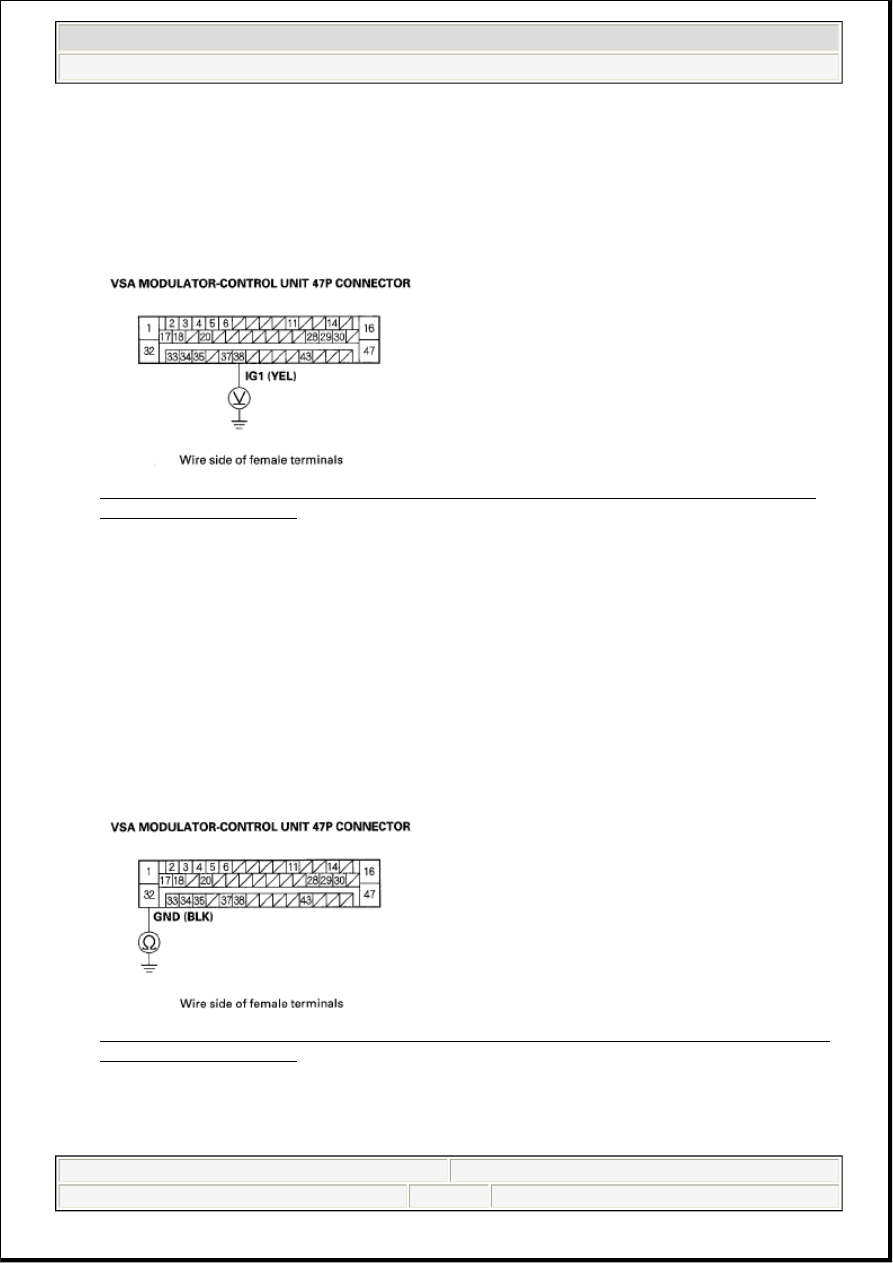

Fig. 127: Measuring Voltage Between VSA Modulator-Control Unit 47P Connector Terminal
No. 38 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES - Go to step 13.

NO - Check the No. 18 (15A) fuse in the driver's under-dash fuse/relay box. If the fuse is OK, repair
open in the wire between the No. 18 (15A) fuse and the VSA modulator-control unit, then go to step
15.

13. Turn the ignition switch OFF.

14. Check for continuity between VSA modulator-control unit 47P connector terminal No. 32 and body

ground.

Fig. 128: Checking Continuity Between VSA Modulator-Control Unit 47P Connector Terminal
No. 32 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?



2007 Acura RL

2005-08 ENGINE PERFORMANCE PGM-FI System - RL



me



Friday, June 05, 2009 2:35:00 PM

Page 155  © 2005 Mitchell Repair Information Company, LLC.

YES - Substitute a known-good VSA modulator-control unit, then go to step 15 and recheck. If DTC
U0122 is not indicated, replace the original VSA modulator-control unit, then go to step 15.

NO - Repair open in the wire between the VSA modulator-control unit and G203, then go to step 15.

15. Reconnect the VSA modulator-control unit 47P connector.

16. Turn the ignition switch ON (II).

17. Reset the PCM with the HDS.

18. Do the PCM idle learn procedure (see PCM IDLE LEARN PROCEDURE ).

19. Check for Temporary DTCs or DTCs with the HDS.

Is DTC U0122 indicated?

YES - Check for poor connections or loose terminals at the gauge control module, the VSA
modulator-control unit, and the PCM, then go to step 1.

NO - Troubleshooting is complete. If any other Temporary DTCs or DTCs are indicated, go to the
indicated DTCs troubleshooting

F-CAN CIRCUIT TROUBLESHOOTING

'08 MODEL

1. Turn the ignition switch OFF.

2. Jump the SCS line with the HDS.

3. Disconnect PCM connector E (31P), then disconnect the HDS.

4. Measure resistance between PCM connector terminals E15 and E26*.

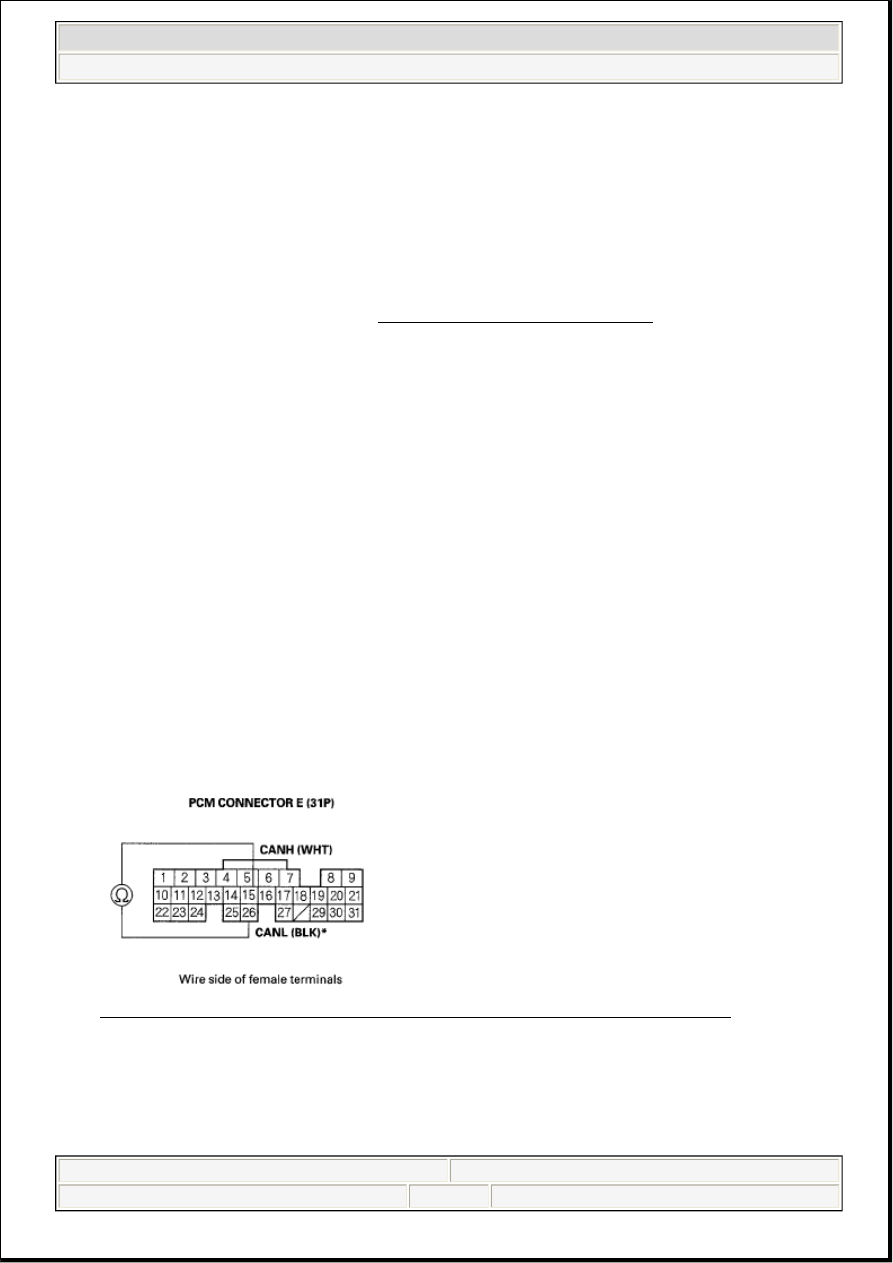

Fig. 129: Measuring Resistance Between PCM Connector Terminals E15 And E26
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there about 85-103 0, ?

YES - Go to step 40.

NOTE:

Information marked with an asterisk (*) applies to the CANL line.



2007 Acura RL

2005-08 ENGINE PERFORMANCE PGM-FI System - RL



me



Friday, June 05, 2009 2:35:00 PM

Page 156  © 2005 Mitchell Repair Information Company, LLC.

NO - Go to step 5.

5. Disconnect gauge control module connector B (28P) (see GAUGE CONTROL MODULE

REPLACEMENT ).

6. Disconnect the VSA modulator-control unit 47P connector (see VSA MODULATOR-CONTROL

UNIT REMOVAL AND INSTALLATION ).

7. Disconnect SH-AWD control unit connector A (26P) (see SH-AWD CONTROL UNIT

REPLACEMENT ).

8. Disconnect the ACC unit 20P connector (see ADAPTIVE CRUISE CONTROL (ACC) UNIT

REMOVAL/INSTALLATION ).

9. Disconnect e-pretensioner unit connector B (14P) (see E-PRETENSIONER UNIT

REPLACEMENT ).

10. Disconnect TPMS unit connector B(20P) (see TPMS INDICATOR OR TIRE(S) INDICATOR(S)

DOES NOT GO OFF, AND NO DTCS ARE STORED ).

11. Check for continuity between PCM connector terminals E15 and E26*.

Fig. 130: Checking Continuity Between PCM Connector Terminals E15 And E26
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Repair short in the wires between PCM connector terminals E15 and E26*

NO - Go to step 12.

12. Connect PCM connector terminal E15 to body ground with a jumper wire.

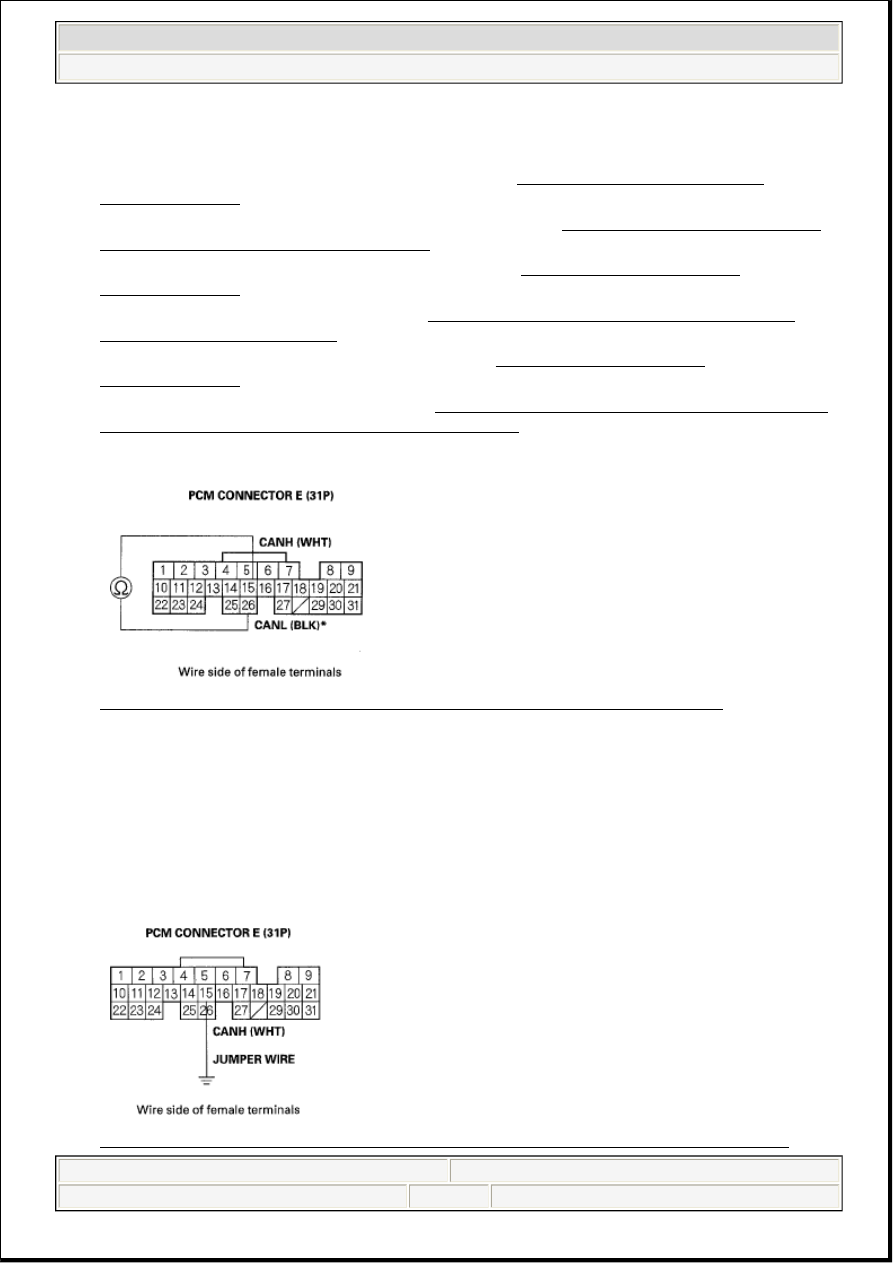

Fig. 131: Connecting PCM Connector Terminal E15 To Body Ground With Jumper Wire
