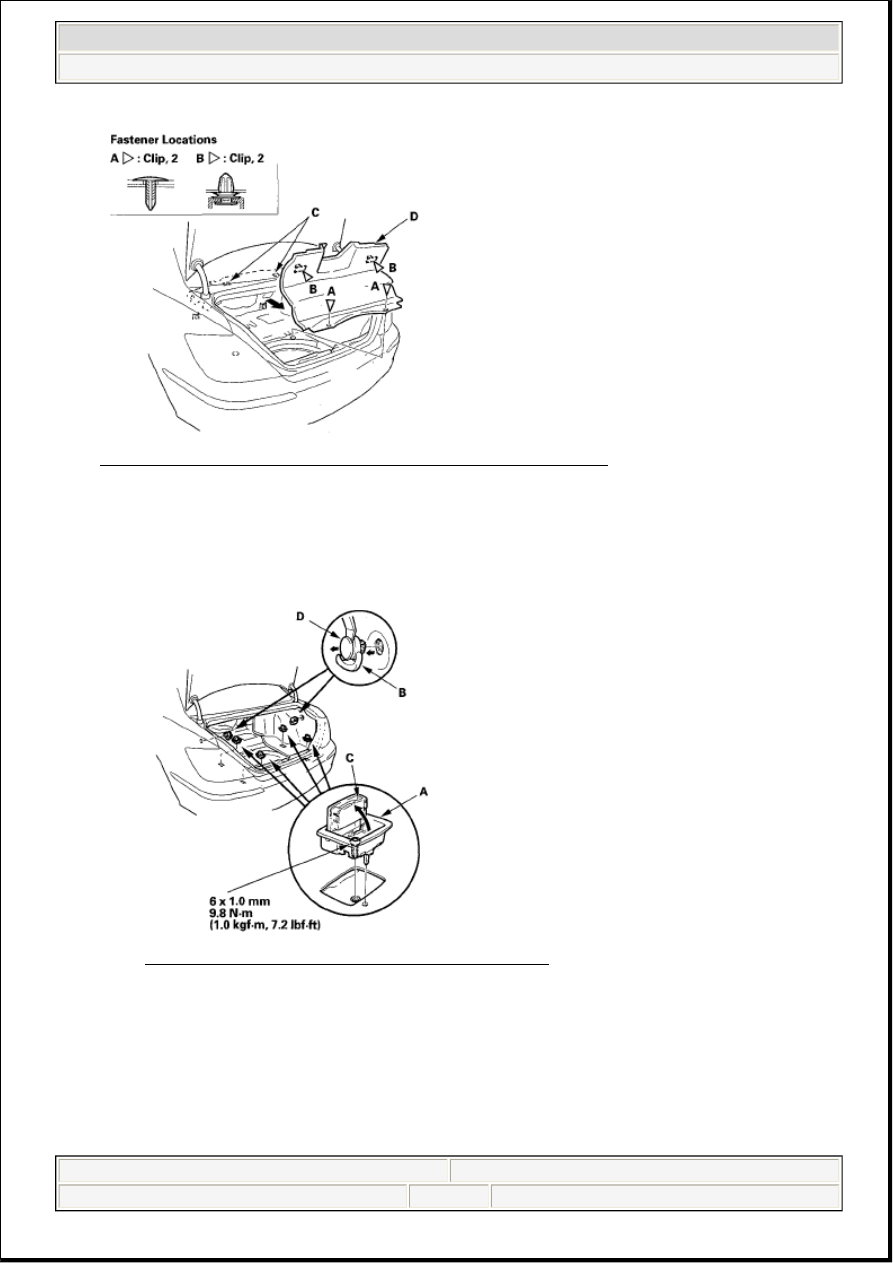

Fig. 40: Identifying Clips, Fasteners And Trunk Front Trim Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Remove the tie down hooks (A) and trunk hooks (B) from both trunk side trim panels.

1. Pry out the lids (C) with a trim tool, then remove all of the tie down hooks by unscrewing them.

2. Pry out the caps (D) with a trim tool, then remove both trunk hooks by pulling them out.

Fig. 41: Identifying Tie Down Hooks, Lids And Caps
Courtesy of AMERICAN HONDA MOTOR CO., INC.

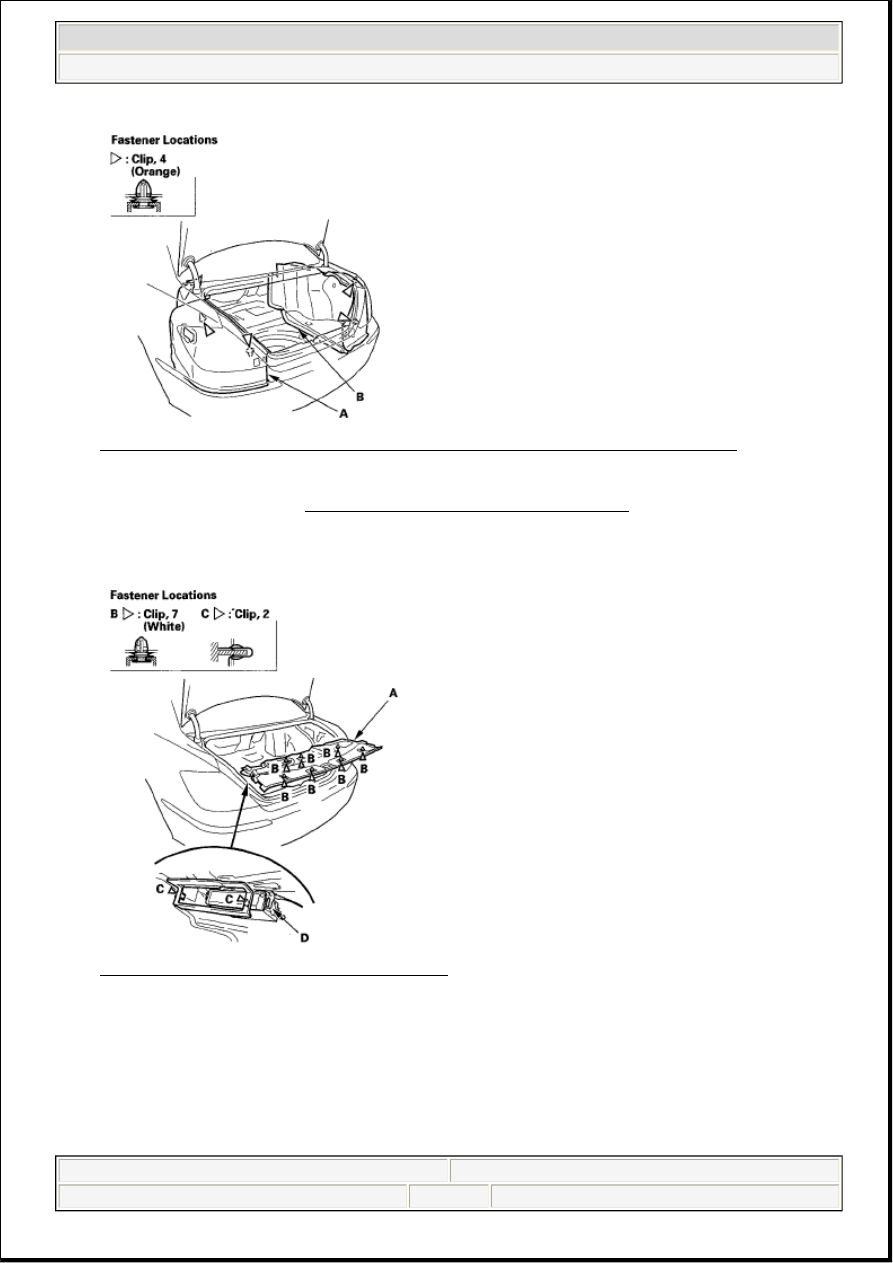

5. Detach the clips, then remove the left trunk side trim panel (A) and the right trunk side trim panel (B)

from the trunk compartment.

2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Interior Trim - RL

Friday, June 05, 2009 3:37:01 PM

Page 28

Fig. 42: Identifying Left Trunk Side Trim Panel And Right Trunk Side Trim Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Remove the trunk light (see TRUNK LIGHT TEST/REPLACEMENT ).

7. Lower the trunk upper trim panel (A) to detach the clips (B), and detach the clips (C) from the

navigation unit bracket (D), then remove the panel from the trunk compartment.

Fig. 43: Identifying Trunk Upper Trim Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Install the trim in the reverse of removal, and note these items:



Check if the clips are damaged or stress-whitened, and if necessary, replace them with new
ones.



Push the clips into place securely.

TRIM REMOVAL/INSTALLATION - TRUNK LID

2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Interior Trim - RL

Friday, June 05, 2009 3:37:01 PM

Page 29

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the American Honda Tool and Equipment Program; call 888-424-6857

1. Remove the trunk light (see TRUNK LIGHT TEST/REPLACEMENT ).

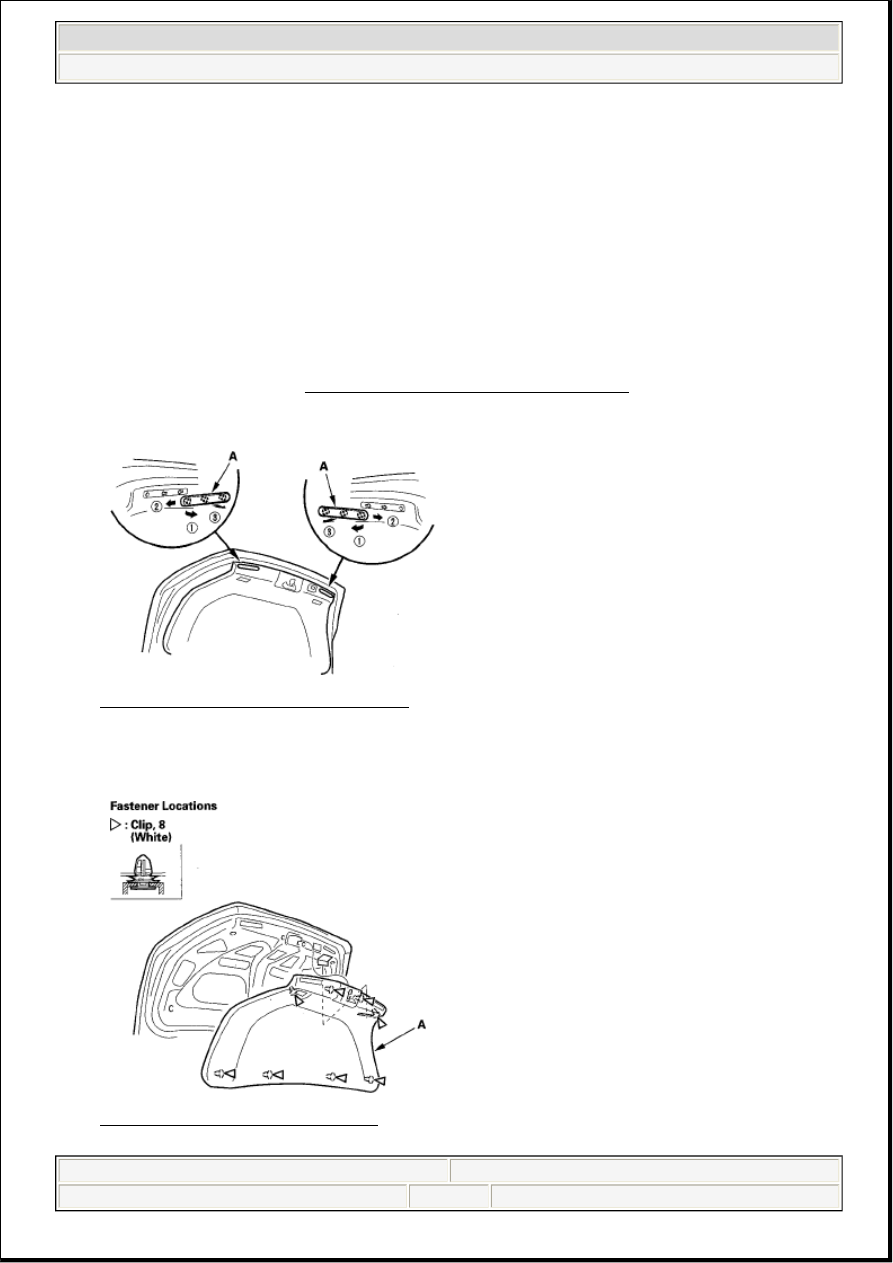

2. Pull up on the outside ends of the trunk lid cushions (A), slide them to the outside, and pull them out.

Fig. 44: Identifying Trunk Lid Cushions
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Detach all the clips, then remove the trunk lid trim (A).

Fig. 45: Identifying Trunk Lid Trim
Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE:



Put on gloves to protect your hands.



Use the appropriate tool from the KTC trim tool set to avoid damage
when prying components.



Take care not to bend or scratch the trim and panels.

2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Interior Trim - RL

Friday, June 05, 2009 3:37:01 PM

Page 30

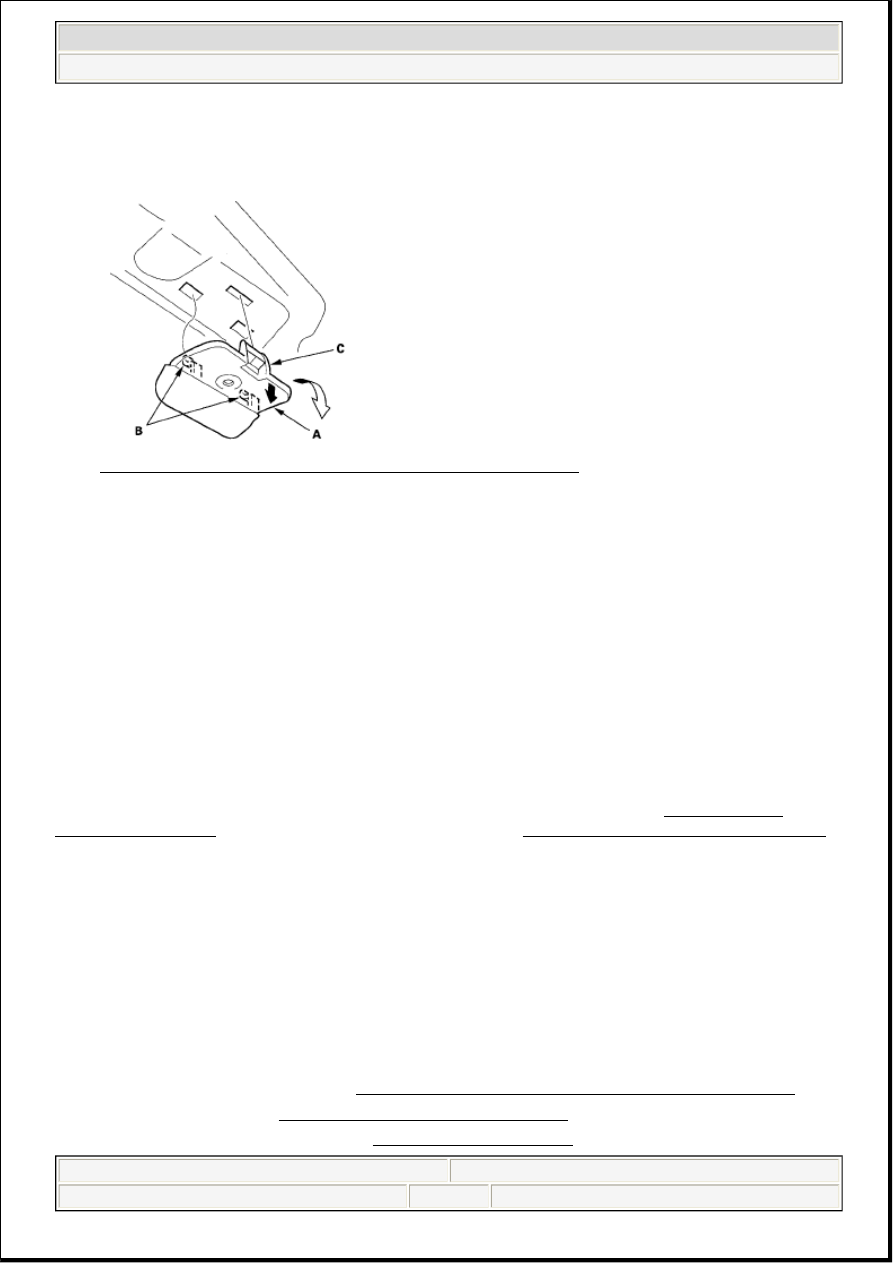

4. If necessary, pivot the trunk lid handle (A) down on the forward hooks (B) while prying the rear hook

(C), then remove the handle.

Fig. 46: Identifying Trunk Lid Handle, Hooks And Rear Hook
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Install the trim in the reverse order of removal, and note these items:



Check if the clips are damaged or stress-whitened, and if necessary, replace them with new
ones.



Push the clips into place securely.

HEADLINER REMOVAL/INSTALLATION

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the American Honda Tool and Equipment Program; call 888-424-6857

SRS components are located in this area. Review the SRS component locations (see COMPONENT
LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES )
before doing repairs or service.

1. Remove these items:



A-pillar trim, both sides (see TRIM REMOVAL/INSTALLATION - PILLAR AREAS )



Roof console (see ROOF CONSOLE REPLACEMENT )



Front individual map light (see AMBIENT LIGHT TEST )

NOTE:



Use the appropriate tool from the KTC trim tool set to avoid damage
when prying components.



When prying with a flat-tip screwdriver, wrap it with protective tape to
prevent damage.



Take care not to bend or scratch the headliner.



Be careful not to damage the dashboard and other interior trim.

2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Interior Trim - RL

Friday, June 05, 2009 3:37:01 PM
