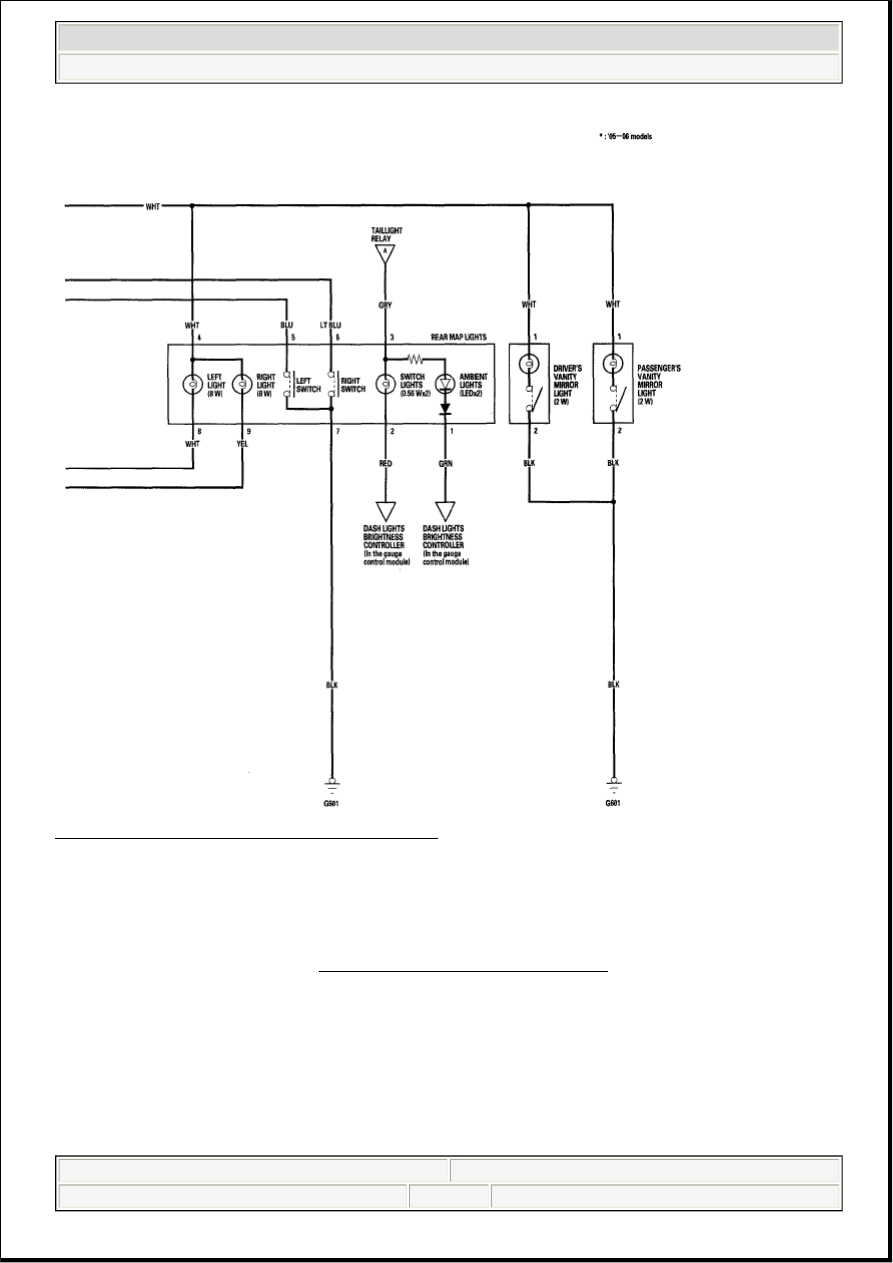

Fig. 7: Interior Lights - Circuit Diagram (4 Of 7)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Interior Lights - RL



me



Friday, June 05, 2009 3:31:24 PM

Page 7

© 2005 Mitchell Repair Information Company, LLC.

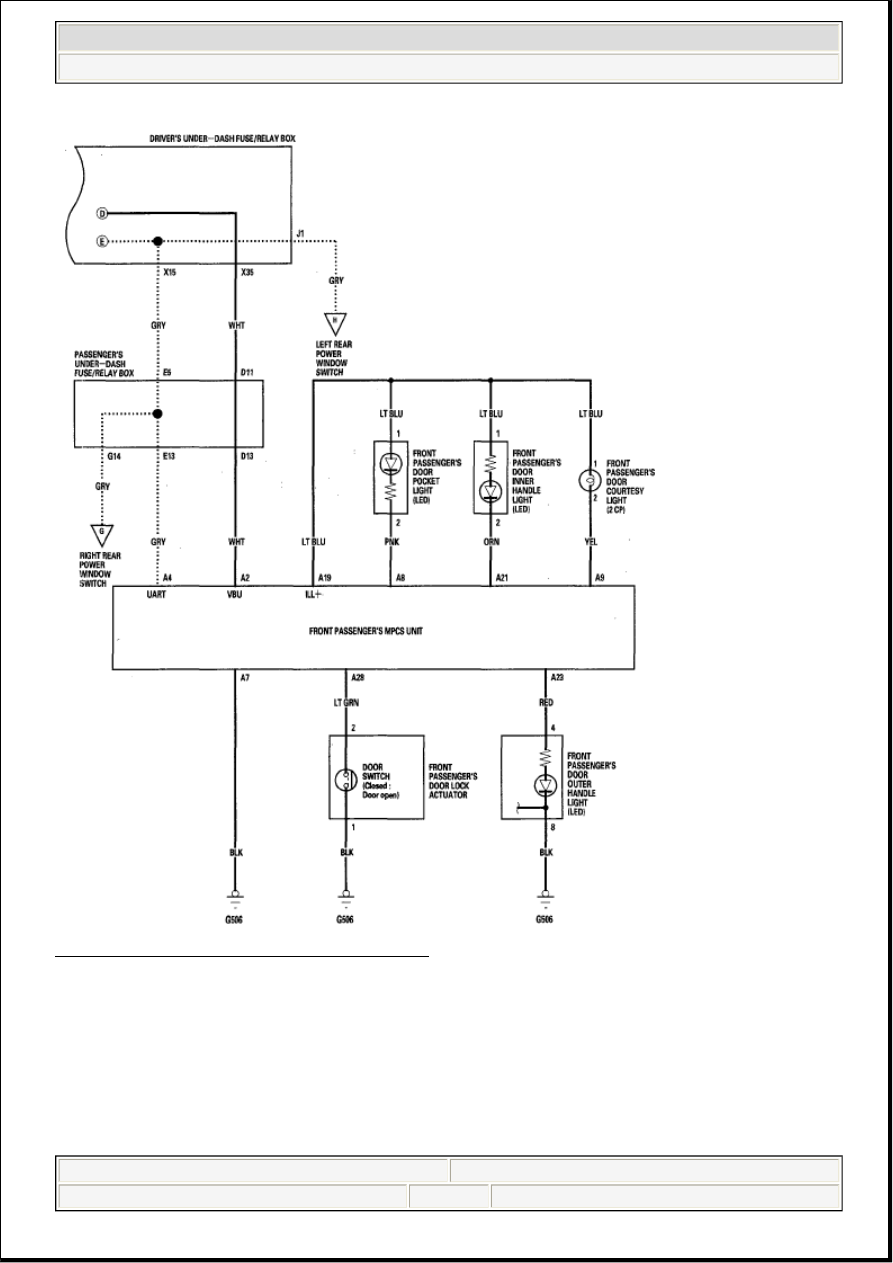

Fig. 8: Interior Lights - Circuit Diagram (5 Of 7)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Interior Lights - RL



me



Friday, June 05, 2009 3:31:24 PM

Page 8

© 2005 Mitchell Repair Information Company, LLC.

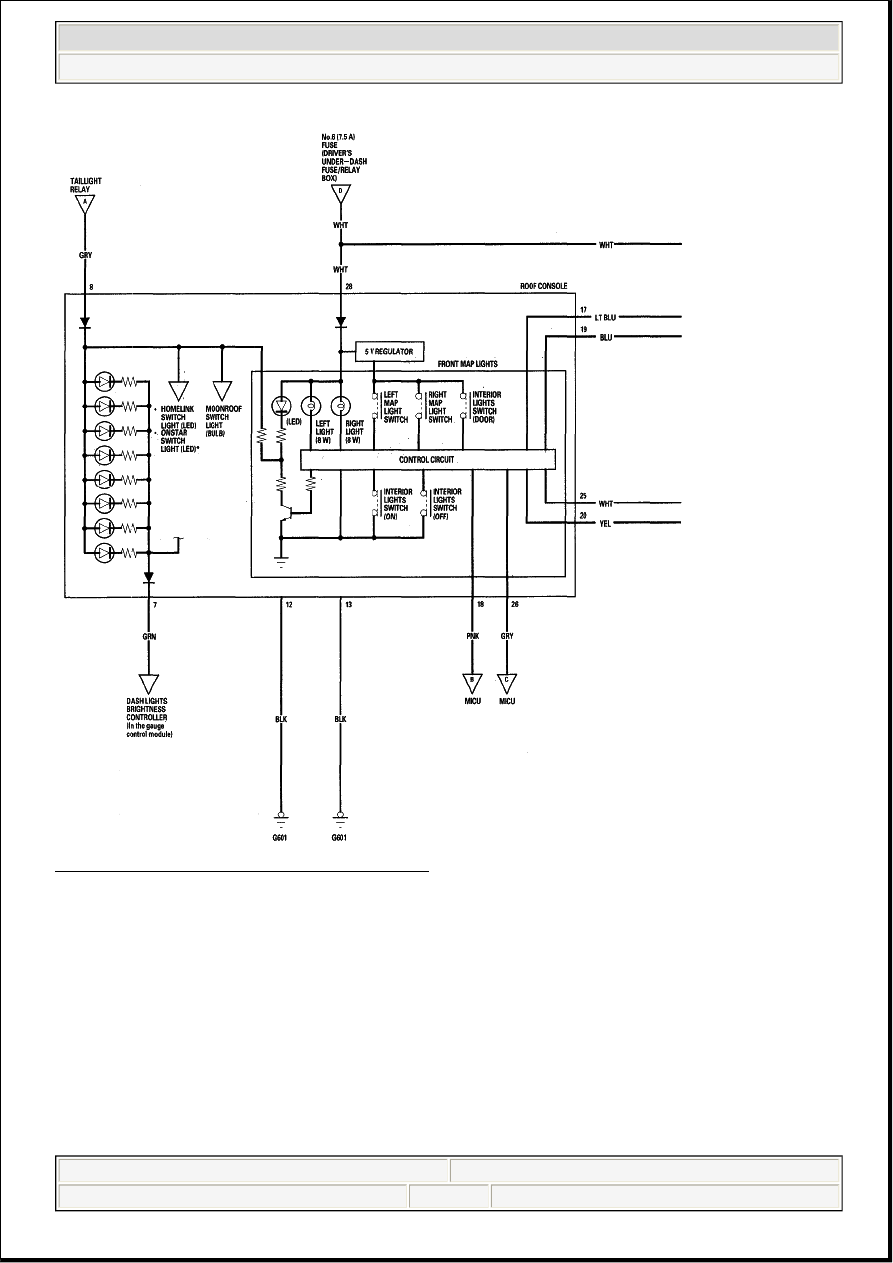

Fig. 9: Interior Lights - Circuit Diagram (6 Of 7)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Interior Lights - RL



me



Friday, June 05, 2009 3:31:24 PM

Page 9

© 2005 Mitchell Repair Information Company, LLC.

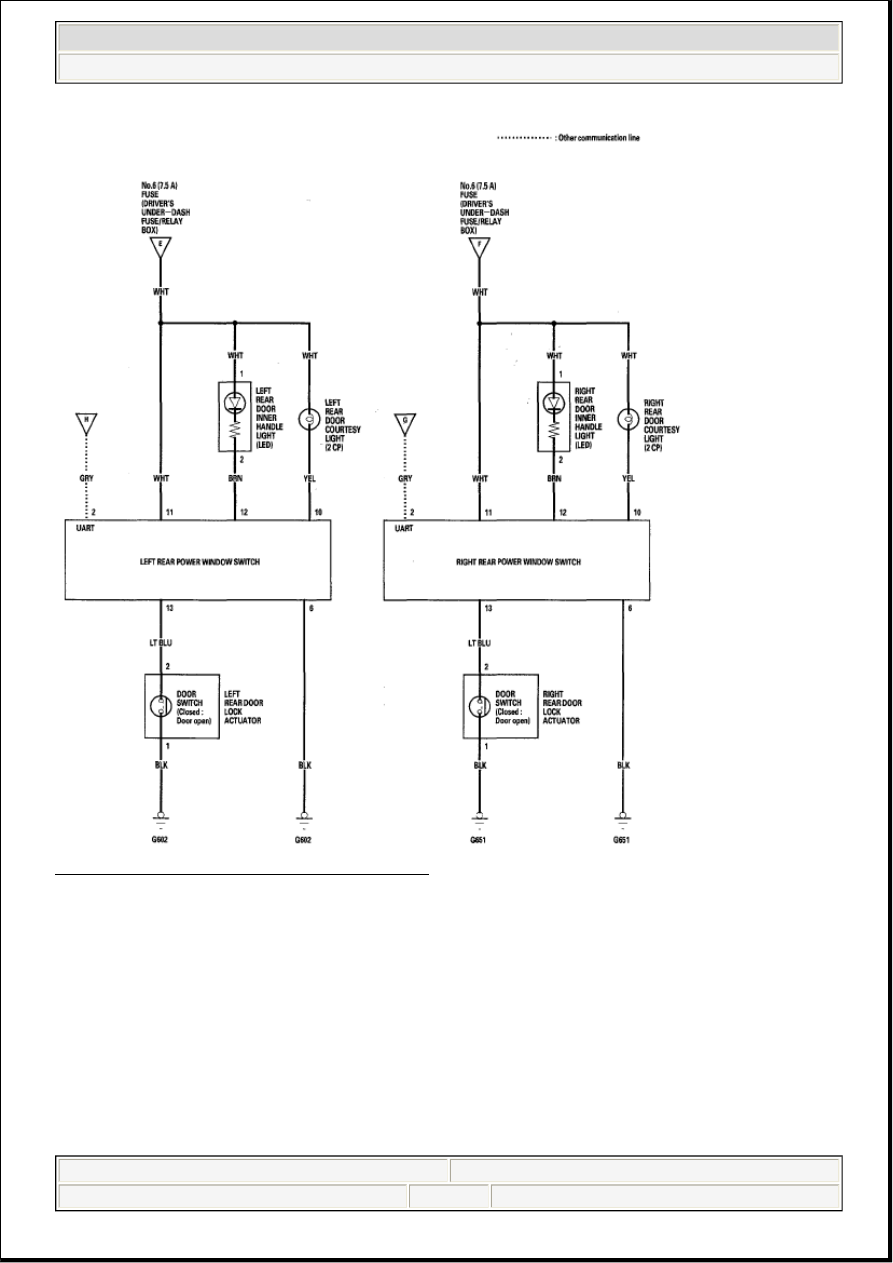

Fig. 10: Interior Lights - Circuit Diagram (7 Of 7)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

ROOF CONSOLE INPUT TEST

1. Turn the ignition switch OFF.

2. Remove the roof console (see ROOF CONSOLE REPLACEMENT).

3. Disconnect the 28P connector (A) from the roof console (B).



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Interior Lights - RL



me



Friday, June 05, 2009 3:31:24 PM

Page 10

© 2005 Mitchell Repair Information Company, LLC.
